2009 Haas SL20T CNC Lathe

2009 Haas SL20T CNC Lathe

Capacity and Travels

• Swing Over Bed: 23.0 inches (584.2 mm).
• Max Turning Diameter: 10.3 inches (261.6 mm).
• Max Turning Length: 20.0 to 24.0 inches.
• Max Bar Capacity: 2.0 inches (50.8 mm).
• X-Axis Travel: 8.45 inches (214.6 mm).
• Z-Axis Travel: 20.0 inches (508 mm).

Spindle Specifications

• Spindle Speed: Maximum 4,000 RPM.
• Spindle Motor: 20 hp (14.9 kW) vector drive.
• Spindle Nose: A2-6.
• Spindle Bore: 3.0 inches.
• Draw Tube Bore: 2.06 inches.

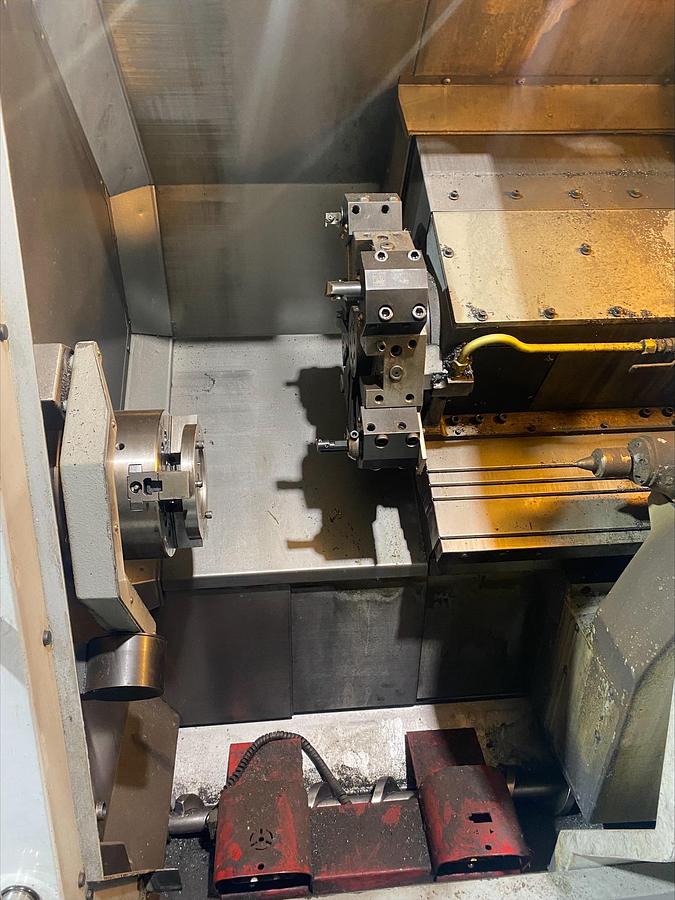

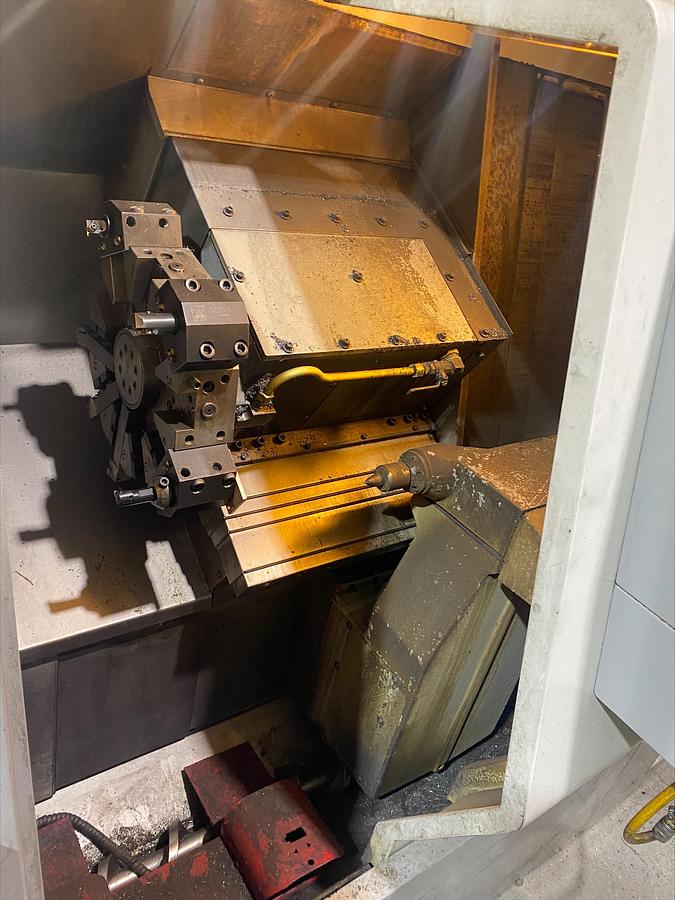

Turret and Feed Rates

• Turret Capacity: 10 or 12-station bolt-on turret.
• Turret Index Time: 1 second.
• Rapid Traverse (X/Z): 710 IPM to 1,000 IPM.

General Dimensions and Power

• Machine Weight: Approximately 9,000 lbs (4,082 kg).
• Dimensions: Approximately 127" L x 74" W x 74" H.
• Electrical Requirements: 208/230 Volt, 3-Phase.

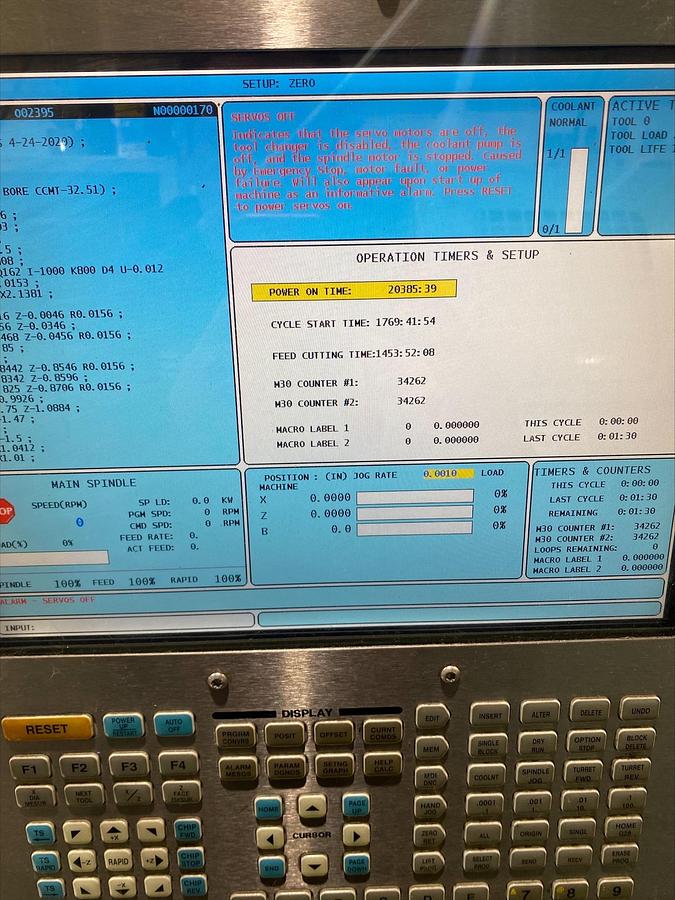

• CNC Control: Haas 32-bit CNC Control.
