Traub TNX65/42 CNC Lathe

Located in Minnesota, this 2007 Traub TNX 65/42 Milling and Turning Center is a versatile, high-precision multi-axis CNC machine designed for complex turning and milling operations. Available for inspection under power, it is ideal for manufacturers requiring integrated milling and turning in a single setup.

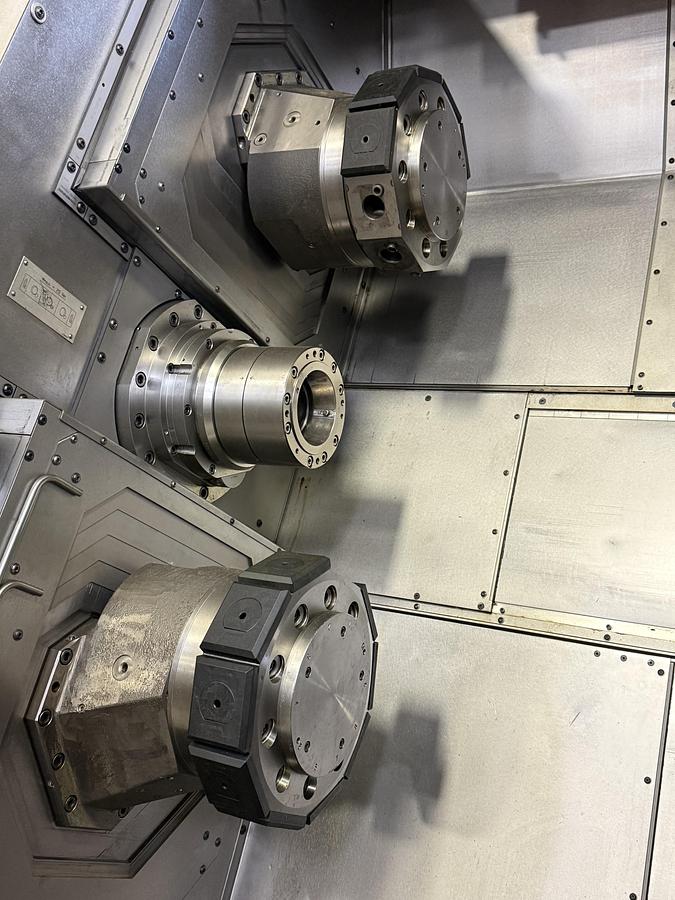

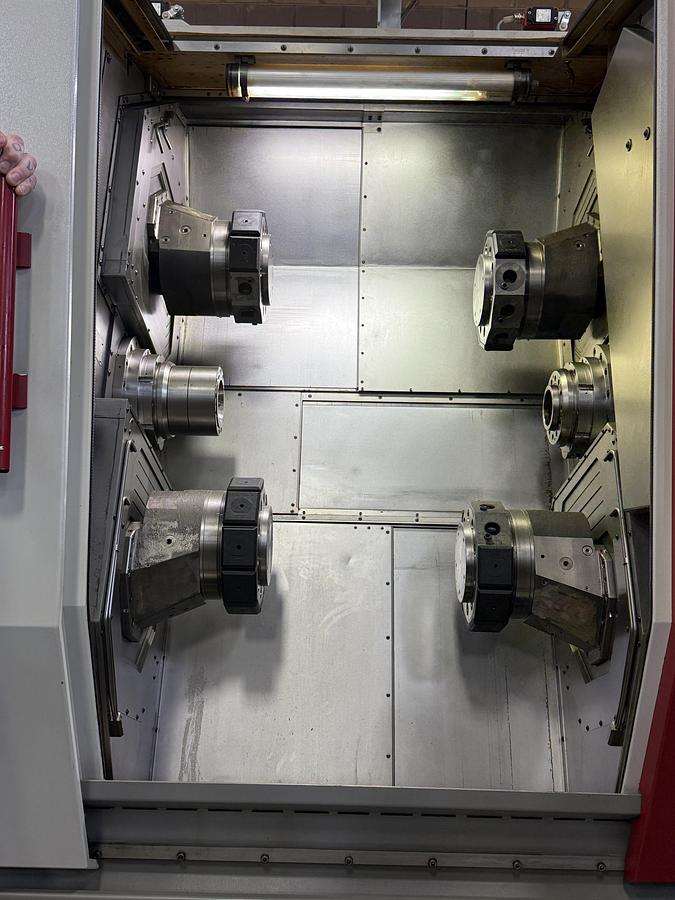

The TNX 65/42 features a 6.8898″ main chuck, 2.5591″ bar capacity, and 32 HP spindle power with 5,000 RPM capability. Equipped with live tooling, a sub spindle with coolant flush, and 15 CNC axes, it supports simultaneous milling, drilling, and turning operations. The machine is controlled via a TX8i-S CNC system (Mitsubishi/Traub based), managing 4 X-Y-Z turrets with 10 positions each, capable of up to 20 tools per turret.

Additional capabilities include:

• Servo-driven gantry receiver and hydraulic swivel with pneumatic finished part and bar remnant gripper

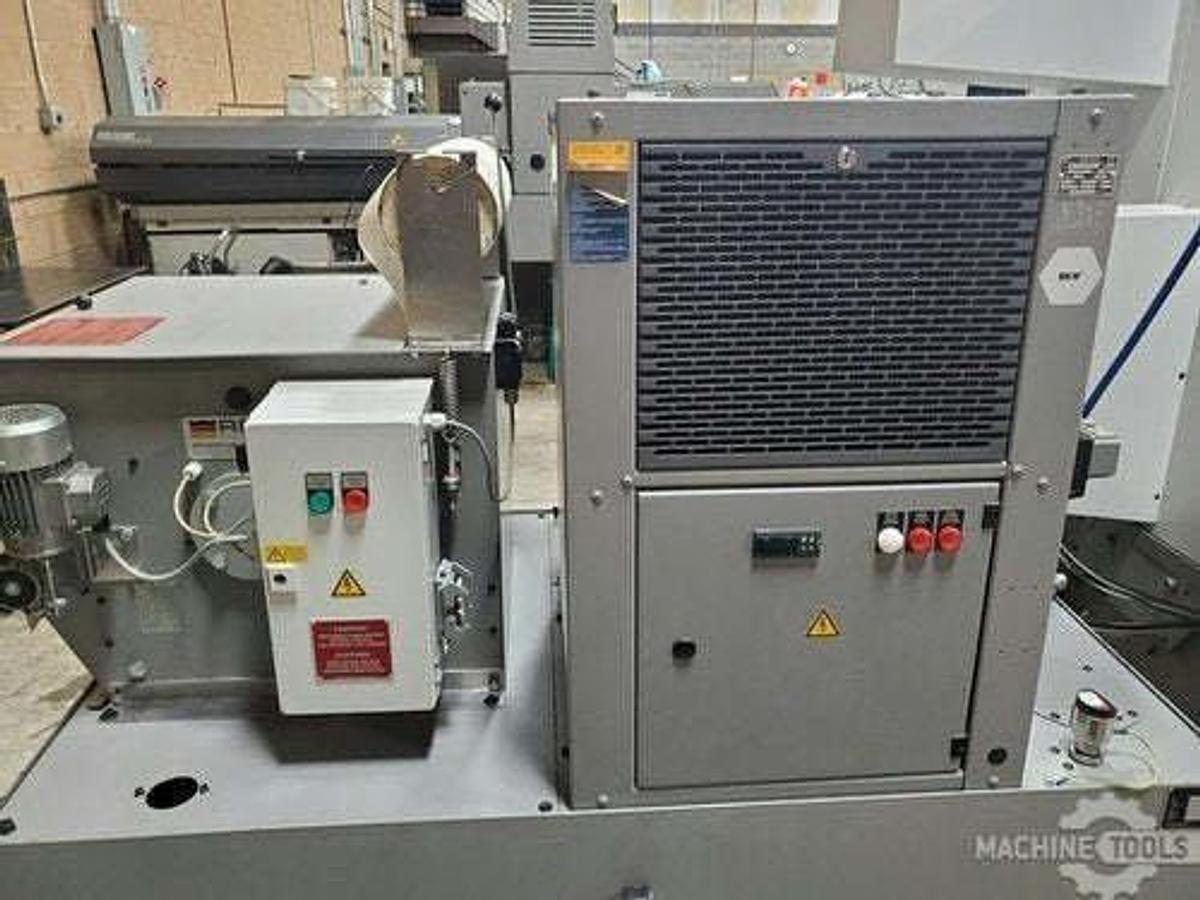

• Finished part conveyor belt and RESY paper band coolant filter with Chiller

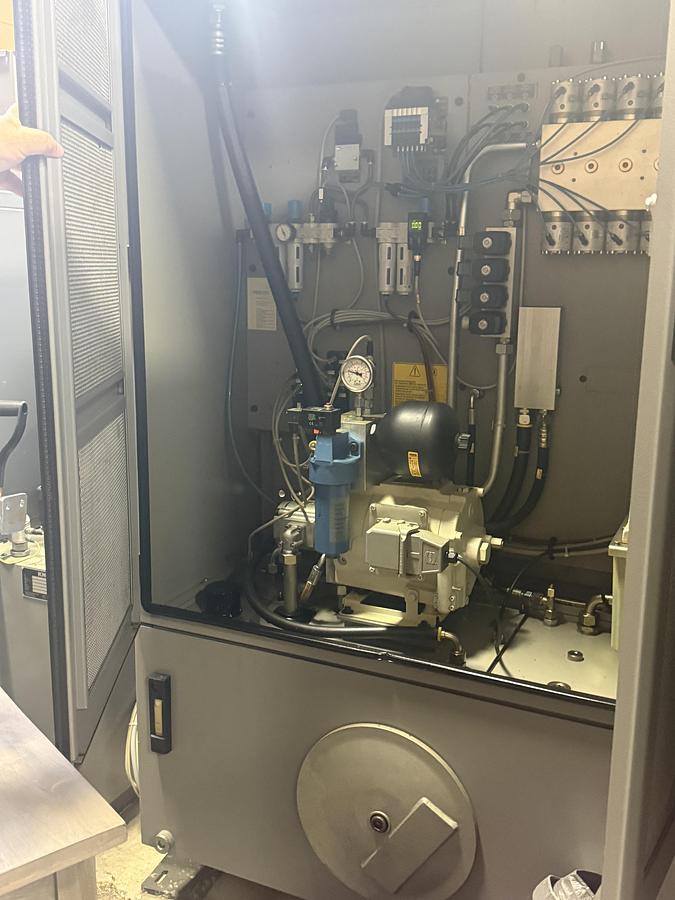

• Knoll coolant tank with BKW refrigerated temperature control, high- and low-pressure coolant pumps
• Knoll chip conveyor for efficient chip removal

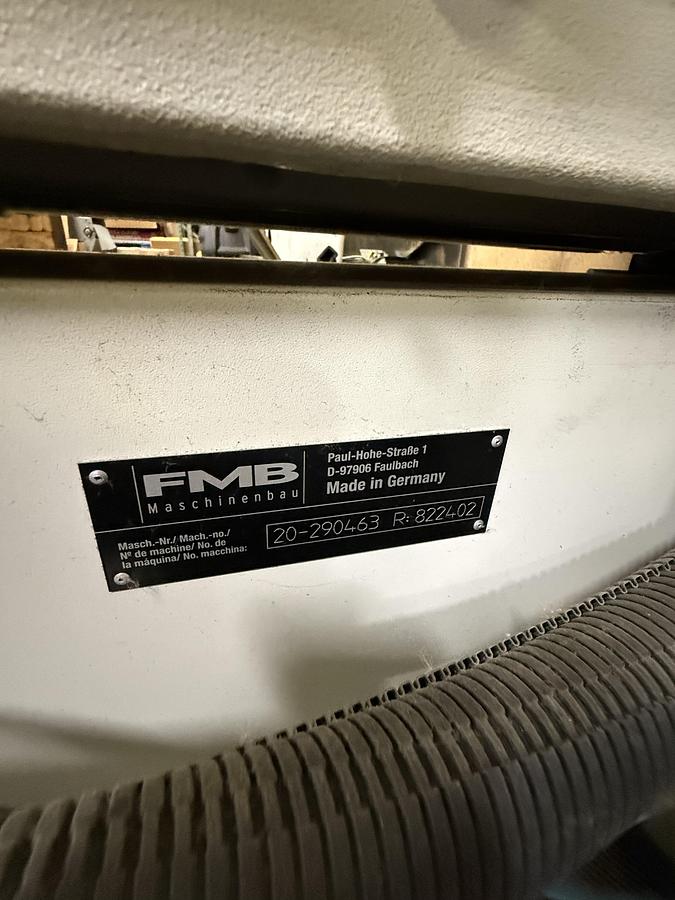

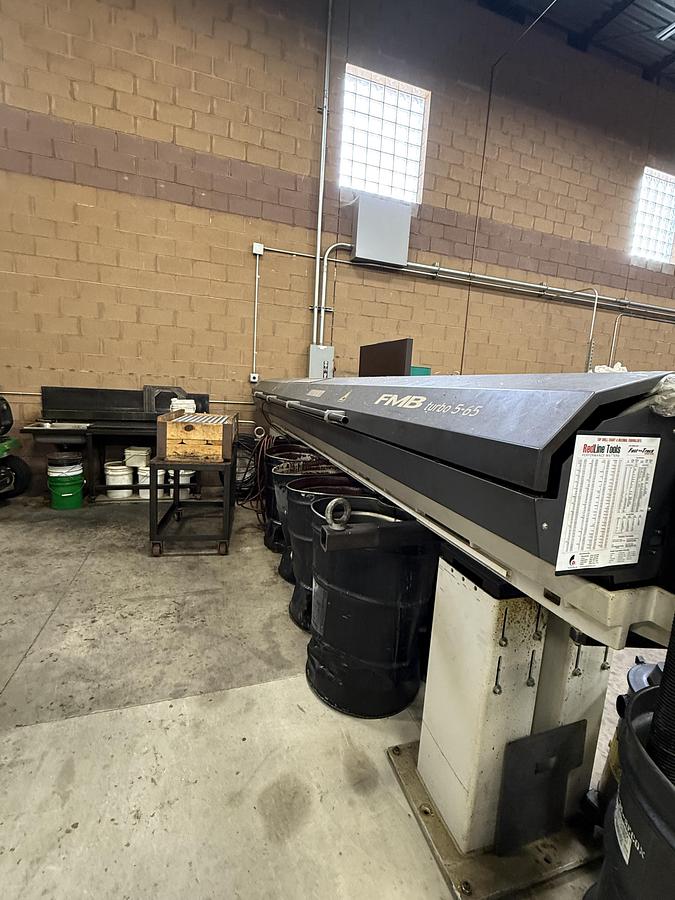

• FMB Turbo 5-55 magazine bar feeder (new 2010)

This unit includes an extensive tooling package with 66 tool holders (many brand new), axial and radial milling/drilling tools, turning stick holders, and a Rohm 2-jaw chuck. Additional spare parts include two complete ballscrew replacements, buffers, clutches, bearing units, and two rebuilt MDS-DH-V2-2020 2-axis 400V amplifiers. Total spare parts replacement cost: $11,450.38.

The Traub TNX 65/42 is fully operational and can be inspected at our Minnesota location. Offered by Source Machinery Sales, this machine provides immediate access to a highly capable multi-axis milling and turning solution, with tooling and spare parts included to support continuous production and minimal downtime.

*All specifications are approximations and are subject to verification

Traub TNX 65/42 Milling and Turning Center

Year: 2007

Serial #: 7060107

Chuck: 6.8898"

Bar Capacity 2.5591"

Power 32 HP

RPM: 5,000 RPM

Live Tooling, Sub Spindle

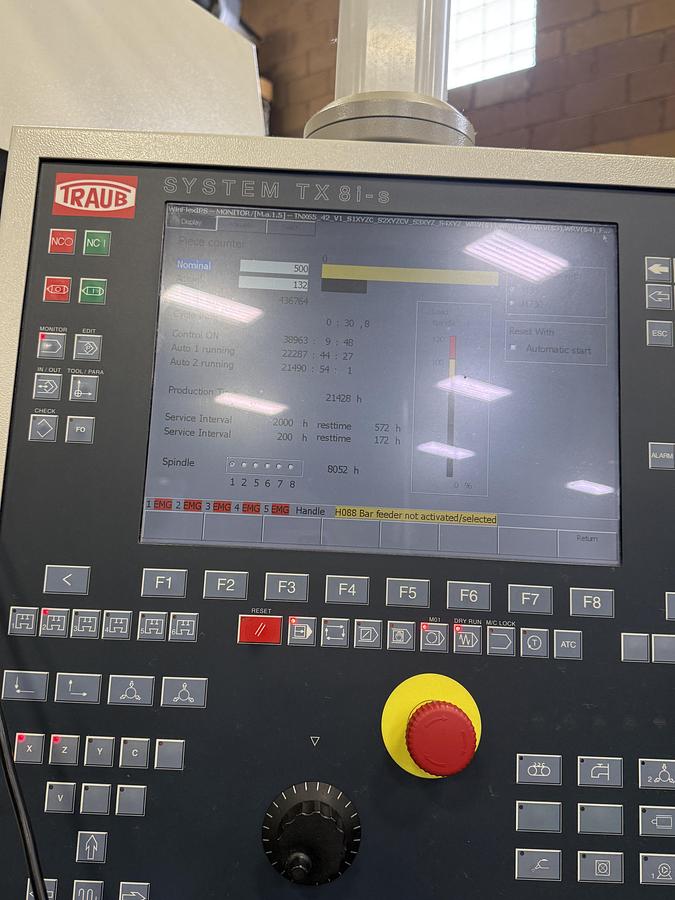

Control: CNC (TX8is)

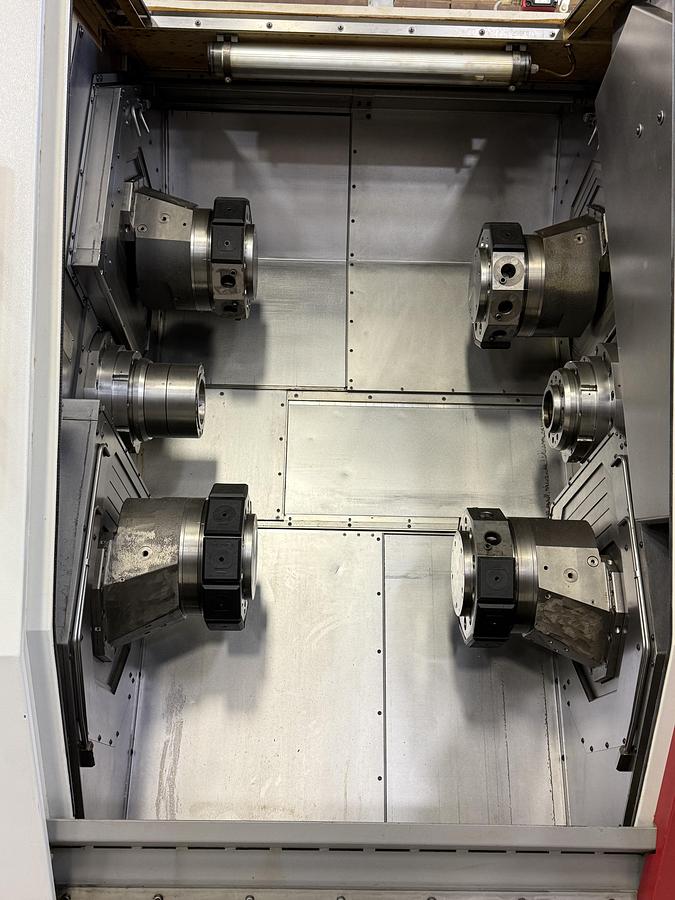

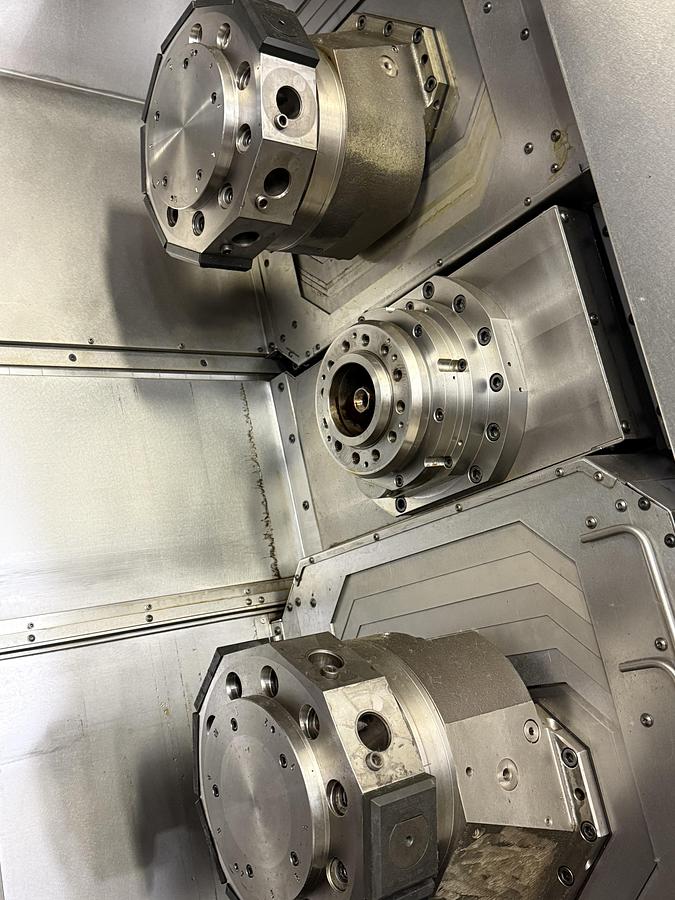

Commissioned in 2010 TX 8i-S control (Mitsubishi/Traub based control with Mitsubishi drives and motors) 15 CNC axis’s (4) X-Y-Z turrets with 10 positions each. Up to 20 tools per turret 65 mm thru hole main and sub spindle (sub spindle has coolant flush) Foot pedal control for clamp/unclamp of spindle chucks Servo driven gantry receiver Hydraulic swivel w/ pneumatic finished part and bar remnant gripper Finished part conveyor belt RESY paper band coolant filter/Chiller Knoll Coolant tank with BKW refrigerated coolant temperature control 20 Bar High pressure and 8 Bar Low pressure coolant pumps Knoll chip conveyor FMB Turbo 5-55 magazine bar feeder (new in 2010) Machine is under power and can be inspected at our Minnesota

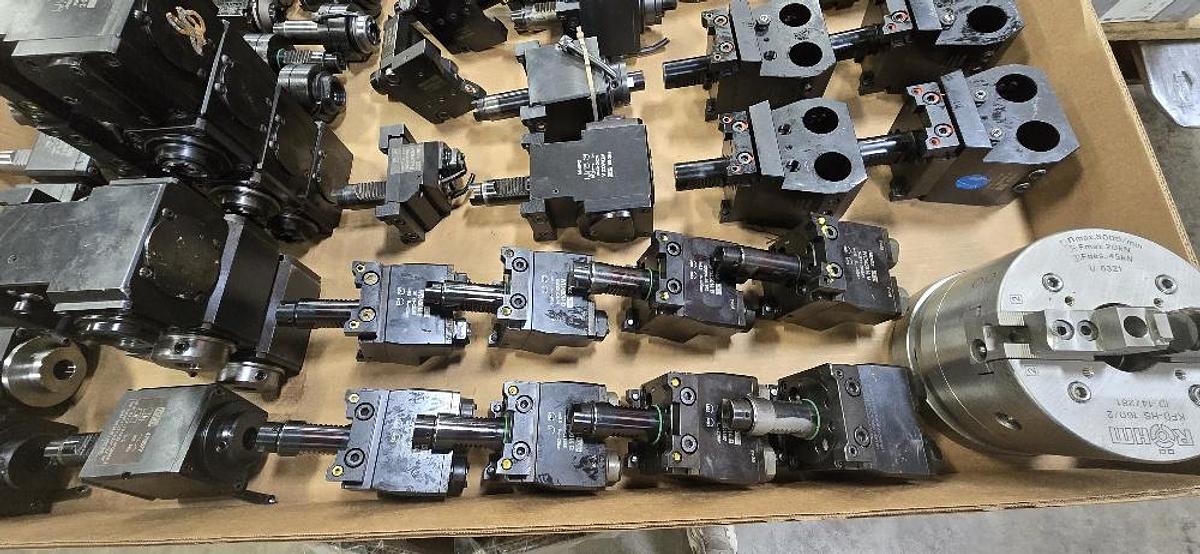

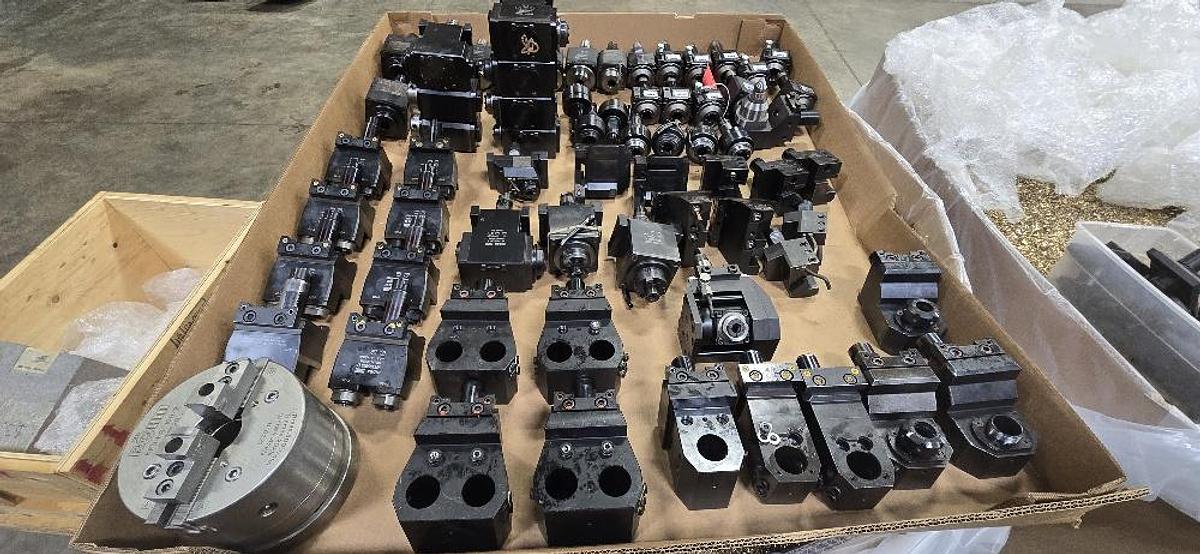

Tooling Package included:

2 475577 Axial Milling/ driven

3 W68500.0200 Axial Drilling/ER collet/ Driven

3 W1340057 Radial drilling/ER collet/Static

1 W1340048 Radial boring head/ bushing/ static

2 475568 Radial boring head/ bushing/ static

4 W1340052 Twin Radial boring head/ bushing/ static

8 W1345014 Twin Axial drilling/ ER collet/ driven

5 W1305021 Axial Milling/ End Mill/ driven

10 40.3025G300IM EWS Axial Drilling/ER collet/ Driven

1 40.3020WNG300 EWS Axial Milling/ End Mill/ driven

3 W1300000 Turning stick holders

1 W9990259 Cut-off holder with W1340039 Base

1 W1330000 Radial VDI adaptor/ with Bruckner 700E055VDI30 live center support

2 W1300002 Single Stick Turning tool holder

2 W1340033 Double Stick Turning tool holder

1 W9990026 Cut off holder with W1340015 Base

1 W1345009 Single/ Axial Drilling/ ER collet/ Driven

4 W130500 Axial ER Collet Drilling/ Driven

1 W68510.0400 Axial EM holder/ Driven

1 W1335010 Angle Adjustable Drilling ER collet/ Driven

2 W1345013 Axial Shell Mill Holder/ Driven

2 475588 Radial EM holder / Driven

6 W1345000 Radial ER collet/ Driven

66 total tool holders. Some tool holders on this list are brand new never been used.

1 KFD-HS 160/2 Rohm 2 Jaw Chuck

Spare Parts for 2 complete Ballscrew replacements

4 10419381 Buffer 445.80

2 10880634 Ball Screw 3781.66

2 10441861 Clutch 544.02

2 10716639 Bearing Unit 6678.90

Total Cost $11,450.38

2 MDS-DH-V2-2020 2 axis 400v Amplifier (rebuilt by Mitsubishi)
