Ganesh Cyclone 52TTMY Twin Turrett CNC Turning Center

Ganesh Cyclone 52TTMY Twin Turrett CNC Turning Center

$107,500 (USD)

Location:California

Description

Make: Ganesh


Model: Cyclone 52TTMY CNC Lathe

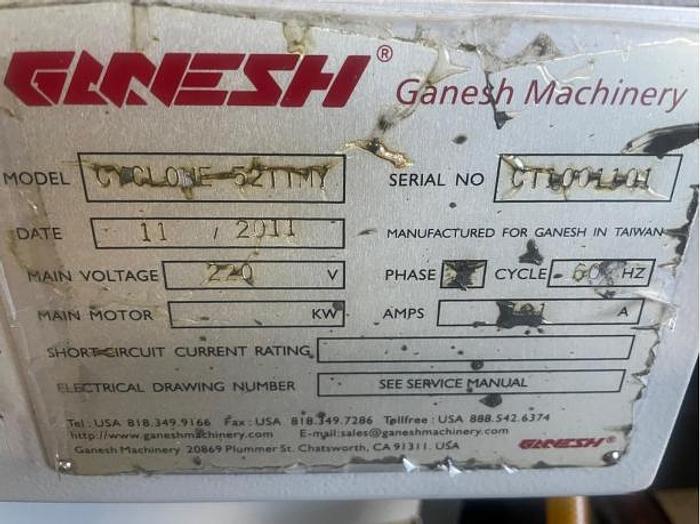

S/N: CT1001101


Year: 2011

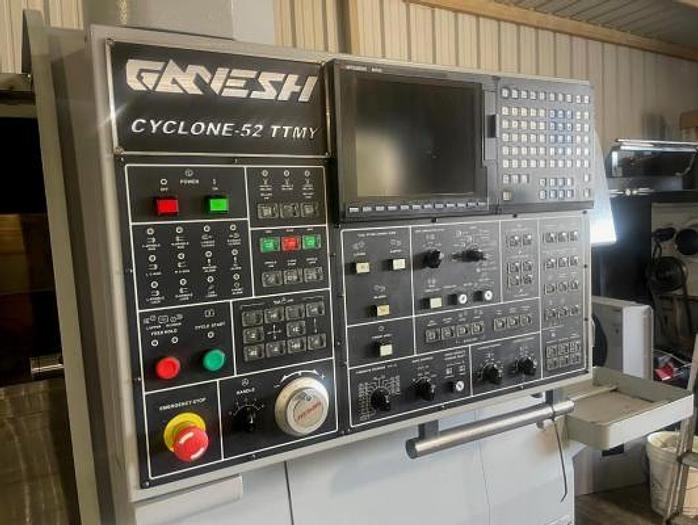

Controls: Mitsubishi M700


Live Tool Capable: Yes


Capacity:

Max Turning Diameter : 7.48″

Max Turning Length: 31.1″

Max Bar Capacity : 2.0″

Distance Between Spindle Centers: 36.0″


Travels:

X1 Axis Travel Upper Turret: 5.94″

X2 Axis Travel Lower Turret : 9.05″

Y1 Axis Travel Upper Turret: -/+1.38″

Z1 Axis Travel Upper : 17.32″

Z2 Axis Travel Lower : 17.32″

B Axis Travel: 25.59″ ( Sub Spindle )

C Axis: 360° (0.001°) Both Spindle

Feedrate:

X1, X2 Axis: 630 IPM Rapid Traverse

Y1 Axis: 236 IPM Rapid Traverse

Z1, Z2 Axis: 1573 IPM Rapid Traverse

B Axis: 1573 IPM Rapid Traverse

Spindle:

Main Spindle Bore: 2.40″

Sub Spindle Bore: 2.40″

Main Spindle Nose: A2-5

Sub Spindle Nose: A2-5

Main Spindle Speed: 6,000RPM

Sub Spindle Speed: 6,000RPM

Main Spindle Power: 20HP

Sub Spindle Power: 20HP

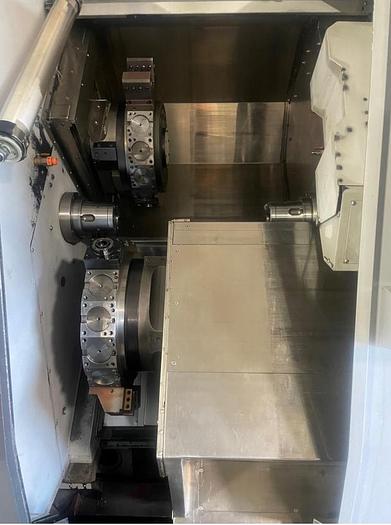

Turret:

Upper Turret Capacity: 16-Stations

Lower Turret Capacity: 16-Stations

Live Milling Speed: 6,000 RPM

Live Milling Motor: 7 HP

Tool Size: 1″

Tool Holder Type : BMT 65

Electrical: AC 220v / 3-Phase / 60 Hz


Machine Dimensions: 150″x105″x90″ High


Machine Weight: 22,500 lbs Approx.

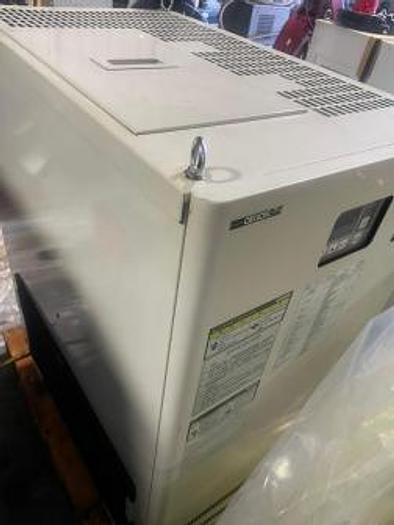

Includes: Coolant Pan/Chip Conveyor, A2-5 Spindle Nose, Mist Buster Unit, Spindle Chiller and all Available Manuals.

Specifications

ManufacturerGanesh
Model52TTMY
Year2011
ConditionUsed
