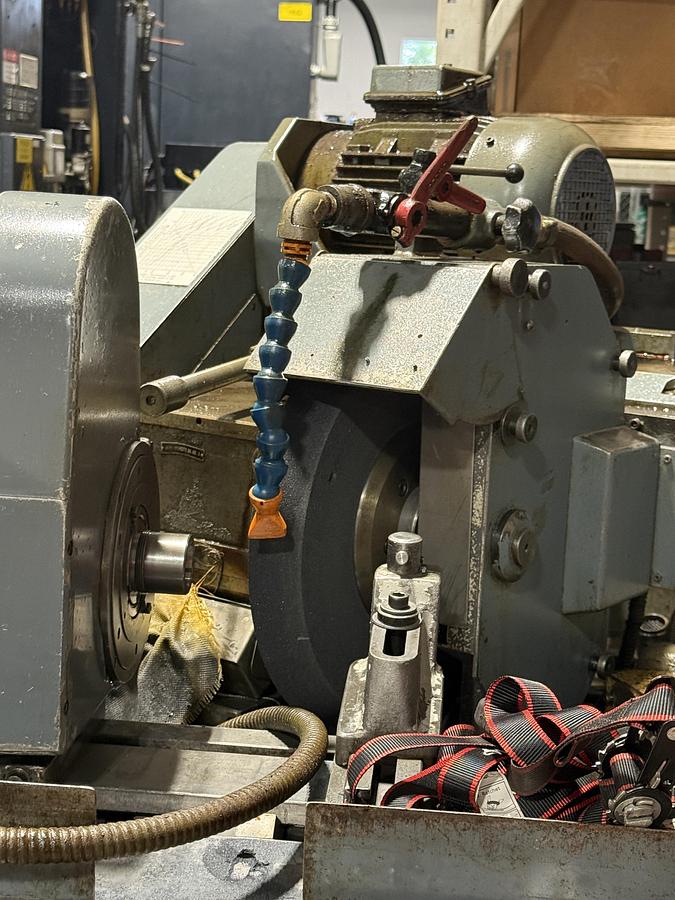

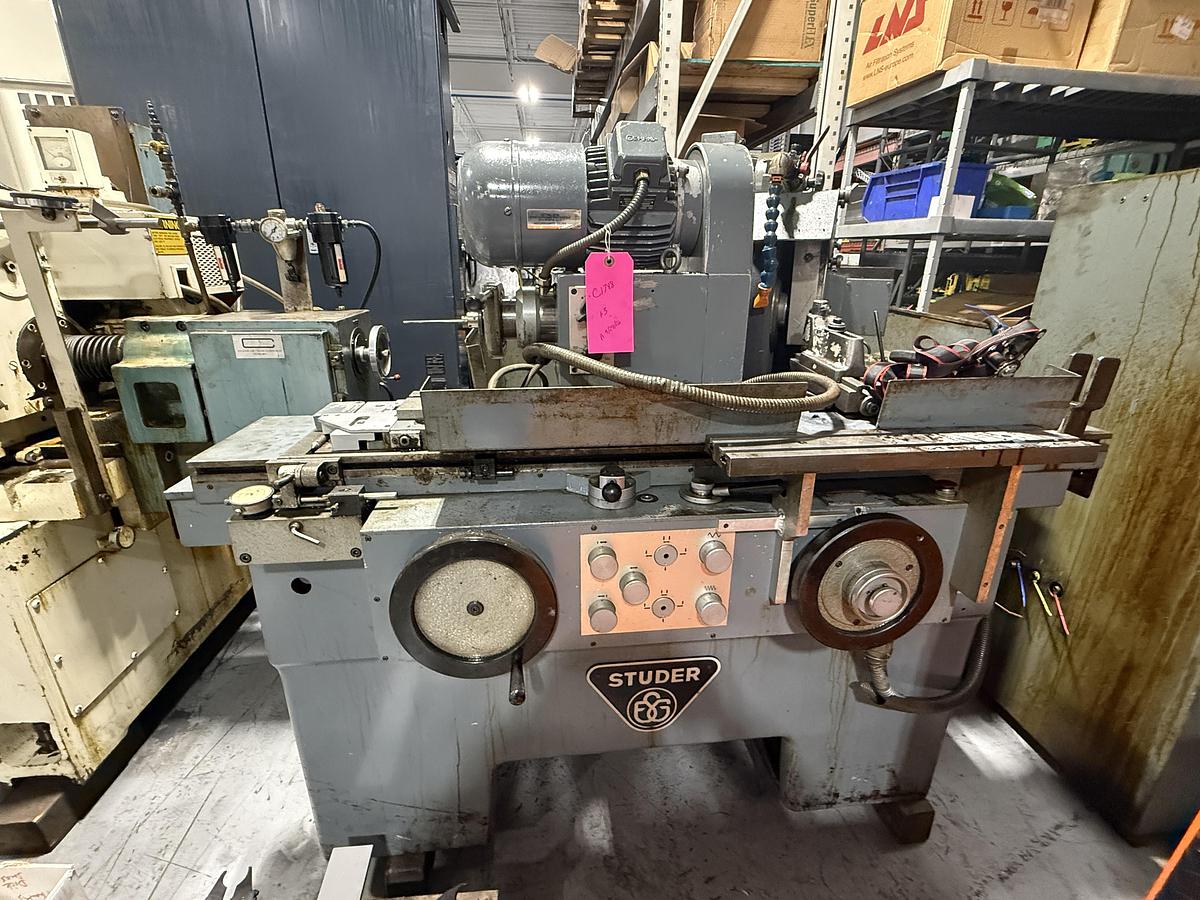

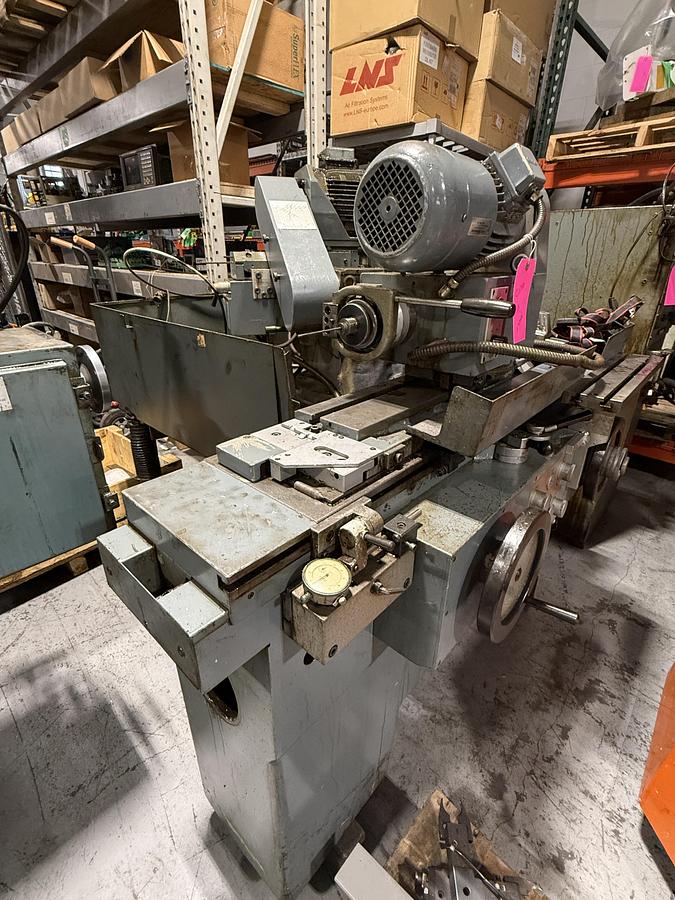

Studer RHU 400 Universal Cylindrical Grinder

Manufacturer: Studer Universal Cylindrical Grinder

Model: RHU 400

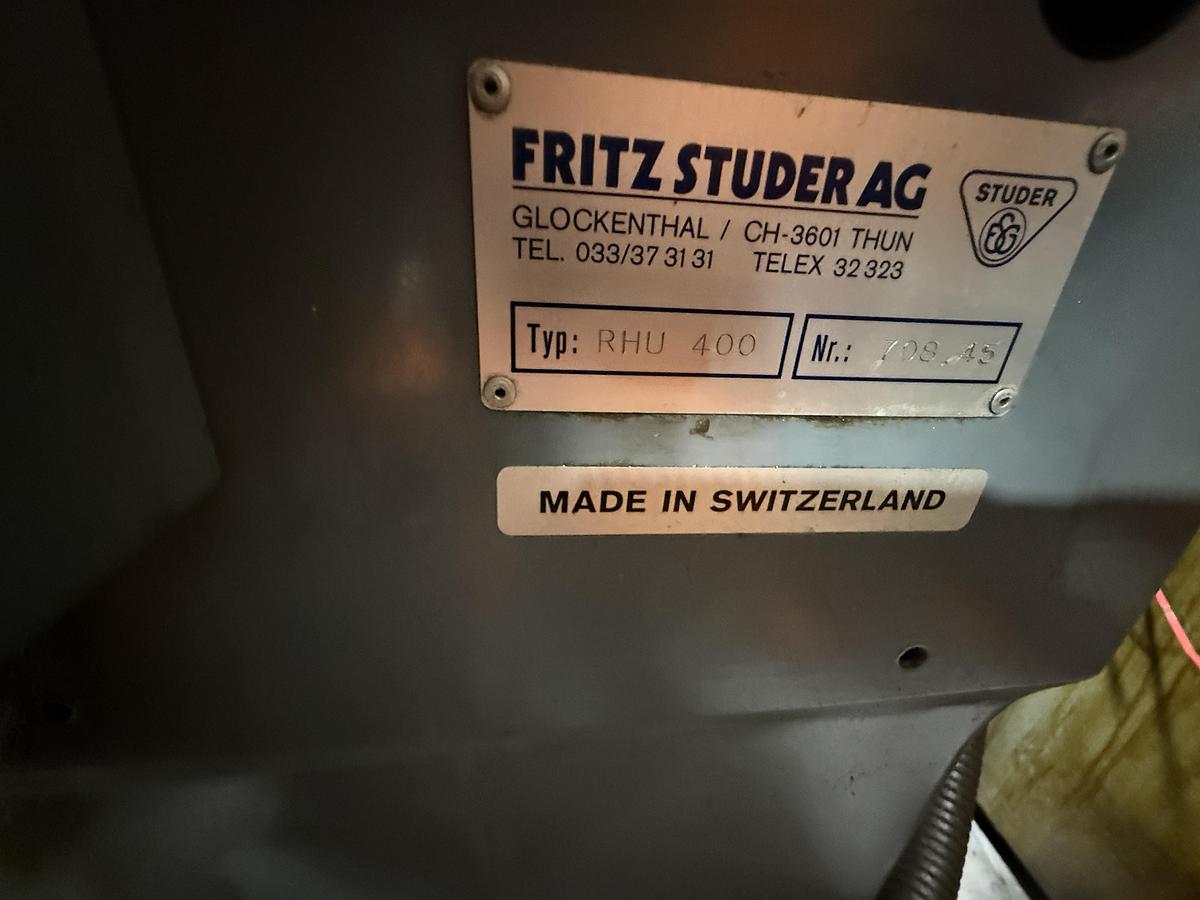

Serial#: 708.45

Year: 1980's

Center Height: 400 mm

Distance between centers: 400 mm

Max. Longitudinal travel: 440 mm

Grinding wheel: 400x50x127 mm

Max. grinding diameter: 250 mm

Table load max.: 80 kg

Workpiece weight on centers max.: 80 kg

Grinding wheel speeds: number (steps) 3, 1500-1800 rpm

Angular displacement: +/- 45 °

Work piece spindle head: -speeds stepless 30-675 rpm

-rotatable 90 °

Spindle taper: 5 MT

Taper in tailstock: 3 MT

Table speed stepless: 0.05-5.50 m/min

External Grinding wheel motor: 3 kW

Approx Weight: 1500 kg

Price: $9,500

*All specifications are approximations and are subject to verification

Rigging and transportation are the responsibility of the purchaser.
