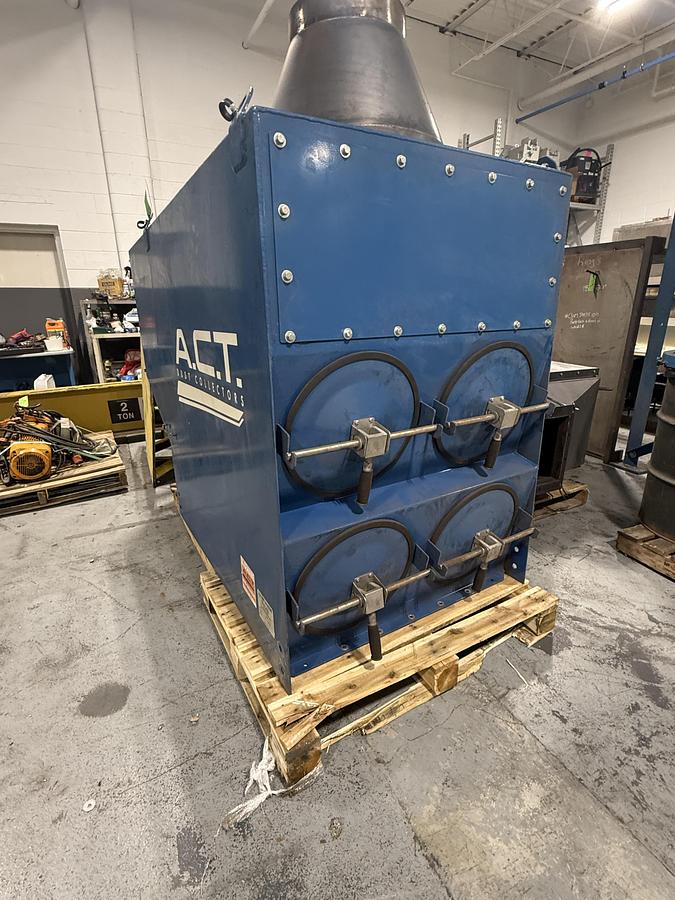

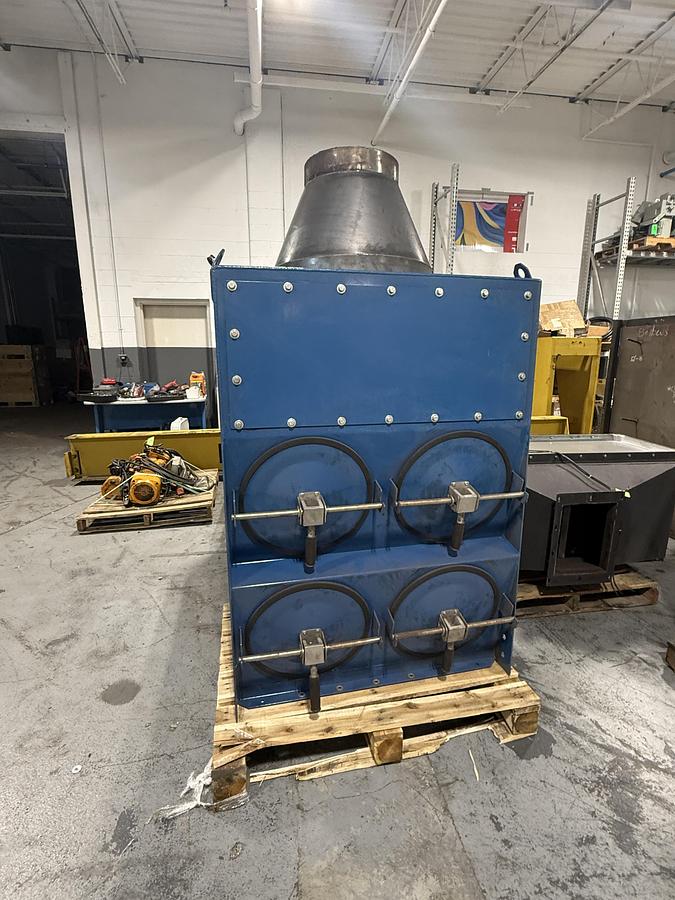

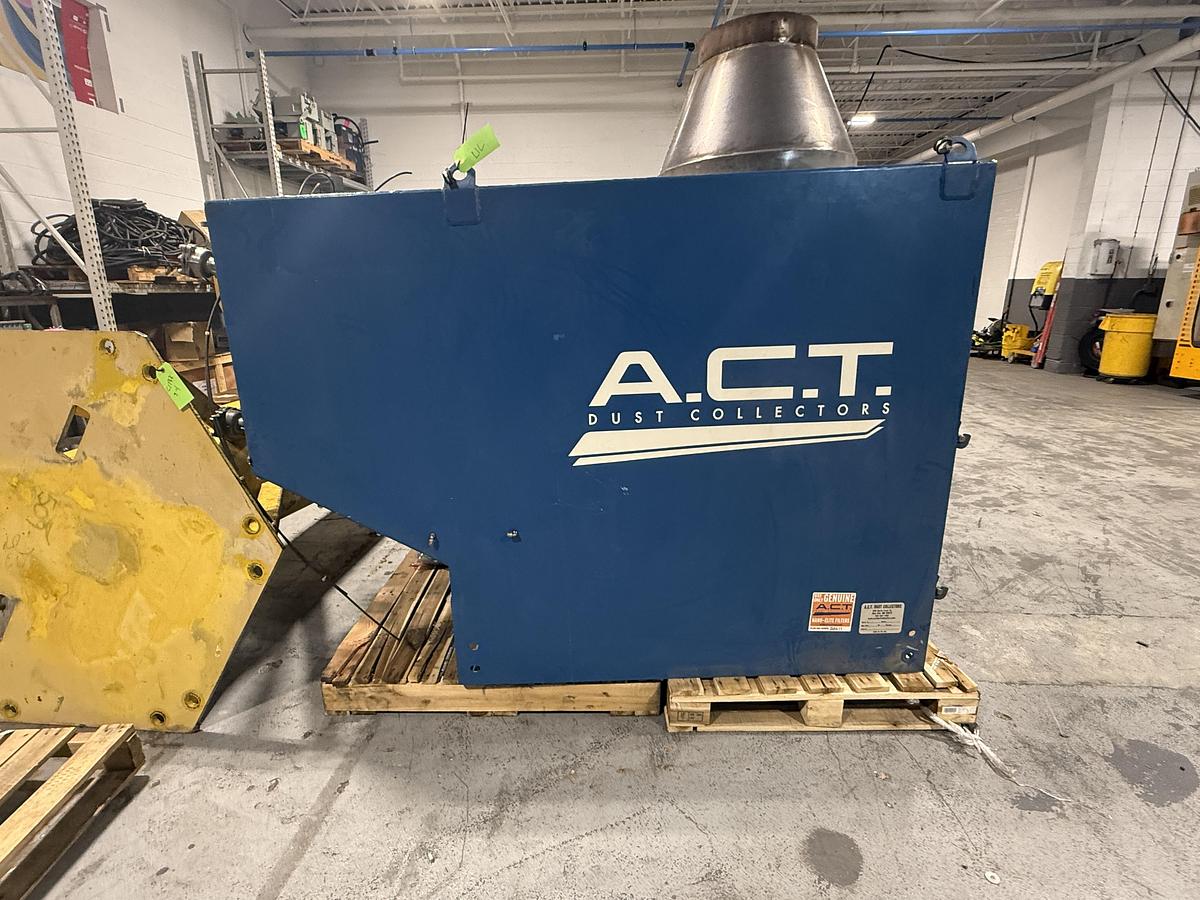

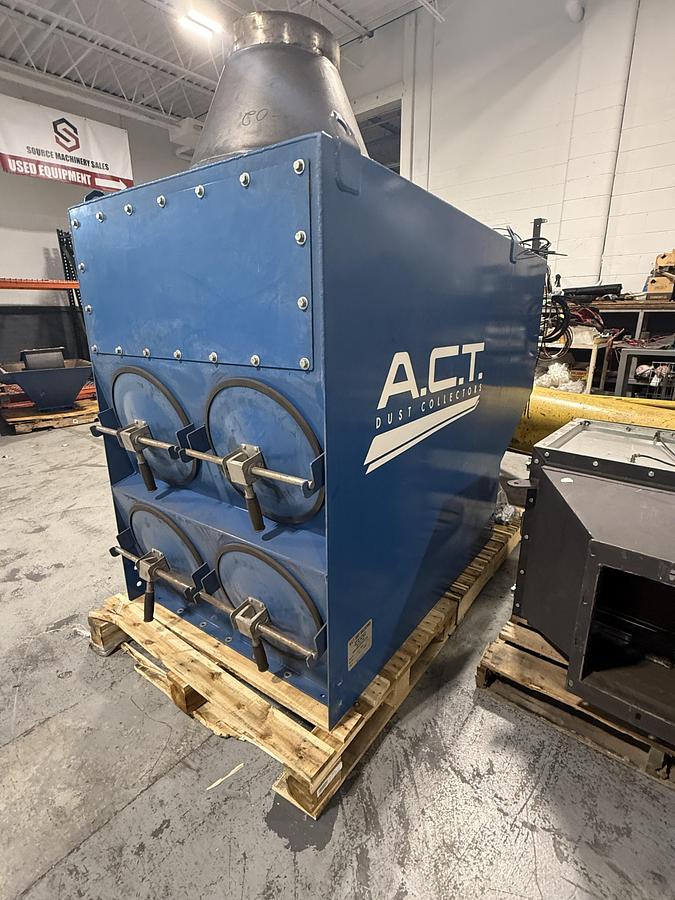

A.C.T. Dust Collector

Manufacturer: A.C.T. Dust Collector

Model: 2-8

Serial #: 17115

Year: 2023

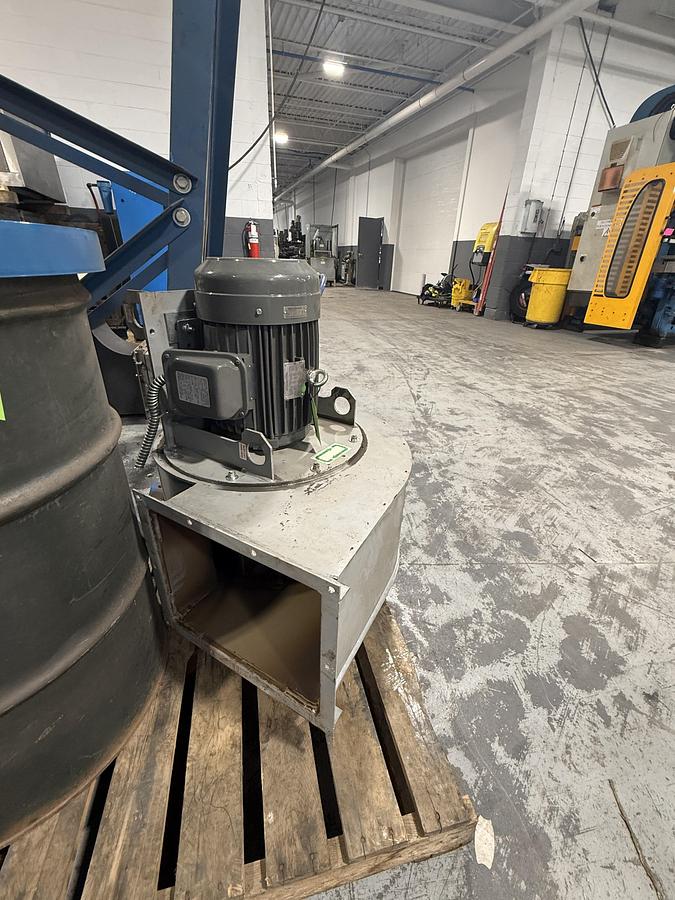

Motor: 10 HP

Electrics: 208W

Includes: Ducting

'Specifications:

• 8 cartridge down flow dust collector
• 2,032 sq. ft. filter media
• Rated for up to 7,000 CFM
• ACT Nano-Elite nano-fiber filters
• Industry leading MERV 15 efficiency rating
• Filters are 99.9% efficient
• Reverse pulse filter cleaning system
• Pulse control timer board with built-in digital pressure gauge
• Goyen solenoid and diaphragm valves
• ACTion cam lock quick access door for cartridge filters
• Heavy duty 7 and 10 gauge construct

Advantages of the ACT 2-8

The ACT 2-8 is a compact dust collector with a small footprint for applications including metalworking, weld smoke and fumes, blasting, plastics and many more. Typically, the ACT 2-8 would be found collecting dust and debris for a smaller area in a facility.

The downward airflow technology of this horizontal cartridge style dust collector, maximizes the airflow in the collector to assist with dust separation. The 2,032 square feet of media in the ACT 2-8 will help to ensure the dust collection system is operating at optimum performance.
