EQUIPMENT SPECIFICATION

Global Finishing Solutions Powder Coat Oven Line

Two-Zone System: Infrared (IR) Pre-Heat Oven + Gas-Fired Convection Cure Oven

Manufacturer: Global Finishing Solutions (GFS), L.L.C. — Osseo, WI / Dallas, TX

Drawings Referenced: U11343-A (Sheet 1 of 7) — Convection Cure Oven, Struct./Panel/Duct U11343B-01 (Sheet 1 of 2) — IR Oven

This specification summarizes the equipment configuration, construction, dimensions, and utility requirements for a two-zone Global Finishing Solutions (GFS) powder-coat finishing oven line, compiled from GFS general-arrangement drawings U11343-A (convection cure oven) and U11343B-01 (infrared pre-heat oven). Line also includes an approximately 900 ft. overhead conveyor trolley chain (rebuilt) rated 800 lb. per trolley, X458 chain, connecting the two oven zones. Figures below are taken directly from the manufacturer's drawings; field verification is recommended prior to resale, relocation, or reinstallation.

1.  Infrared (IR) Pre-Heat Oven — Dwg. U11343B-01

1.1  General Description

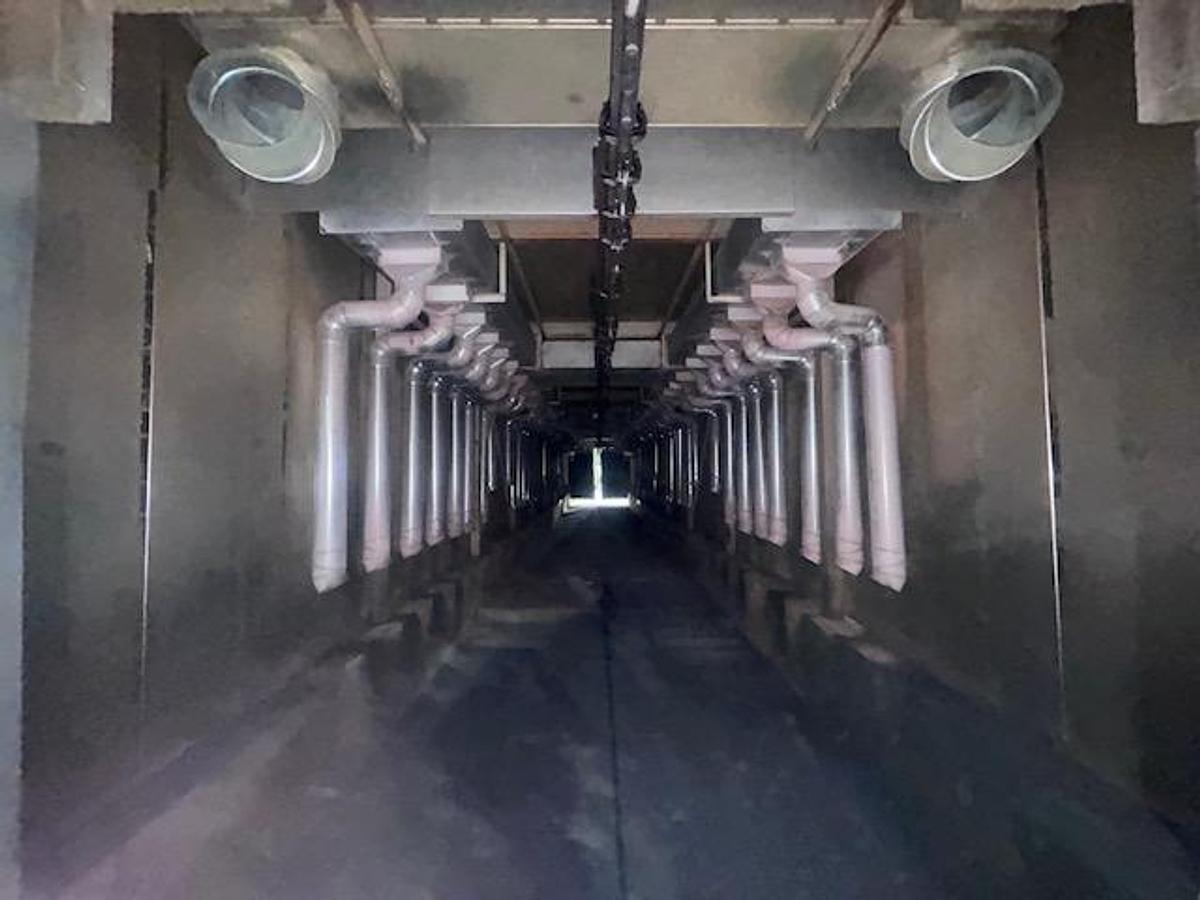

Gas catalytic infrared oven used as the first stage of the finishing line, arranged as two in-line modular sections joined by a bolt-together seam.

1.2  Construction

Fabricated from 18-gauge aluminized sheet steel; pre-punched and companion-flanged for bolt-together field assembly.

Support columns fabricated from 18-gauge aluminized steel.

Two (2) modular sections, each with its own bank of infrared emitters, joined at a bolt-together seam.

Vestibule at oven entry; fresh-air openings (typical) at floor level of each section for combustion/process air.

1.3  Heating System

GAS CATALYTIC INFRARED HEATERS

Emitters per Section: 8

Total Emitters: 16

Output per Emitter: 45,300 BTU/hr

Total Heat Input: 724,800 BTU/hr

1.4  Dimensions

OVERALL / PLAN

Overall Width (plan): 12'-1 1/2"

FRONT ELEVATION

Part Opening (width): 5'-0"

Working Width: 6'-0"

Overall Booth Width: 8'-0"

Part Opening Height: 7'-0"

Overall Oven Height: 8'-2"

SIDE ELEVATION

Vestibule: 3'-0"

Working Depth (per section): 4'-10" x 2 sections

Total Working Depth: 10'-0"

Overall Oven Depth: 10'-4"

Overall Depth incl. Vestibule: 13'-4"

2.  Gas-Fired Convection Cure (Bake) Oven — Dwg. U11343-A

2.1  General Description

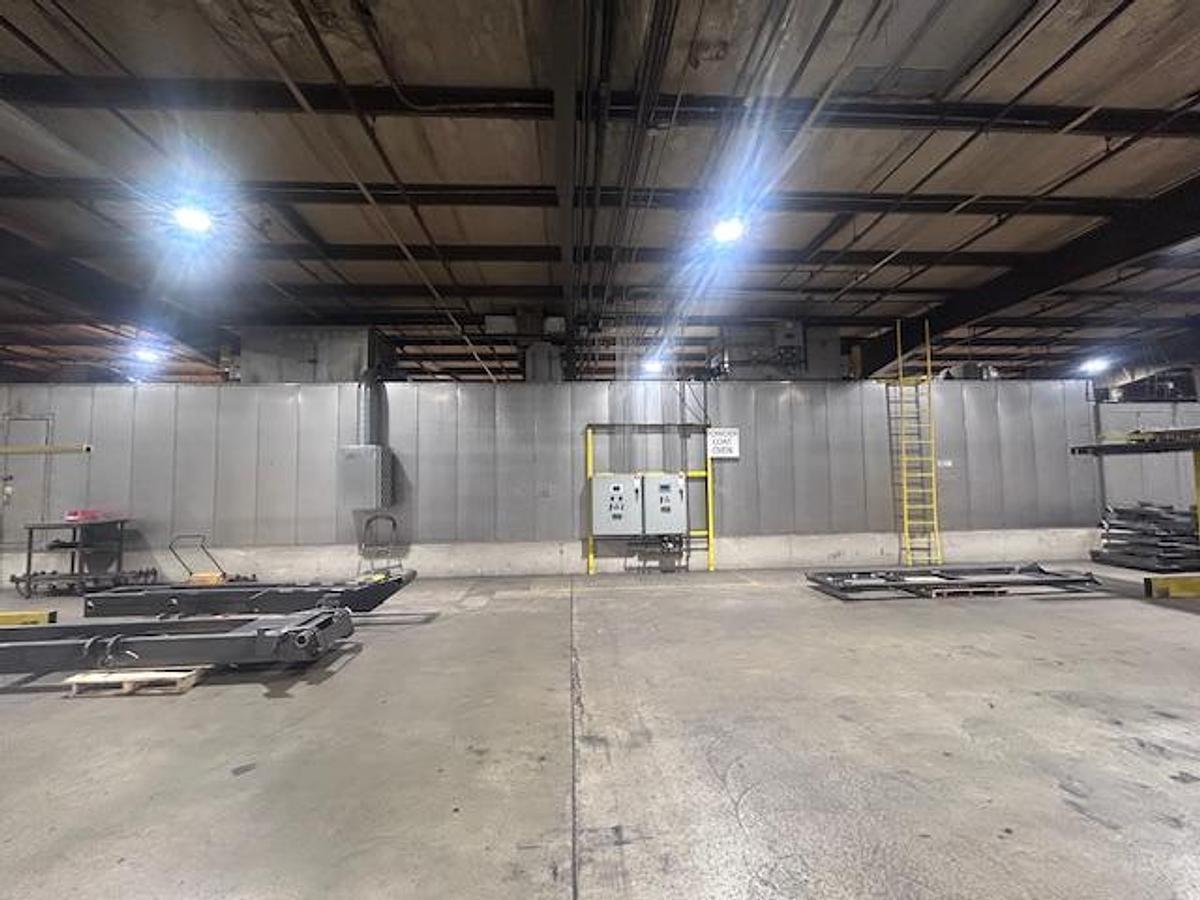

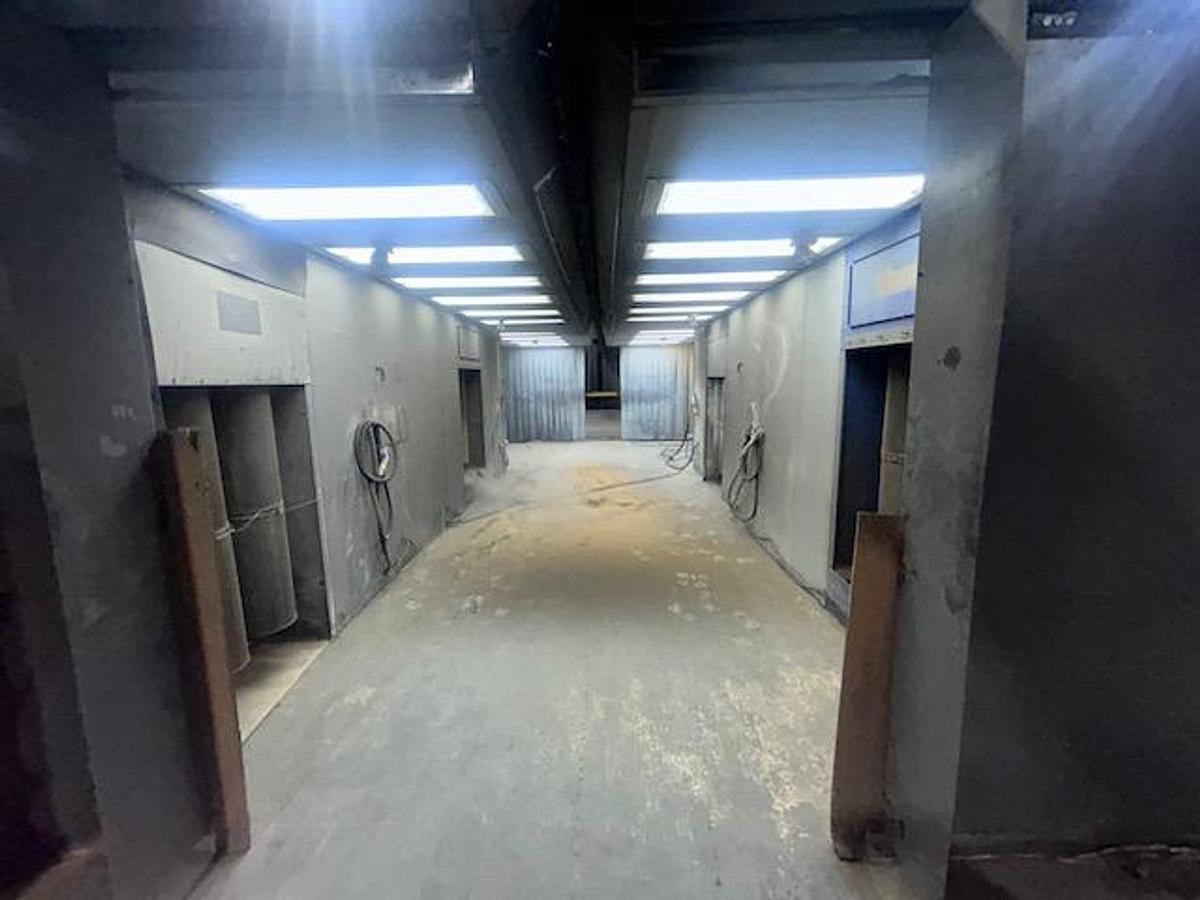

Gas-fired convection cure oven, welded structural assembly with a separately shipped, modular insulated heater box. Sized for a 10'-8 3/4" wide x 71'-0 3/4" long tunnel with a 7'-0" working (part) opening height.

2.2  Construction

Weld-together assembly design.

Heater box is of modular, insulated design and ships loose from the oven for field installation.

Panel thickness: 4"  |  Insulation density: 6 lb.  |  Structure type: tube frame.

4" insulated floor throughout; divider walls at 2'-0" from each end with a heat-seal curtain.

Two (2) man-access doors, 26-3/8"W x 84"H x 4" thick (Part # 412-033-4).

2.3  Utilities Required (Customer to Supply)

PROCESS CONDITIONS

Operating Temperature: 450°F

Maximum Temperature: 500°F

Gas Type: Natural Gas

Gas Supply Pressure: 2 PSI at gas train (customer-supplied)

ELECTRICAL

Operating Voltage: 480V / 3-Phase / 3-Wire / 60 Hz

Full Load Amps: 52 A

Largest Motor: 15 HP

Total Connected HP: 37 HP

Main Breaker: 80 A

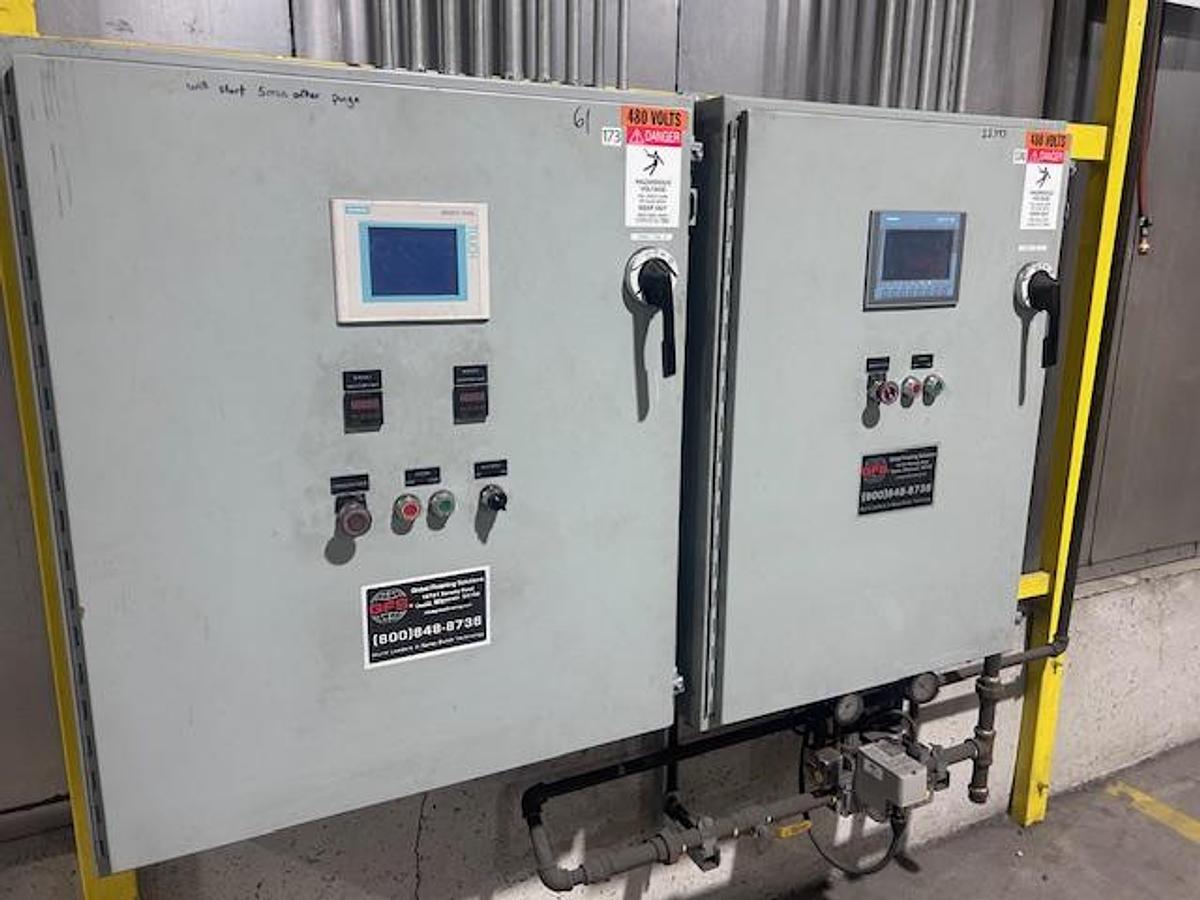

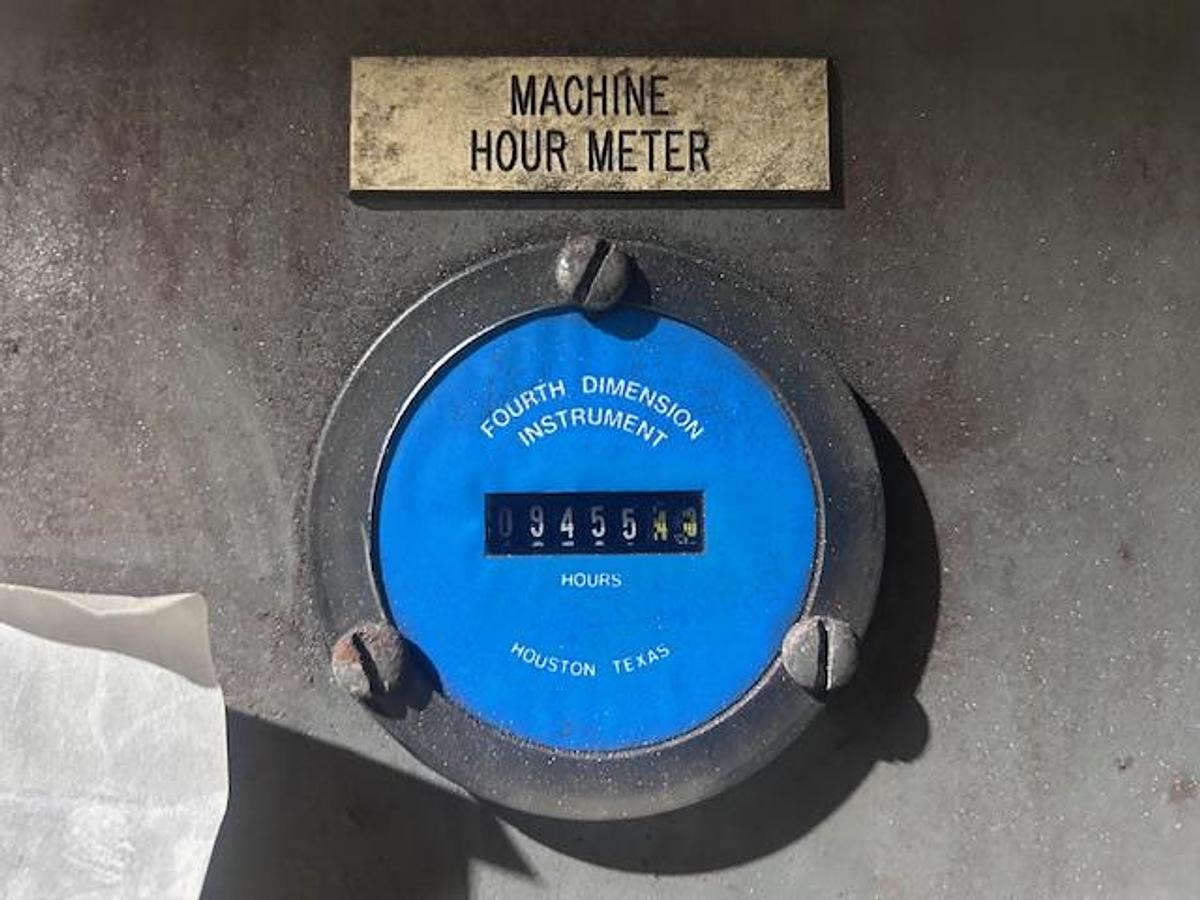

Control Panel: (1) NEMA 12 control panel, 480V-3PH (included); customer supplies main power to panel

2.4  Major Equipment Schedule

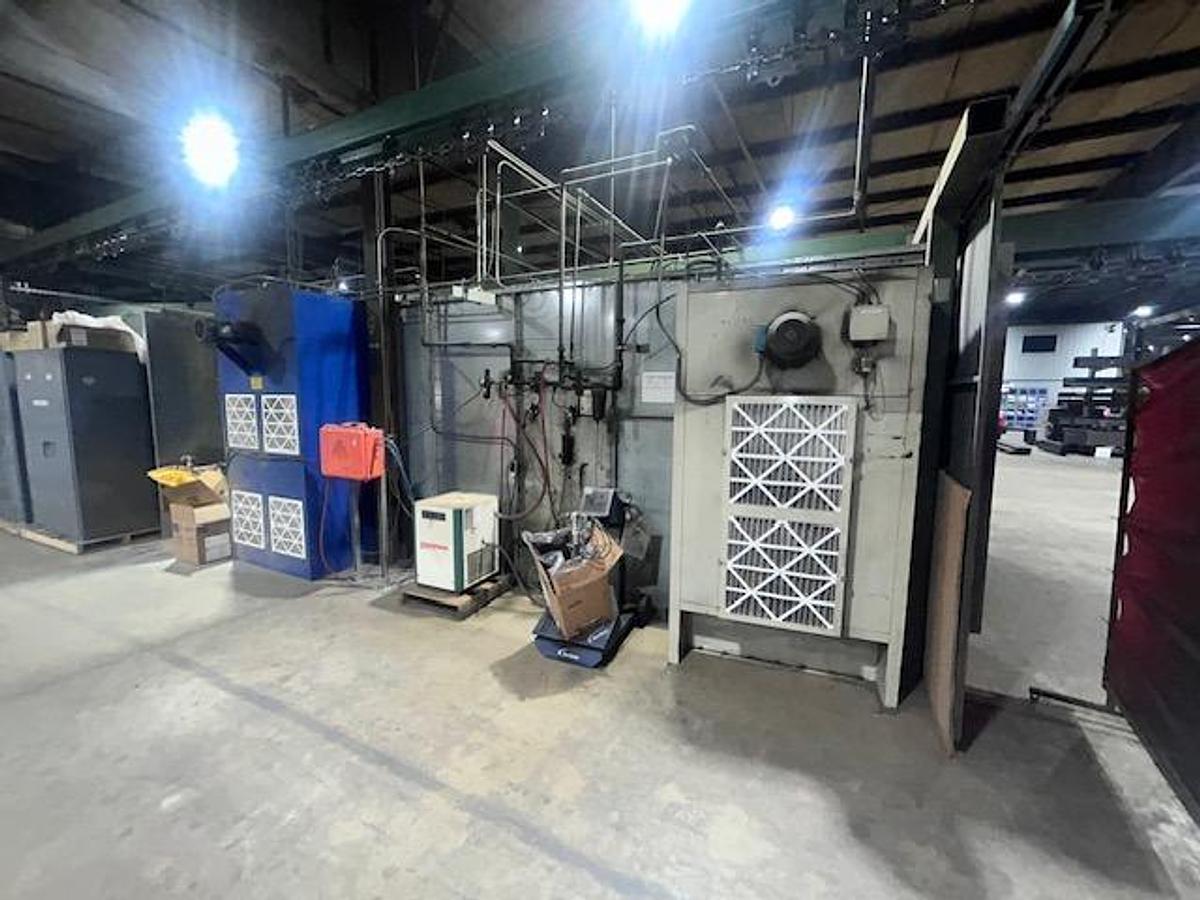

HEATER BOX — PLUG FAN

Make / Size: Twin City / BCPL 270

CFM / Static Pressure: 15,500 CFM / 3" SP

Motor: 15 HP, 208/230/460V, 3-Phase (qty. 2)

BURNER

Make / Rating: Maxon / 1.5 MMBTU/hr

Configuration: Hand-piped, right-hand; Part # 260-272 (qty. 2)

GAS TRAIN

Configuration: Gas flow right-to-left; Part # GT-15-D-APX-RL (qty. 2)

EXHAUST FAN

Make / Size: Twin City / BCV 200

CFM / Static Pressure / Motor: 5,000 CFM / 1" SP / 3 HP, 208/230/460V, 3-Ph (qty. 1)

HEAT-SEAL FAN

Make / Size: Twin City / BVC 122

CFM / Static Pressure / Motor: 1,750 CFM / 4" SP / 2 HP, 208/230/460V, 3-Ph (qty. 2)

EXHAUST DUCT

Size: 22" diameter; 14x21 sq.-to-round transition to 22" dia.

Accessories: No-loss stack, guy wire kit, roof flange, loose rings

2.5  Dimensions

FRONT ELEVATION

Part Opening (width): 5'-0"

Working Width: 10'-0"

Overall Oven Width: 10'-8 3/4"

Clear Part Opening (height): 6'-8"

Working (Part) Opening Height: 7'-0"

Overall Oven Height (box): 8'-8 13/16"

Overall Height incl. Rooftop Equip.: up to approx. 14'-2 7/8" (to top of plug-fan/ductwork)

SIDE ELEVATION / PLAN

Working Depth: 70'-0"

Overall Oven Depth: 71'-0 3/4"

Back Elevation Part Opening: 5'-0" wide x 6'-8" clear height

2.6  Safety — NFPA Explosion Relief

Explosion relief required at 15:1 ratio: 6,667.9 cu.ft. volume / 444.5 sq.ft. relief area required.

RELIEF AREA PROVIDED

(2) Man Access Doors: 30.7 sq. ft.

(2) Part Openings: 66.6 sq. ft.

(1 lot) Ceiling Panels: 460.6 sq. ft.

(1) Heater Box Access Door: 4.8 sq. ft.

Total Relief Available: 562.7 sq. ft.

Do not place, block, or install objects on, in front of, or next to any explosion relief panels, ceiling panels, man doors, or product doors. The oven roof is designed to provide the necessary explosion relief area; the exhaust fan must be located so that no more than two roof panels are prevented from lifting in the event of a deflagration within the oven. Ceiling panels and explosion-relief side walls require a minimum of 3'-0" clearance, and doors must be able to swing fully open.

2.7  Other Operating Notes

Adjustable ductwork slides should be half-open at start-up.

Minimum 6" clearance from part to ductwork recommended for optimum cure performance and to prevent powder blow-off.

Oven is not designed to support any additional loads.

Exhaust fan location is approximate; final placement by customer/installer.

Maximum gas train (safety shutoff valve) to burner pipe run: 15 ft.

Pre-ignition purge interval: 5.3 minutes.

Exhaust blower rated for 18.7 gallons of solvent per hour at maximum operating temperature of 500°F.

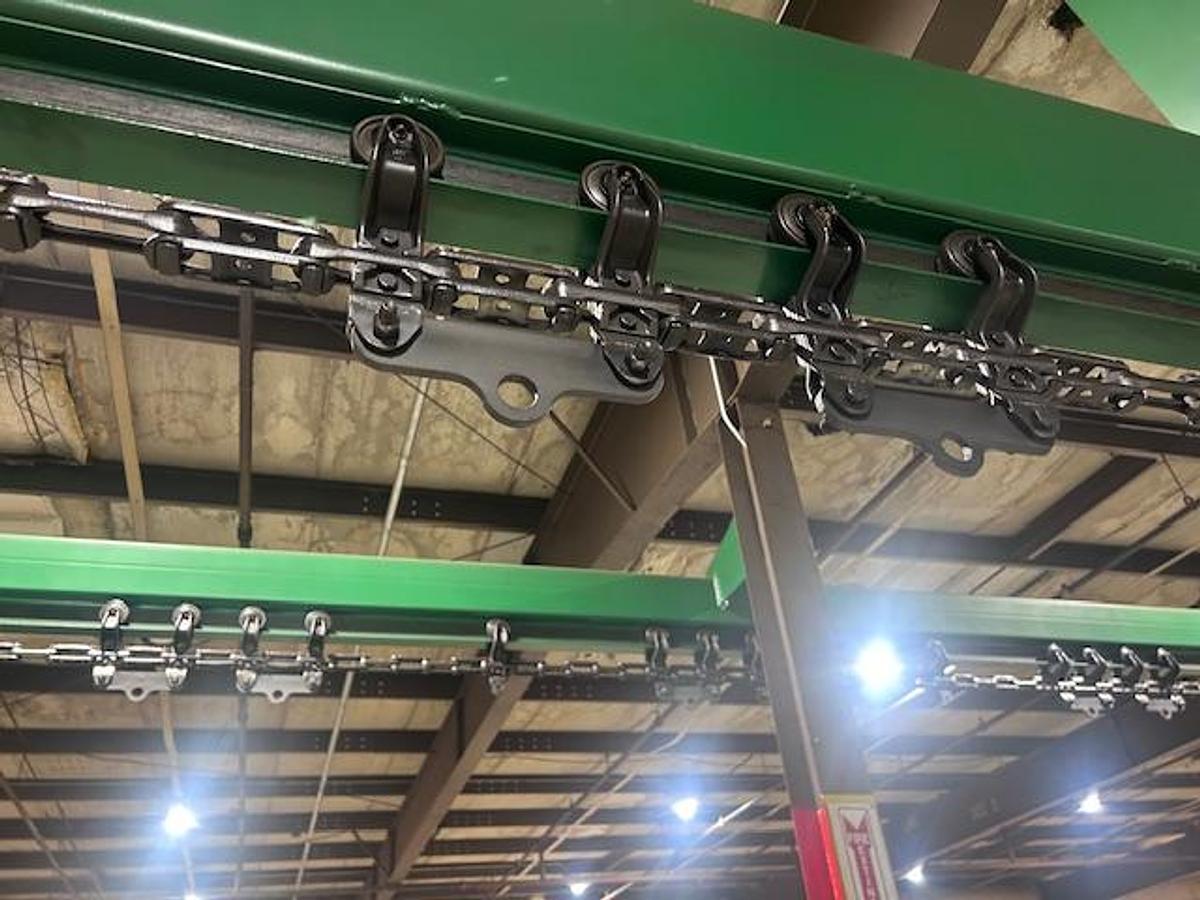

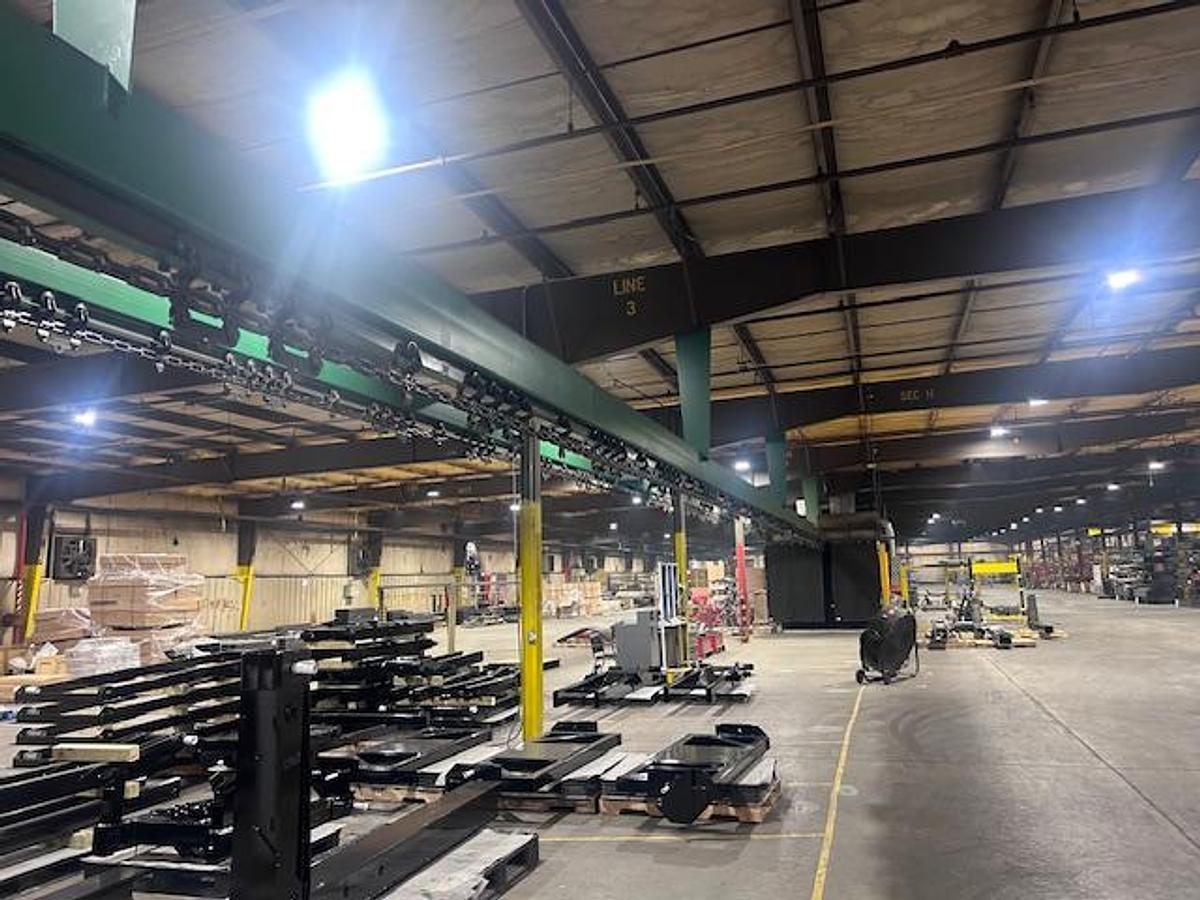

3.  Conveyor

Overhead trolley conveyor, approx. 900 ft. of chain.

Chain: X458, rated 800 lb. per trolley.

Chain reported rebuilt approx. 2-1/2 years prior to the equipment being offered for sale.

Price: $100,000

*All specifications are approximations and are subject to verification

Rigging and transportation are the responsibility of the purchaser.
