Nikon V-12B Vertical Projection Optical Comparator Measuring Machine w/DRO

Nikon V-12B Vertical Projection Optical Comparator Measuring Machine w/DRO

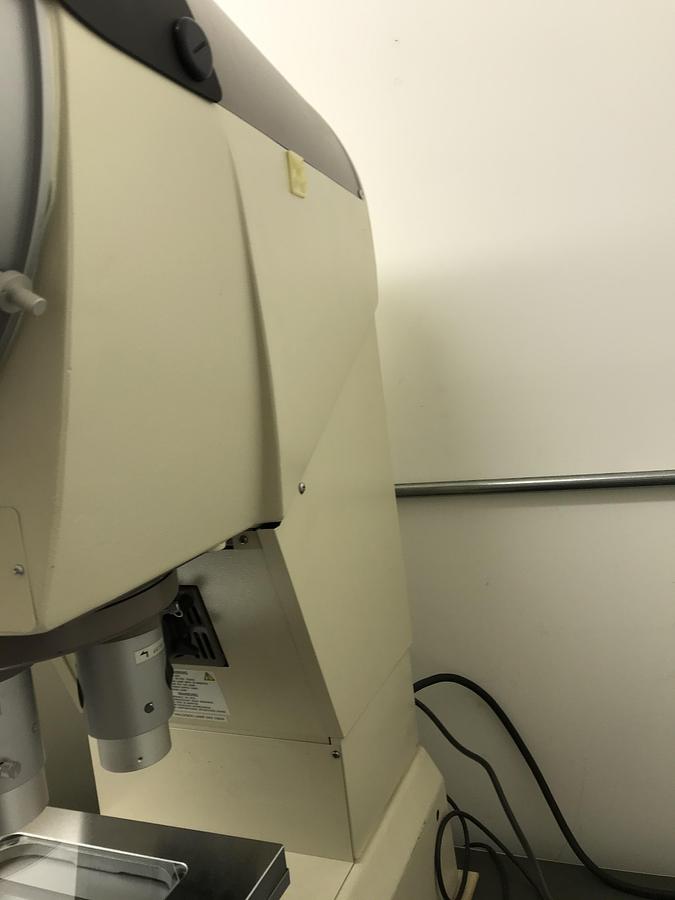

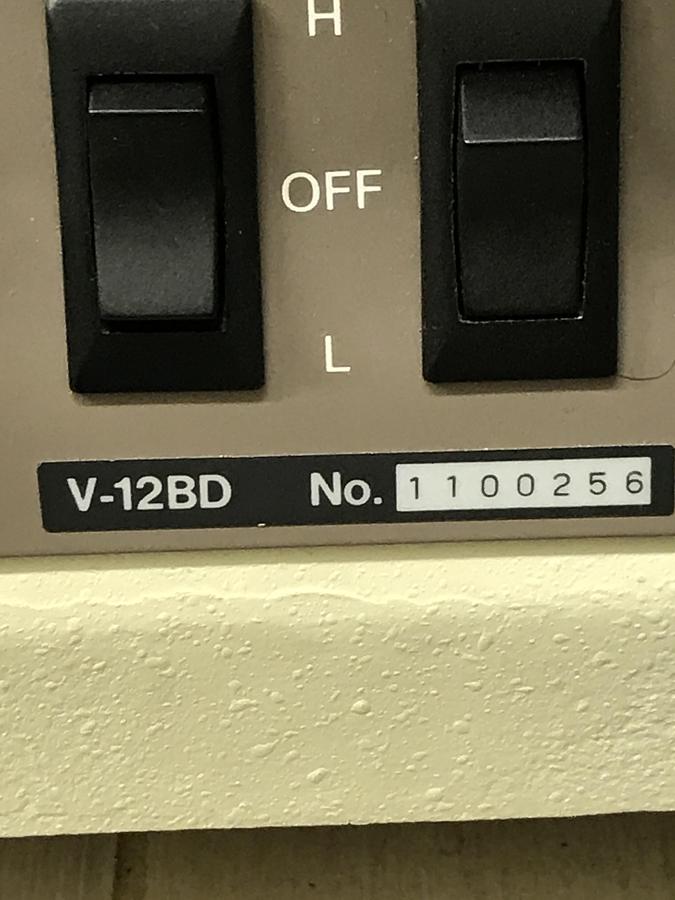

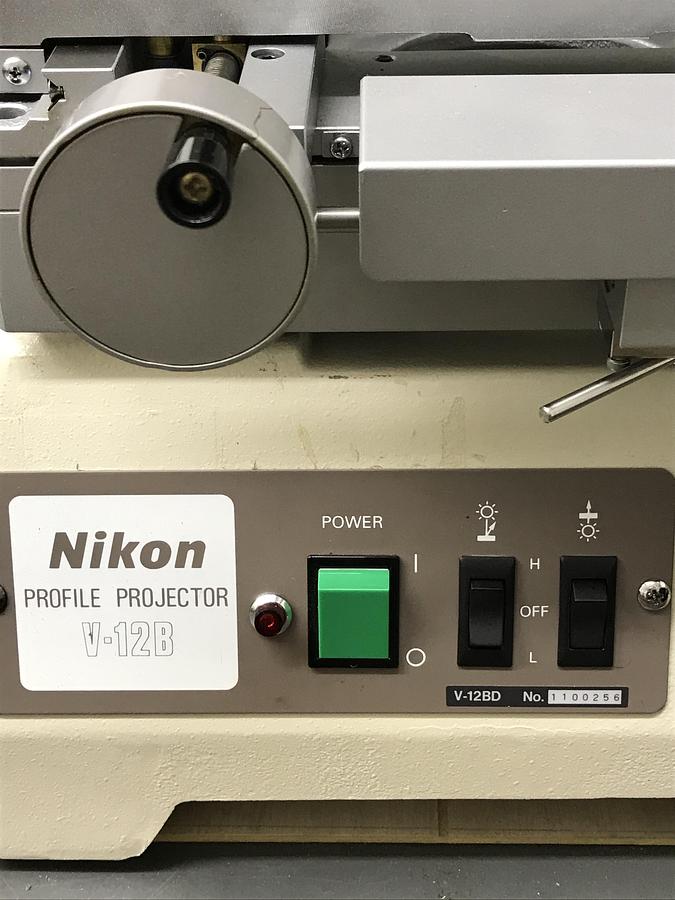

Bench model, S/N 1100256

Base Footprint: 13-1/2”w X 22-1/4”D

Overall Measurements: 14-3/4”w X 38-3/4”h X 27-1/2” d

General Specifications:

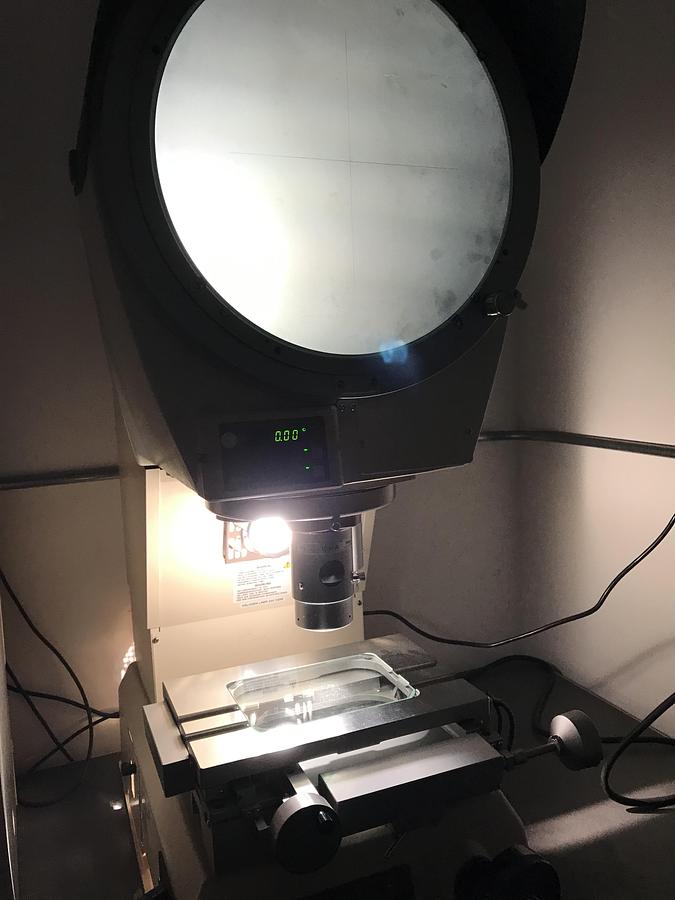

            Screen diameter 12” (11.8” usable)

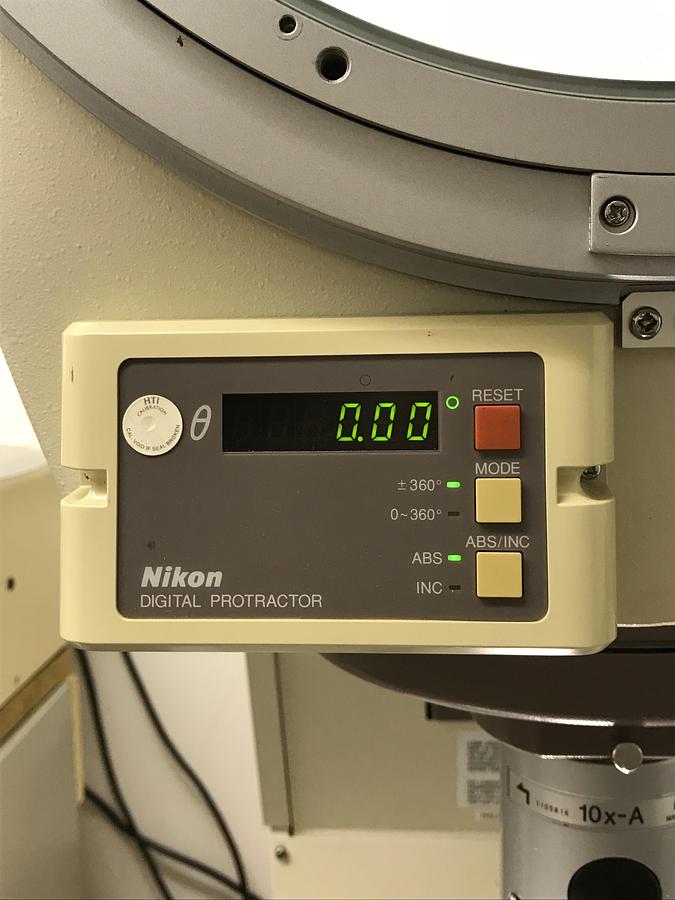

            360 degree rotating capacity w/ Nikon Digital Readout Protractor

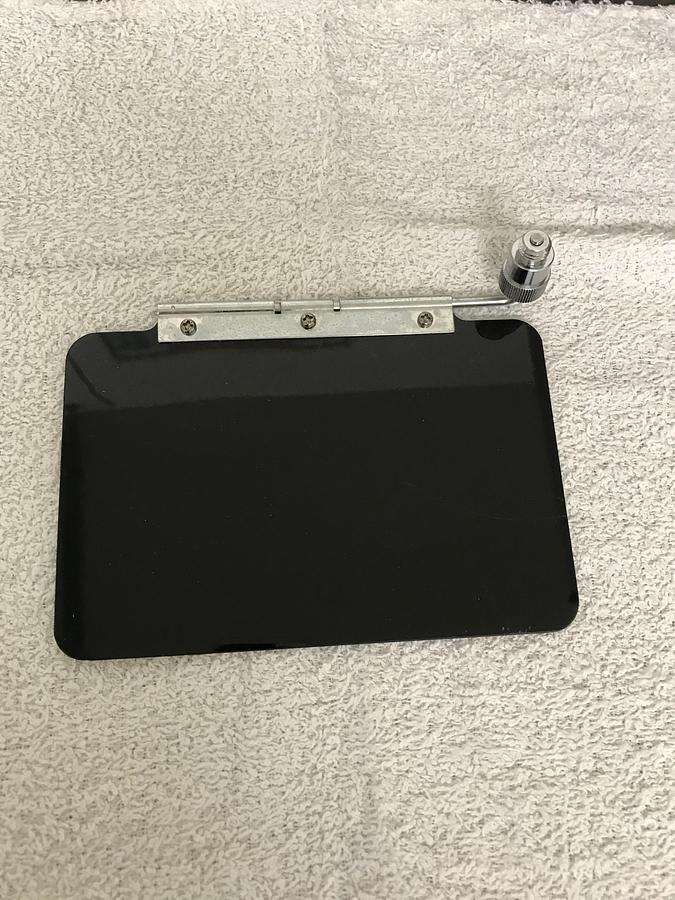

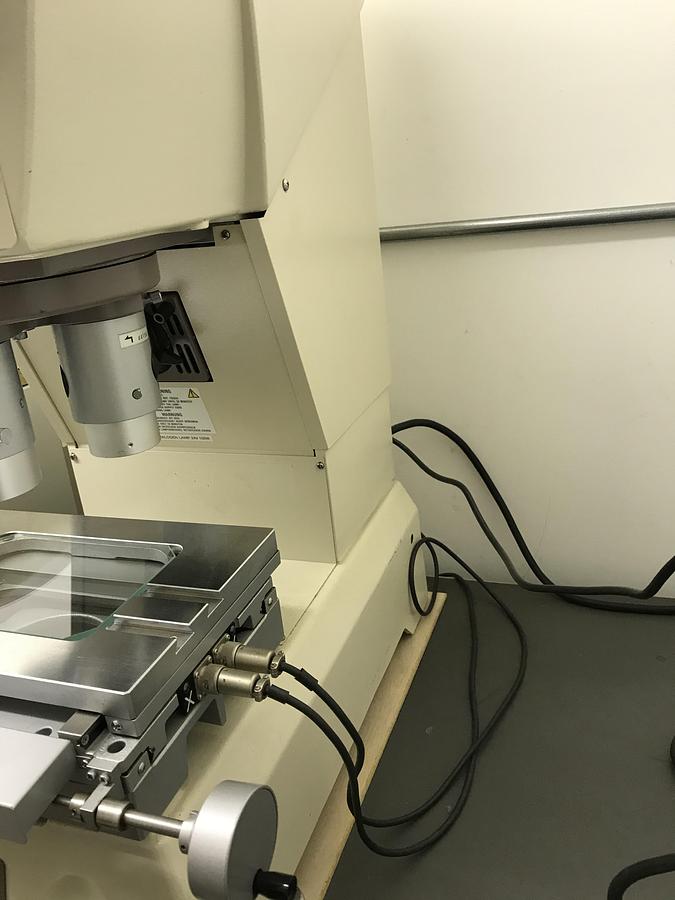

            Staging Table Size: 11.2” x 7.5”

            Staging Table Glass Insert: 6.69” x 4.7”

            X-Axis Table Travel: 3.9”

            Y-Axis Table Travel: 1.9”

            Z-Axis Table Travel: 2.9”

Uses 24v-150w halogen lamps for both projection and Surface Illumination

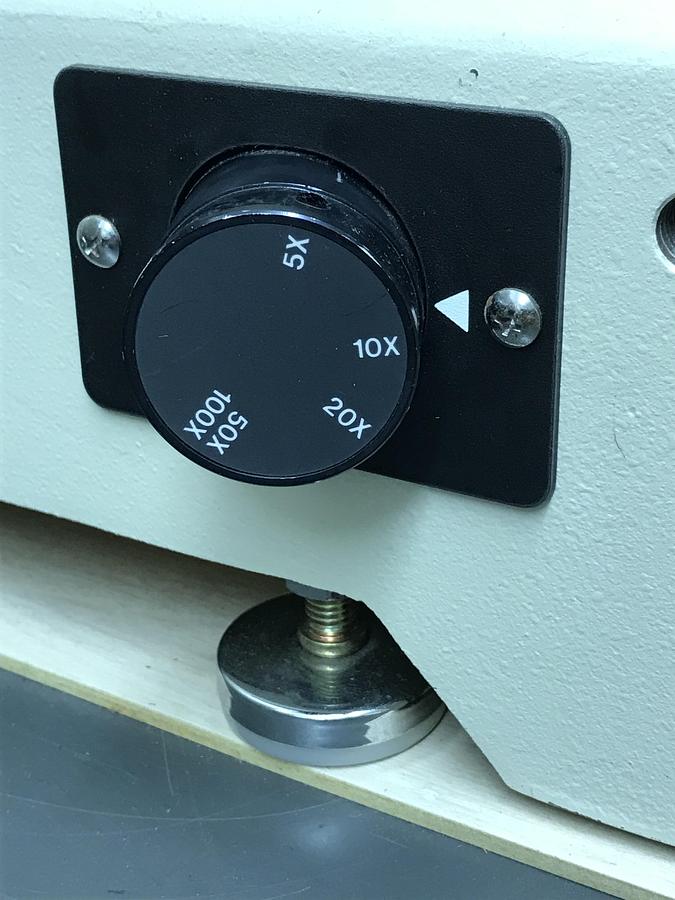

3-Position Manual Lens Turret

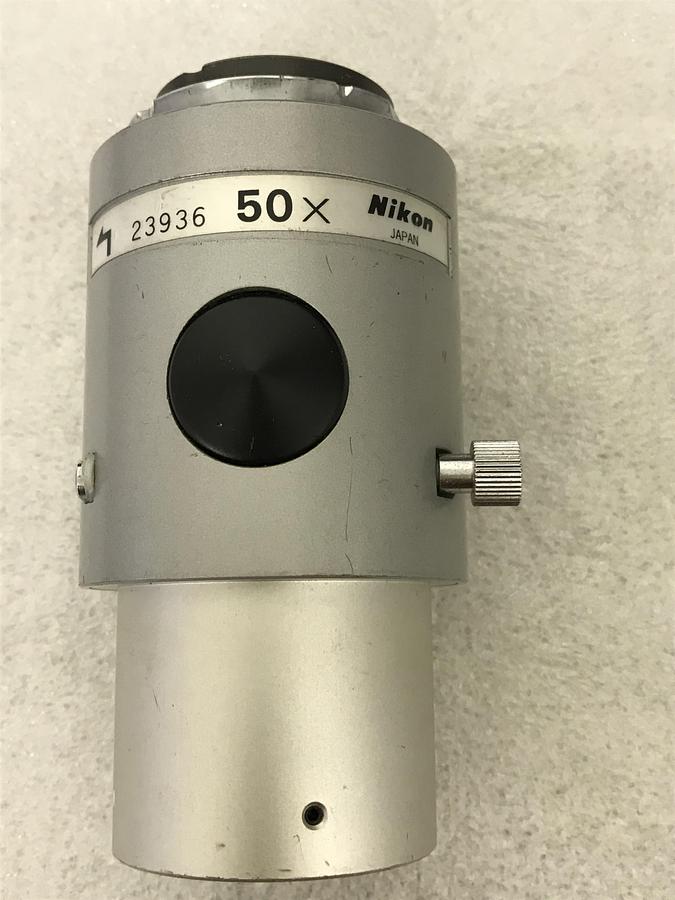

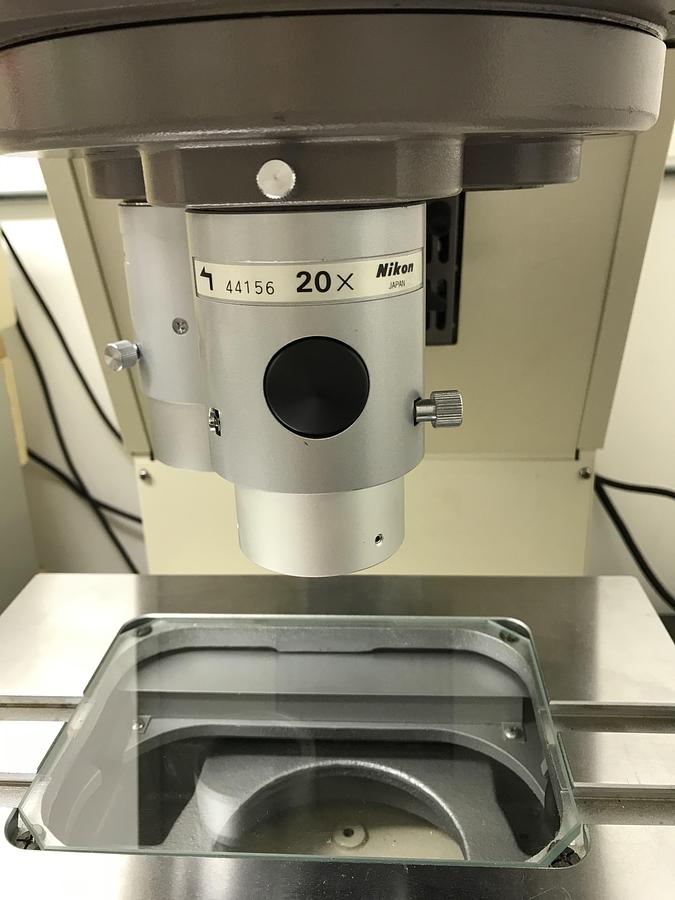

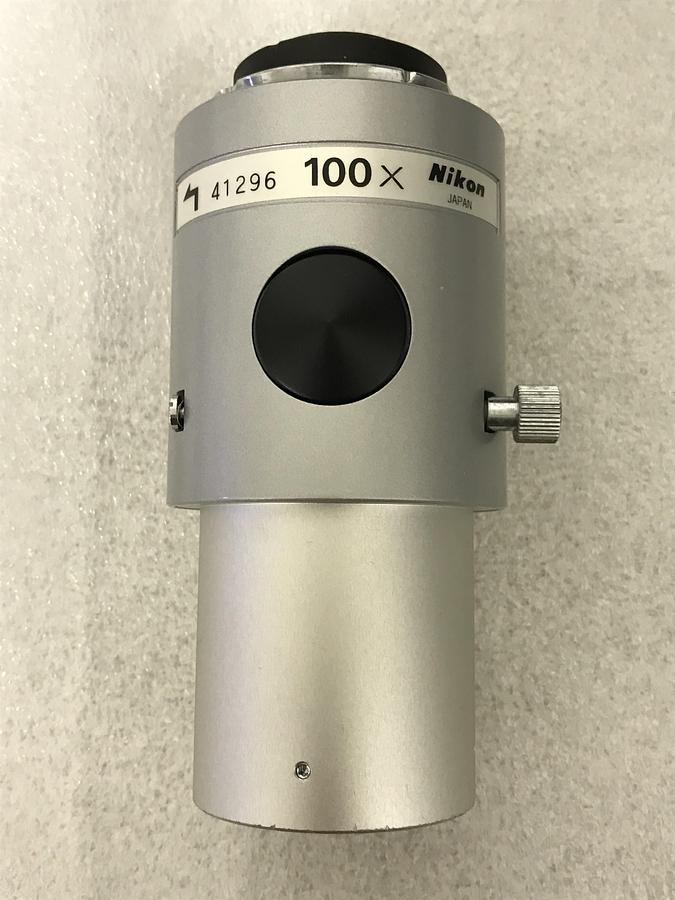

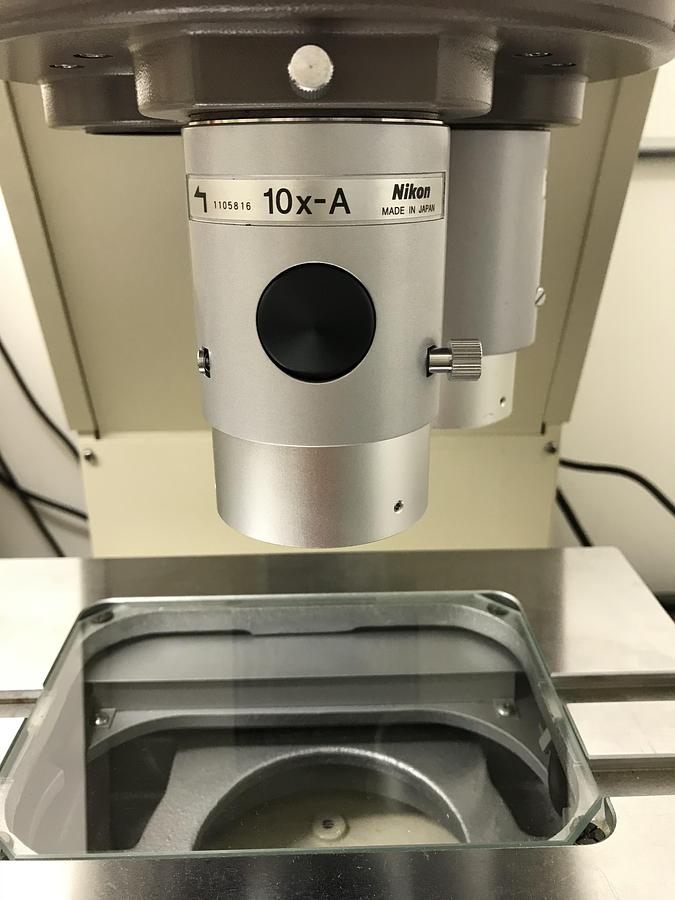

10x 20x 50x 100x lens included

Approximate Weight:  210 Lbs

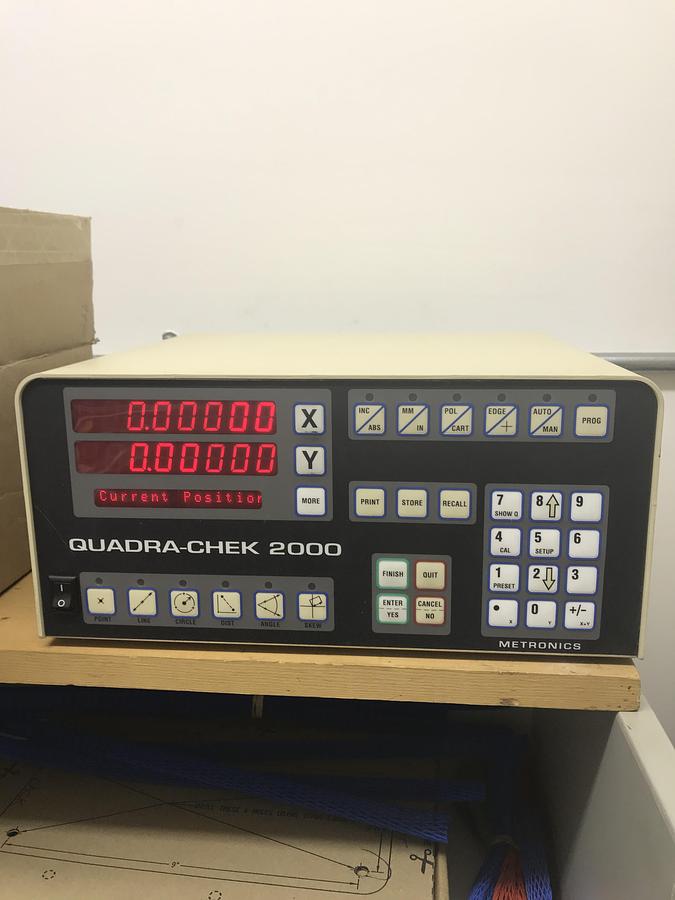

Quadra-Chek 2000 DRO by Metronics

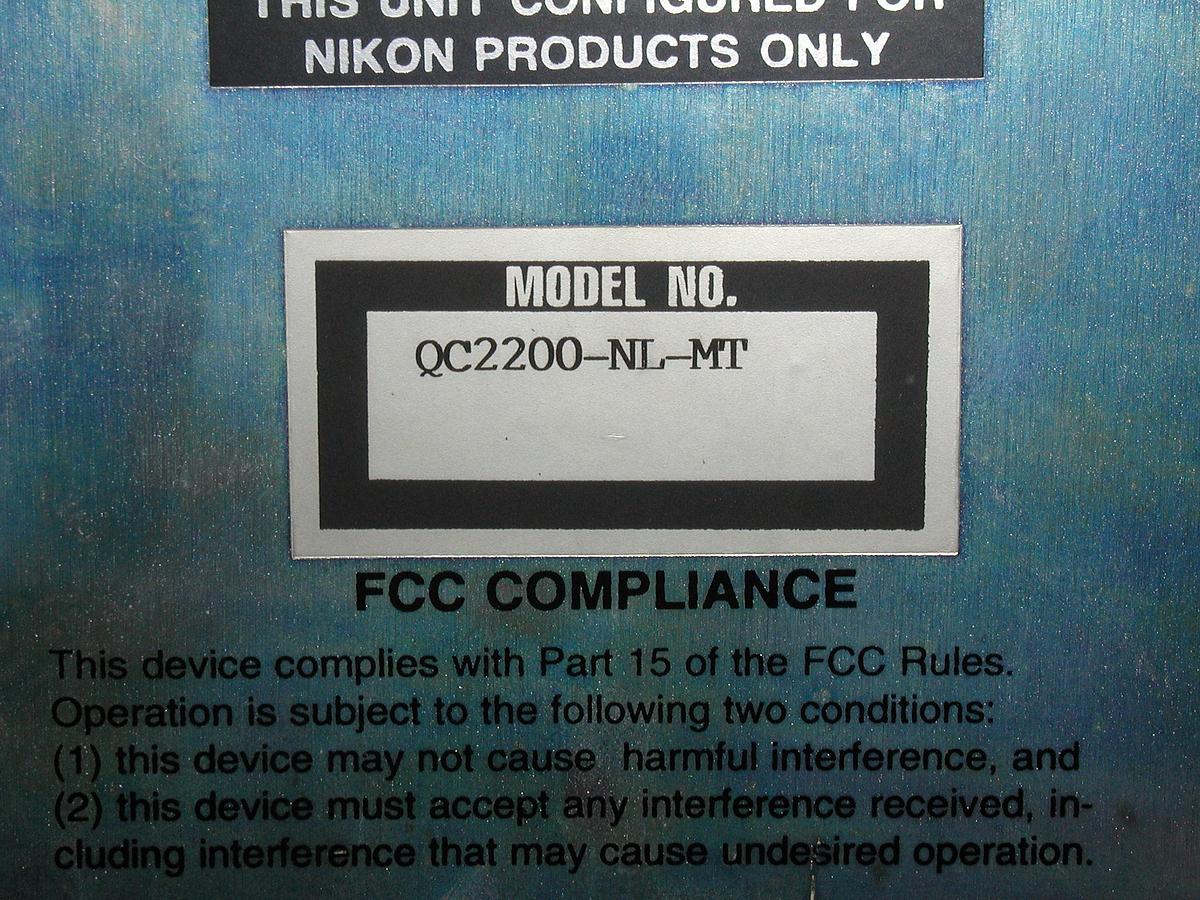

Model QC2200-NL-MT,  S/N 38889, copyright 1989-1995

2-Axis DRO Reads “X” and “Y” Axis

Measures: Distance, Points, Lines, Circles, Angles and Skew

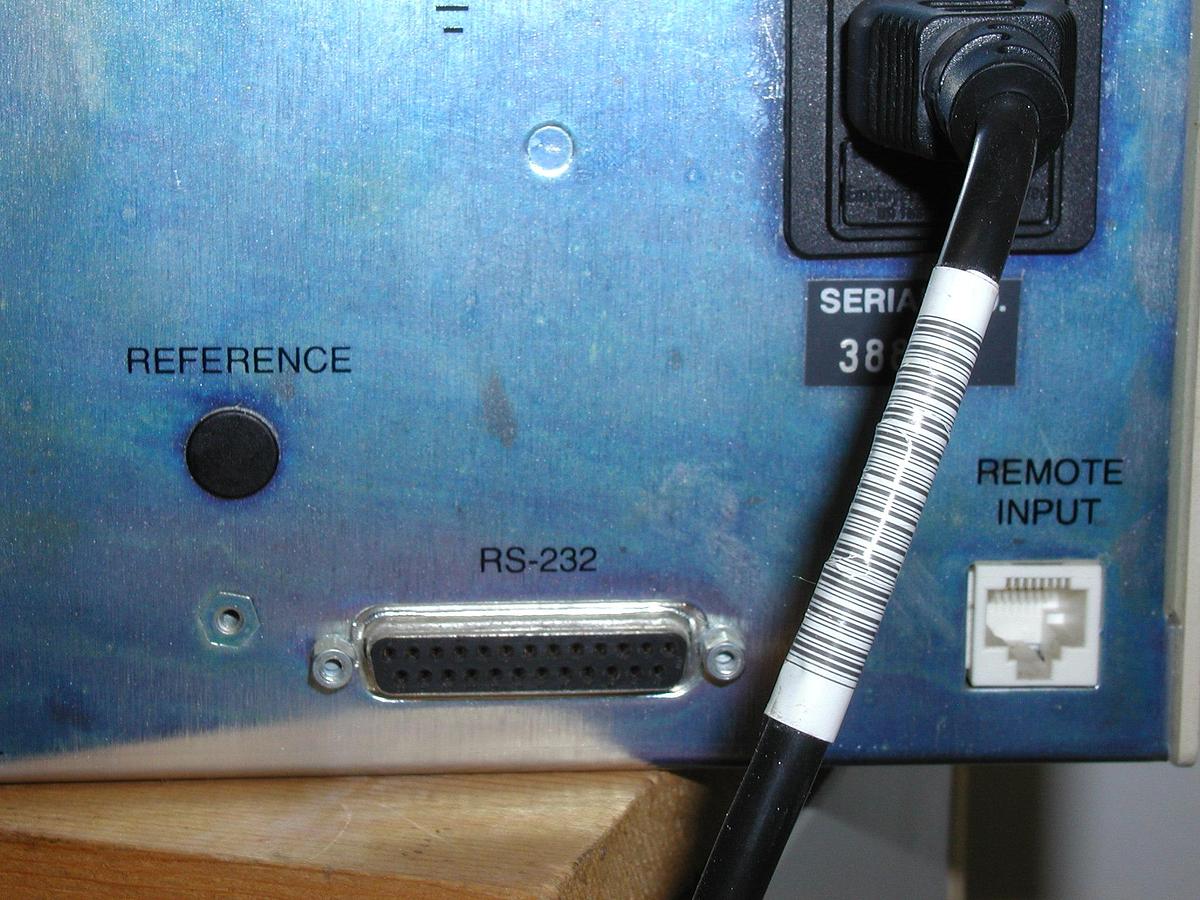

RS232 Port

Remote Input Port

Power cable included

Encoder cables included

.5 Amp max input

43 Hz to 63 Hz

Fuse: 1 amp 250v Type T

Weights appx 176 lbs

Price: $5600
