Haco Atlantic, 120 Ton x 10' Hydraulic Press Brake

Haco Atlantic 120 Ton x 10' Hydraulic Press Brake

Capacity & Dimensions:

• Tonnage: 120 US tons

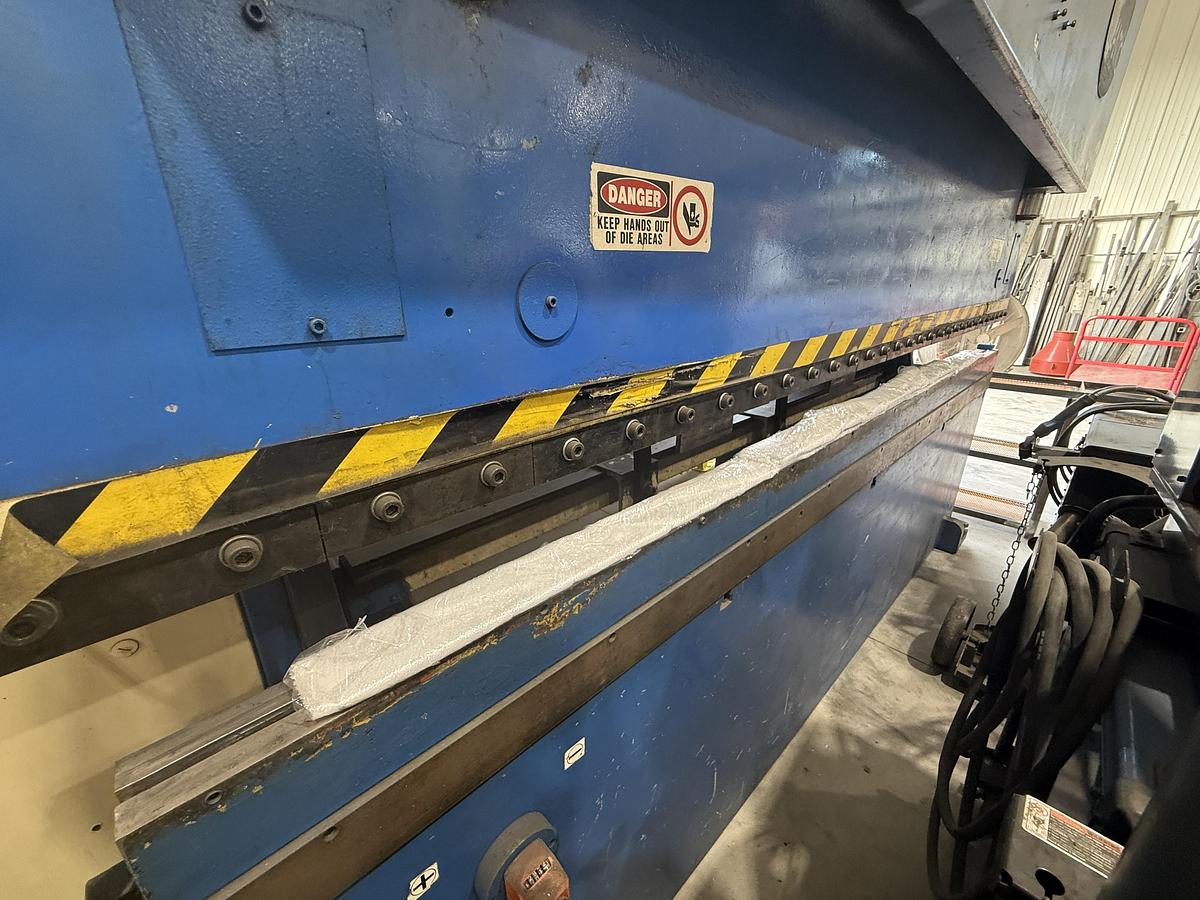

• Bed/Bending Length: 122″ (10′)
• Distance Between Housings: 102″
• Throat Depth/Gap: 9.8″
• Open Height: 12.8″
• Table Height: ~34.45″

Ram

• Stroke Length: 4.7″
• Ram Adjustment: 4.7″
• Fast Approach Speed: 165 IPM
• Press (Working) Speed: 17 IPM
• Fast Return Speed: 142 IPM
• Ram Cylinder Parallelism maintained via a torsion bar
• Down-acting ram, guided by precision ground ways
• 3-speed hydraulic cylinder operation (approach, forming, return)

Power:

• Motor Size: 10 HP

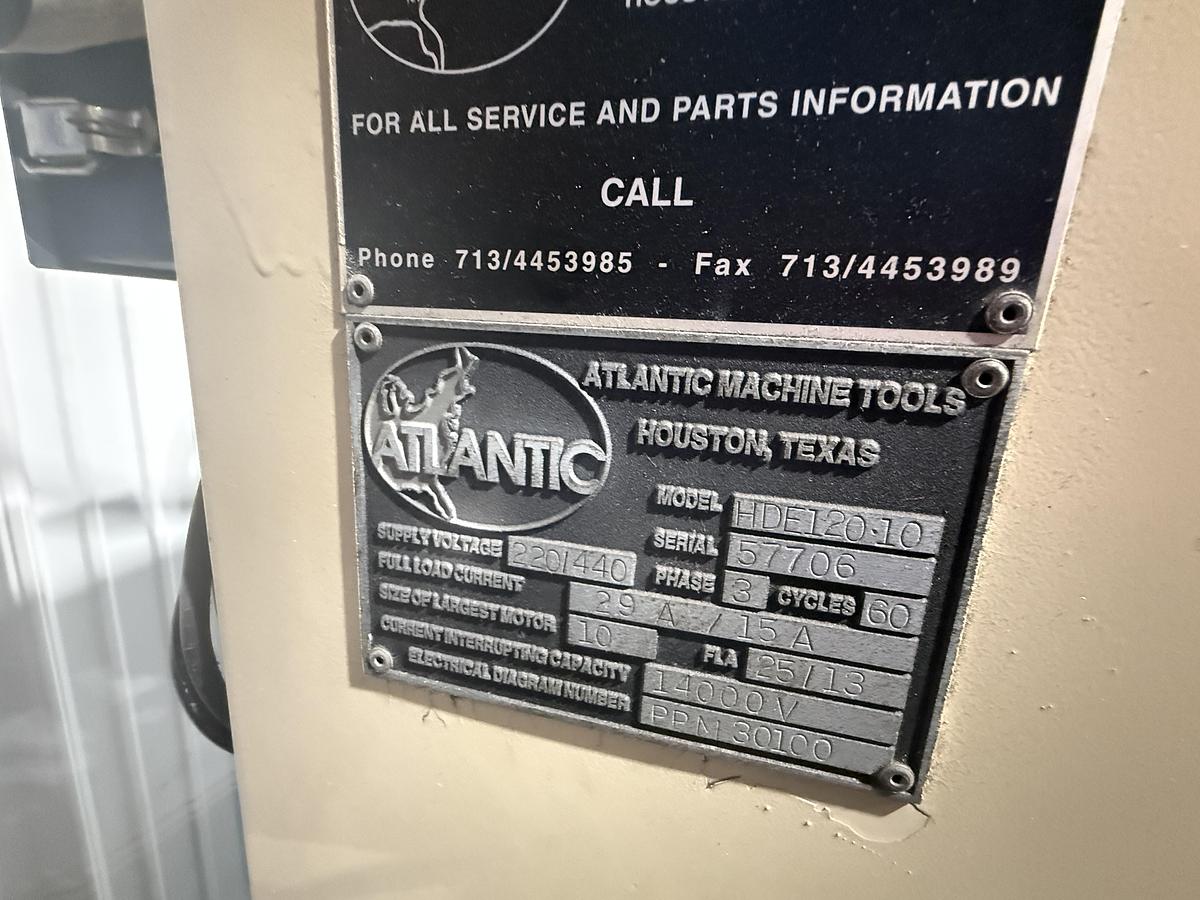

• Electrical: 220/440V, 3-Phase

Material Capacity: (typical for this tonnage/length combo)

• Mild Steel: 10′ x 3/16″
• Stainless: 10′ x 10 ga
• Aluminum: 10′ x 3/8″

Standard Equipment:

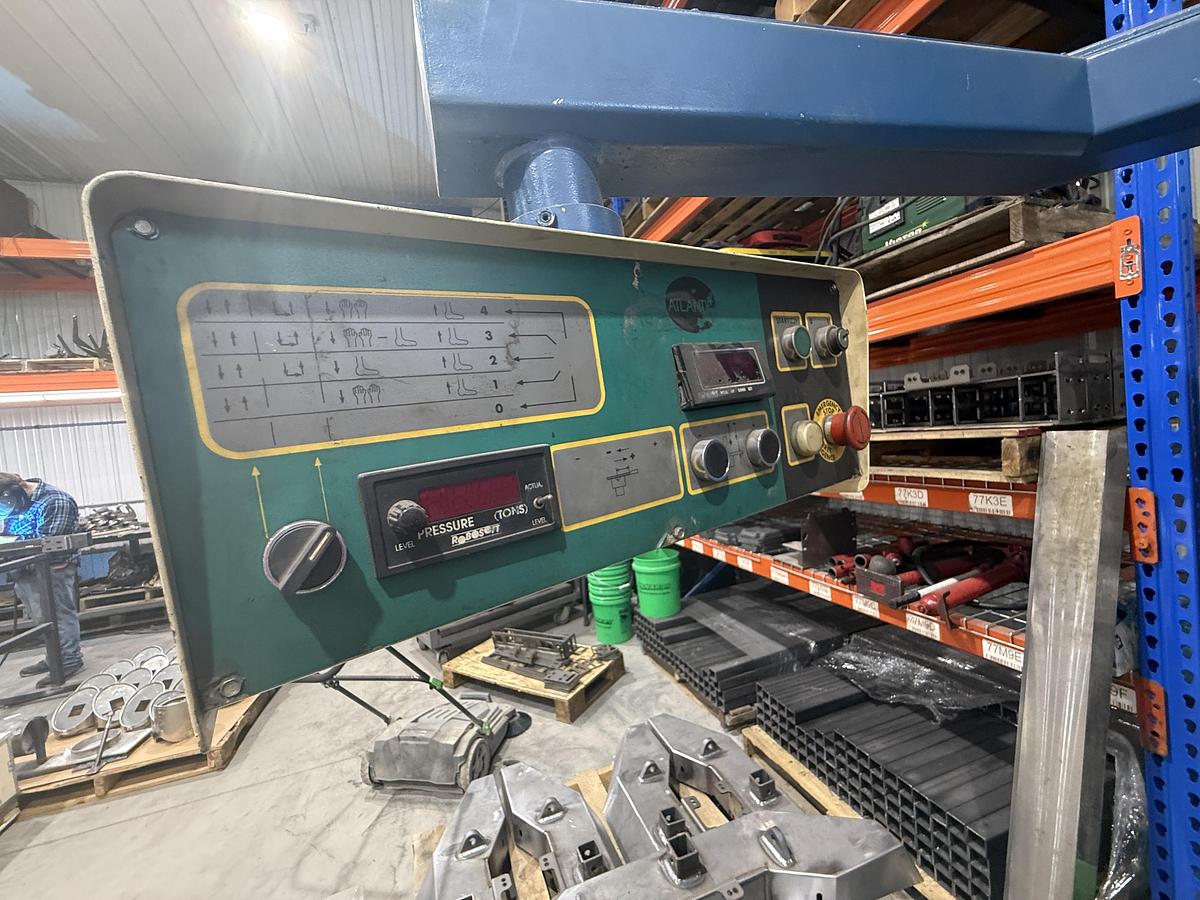

• Pendant control (some with ATL 500 backgauge control)
• Motorized backgauge
• Foot pedal operation
• Hydraulic oil, operation & parts manual

Approx Weight: 16,500 lbs

Approx Dims: 138″ L x 67″ W x 101″ H

Price: $14,900

*All specifications are approximations and are subject to verification
