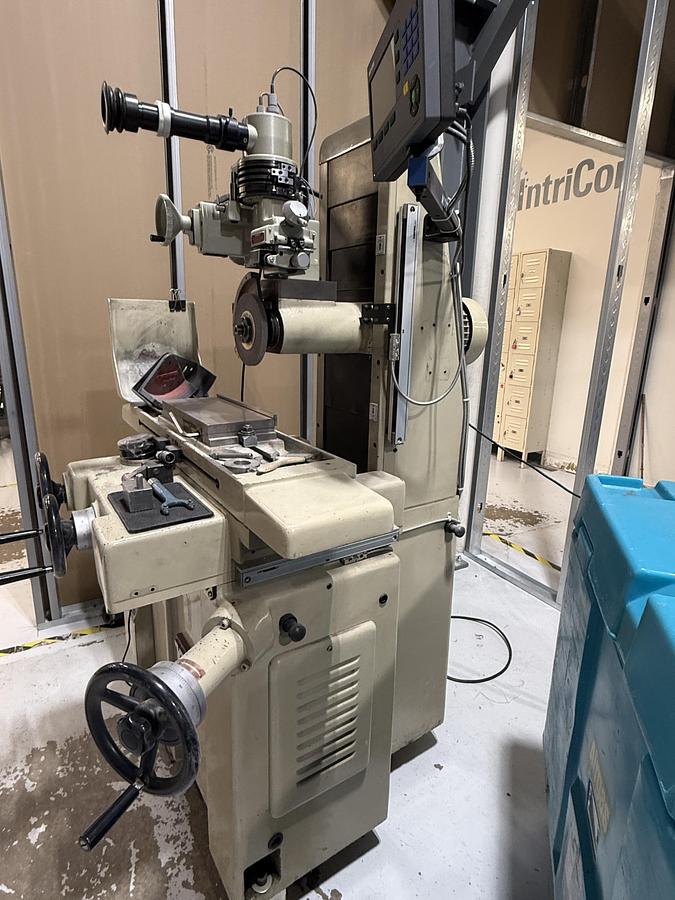

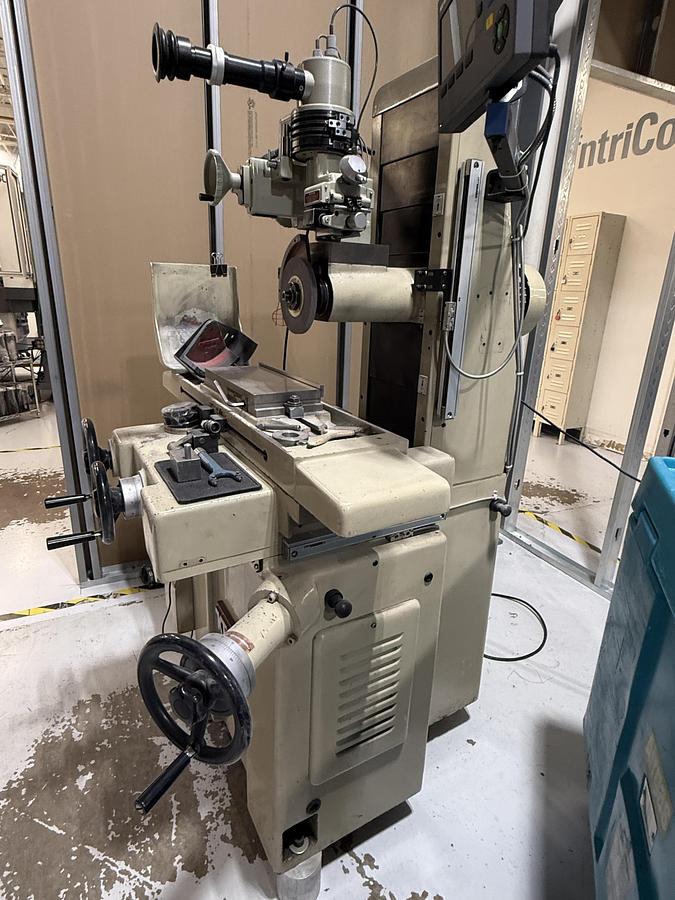

Kent KGS-200 Surface Grinder

Make: Kent Surface Grinder

Model: KGS-200

Year: 1985

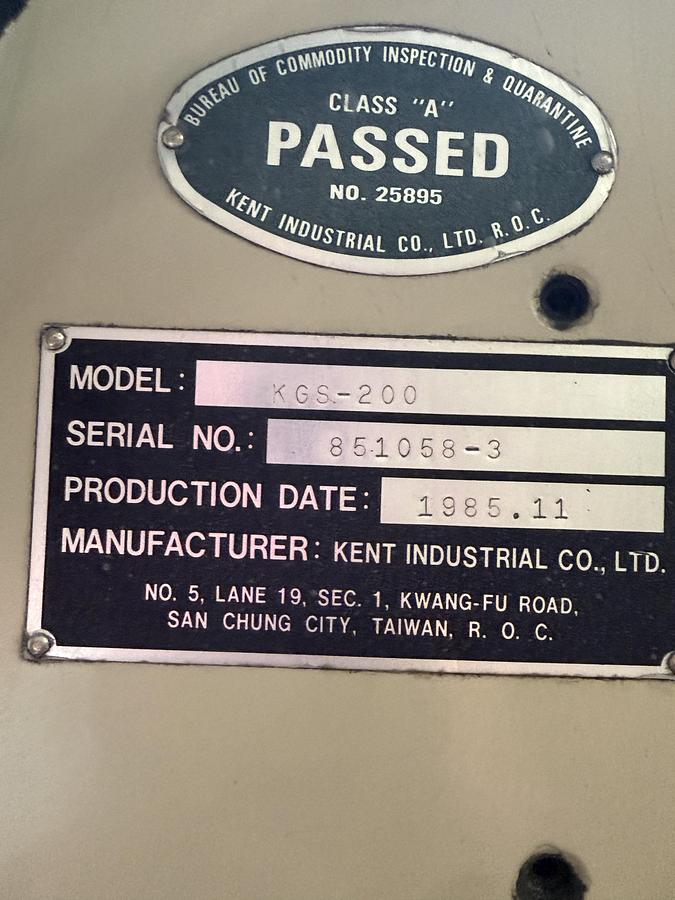

Serial#: 851058-3

Work Table: 6" x 18"

Longitudinal Travel: 16"

Grinding Wheel: 8"

Spindle Speed: 2,850 RPM

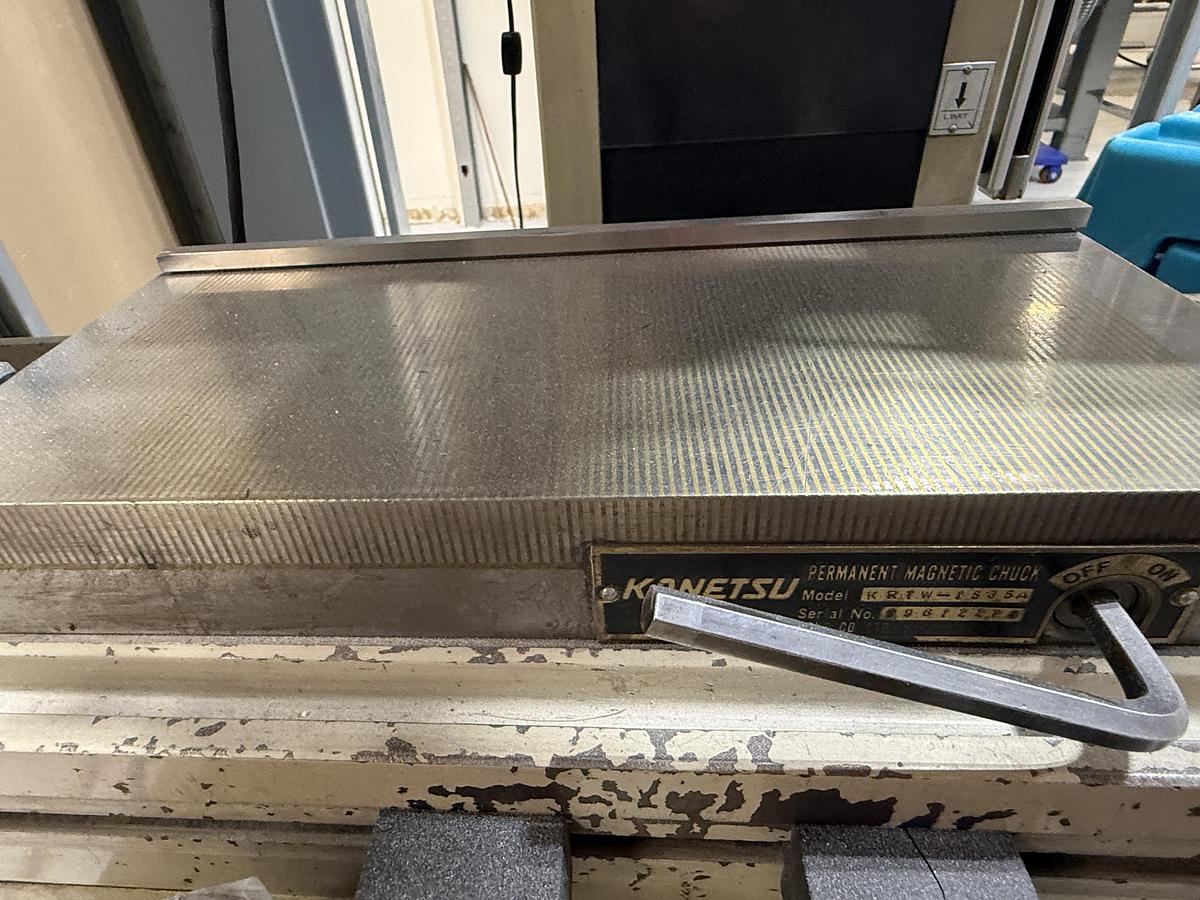

Electromagnetic Chuck

220/440V 3 Phase

Motor: 1.5 HP

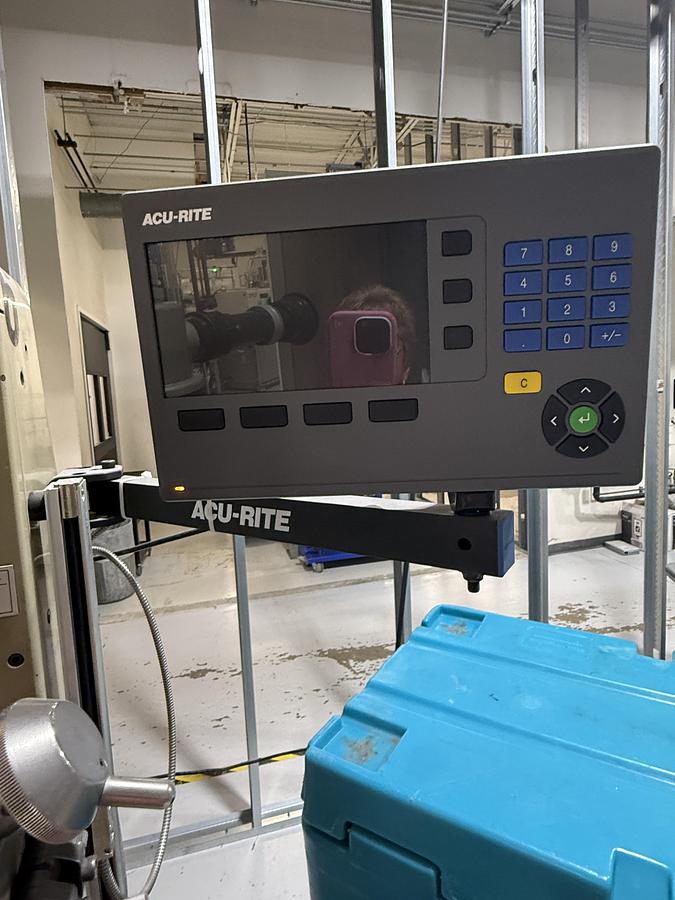

Acu-Rite DRO

Price: $1,950

FOB: Fridley MN

NOTE: OptiDress NOT INCLUDED

*All specifications are approximations and are subject to verification

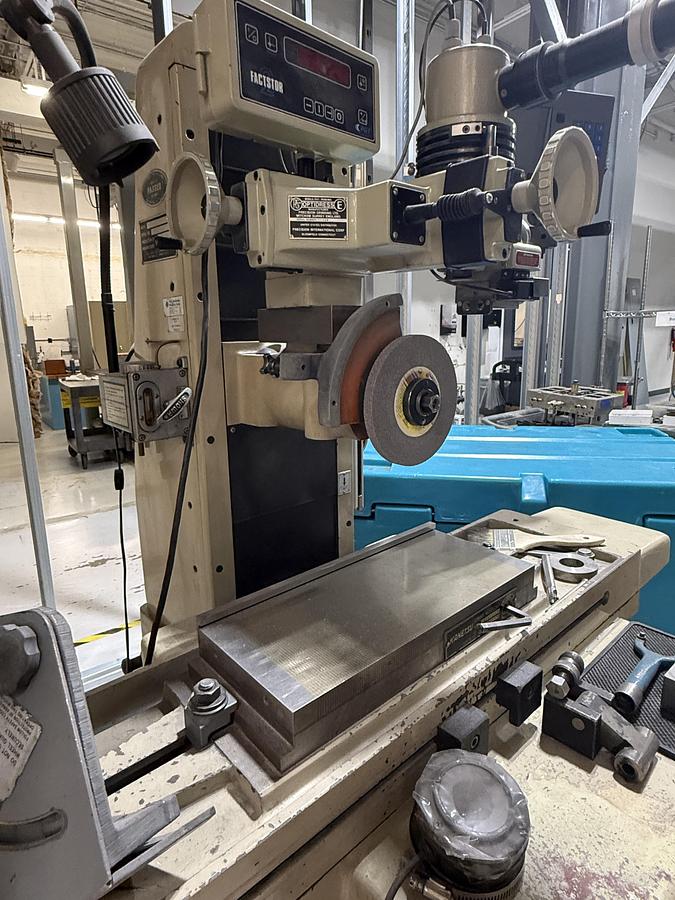

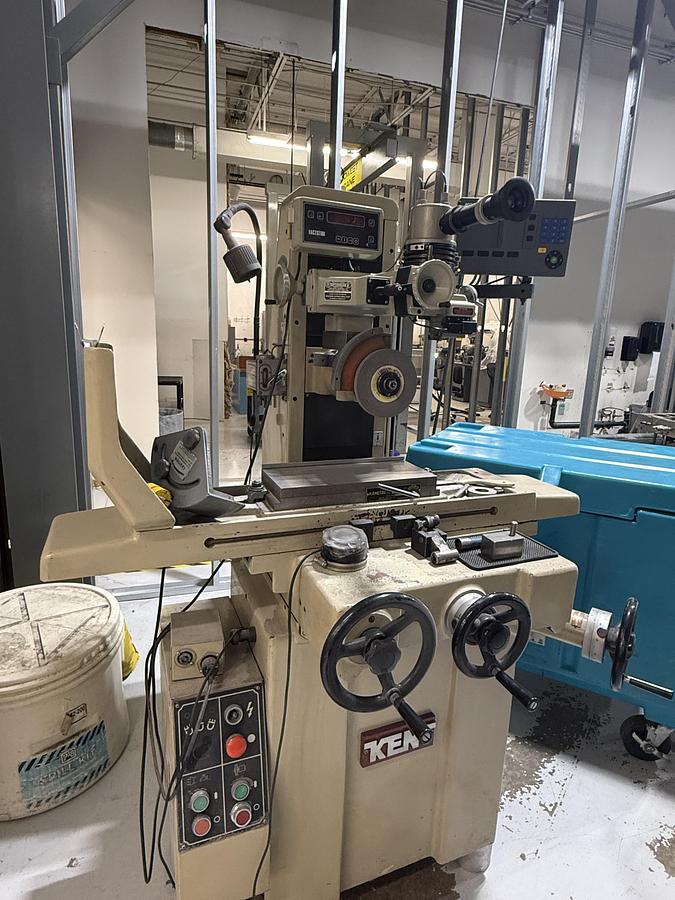

Kent Industrial Co. Model KGS-200 surface grinder uses an electromagnetic chuck table to hold ferrous workpieces securely during grinding, with dedicated controls for magnet on/off, coolant flow, and spindle power on the operator control panel.

Dual handwheels on the wheel head control fine and coarse vertical feed for precision stock removal, while a separate crossfeed handwheel controls table travel.

A built-in coolant reservoir and pump system, along with an integrated work lamp, support continuous precision grinding operations. The 1 HP three-phase motor drives the grinding wheel through a compact head assembly.
