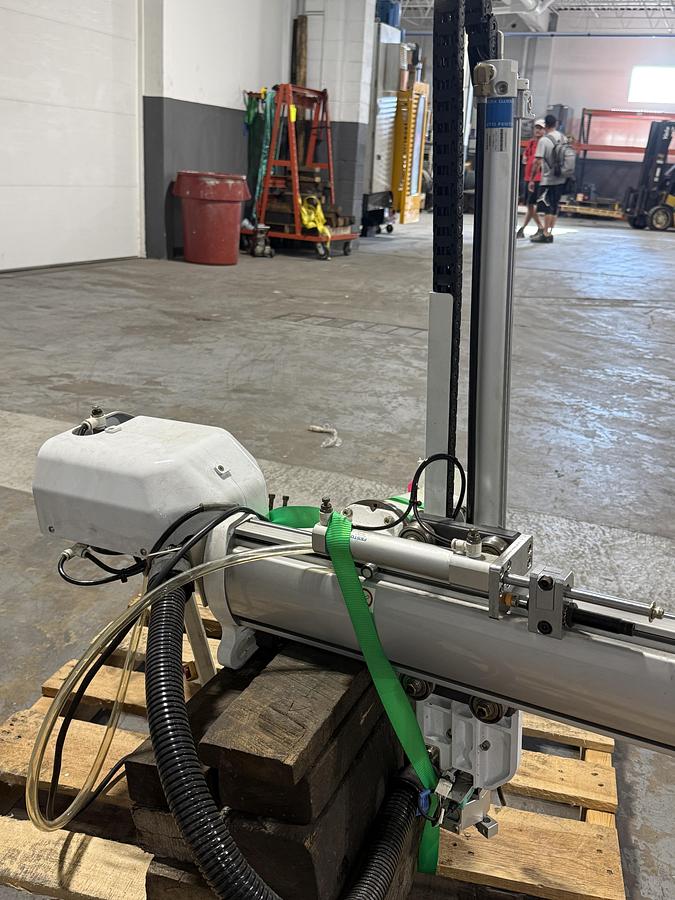

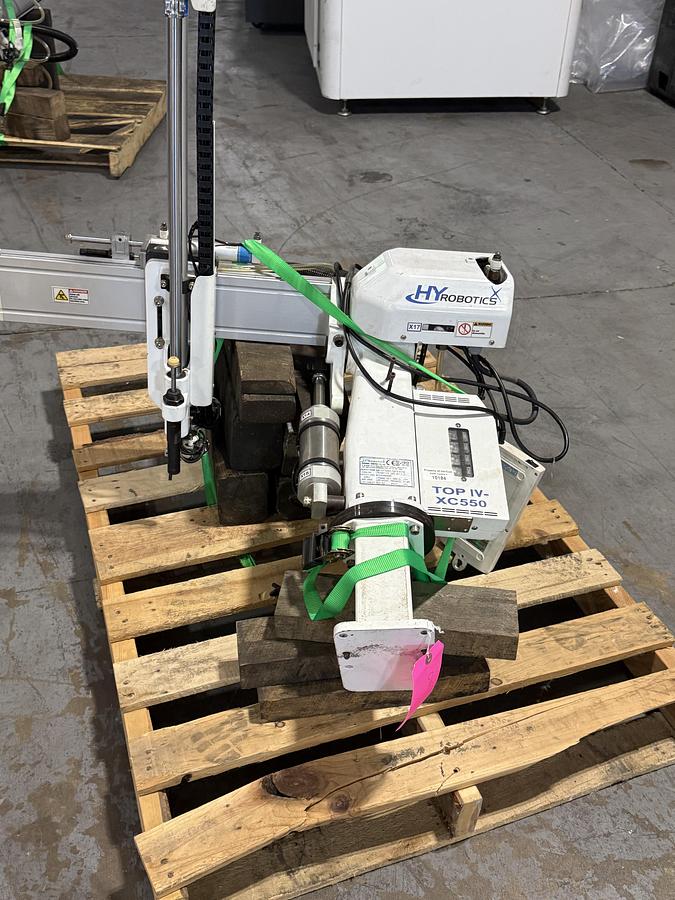

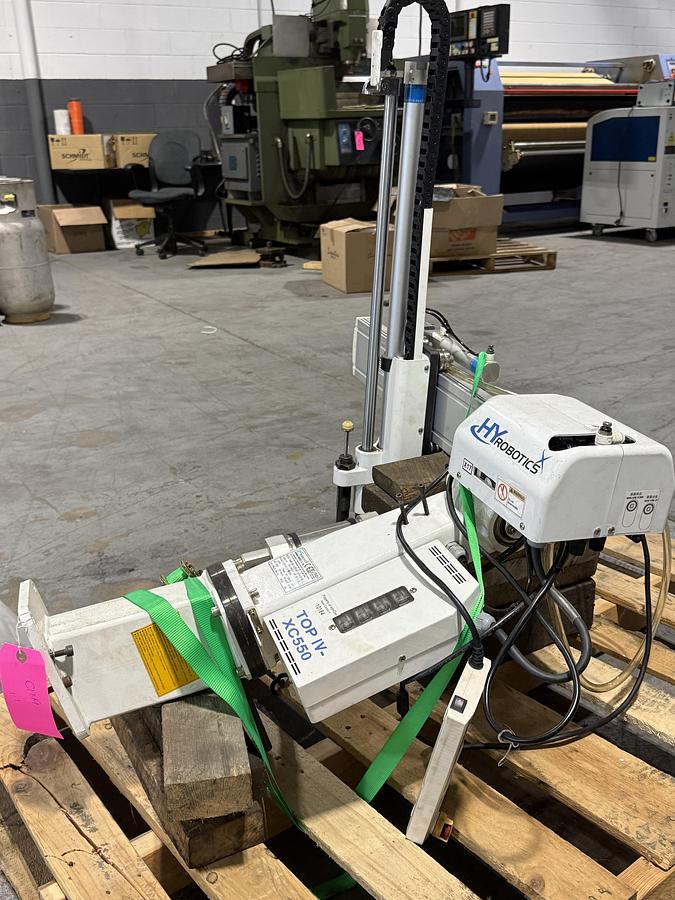

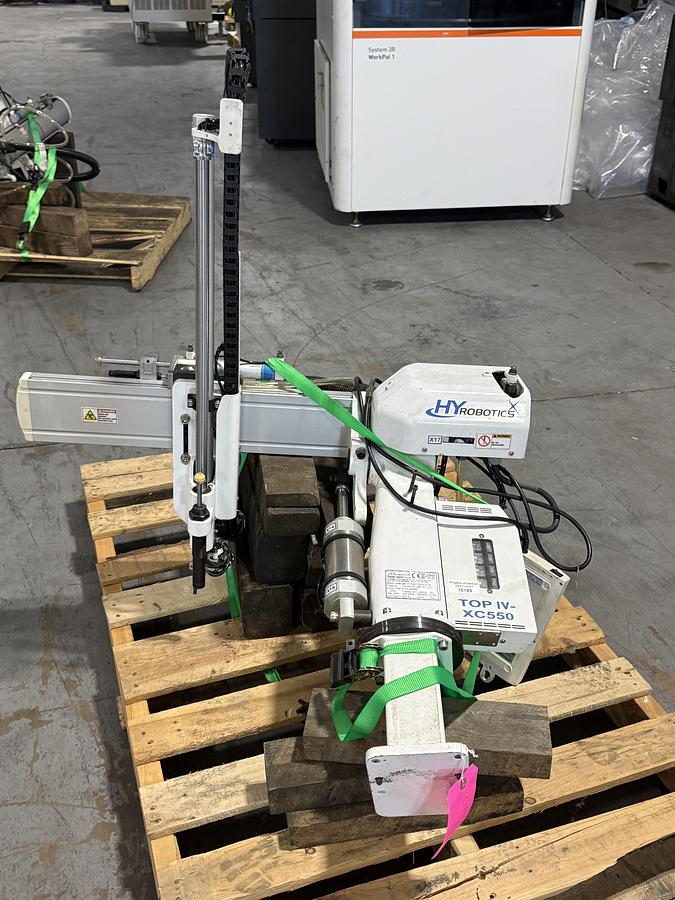

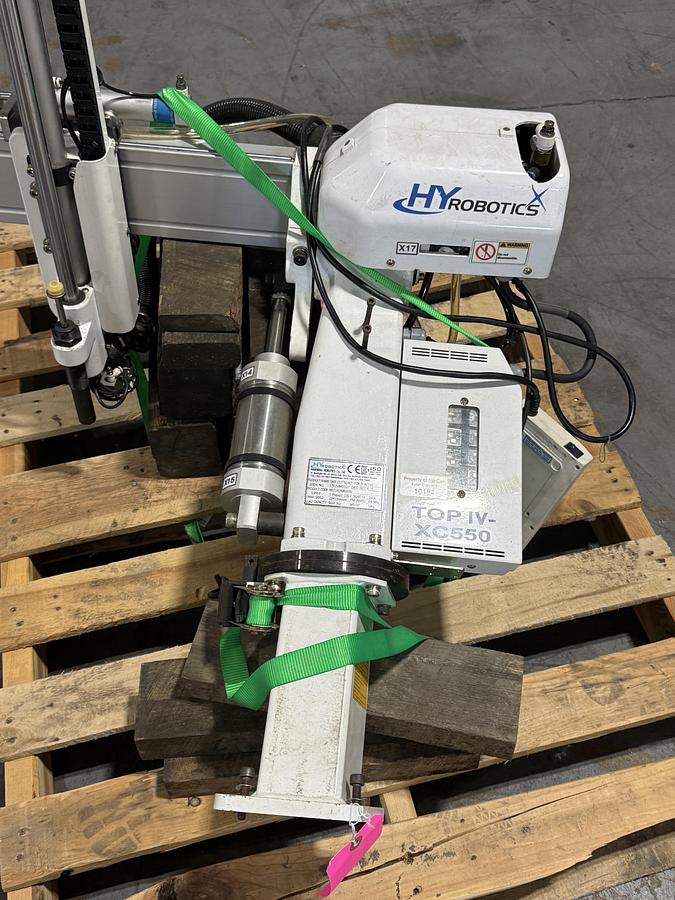

HY Robotics Take Out Robot (TOP IV-XC550), 2017

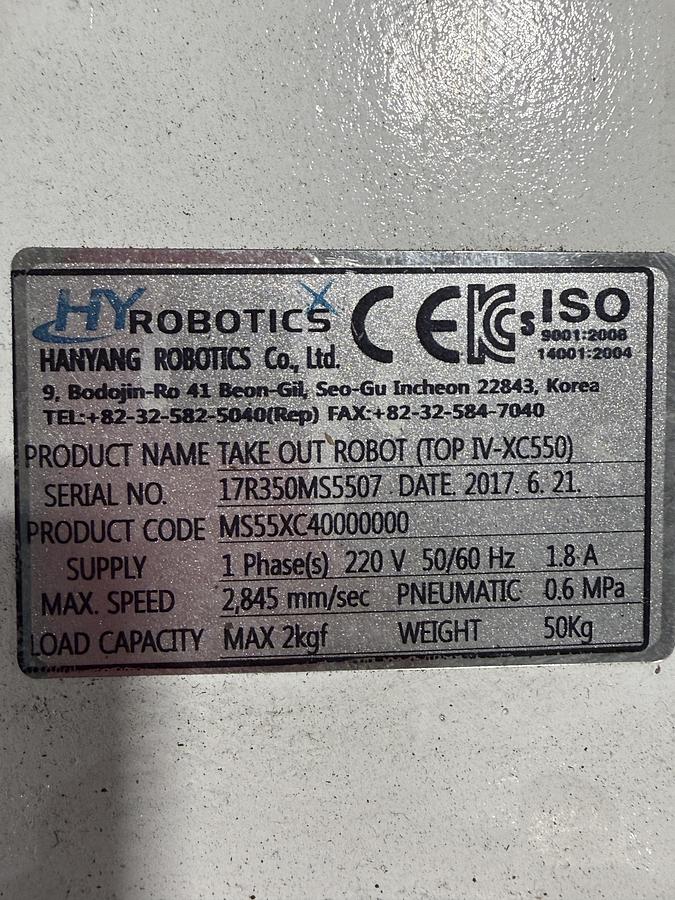

Manufacturer: HY Robotics

Product name: Take Out Robot (TOP IV-XC550)

Product code: MS55XC40000000

Serial No.: 17R350MS5507

Build date: June 21, 2017

Power supply: 1-phase, 220V, 50/60Hz, 1.8A

Actuation: Pneumatic, 0.6 MPa

Max speed: 2,845 mm/sec

Load capacity: Max 2 kgf

Weight: 50 kg

Certifications: CE, KC, ISO 9001:2008, ISO 14001:2004

Hyrobotics' TOP-IV sprue-picker line — a pneumatic swing-arm take-out robot for small injection molding machines (roughly 30–60 ton range), sitting below the 650XC (60–150 ton), 750XC and 950XC (150–300 ton) models in their current lineup. It's a light-duty picker (2 kgf capacity), not a heavy servo take-out robot.

FOB: Fridley MN

Price: $4,000
