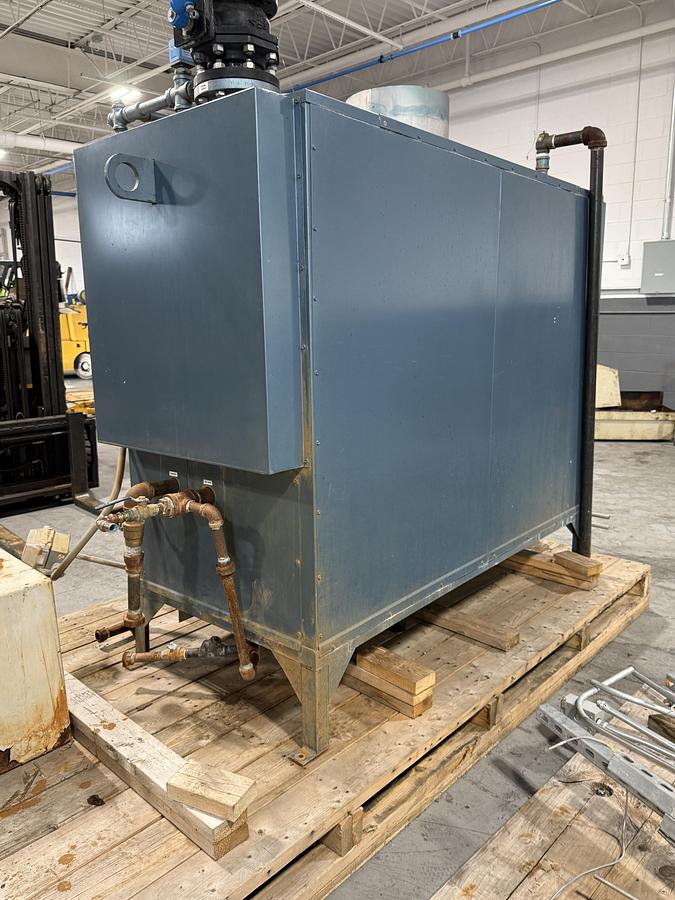

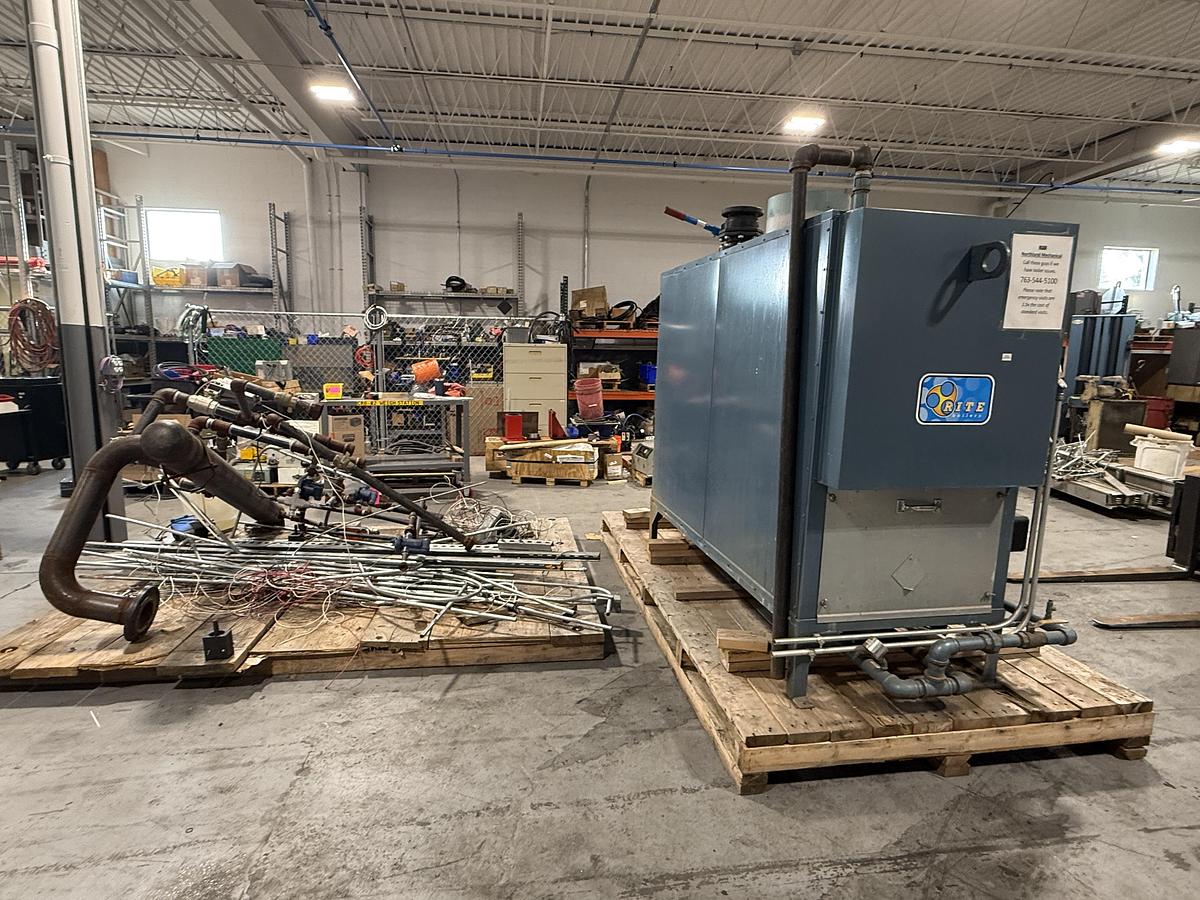

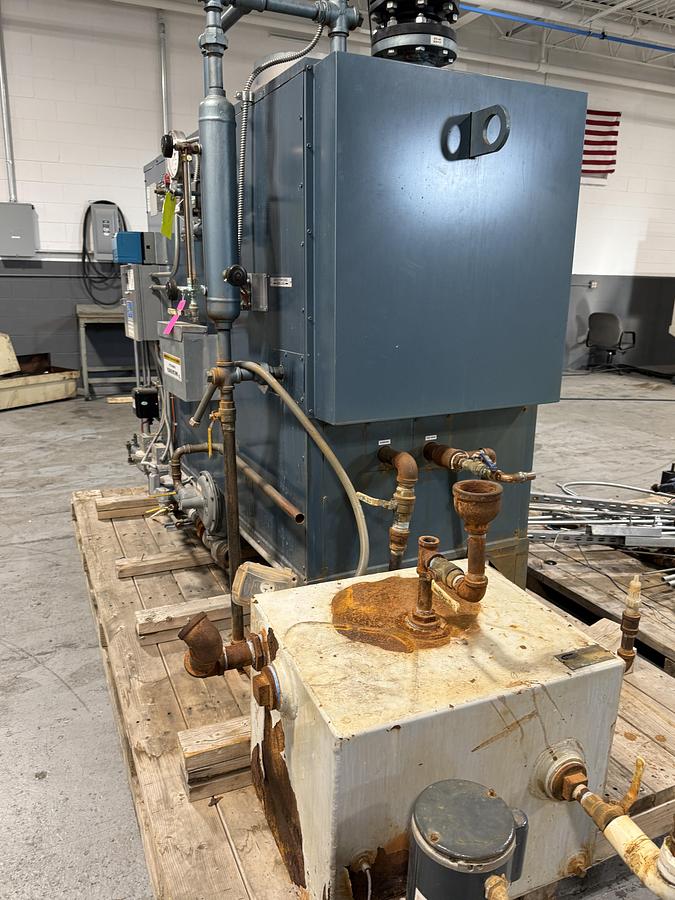

RITE 120S NATURAL GAS LOW PRESSURE STEAM BOILER — 1,200,000 BTU/HR (28 HP)

Used Rite Engineering & Mfg. Corp. (Downey, CA) Model 120S natural gas-fired, low pressure steam boiler, removed from service. UL Listed Gas-Fired Boiler Assembly No. AN-999583. Atmospheric burner design rated for 1,200,000 BTU/hr input, approximately 28 boiler HP output, 15 PSI max working steam pressure. Unit was pulled from an installed application and is offered as-is, where-is — untested, no warranty expressed or implied as to operating condition. Buyer to inspect prior to purchase and is responsible for rigging, loading, and transport.

SPECIFICATIONS

- Manufacturer: Rite Engineering & Mfg. Corp., Downey, CA

- Model: 120S

- Serial No.: 31938

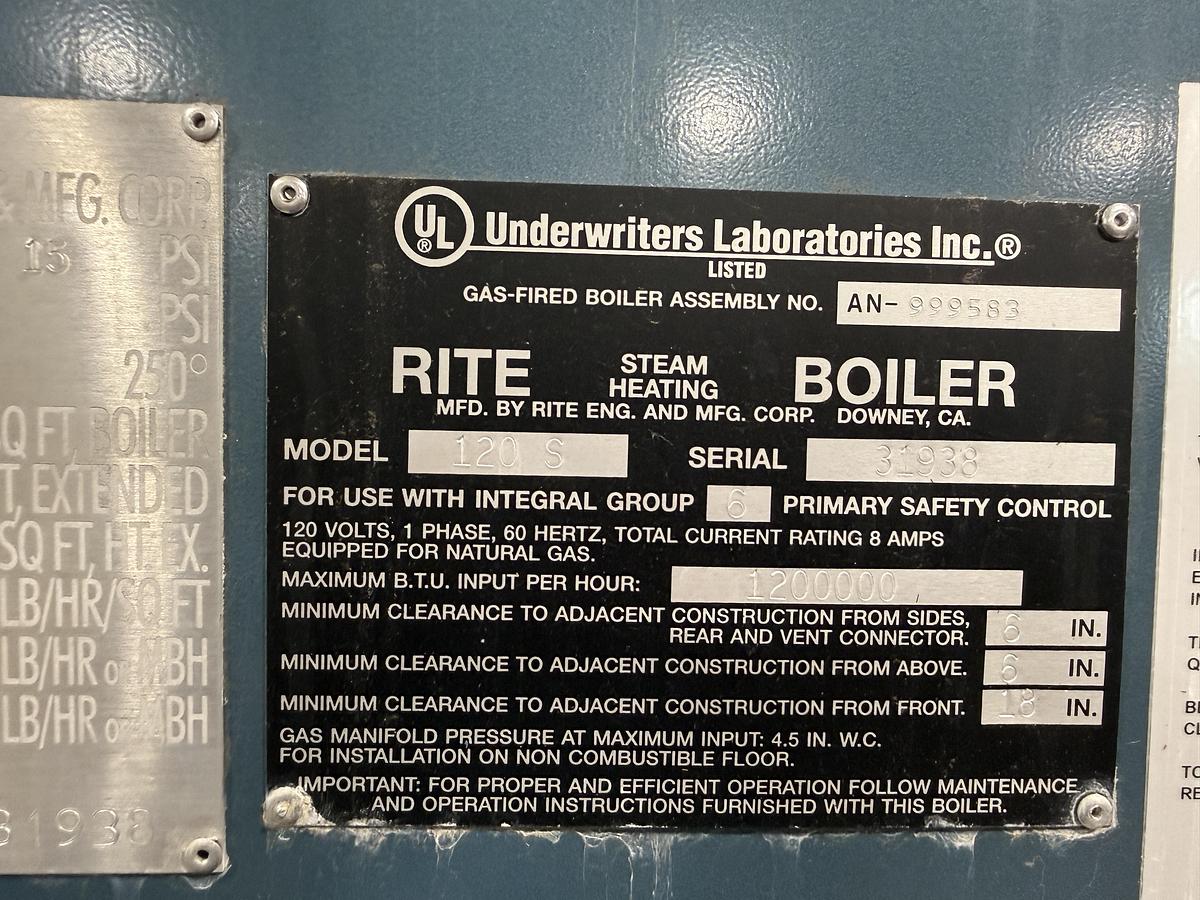

- UL Listed Gas-Fired Boiler Assembly No.: AN-999583

- Type: Low pressure steam, natural gas fired, atmospheric burner

- Max BTU Input: 1,200,000 BTU/hr

- Rated Output: approx. 960,000 BTU/hr

- Boiler Horsepower: approx. 28 BHP

- Nominal E.D.R.: approx. 4,000 sq ft

- Steam Capacity: approx. 989 lbs/hr @ 212°F

- Max Working Pressure: 15 PSI steam

- Electrical: 120V / 1-Phase / 60Hz, 8 amp total current rating

- Gas Connection: 1-1/4" NPT

- Feedwater Connection: 1-1/2" NPT

- Dimensions (per mfr. spec, new unit): 71"L x 32"W x 63"H, 14" stack diameter

- Approx. Shipping Weight (new unit spec): 2,550 lbs — verify against actual unit/skid

- Minimum Clearances: 6" sides/rear/top, 18" front
