Muller Manufacturing Pallet Stretch Wrapper

Muller MPVZ-446 Pallet Stretch Wrapper

SPECIFICATIONS:

• Up to 20 loads per hour (Process rates will vary with load height, wrap pattern and operator proficiency)

• Rotation Speed: 8 RPM

• Maximum Load Size: 50"W x 50"L

• Maximum Load Diagonal: 70"

• Maximum Load Height: 80"

• Maximum Load Weight: 4,000 lbs

• Film Size: 20"

• Stretch Type: Powered Pre-stretch (Retrofit upgrade Muller SG2000 with PPA safety cover)

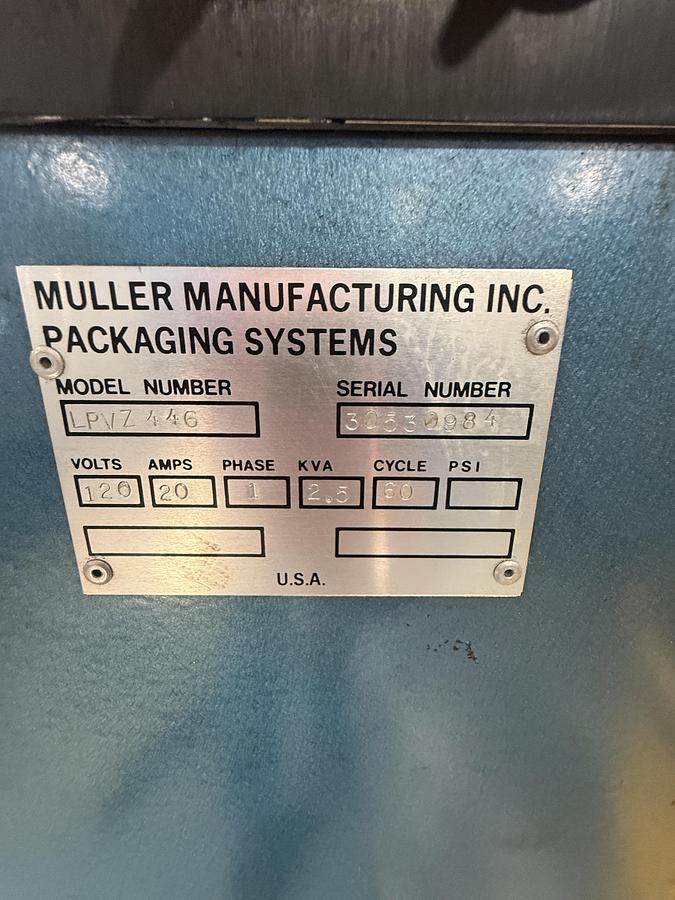

• Electrical Requirement: 120 VAC, 15 Amps

• Pneumatic Requirement: none

• Rotation Drive: 1/2 HP AC Motor with Mechanical Soft-Start

• Up/Down Drive: 1/2 HP AC Motor

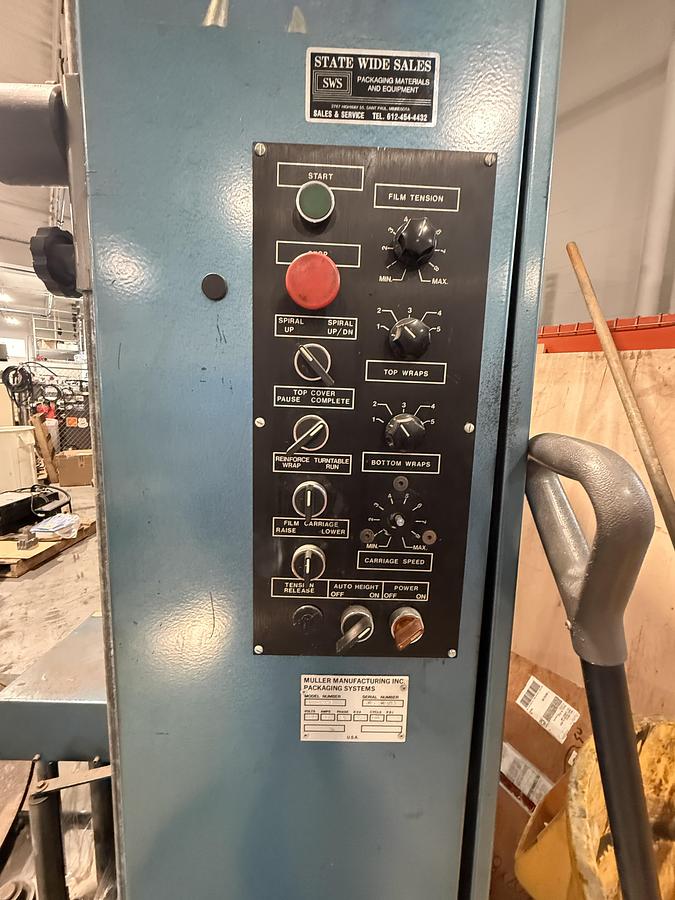

• Controller: Relay Logic
