MyData MY9 Pick and Place System
Featured
MyData MY9 Pick and Place System
$3,450 (USD)
Location:Fridley, MN
or
Call 763-553-1711
Description

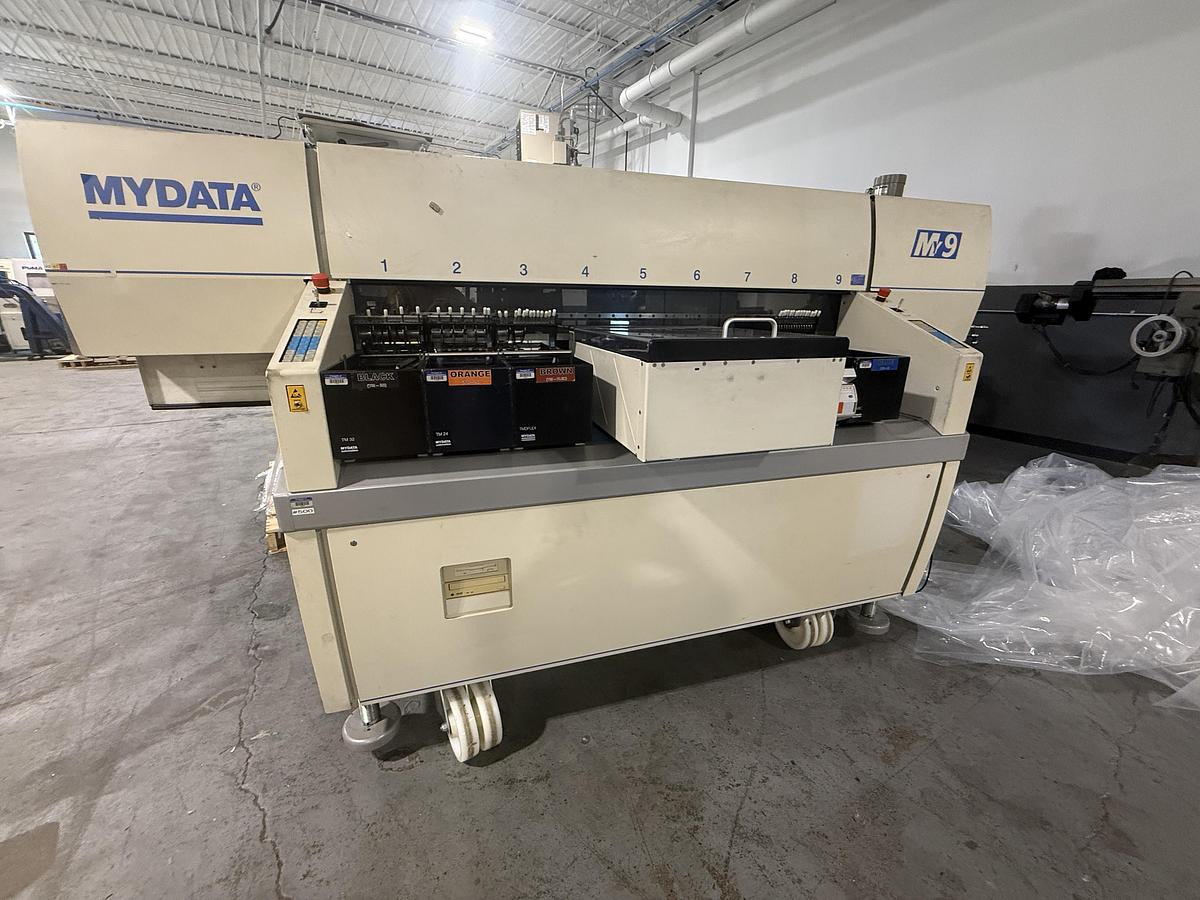

Manufacturer / Model: Mydata MY9 Pick-and-Place System

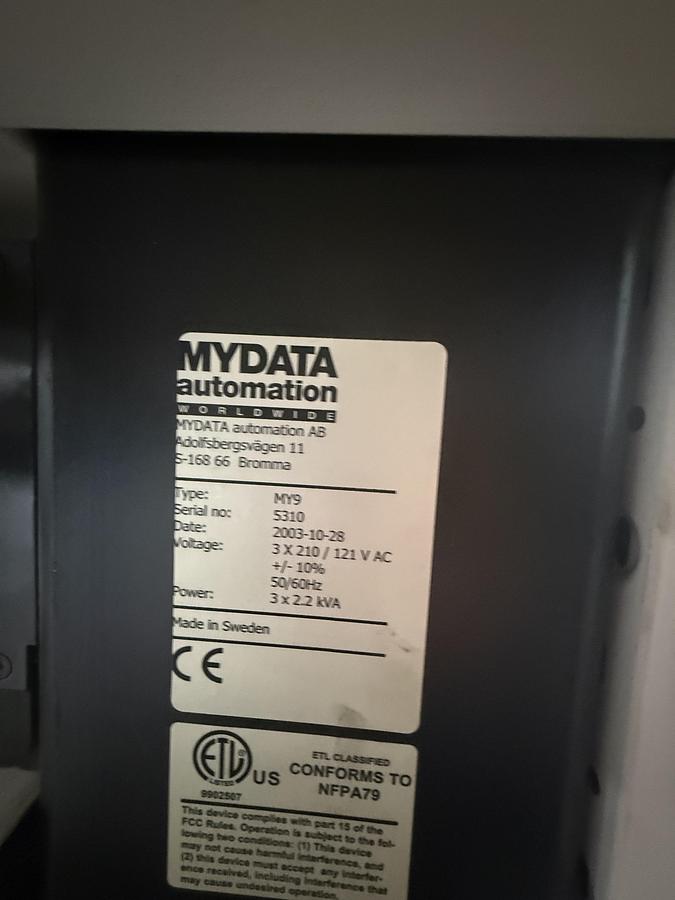

Serial Number: 5310
Year of Manufacture: 2003
Placement Heads: Single Midas
Placement Speed: 6,500 CPH standard; up to 21,000 CPH with Hydra Speedmount; ~6,100 CPH with Linescan Vision
Placement Accuracy: ~15 micron repeatability (3 sigma), typical for platform
Feeder Capacity: 96 x 8mm tape feeders (or 64 x 8mm tapes + 32 JEDEC trays w/ TEX tower)
PCB Size Capacity: Up to approx. 400mm x 443mm (board lengths to ~420mm)
Power Requirements: 121/210 VAC, 50/60 Hz, 3-Phase
Control Software: Mydata TPSys
Machine Footprint: Approx. 2820 x 590 x 1450 mm
Machine Weight: Approx. 1,900 kg (~4,200 lbs)
Location: Fridley MN
Price: $3,450
Specifications
| Manufacturer | Mydata |
| Model | MY9 |
| Year | 2003 |
| Condition | Used |
| Serial Number | 5310 |
| Stock Number | C1742 |
| Manufacturer / Model | Mydata MY9 Pick-and-Place System |
| Year of Manufacture | 2003 |
| Placement Heads | Single Midas |
| Control Software | Mydata TPSys |
| Location | Fridley MN |
| Price | $3,450 |
