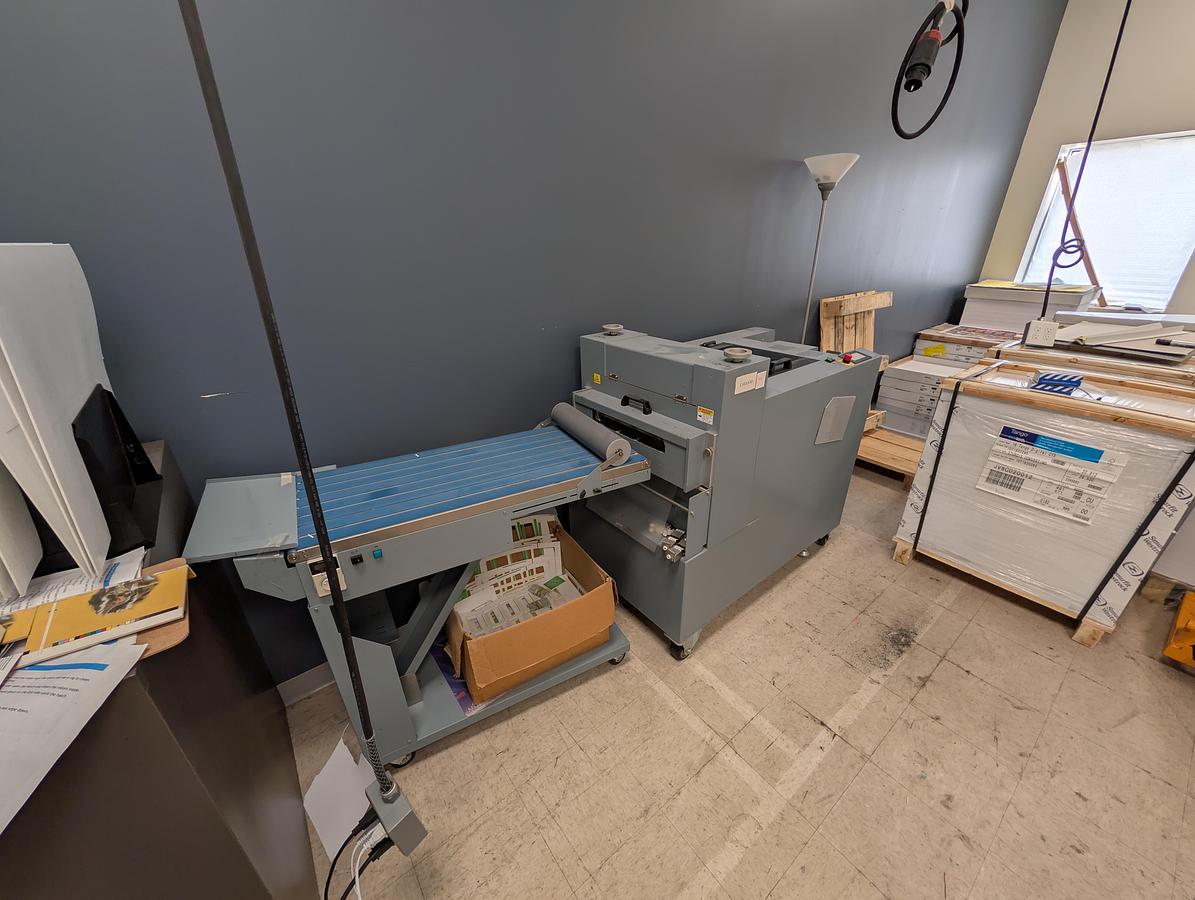

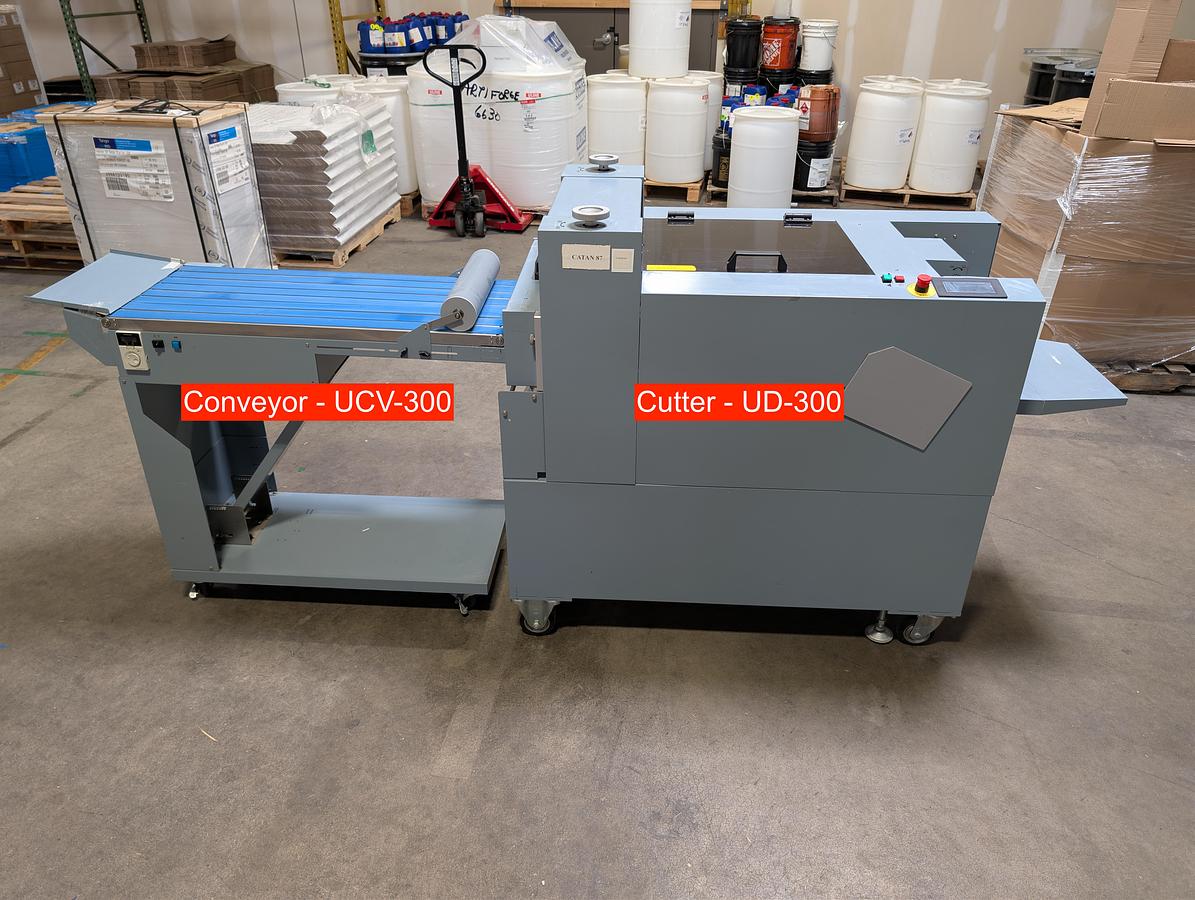

Duplo UD-300 Rotary Die Cutter
Duplo UD-300 Rotary Die Cutter
$9,950 (USD)
Location:Minneapolis, MN
or
Call 763-553-1711
Description
The UD-300 is a rotary magnetic cylinder die cutter built for flexible (magnetic) dies with fast changeover, feeding via an air suction belt feeder rather than hand-feed.
- Year 2016
- Sheet size: max 14.33" x 20.275" (364 x 515mm), min 8.267" x 11.693" (210 x 297mm)
- Paper weight: 106–400 gsm
- Loading capacity: up to 7.875" (200mm) stack height
- Speed: 6,000 cycles/hour; up to 3,000 sheets/hour at max sheet size
- Weight: 880 lbs (400 kg)
- Functions: cutting, slitting, slit-scoring, kiss cutting, perforating, and window punching
Price: $9,950
- NOTE: Has Sheet Registration Issues
*Important: All machinery specifications must be independently verified by buyer.
Specifications
| Manufacturer | Duplo |
| Model | UD-300 |
| Year | 2016 |
| Condition | Used |
| Stock Number | C1730 |
| Max sheet size | 14.33" x 20.275" (364 x 515mm), min 8.267" x 11.693" (210 x 297mm) |
| Load Capacity | up to 7.875" (200mm) stack height |
| Speed | 6,000 cycles/hour; up to 3,000 sheets/hour at max sheet size |
| Functions | cutting, slitting, slit-scoring, kiss cutting, perforating, and window punching |
| * Weight | 880 lbs (400 kg) |
| Price | $9,950 |
| * Paper weight | 106–400 gsm |
