Aristech Programmable EDM

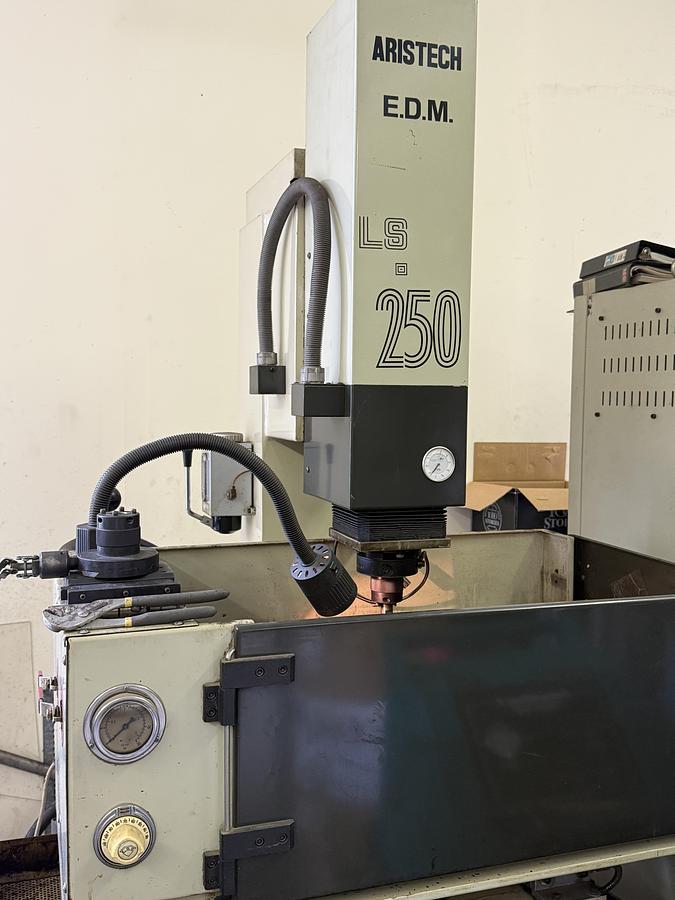

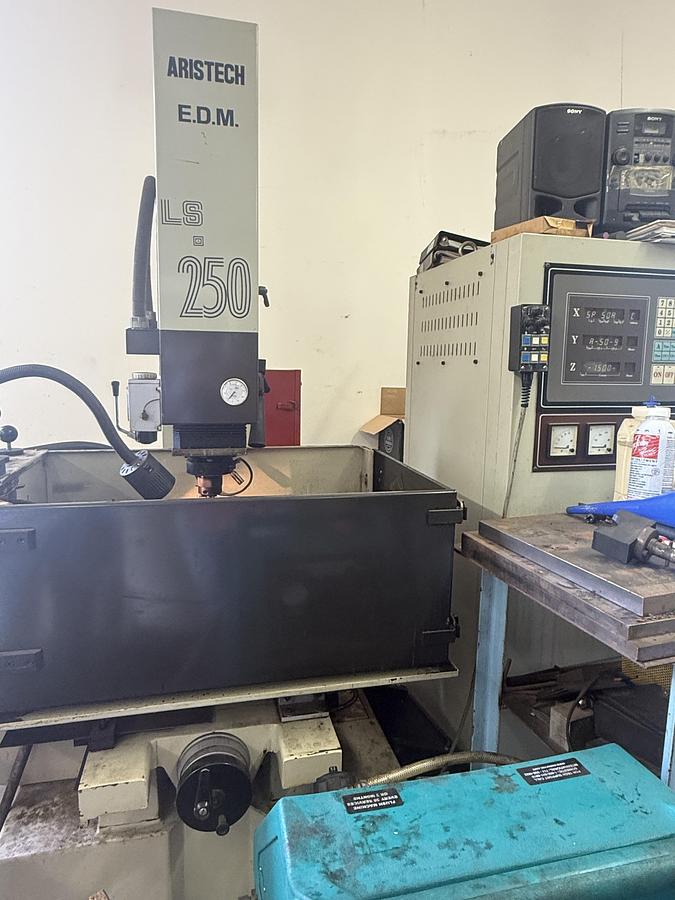

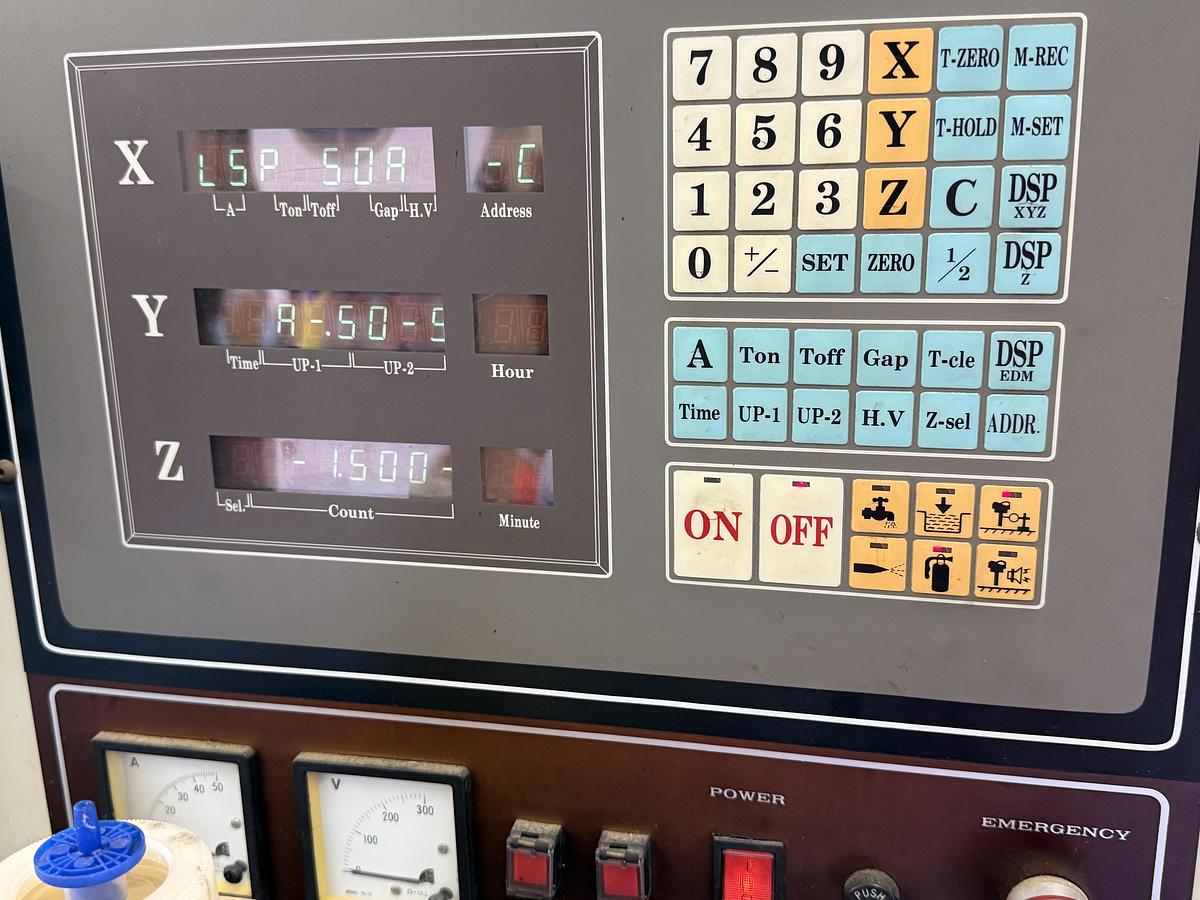

The Aristech LS-250 is a programmable die-sinker EDM built on a highly rigid, fine-grained cast iron base. It is equipped with a 20-step Z-axis controller and a 3-axis digital readout (DRO) featuring linear scales.

Capacity & Travels

• Table Size: 300 mm × 675 mm (11.8 inches × 26.6 inches)
• X-Axis Travel: 790 mm (31.1 inches)
• Y-Axis Travel: 530 mm (20.9 inches)
• Z-Axis Travel: 340 mm (13.4 inches)

Power & Electrics

• Power Pack Rating: 75 Amps
• Positioning System: Lead screws on X & Y axes; ball screws on the Z-axis
• Linear Scale Resolution: 0.005 mm (0.0002 inches

$3,000.00
