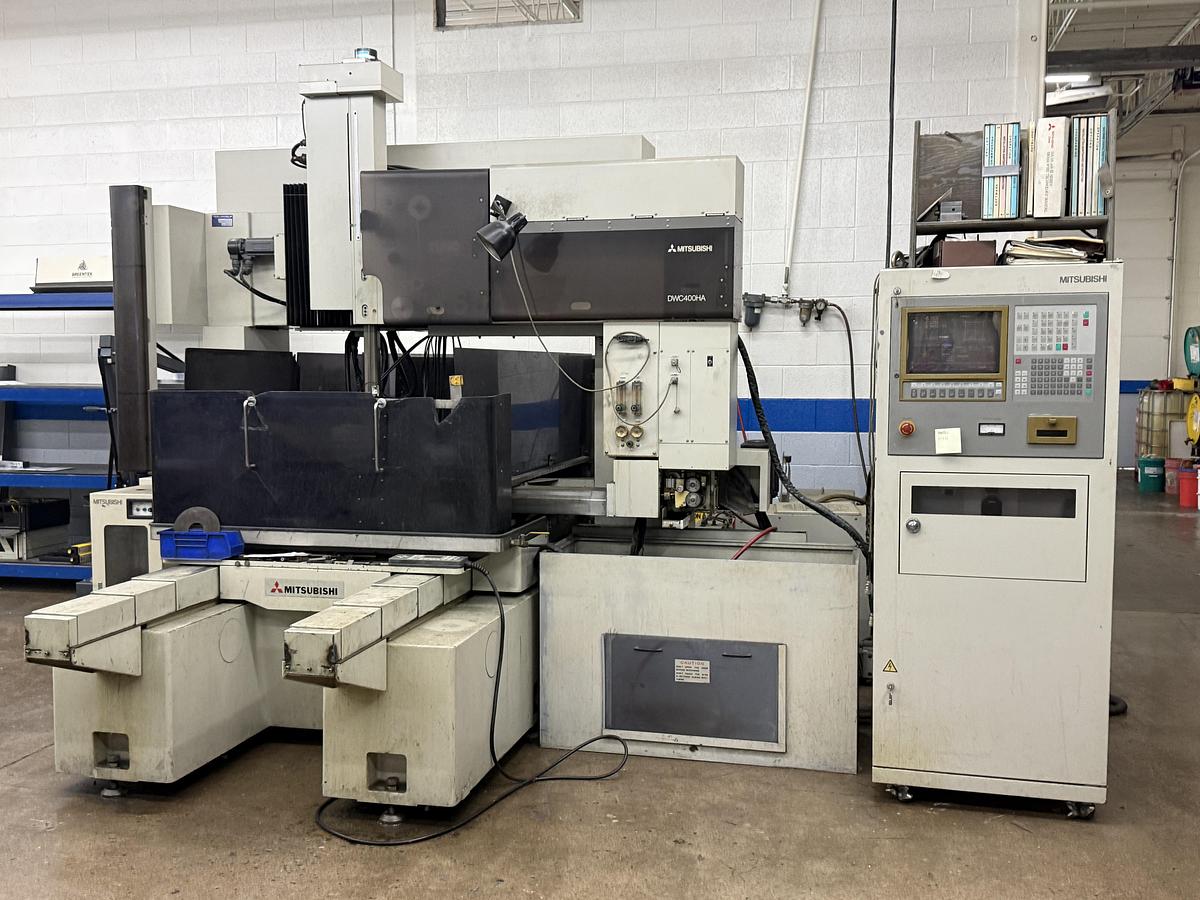

Mitsubishi DWC400HA Wire EDM

Mitsubishi DWC400HA Wire EDM

Axis Travels & Capacities

• X-Axis Travel: 15.7 inches (400 mm)
• Y-Axis Travel: 11.8 inches (300 mm)
• Z-Axis Travel: 9.8 inches (250 mm) or up to 17 inches
• Work Envelope: Supports large workpiece clearances generally up to 31.5" × 39.3" × 17" [1, 2, 3]

Machine Footprint & Requirements

• Power Supply: 200/220VAC ± 10%, 50/60Hz, 13.5 kVA
• Air Supply: 0.5 to 0.7 MPa (70 to 100 psi)
• Machine Space: Requires a footprint of approximately 133" × 150" (including standard maintenance space)
• All Available Manuals

All specifications need to be verified by the buyer
