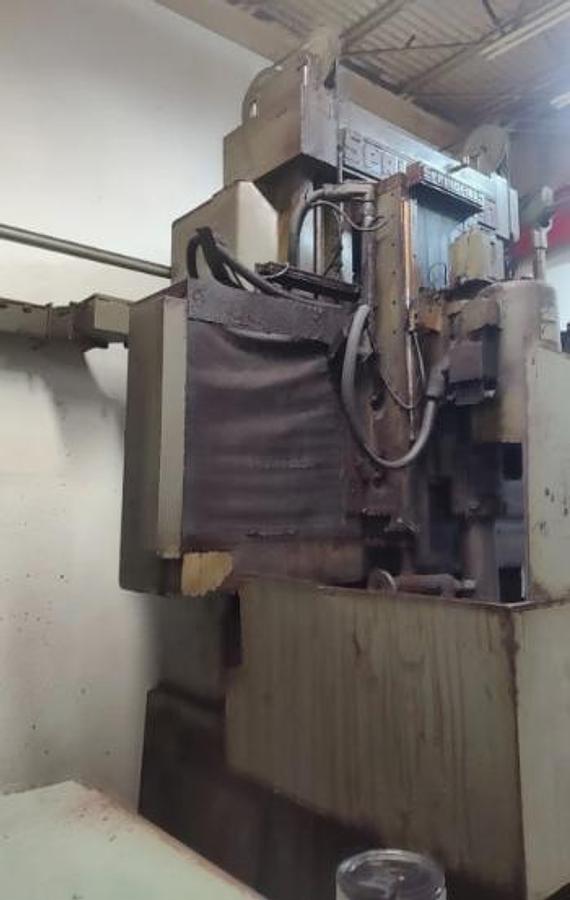

1974 Springfield Vertical Universal Grinder

1974 Springfield 2-1/2 MS-Crown Vertical Universal Grinder

Machine Overview

• Make/Model: Springfield 2-1/2 MS-Crown Vertical Universal Grinder
• Year: 1974

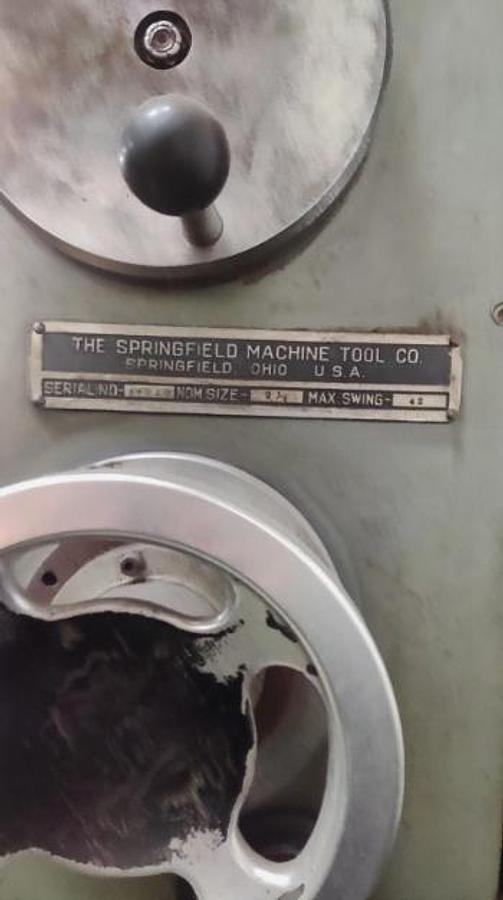

• Serial Number: 74025

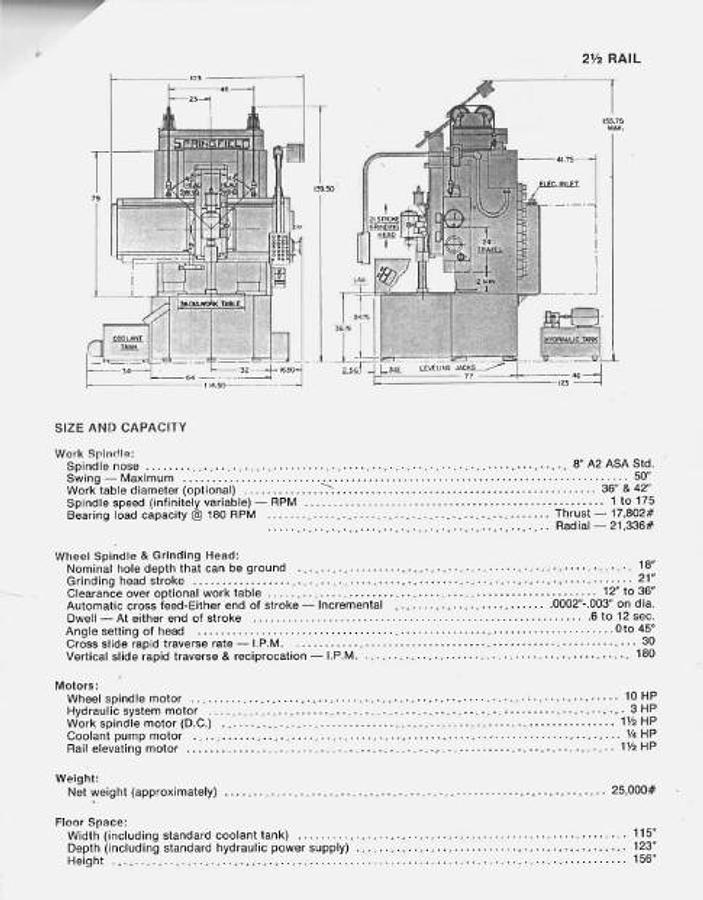

Specifications

• Maximum Swing: 44"
• Table Diameter: 36"
• Spindle Speed: 1 – 175 RPM

Bearing Load Capacity @ 180 RPM:

• Thrust: 17,802 lbs
• Radial: 21,336 lbs
• Nominal Hole Depth Ground: 18"
• Grinding Head Stroke: 21"
• Clearance Over Work Table: 20"
• Head Angle Adjustment: ±45°
• Cross Slide Rapid Traverse: 80 IPM
• Vertical Slide Rapid Traverse: 80 IPM
• Wheel Spindle Motor: 10 HP

Dimensions & Weight

• Footprint: 118" x 120"
• Overall Height: 125"
• Weight: 16,500 lbs

Equipped With

• Right-side SETCO swiveling head
• Left-side face milling head
• Electrical cabinets
