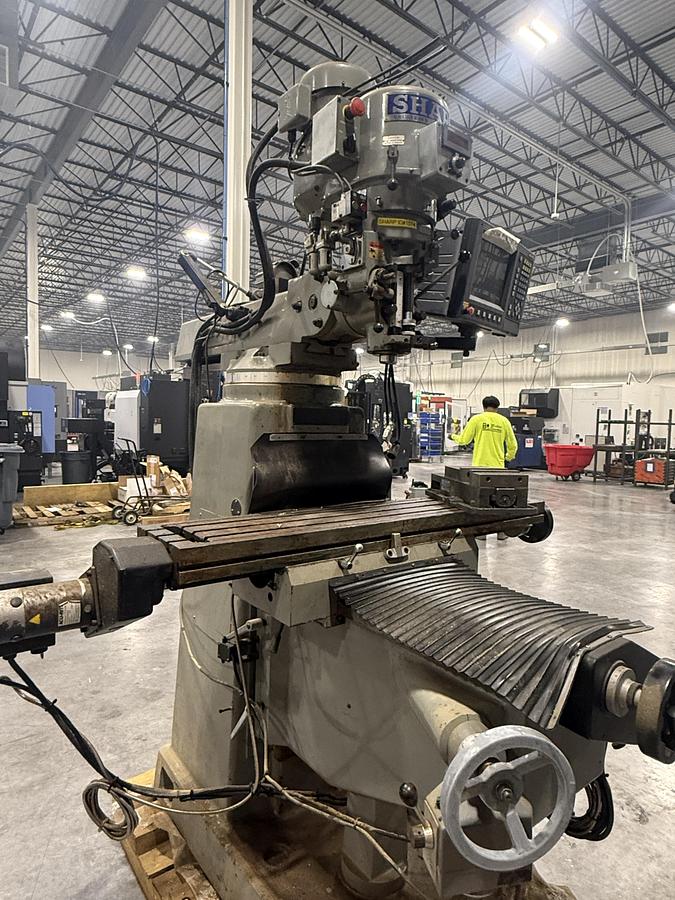

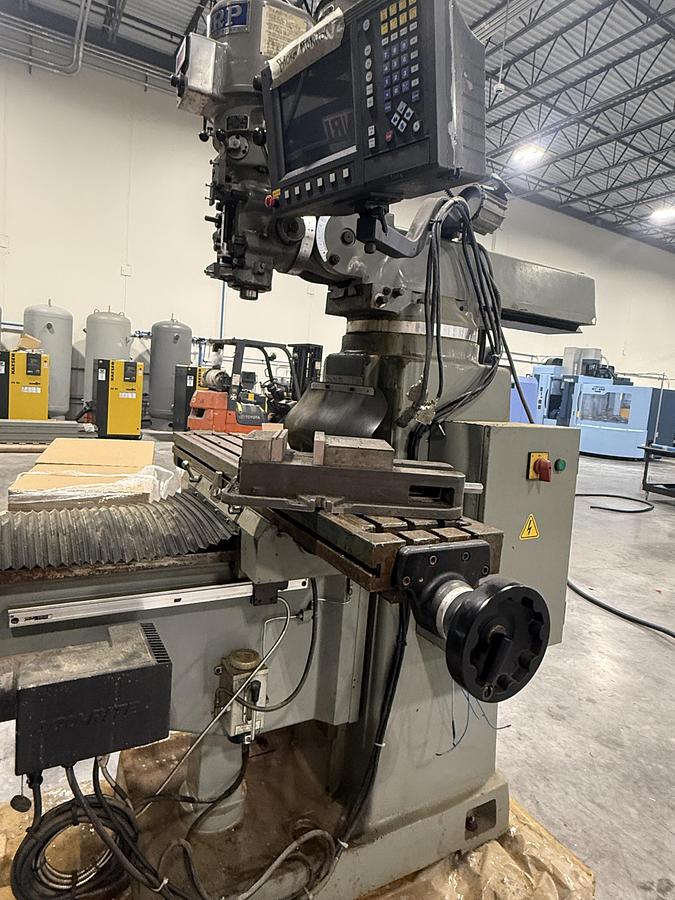

Sharp Vertical Mill, 2010 Model TMV

• *All specifications are approximations and are subject to verification
• Sharp Vertical Mill Model TMV
• Table Size: 10" x 50"
• Travels:Longitudinal (X): 39".
• Cross (Y): 16.3"
• Knee (Vertical):  15.3"
• Ram: 18.5"
• Quill: 5"
• Spindle:Motor:
•  HP 3 HP
• Speed: Variable, 60 to 4500 RPM.
• Taper: R-8

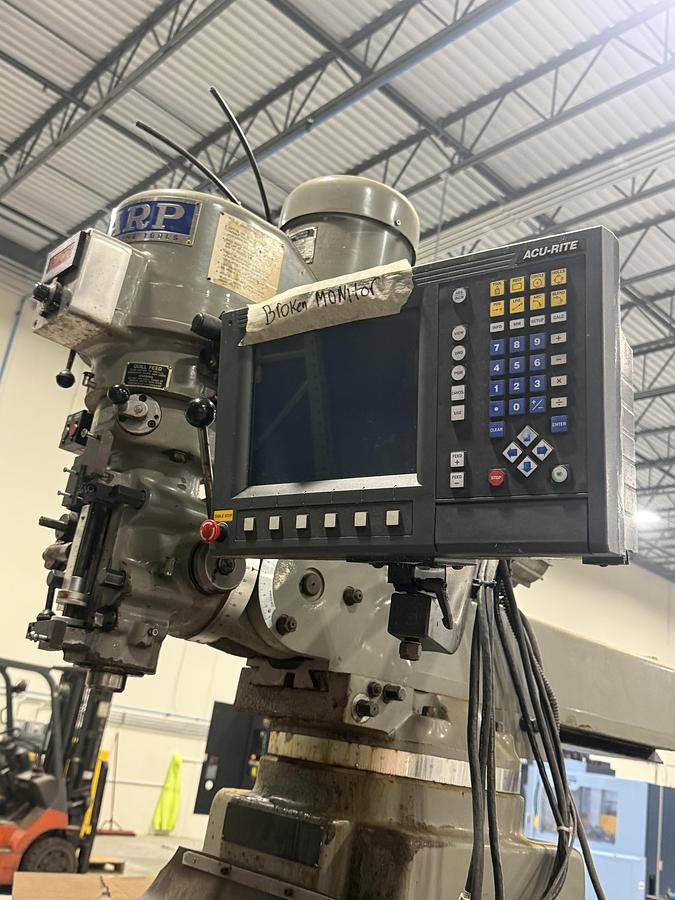

• Accurite DRO - monitor broken
• Power Draw Bar with 6" Vise

Approx Dimensions: 70" x 75" x 92"

Approx Weight: 3,000 lbs
