2007 Mitsubishi EA8 Sinker EDM

Mitsubishi EA8 Sinker EDM

• Travels
• :X-Axis: 11.8"
• Y-Axis:  9.8"
• Z-Axis:  9.8"

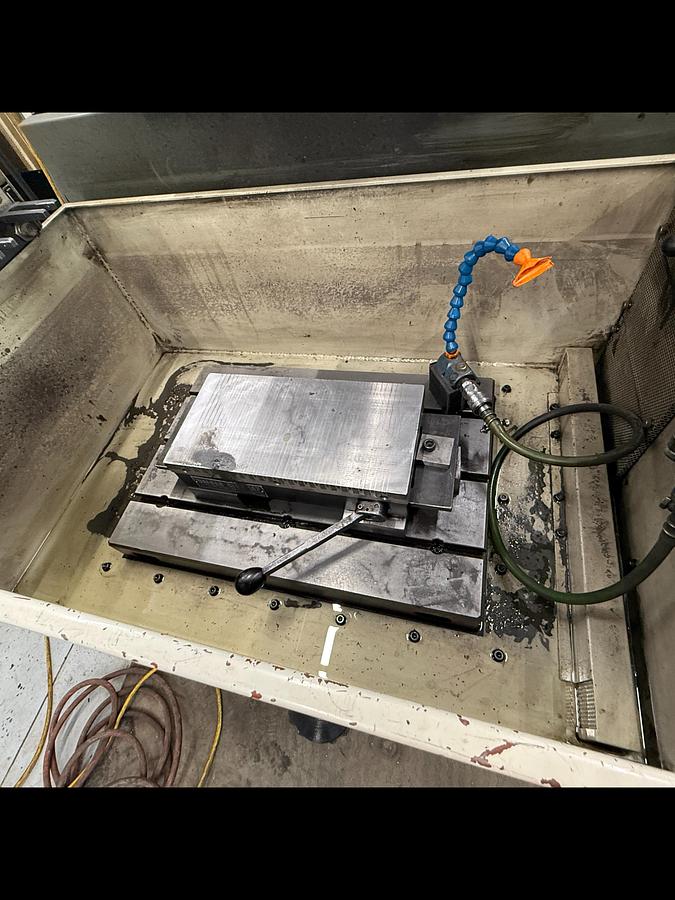

• Table Size: 19.69" x 13.78"
• Work Tank Dimensions: 30.3" x 19.7" x 9.8"
• Max Workpiece Weight: 1,200 - 1,214 lbs
• Max Electrode Weight: 55 lbs
• C-Axis: Full Programmable C-Axis (0.001° indexing)
• Table To Platen Distance: 7.87-17.72″
• Rapid Travel Speed: 78 IPM
• Approx Weight 3,500 lbs

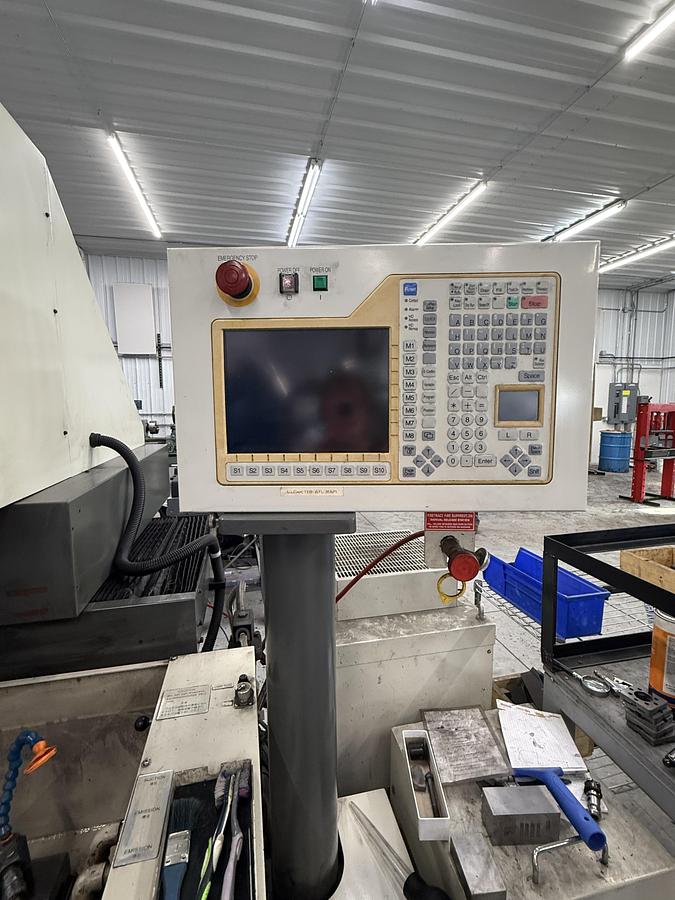

Equipped with: Mitsubishi CNC Control, Tool Changer, Chiller, Auto Feeder

*All specifications are approximations and are subject to verification
