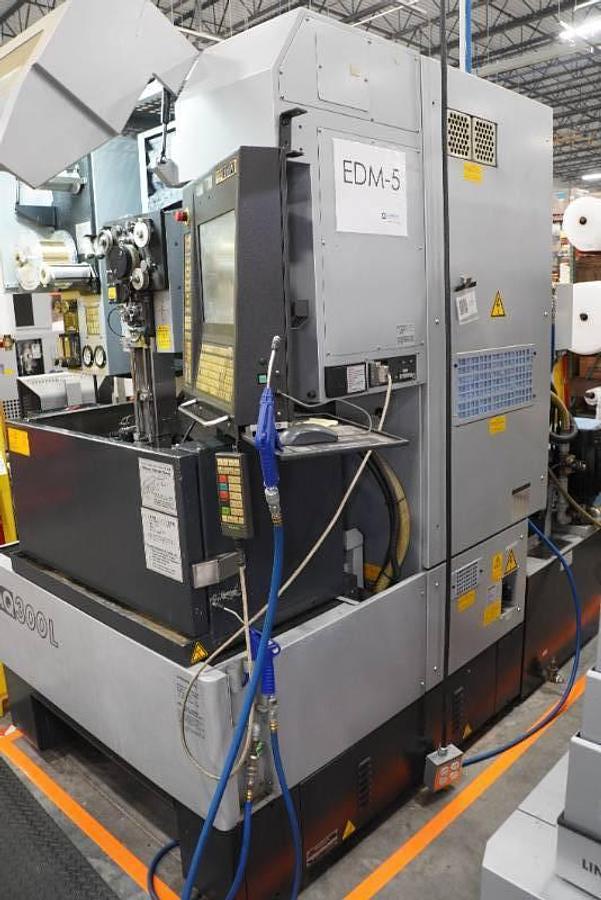

Sodick AQ300L CNC Wire EDM (Electrical Discharge Machine) with LQ1W Linear Servo CNC Control

Sodick AQ300L CNC Wire EDM (Electrical Discharge Machine) with LQ1W Linear Servo CNC Control

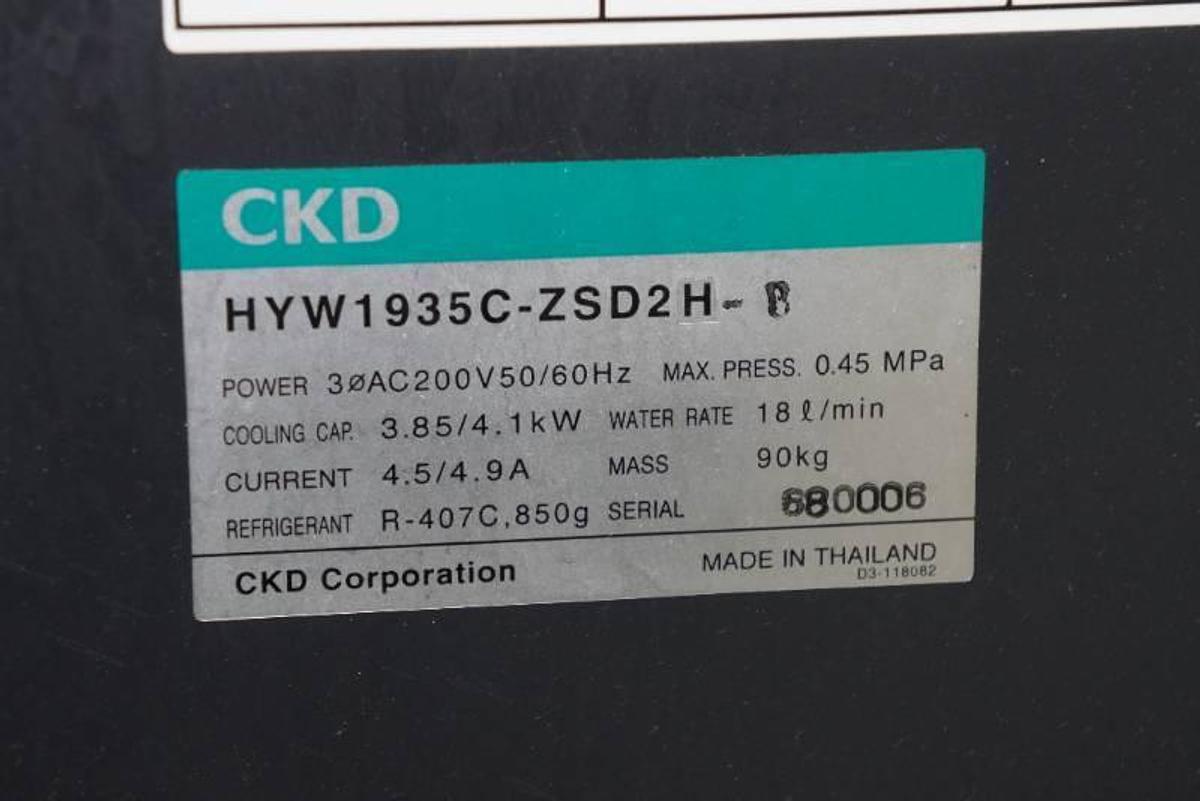

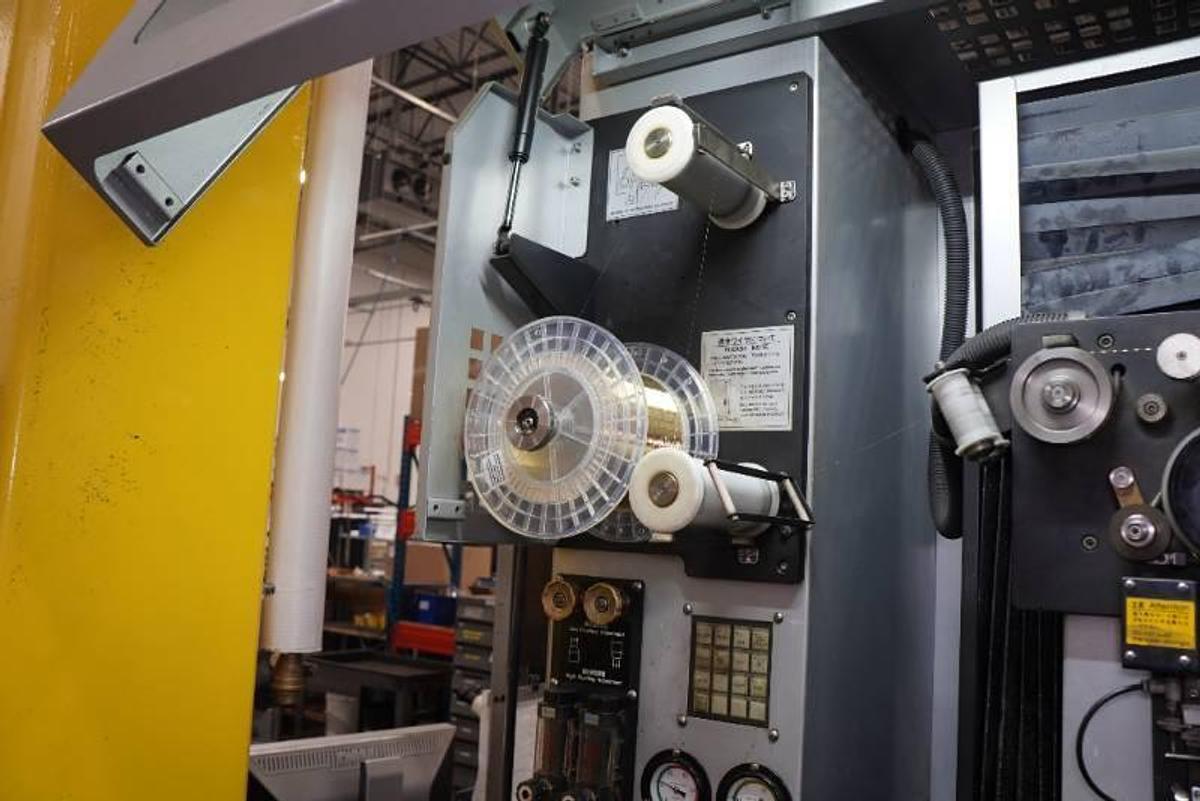

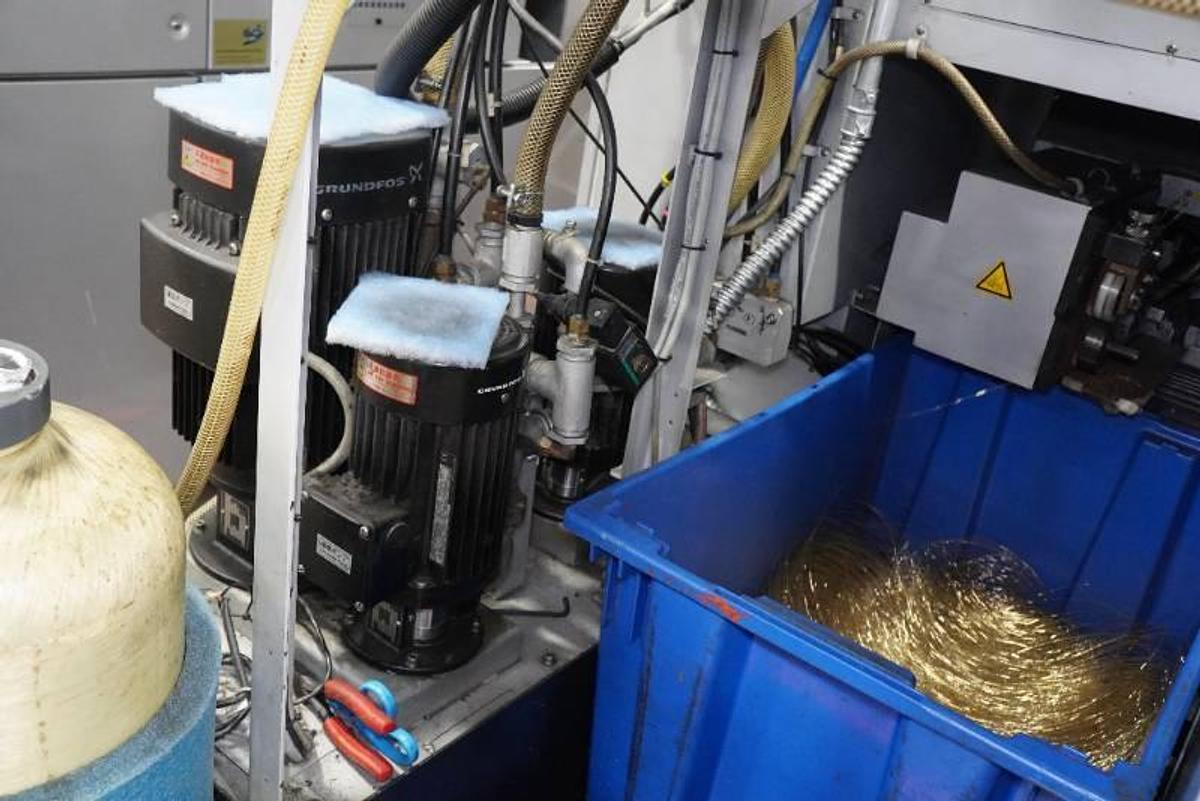

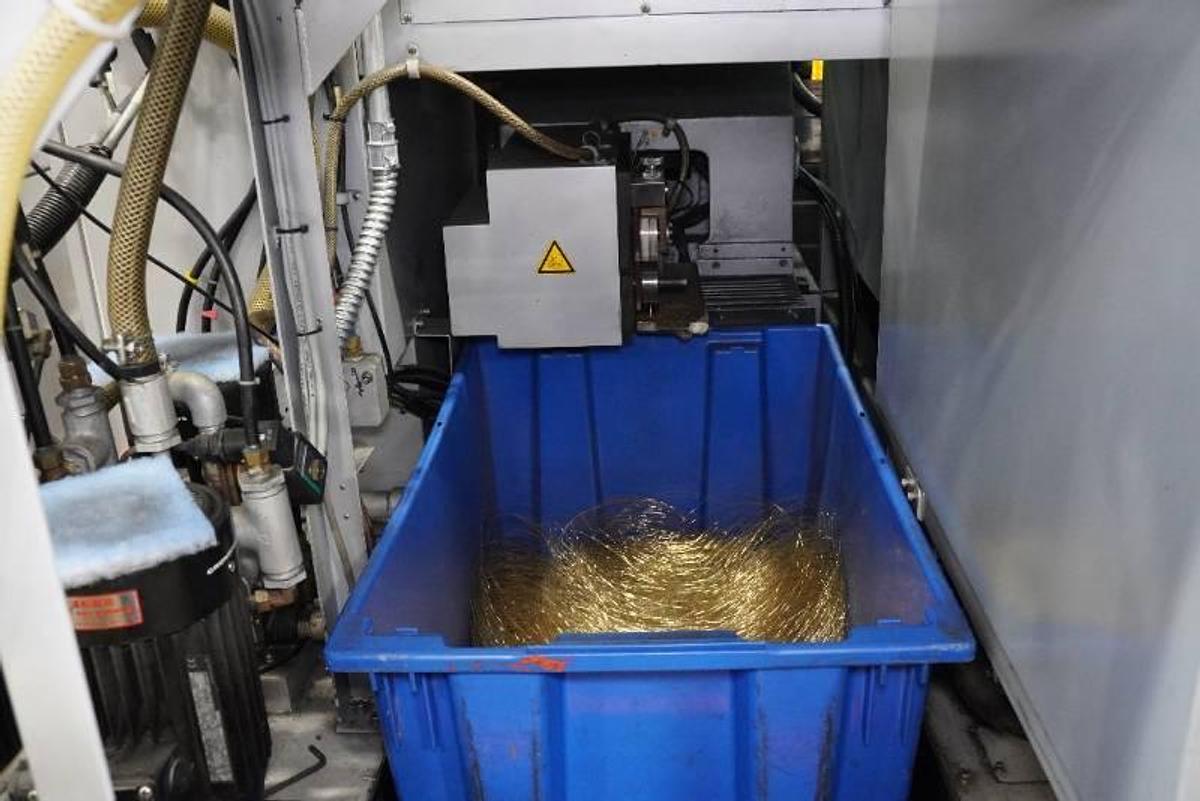

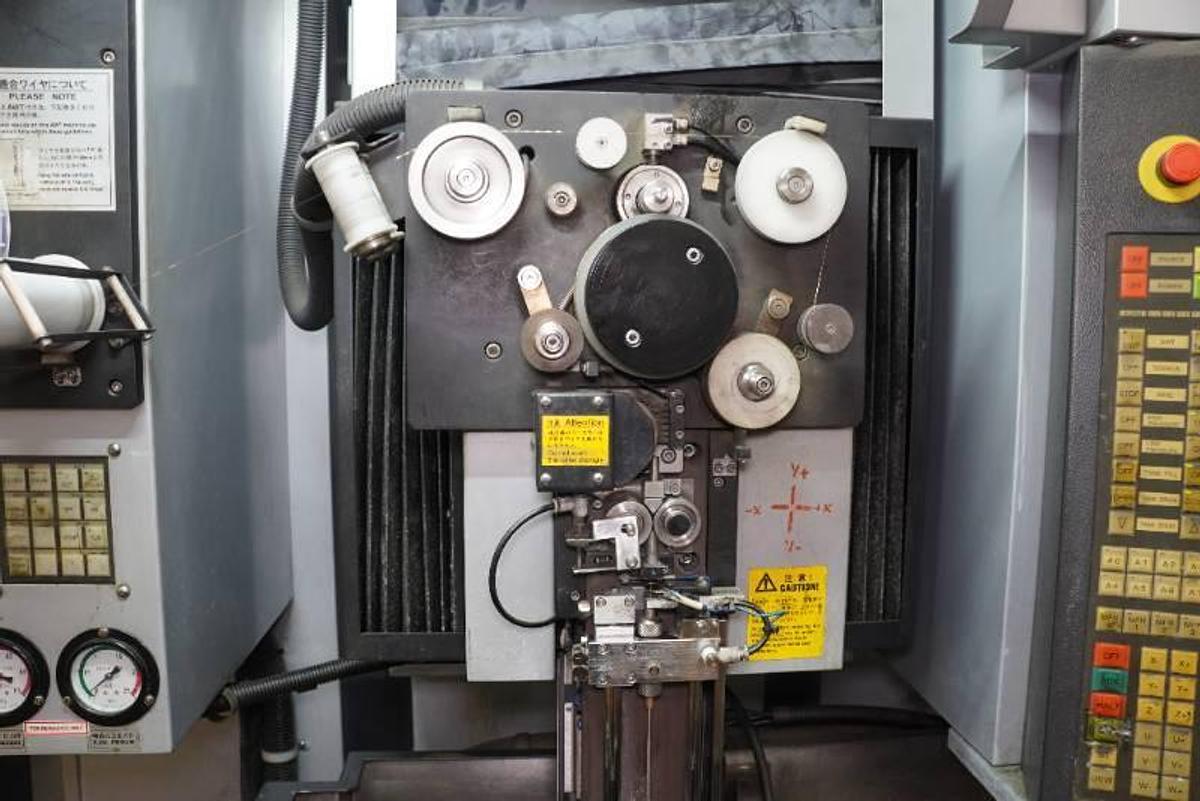

Equipped With: Sodick LN1W Linear Servo CNC Control, RS232 Port, Floppy Disk Drive, Remote Jog Pendent, 32 Amp Power Supply, Taper Cut, Auto Threading, Dielectric Chiller and Tank, Waste Wire Shredder, Manual.

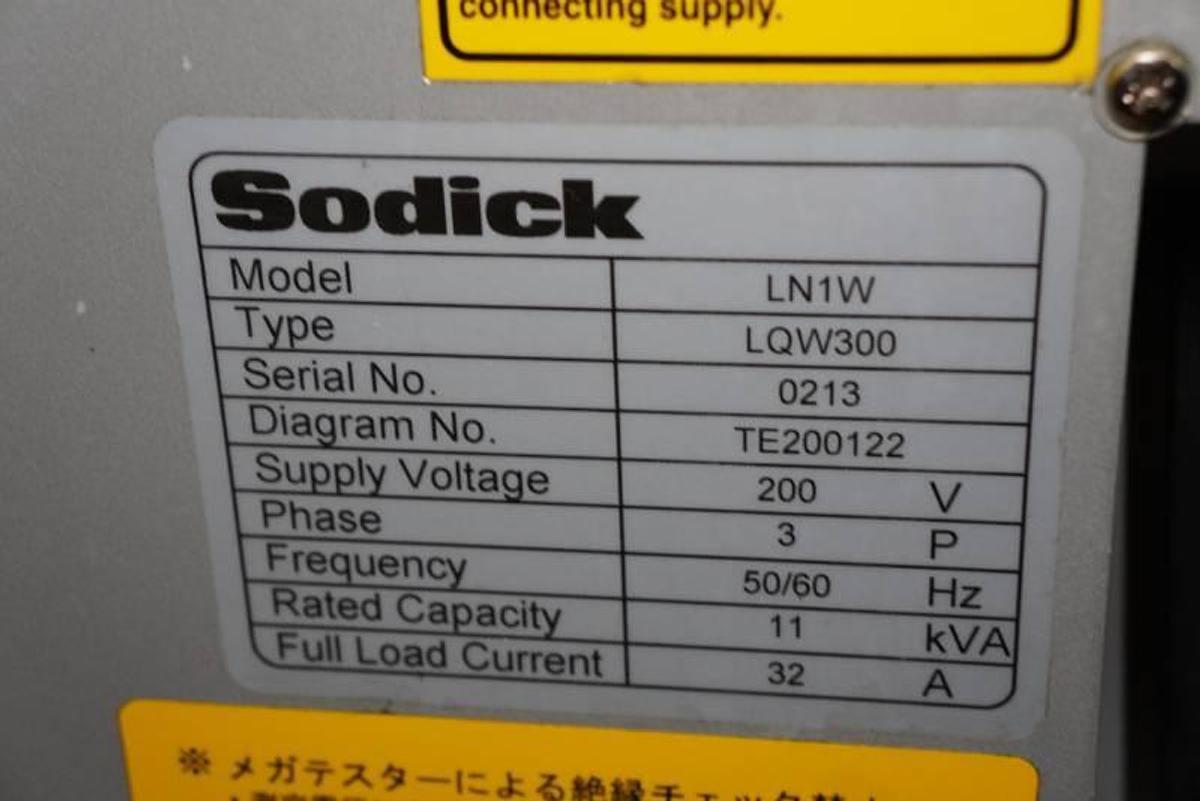

Electrics: 200 Volt, 3 Phase

Manufacturer: Sodick EDM Model: AQ300L Year: 2006 Serial Number: 0213

Main Unit Approx Weight: 5940.00 lbs

Main Unit Dimensions (in inches): Length: 65.00" Width: 64.00" Height: 88.00"

Components:

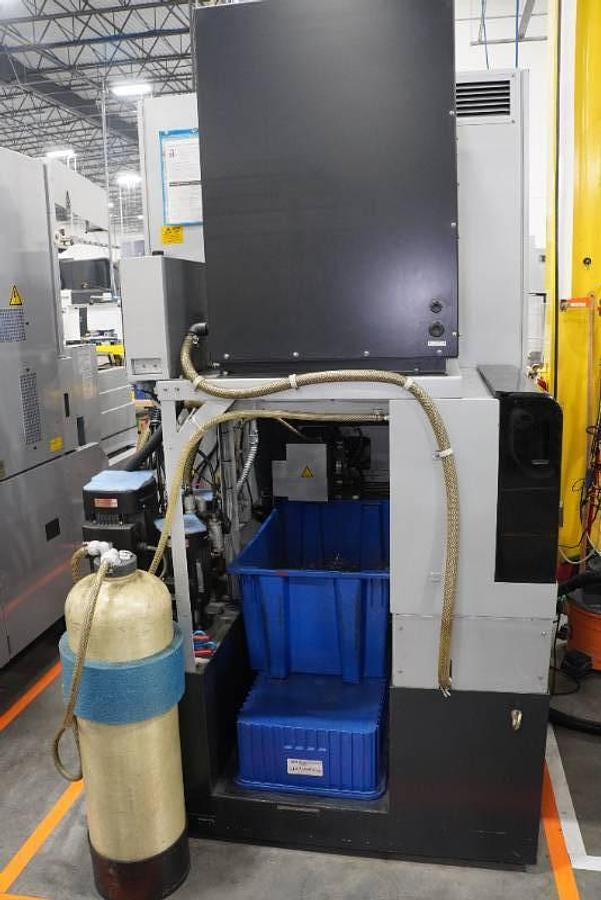

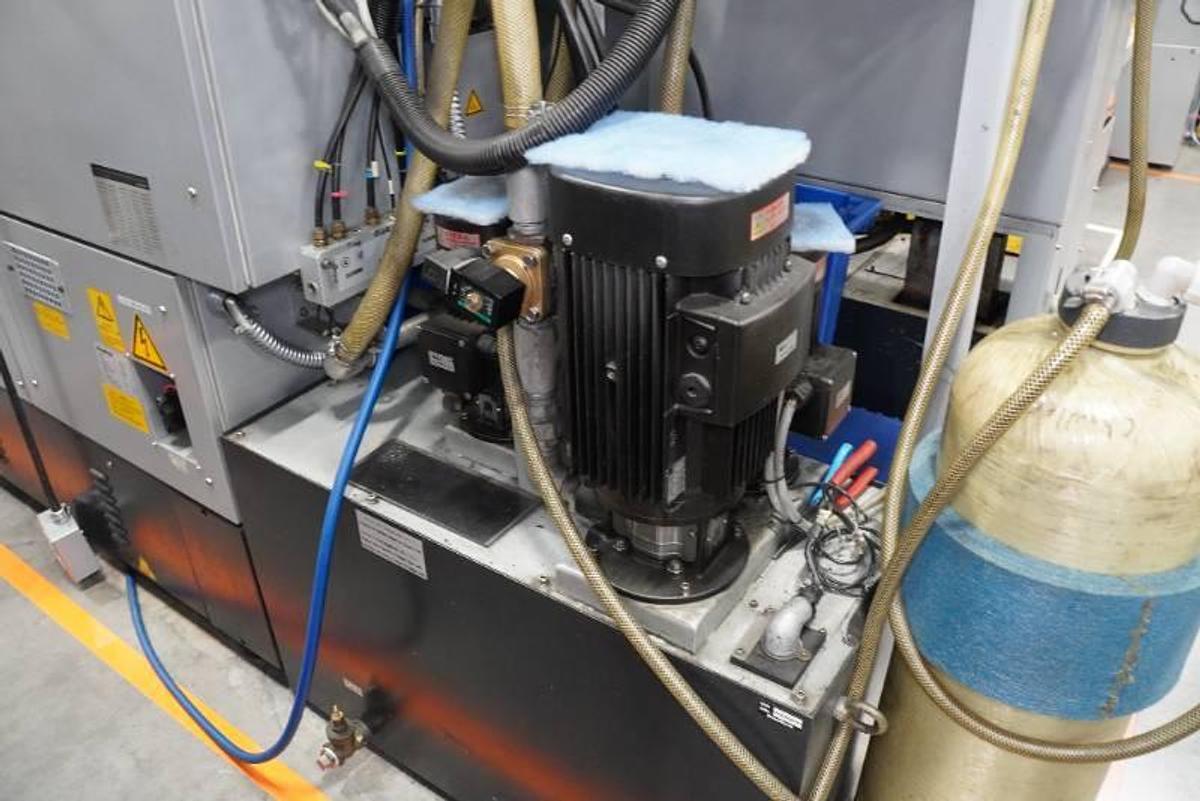

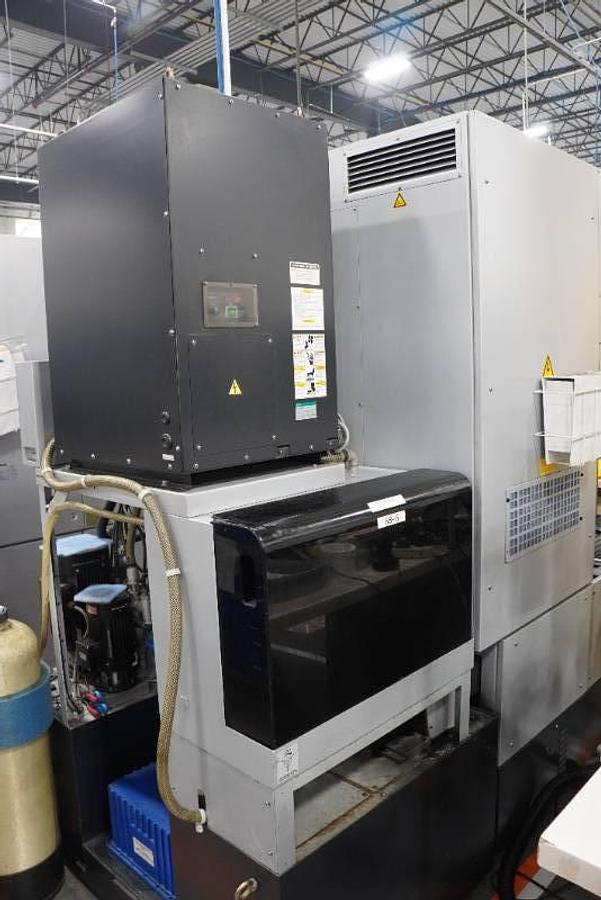

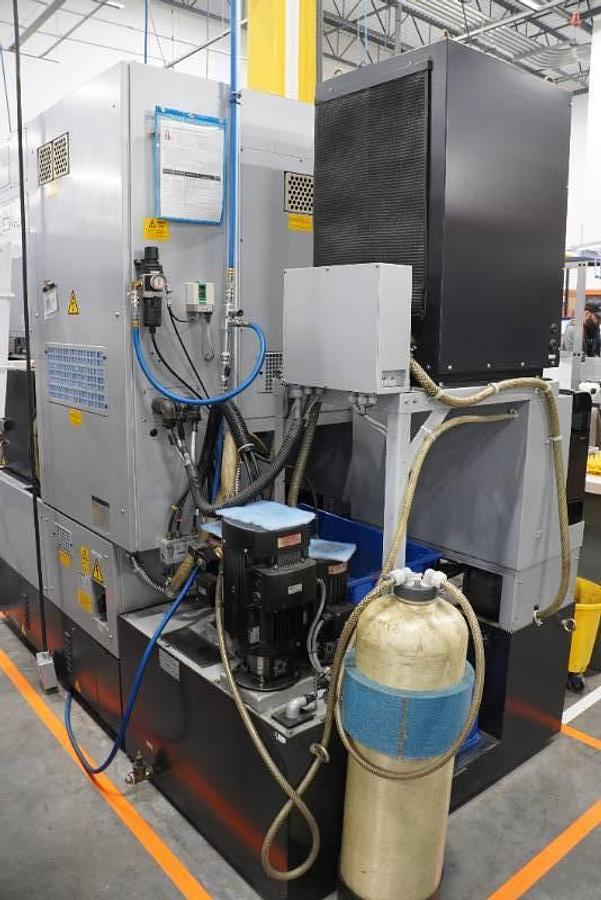

Dielectric System: Length: 51.00" Width: 36.00" Height: 86.00"

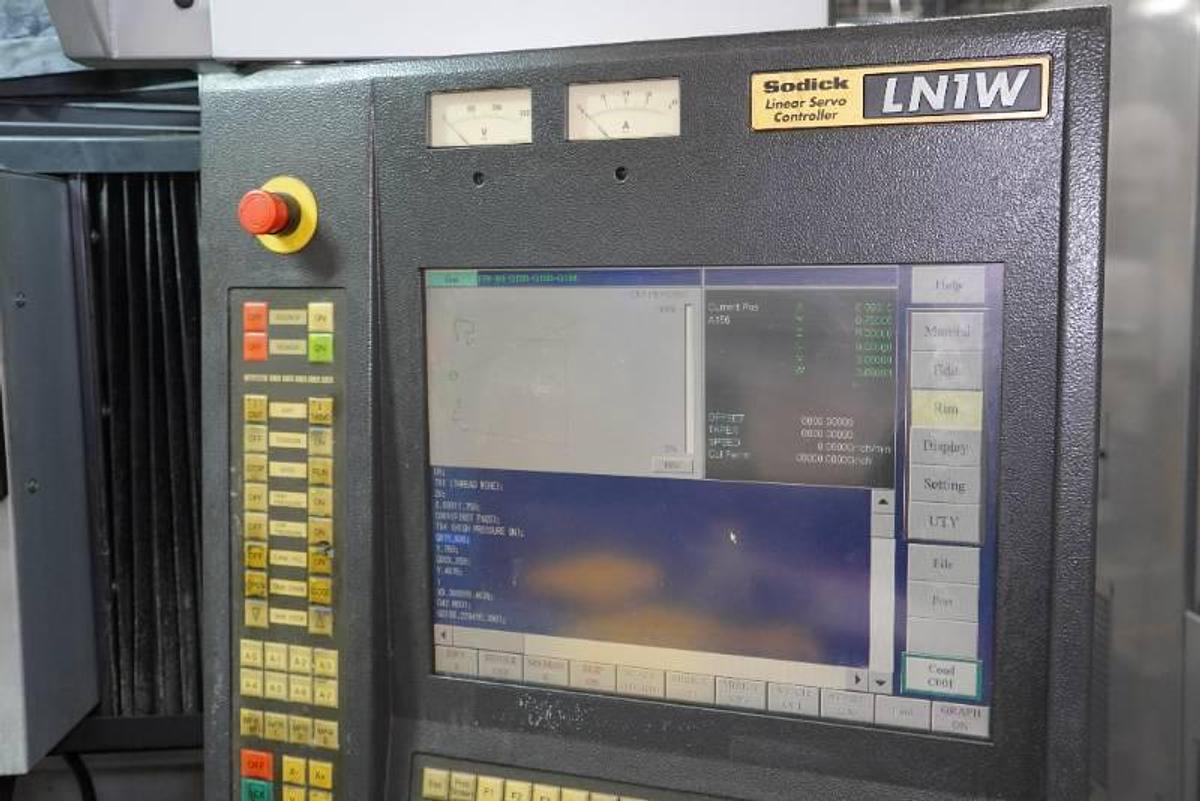

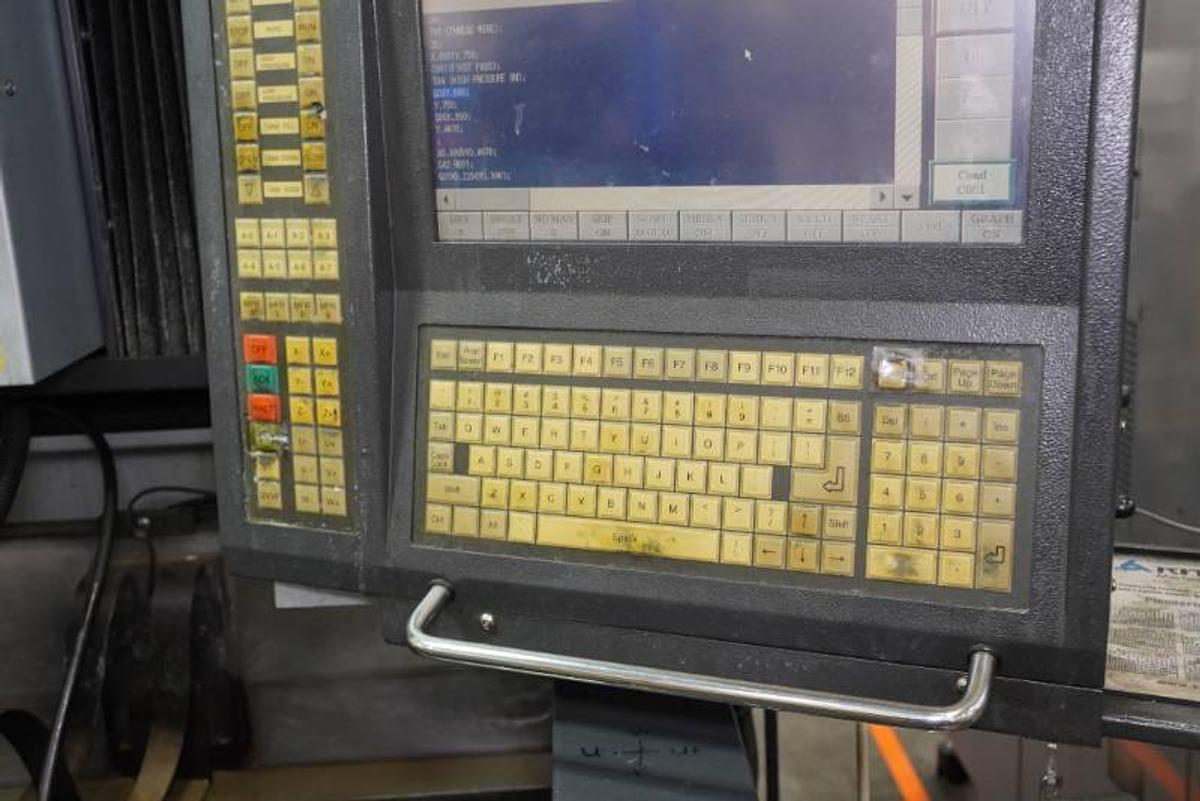

Specs:Control: Sodick LN1W

Max Workpiece Size: 21.10" x 13.27"

Travels (X,Y,Z): 11.81" / 7.87"/ 7.87"

UV Travels: 3.15" x 3.15"

Max Workpiece Height: 7.87", Submerged 7.09"

Max Workpiece Weight: 660 lbs

Wire Diameter: .006" - .012"

Wire Speed: 16.54"/Sec.

Taper Cut: +/- 20°

Power Supply Amps: 40 Amp

*All specifications are approximations and are subject to verification
