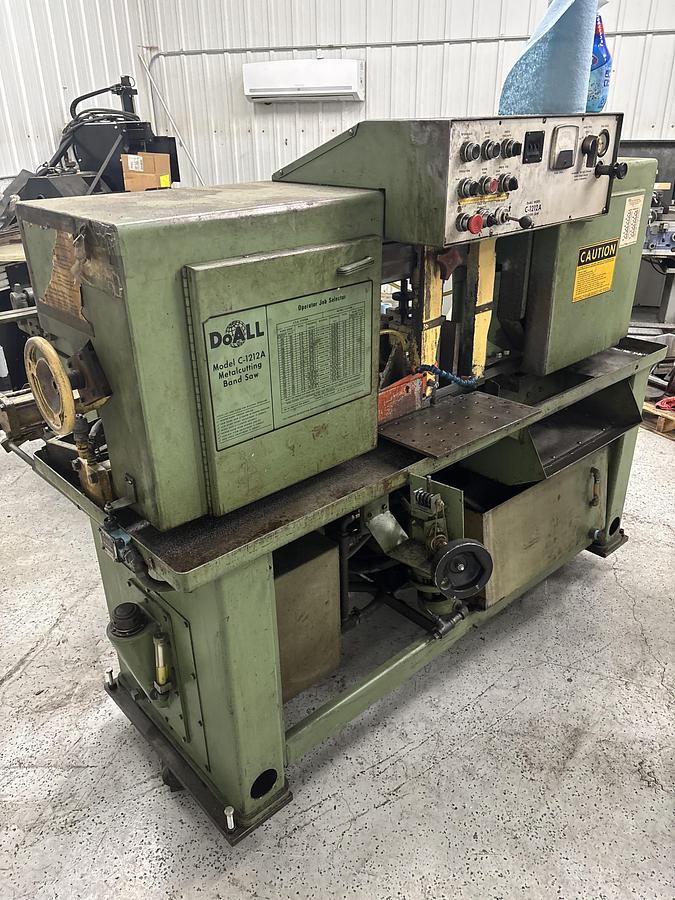

DoAll C-1212A Automatic Horizontal Band Saw, 12" x 12" Capacity

The DoAll Model C-1212A is a horizontal, automatic production band saw with a12" x 12"h (305 x 305 mm) cutting capacity for both round and rectangular stock. Auto Saw, Cut-off It typically features a 3 HP motor, 80–400 SFM variable blade speed, a 24-inch stroke automatic shuttle feed, and uses a 160" x 1" x 0.035" blade. Equipped with Front & Rear Tables.

Rectangle Cap 12" x 12"

Round 12"

Max. vise opening 12.25"

blade width 1"

Blade Size 160" x 1" .035"

Blade Speed 80-400 SFM

Bandwheel diameter 16"

Motor 3HP 220/440 volt 3 phase

Coolant Cap 20 Gallons

Coolant Motor .18 HP

Hydraulic System Cap 7 Gallons

Hydraulic Pump 1.5 HP

Automatic Feed Table yes

Overall Length 80"

Max Load Cap 6,250 Lbs.

Single cycle 24"

Approx Machine Dimensions 60" x 80" x 48" H

Approx Machine Weight 4,200 lbs.
