JP Industrial Oven Model C98TULEP480V45KW

This late model JPW Industrial Ovens 150°C Pass-Through Conveyor Oven is a high-quality, heavy-duty thermal processing system designed for consistent, controlled heating in industrial production environments. Serial number OO3103, built in 2003, this oven can be inspected in Minneapolis, Minnesota. Buyers are welcome to schedule an inspection to see the system under power and verify performance.

Model C98TULEP480V45KW, this conveyor oven is engineered to operate at a maximum temperature of 150°C, with a heated operating range of 70°C to 100°C ±3°C for precision processing applications. The heated zone measures 168 inches long by 42 inches wide by 24 inches high, providing ample capacity for continuous processing of parts, assemblies, coatings, curing applications, and other temperature-controlled production needs. The unit features 4.5-inch thick insulated walls, ceiling, and floor for excellent thermal retention and energy efficiency. The exterior is constructed of CRS and painted machine gray, while the interior is aluminized for durability and heat resistance.

The heavy-duty flatwire conveyor measures 42 inches wide with a 1x1 configuration and steel support bed rated for up to a 1,000-pound load capacity. Conveyor speed is adjustable from 1.25 inches to 4.0 inches per minute, allowing operators to dial in precise dwell times for various materials and curing requirements. A product sensor at the outlet end automatically stops the conveyor when triggered, enhancing safety and process control. Adjustable crank doors at both inlet and outlet provide a maximum opening height of 21 inches for product flexibility.

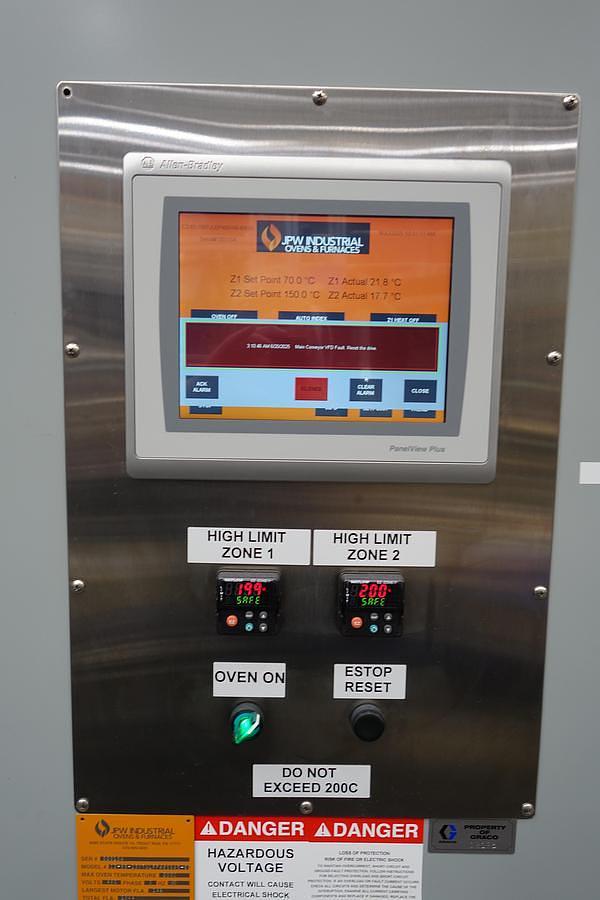

Control and monitoring are handled by an Allen Bradley PLC with HMI interface, overseeing all system devices with communication capability. A Watlow PM high-limit controller ensures temperature safety, and the UL-listed control panel is rated for 480V/3-phase/60Hz service in a NEMA 12 enclosure. The system includes a fused rotary disconnect and emergency stop buttons located at each end of the conveyor for operator safety.

The oven features one high-volume recirculation fan rated at 23,000 CFM powered by a 10 HP motor, operating with a VFD at approximately 18,000 CFM for controlled airflow. A 600 CFM forced exhaust system, also on a VFD, supports proper ventilation. The vertical down airflow design promotes even heat distribution throughout the heated zone. Total installed heat capacity is 45 kW.

Additional features include a 36-inch load conveyor, 36-inch unload conveyor, and a skid frame bottom support raising the belt to 36 inches from the floor for ergonomic operation. Access doors are positioned on the right-hand side and can double as explosion relief if required.

Overall external dimensions are approximately 8 feet 9 inches wide by 11 feet high by 20 feet 4 inches long, with an effective work area of 3 feet 6 inches wide by 2 feet high by 14 feet long in Zone 1. This robust, industrial-grade JPW pass-through conveyor oven is offered at $98,500.00, sold as is as inspected. It represents a strong opportunity for manufacturers seeking a reliable, high-capacity conveyor oven for continuous thermal processing applications.

Make: JPW Industrial Ovens

Sn: OO3103

Year: 2003

Control: Allen Bradley

General Specifications:

SUBJECT: Oven Model #C98TULEP480V45KW

The Conveyor oven is designed to operate at 150°C maximum temperature and includes the following special features:

·       4.5” thick insulated walls, ceiling and floor

·       CRS exterior painted machine gray

·       Aluminized interior

·       Conveyor, 42”w x1x1 heavy duty flatwire with steel support bed 1,000 lb load

·       AB PLC with HMI monitoring all devices with communications

·       Watlow PM High limit

·       Conveyor speed range of 1.25”-4.0” per minute constant

·       Product sensor on outlet end to stop conveyor if sensor is made

·       Adjustable crank doors on inlet and outlet – Max height open of 21”

·       Skid frame bottom support to raise belt to 36” from floor

·       Heated Zone operating at 70C-100C +/-3C

·       Heated zone will have 45KW of heat

·       UL Control panel 480V/3/60 – Nema 12

·       load conveyor – 36” long

·       Unload conveyor – 36” long

·       Heated zone 168” lg x 42”’w x 24”h

·       1-high volume recirculation (plug design) 23,000 cfm –with a VFD operating at 18,000 cfm

·       600 cfm forced exhaust on a VFD

·       Vertical down airflow

·       Fused rotary disconnect

·       E stops at each end of the conveyor

·       Access doors positioned on the right-hand side (doubles as explosion relief if required)

Batch Oven Specifications:

Effective Work Area..............

_3_’ __6_” W x _2’ _0__” H x _14__’ 0__” L- Zone 1

_

External Dimensions (Overall)................................

_8_’ __9_” W x _11__’ _0__” H x _20__’ __4_” L

KW total................................

___45________   KW

Recirculation Fans 1 @.........

__23,000___   CFM;  _10___ HP-

Price..$98,500.00 sold as is as inspected
