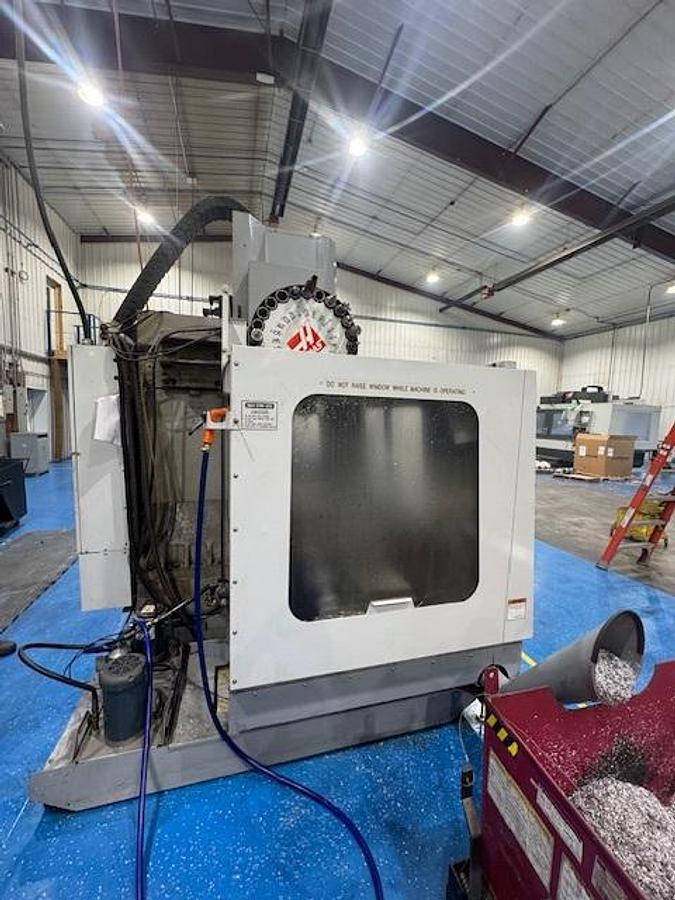

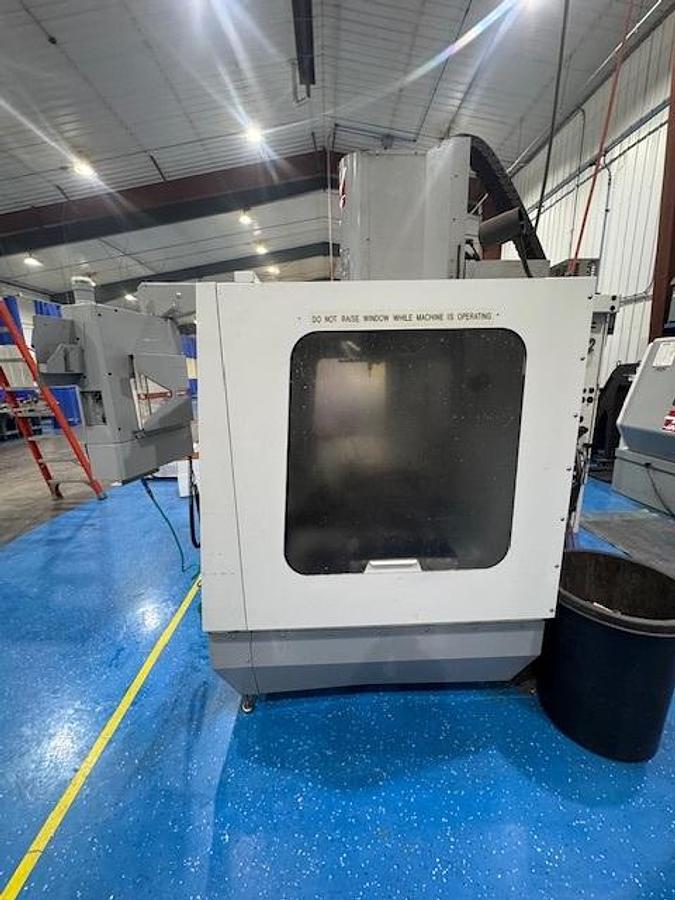

Haas VF3 SS CNC Vertical Machining Center

Located in Minneapolis, Minnesota, this 2007 Haas VF3SS CNC Vertical Machining Center is a high-speed, precision vertical mill designed for production and complex machining applications. Available for inspection, this machine combines speed, accuracy, and versatility for efficient manufacturing operations.

The VF3SS features X/Y/Z travels of 40″ × 20″ × 25″, a 48″ × 18″ table with a maximum load of 1,750 lbs, and a CAT 40 inline direct-drive spindle capable of 12,000 RPM powered by a 30 HP motor. Spindle-to-table clearance ranges from 4″ to 29″, providing flexibility for tall workpieces. Rapid traverse rates reach 1,400 IPM for fast positioning, and the machine includes a 24+1 side-mount tool changer, supporting maximum tool diameters up to 3.0″ with tool-to-tool and chip-to-chip change times of 1.6 / 2.2 seconds, respectively.

Additional features include programmable coolant and nozzle, remote jog handle, chip auger, and Package-VOP-D, enhancing operational efficiency and process control. Overall dimensions are 139″ × 110″ × 123.5″ with a total weight of 13,300 lbs, making this a robust and reliable production mill.

This Haas VF3SS is available for inspection in Minneapolis, MN. Offered by Source Machinery Sales, a trusted dealer serving manufacturers nationwide, it provides immediate access to a high-speed vertical machining center suitable for precision, high-volume, and complex machining operations.

*All specifications are approximations and are subject to verification

Haas VF3SS CNC Vertical Machining Center

Year: 2007

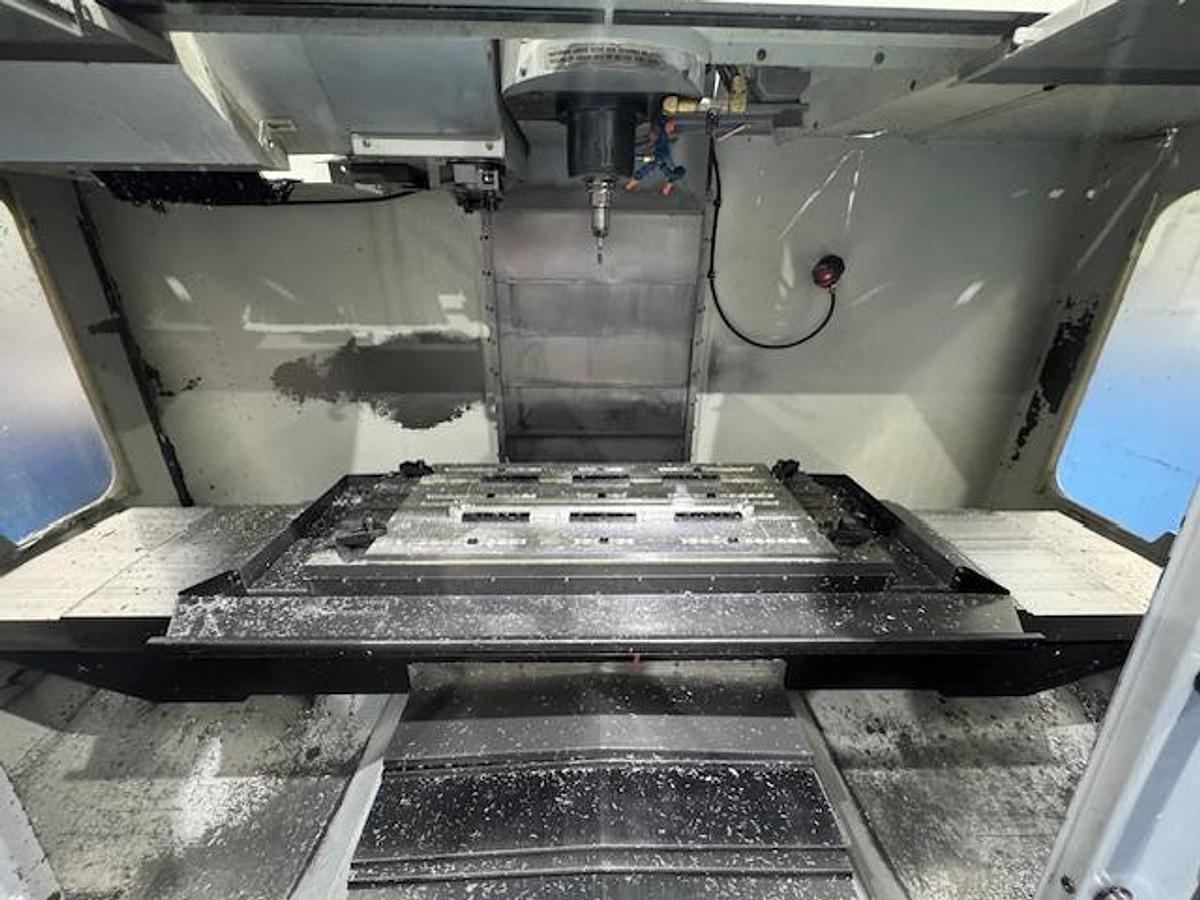

Table Size 48″ x 18″

Maximum Weight on Table 1,750 lbs.

X-Axis Travel 40″

Y-Axis Travel 20″

Z-Axis Travel 25″

Spindle Taper CAT #40

Spindle Speed – Inline Direct Drive 12,000 RPM

Spindle Motor 30 HP

Spindle Nose to Table 4″ – 29″

Number of Tool Positions 24 + 1 Side Mount

Maximum Tool Diameter 3.0″

Tool Change Time t to t / ch to ch 1.6 sec./2.2 sec.

Rapid Traverse Rates 1400 IPM

Machine Dimensions 139″x110″x123.5″

Machine Weight 13,300 lbs.

Equipped with

24+1 Side Mount Tool Changer

Programmable Coolant

Programmable Coolant Nozzle

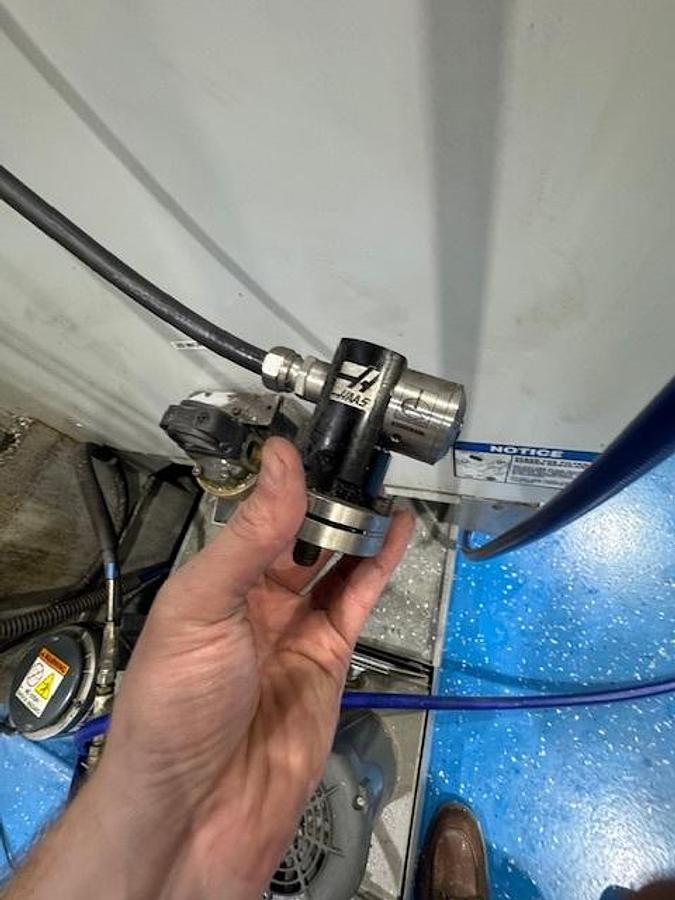

Remote Jog Handle

Chip Auger

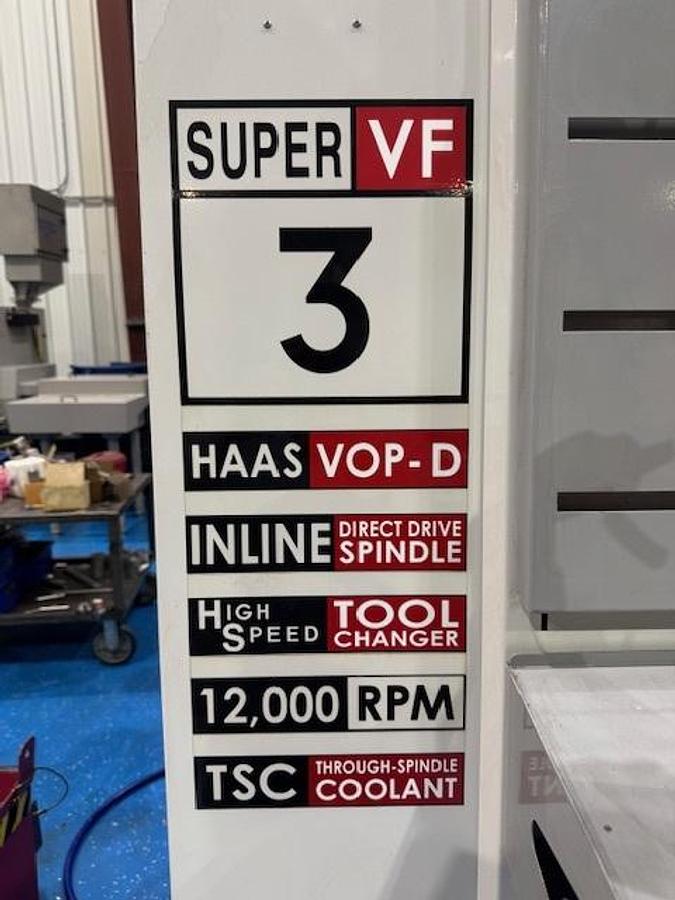

Package-VOP-D
