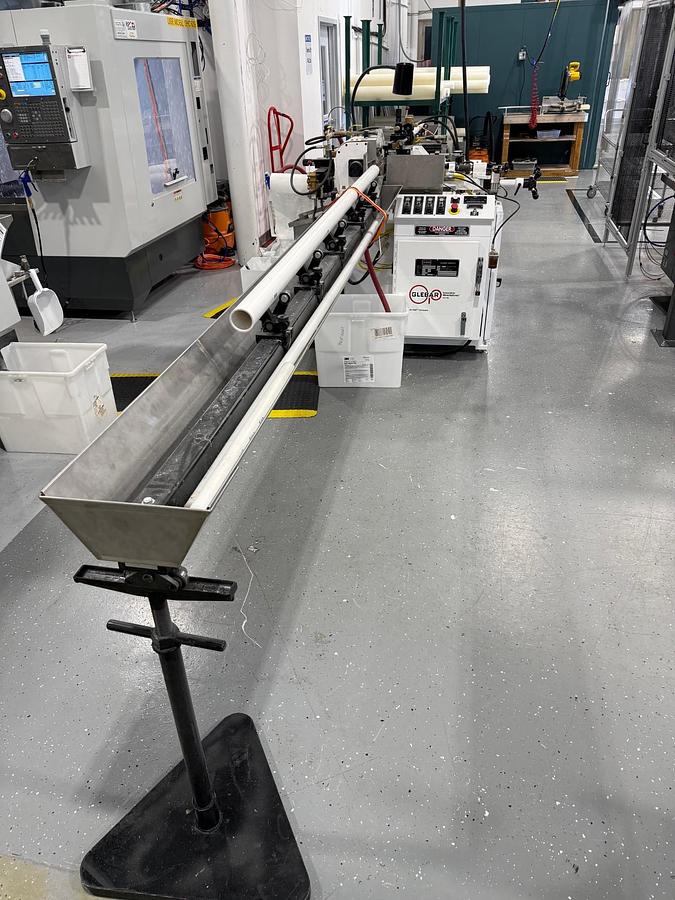

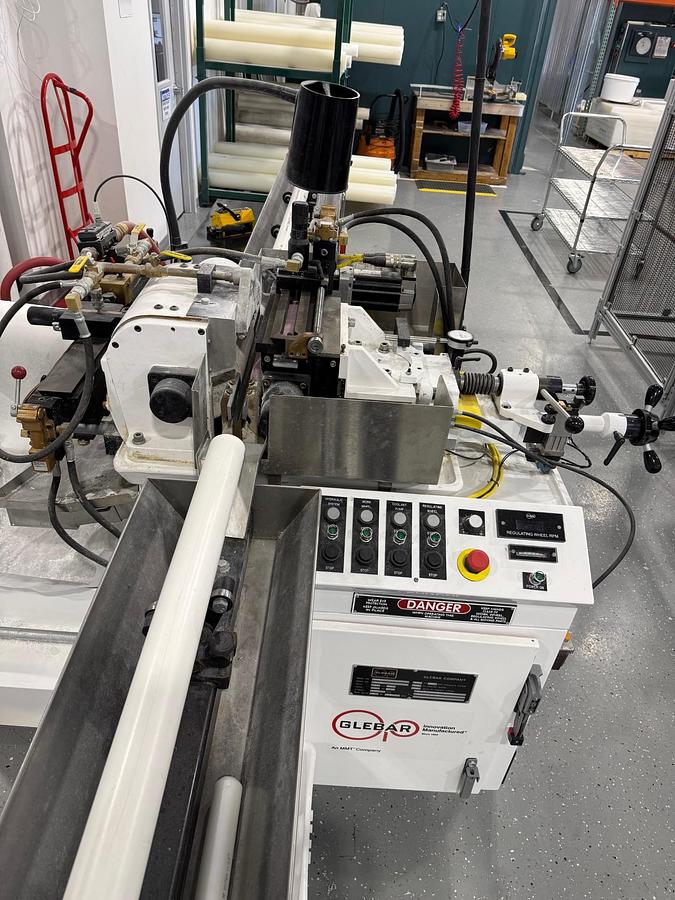

Glebar GT 610M Centerless Grinder, 2022

*All specifications are approximations and are subject to verification

The GT 610M is designed to grind spool valves, bar stock, pins, bushings, metals, hard and green ceramics, polymers, and engineered materials, all within a smaller footprint than comparable systems. It features independent upper and lower slides and a blade height ramp system for precise blade adjustment, making setups significantly easier than traditional machines. A twin-grip super precision spindle and an 8-5/8″ wide work wheel provide high-accuracy grinding while maintaining efficiency.

Key specifications include:

• Regulating Wheel: 6″ diameter × 10″ wide, 2 HP, 10–200 RPM
• Work Wheel: 10″ diameter × 8-5/8″ wide, 15 HP, 2,500 RPM, 6,400 SFPM
• Grinding Diameter Capacity: 0.002″ – 1-1/2″ (0.05 mm – 38 mm)
• Roundness Accuracy: Better than 0.00005″ (1.27 microns)
• Electrical Requirements: 480 VAC, 60 Hz, 3-phase, 60A
• Air Requirements: 80 PSI, 1 CFM
• Footprint: 42″ × 52″ × 55″ (107 × 132 × 140 cm)
• Weight: 2,000 lbs (907 kg)

This machine comes complete with a bar feed and miscellaneous parts included.

Offered at $147,870, the Glebar GT 610M provides immediate access to a precision, versatile centerless grinding system suitable for hard metals, ceramics, and engineered materials. Offered by Source Machinery Sales, a trusted dealer serving manufacturers nationwide.

Here is a nice running Glebar GT 610M Centerless Grinder. This machine can be inspected under power near Ogden Utah. To set up an inspection, please contact us.

General Specifications: (Subject to Buyers Verification)

Make: Glebar

Model: GT 610M

Year: 2022

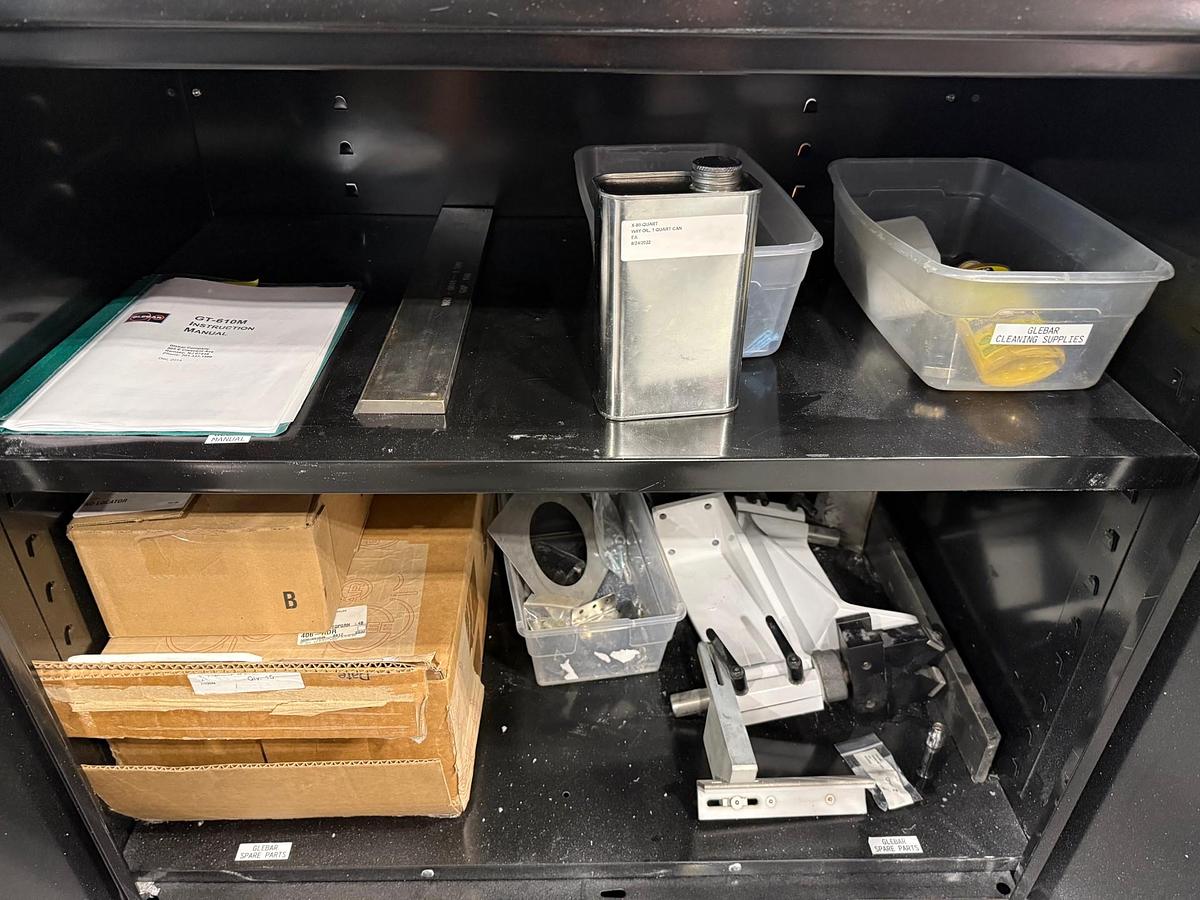

Bar Feed and Misc parts Included

Key Features

• Can grind spool valves, bar stock, pins, bushings, metals, hard and green ceramics, and other engineered materials, with a smaller footprint than competing machines.
• The GT-610M includes independent upper and lower slides, and a blade height ramp system for finite blade adjustment.
• Tooled to grind materials ranging from hard carbide, and titanium bar stock to polymers and everything in between.
• The system’s two independent slides, which control the regulating wheel and the blade that holds the part being ground in place, provide a significantly easier setup than competing systems.
• A twin grip super precision spindle and an 8-5/8″ wide work wheel in a compact footprint make this the ideal machine shop solution.

Specifications

• Regulating Wheel Dimensions: 6″ diameter x 10″ wide
• Regulating Wheel Power: 2HP (1.5kW)
• Regulating Wheel RPM: 10-200
• Work Wheel Dimensions: 10″ (254mm) diameter x 8-5/8″ wide (219mm); 6400 Surface Feet
• Work Wheel Power: 15HP (11 kW)
• Work Wheel RPM: 2500
• Grinding Diameter Capacity Max:         1-1/2″ (38mm)
• Grinding Diameter Capacity Min: 0.002″ (0.05mm)
• Roundness: Better than 0.00005″ (1.27 microns)
• Electrical requirements: 480VAC, 60Hz, 3Ph, 60A
• Air requirements: 80PSI, 1 CFM
• Machine Footprint: 42″x52″x55″ (107cm x 132cm x 140cm)
• Machine Weight: 2000 lbs. (907kg)
• Price $147,870
