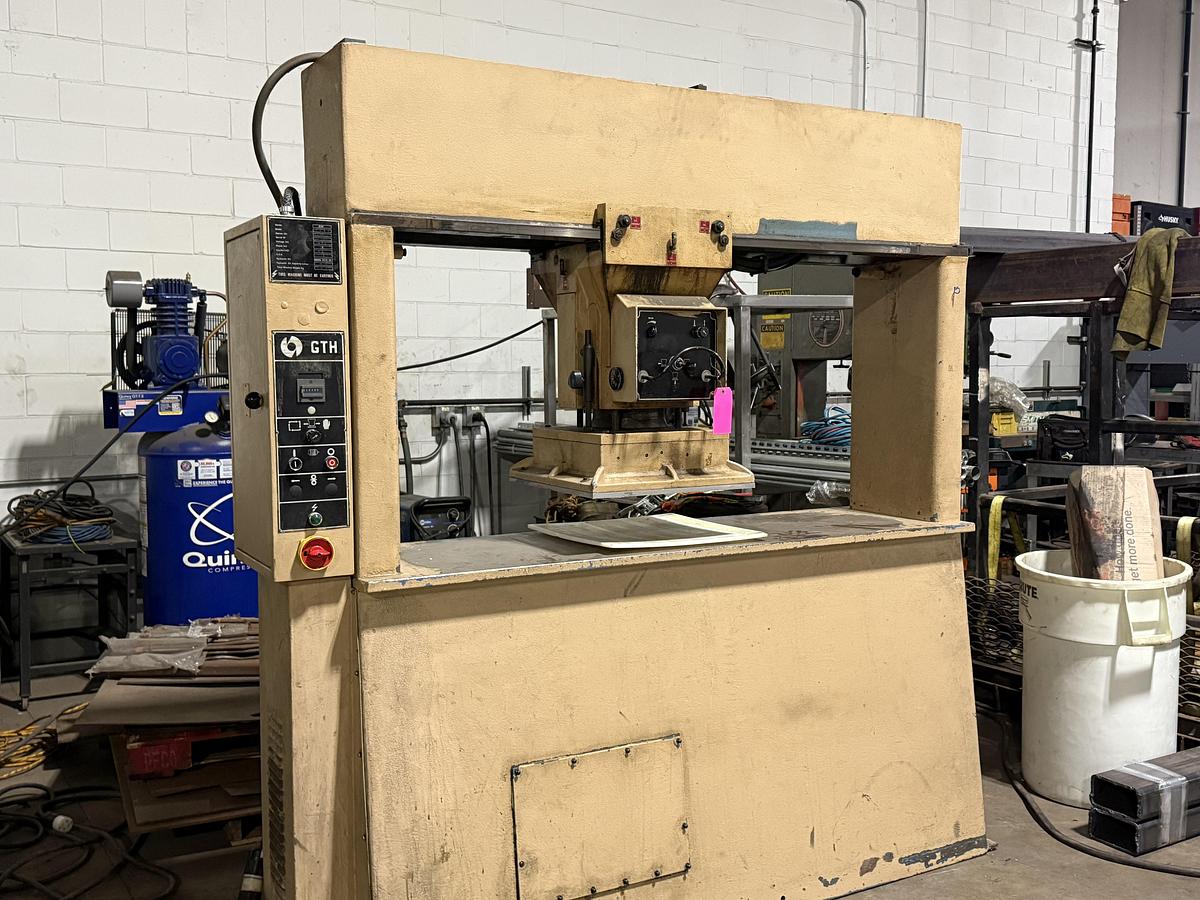

Samco GTH Traveling Head Clicker Die Cutting Press

The Samco GTH 1655 Clicker Press is a reliable and heavy-duty hydraulic press designed for precision die cutting applications across industries such as leather goods, rubber fabrication, gasket production, plastics, foam, and industrial material processing. Serial number M81900, this machine is in working condition and can be shown under power. Buyers are encouraged to view the operation video on the listing or schedule an in-person demonstration to see its performance firsthand.

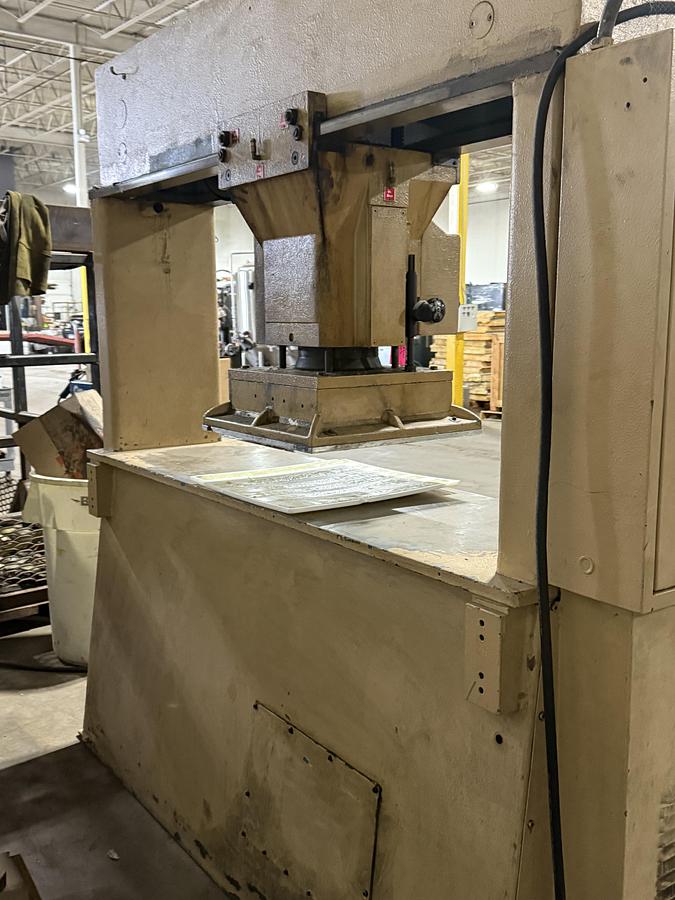

Built with a robust frame and stable construction, this Samco GTH 1655 features a spacious table area measuring 67 inches left to right by 20 inches front to back, providing ample support for large material sheets and die layouts. The cutting head area measures 20 inches by 20 inches, delivering consistent and accurate pressure distribution during cutting operations. With a maximum stroke of 2 inches and a total daylight opening of 7 inches, this hydraulic clicker press accommodates a wide range of die heights and material thicknesses.

The distance between the side housings measures 67 inches, allowing for generous working space and flexibility in positioning dies and materials. The machine stands at 39 inches from the floor to the top of the bed, offering ergonomic access for operators during setup and production. Powered by a 3 HP hydraulic motor and a 3/4 HP trolley motor, the GTH 1655 provides dependable cutting force and smooth head movement for consistent production output.

This press is equipped with pushbutton operation including adjustable stroke and pressure control, ensuring precise cut depth and repeatable results. Dual palm buttons enhance operator safety during operation, while the integrated operator joystick allows for controlled positioning of the cutting head. The machine operates on 230V, 3-phase electrical service, making it suitable for most industrial shop environments.

With an approximate shipping weight of 4,000 pounds and dimensions of 88 inches long by 48 inches wide by 93 inches high, this Samco GTH 1655 Clicker Press is substantial yet manageable for installation in manufacturing facilities. Its solid construction, user-friendly controls, and proven hydraulic performance make it an excellent solution for shops seeking a dependable die cutting press that is ready to go to work.

Brand: Samco

Model: GTH 1655

Serial #: M81900

Approx. Shipping Weight: 4,000 Lbs.

Approx. Shipping Dimensions: 88″ L x 48″ W x 93″ H

Specifications:

Distance Between Side Housings: 67″ L-R

Table Area: 67″ L-R x 20″ F-B

Cutting Head Area: 20″ L-R x 20″ F-B

Stroke: 2″ Maximum

Daylight Opening (Total): 7″ Maximum

Floor to top of bed: 39″

Hydraulic Motor HP: 3

Trolley Motor HP: 3/4

Electrical: 230V/3PH

Equipped With:

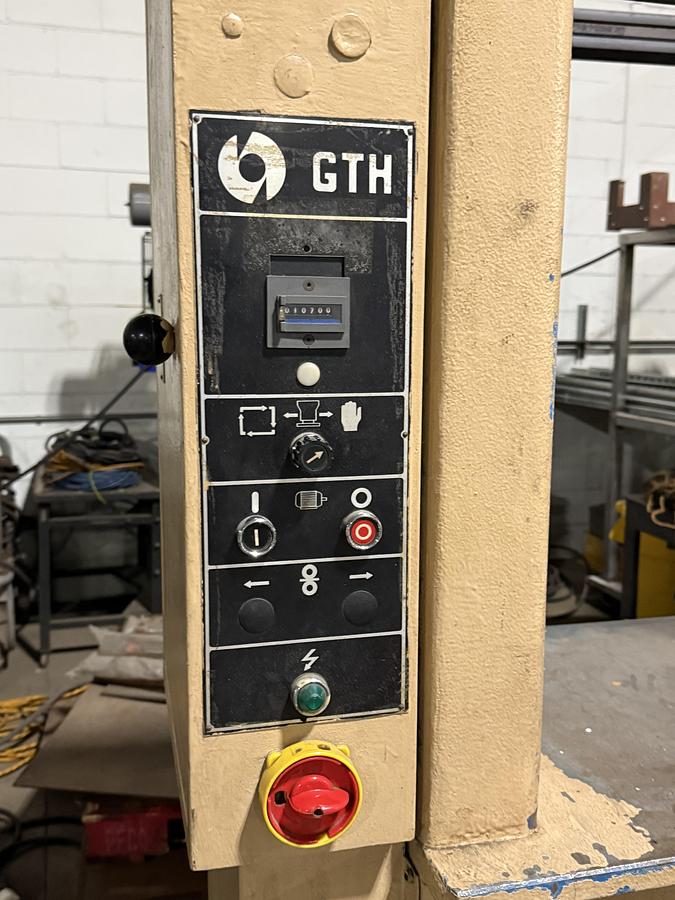

Pushbutton Operation with stroke & pressure control, Dual Palm Buttons, Operator Joystick

Additional Info:

The Clicker Press is in working condition. Check out the video on the listing to see it in operation. We are glad to show under power.
