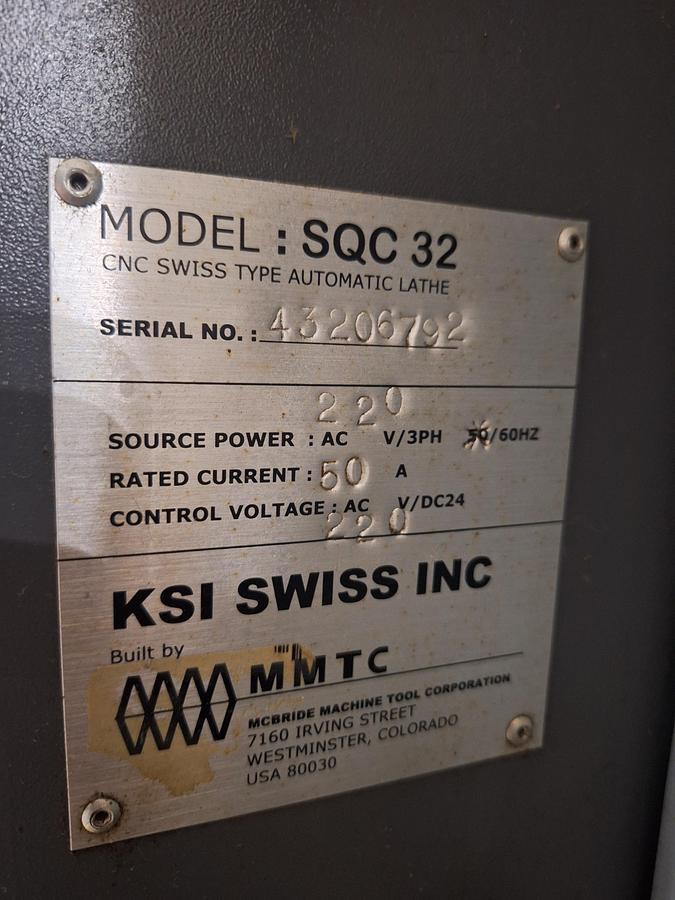

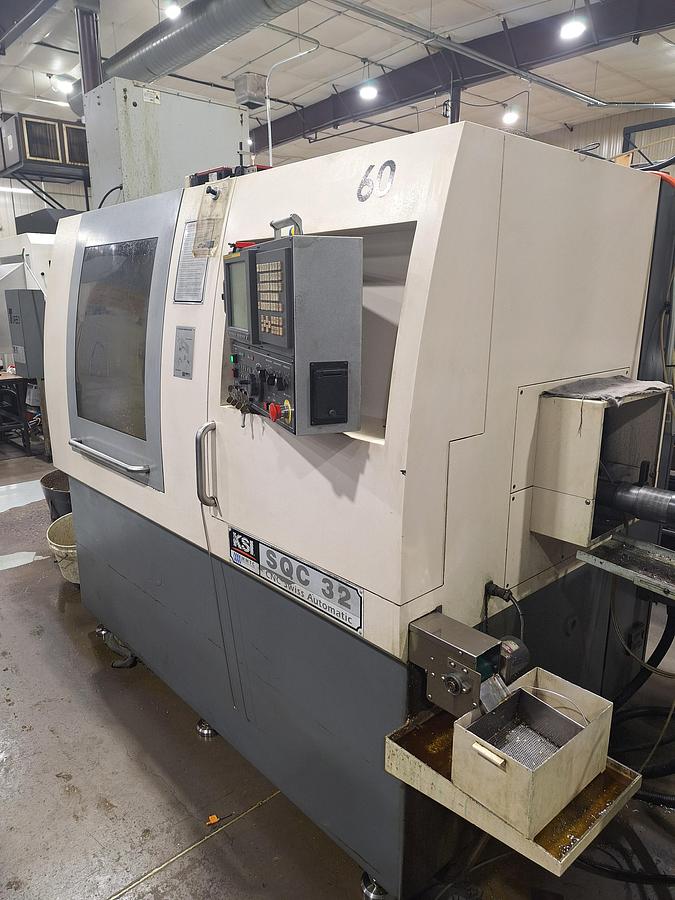

KSI SQC-32 CNC Swiss Lathe

The KSI SQC-32 CNC Swiss Lathe is a high-performance Swiss-type turning center engineered for precision, speed, and efficient multi-axis machining. Designed for manufacturers producing complex, tight-tolerance components, this machine delivers exceptional capability in small-diameter part production for industries such as medical, aerospace, electronics, automotive, and general precision machining.

With a maximum turning diameter of 32mm (approximately 1.259 inches) and a maximum stroke of 8.267 inches, the SQC-32 is ideal for high-precision bar work and intricate turned components. Both the main spindle and sub-spindle operate at speeds up to 8,000 RPM, providing the speed necessary for efficient cycle times and superior surface finishes. A rapid traverse rate of 1,300 inches per minute enhances productivity by minimizing non-cutting time during tool changes and positioning movements.

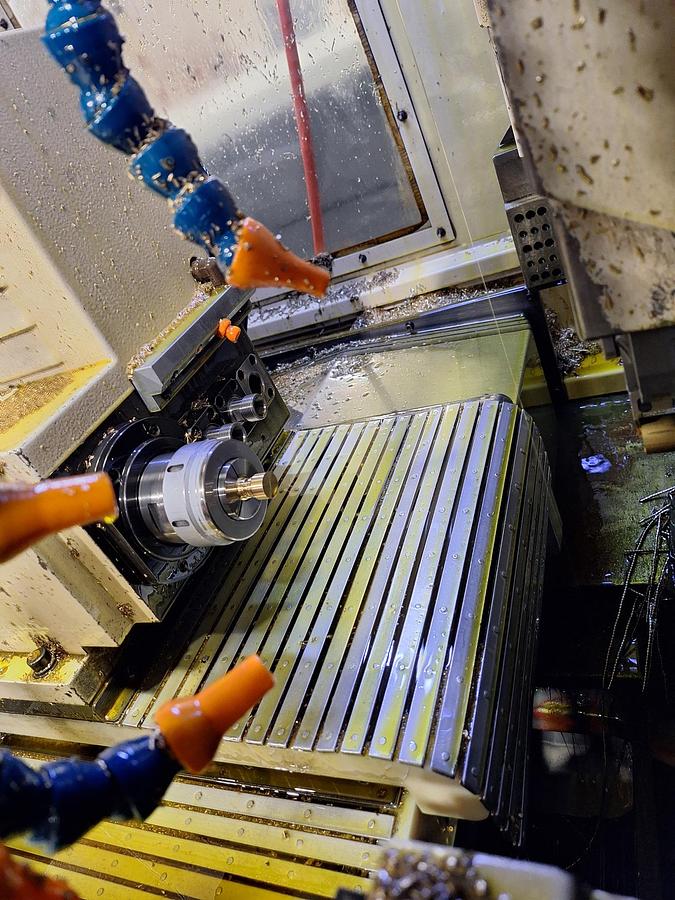

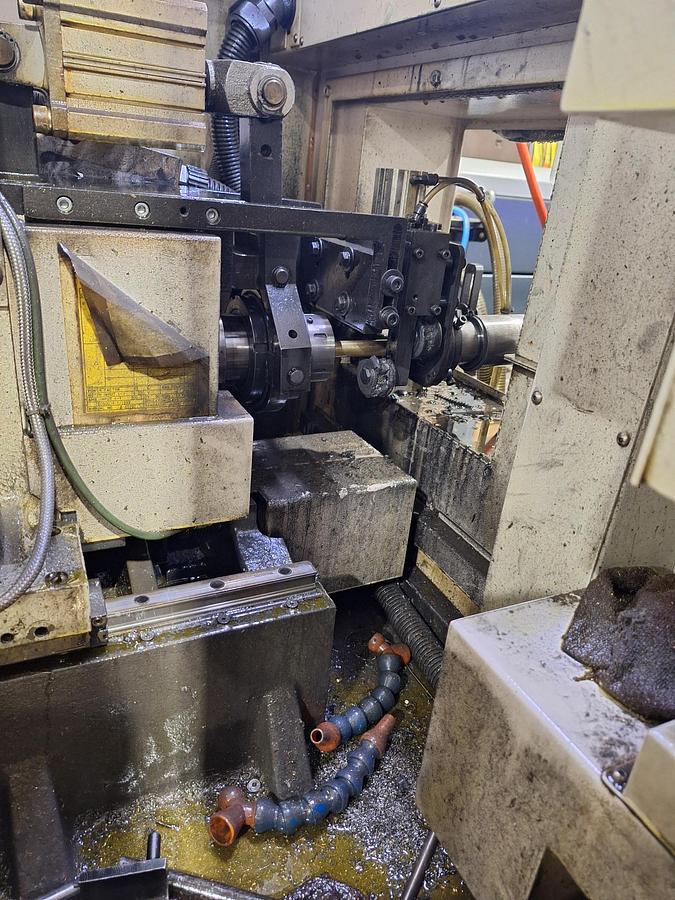

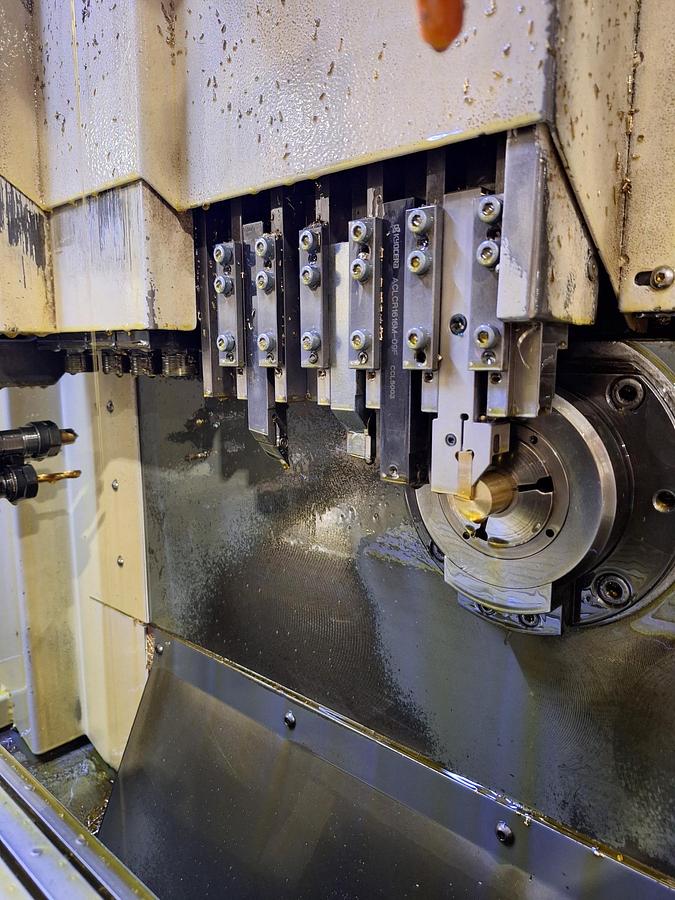

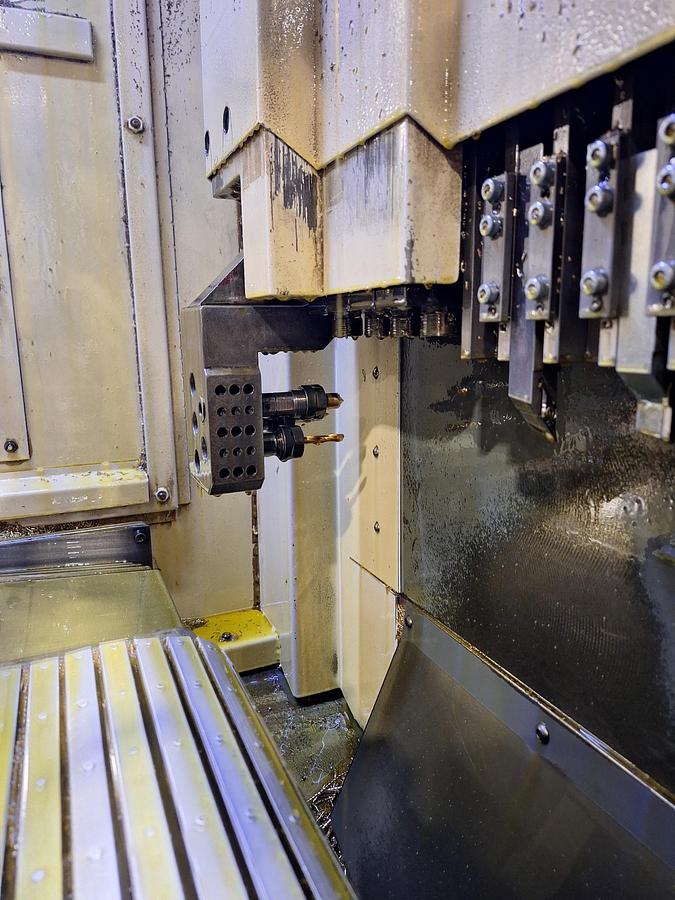

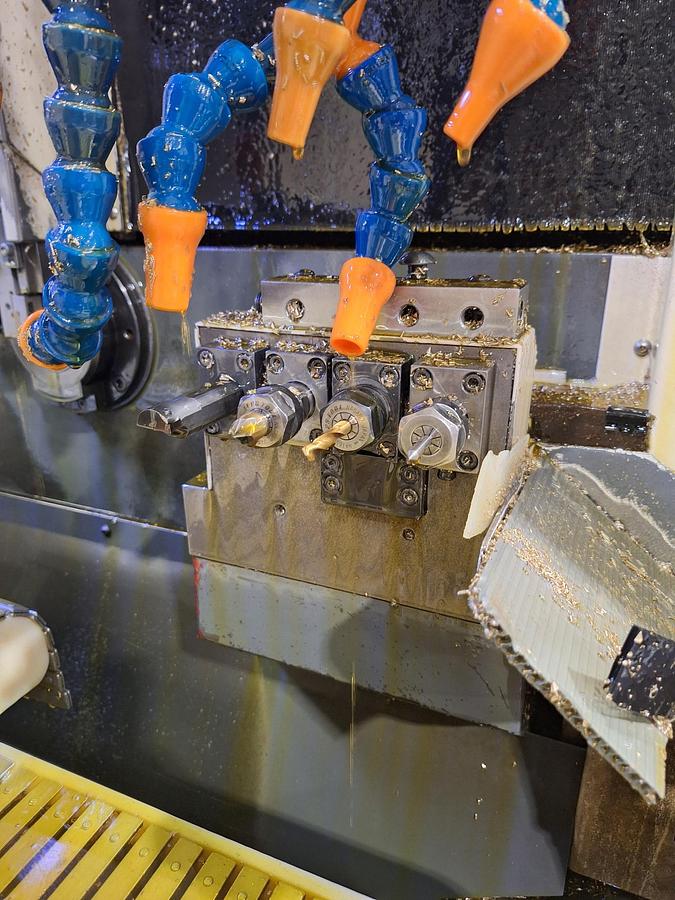

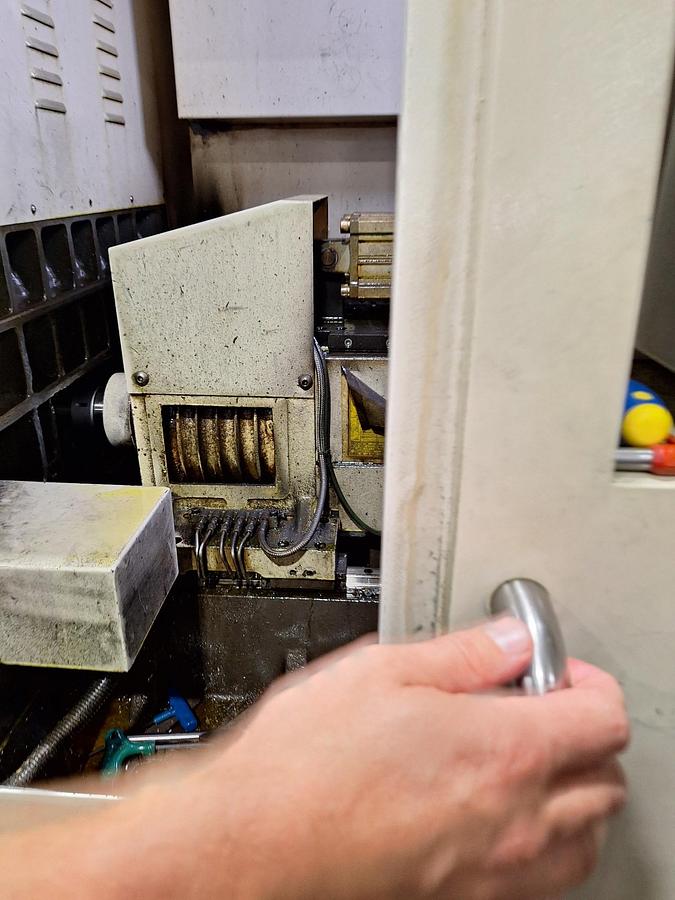

This Swiss CNC lathe is equipped with a robust tooling configuration that supports complex, multi-operation machining in a single setup. It includes four OD tools, five front working tools, five cross-driven tools, four back working tools, and three eccentricity tools, giving operators extensive flexibility for turning, drilling, tapping, milling, and cross operations. The main spindle is powered by a 5 HP motor, while the sub-spindle features 3 HP. Cross drilling and end working stations are each driven by 1.5 HP motors, providing ample power for demanding secondary operations.

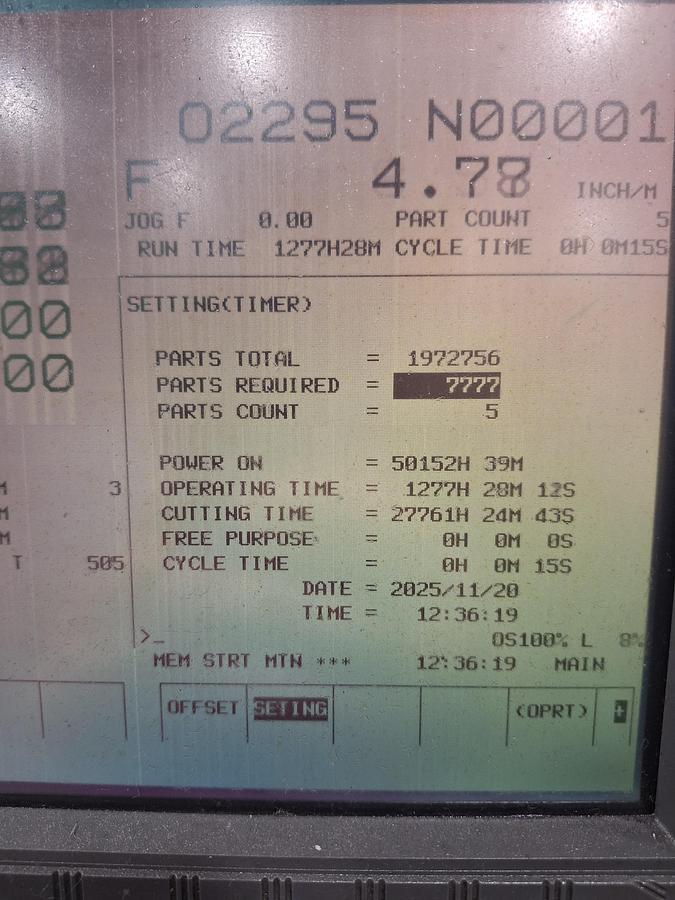

The machine is controlled by a Fanuc Series 18i-TB control, a widely respected CNC platform known for reliability, ease of programming, and industry-standard compatibility. This control system ensures accurate interpolation, smooth axis control, and dependable performance in continuous production environments.

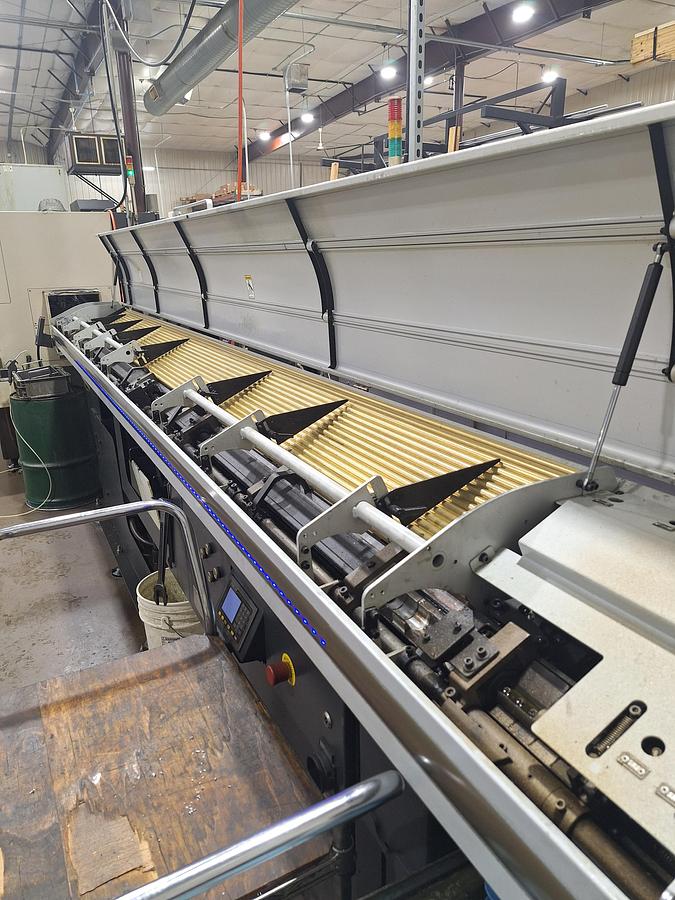

Included with the machine is a BarLoad Tracer 32 12-foot bar feeder, supporting automated bar feeding for lights-out or extended unattended production runs. Additional equipment includes a mist collector for improved shop air quality, drill holder, bar loader components, collets, and machine wrenches. This comprehensive package enhances productivity and reduces the need for additional setup investments.

With approximate dimensions of 60 inches by 84 inches by 73 inches and a machine weight of approximately 9,000 pounds, the KSI SQC-32 offers a compact yet rigid platform suitable for high-precision manufacturing environments. Its balanced combination of spindle speed, tooling capacity, and automation capability makes it a valuable asset for shops looking to expand Swiss machining capacity with a dependable and versatile CNC lathe.

KSI SQC-32 CNC Swiss Lathe

Max Turning Diameter: 32mm 1.25.9″

Max Stroke: 8.267″

Main Spindle RPM: 8,000 RPM

Sub-Spindle RPM: . 8,000 RPM

Rapid Traverse Rate: 1300 IPM

OD Tools: 4

Front Work Tools: 5

Cross Driven Tools: 5

Back Work Tools: 4

Eccentricity Tools: 3

Main Spindle: 5 HP

Sub-Spindle: 3 HP

Cross Drill: 1.5HP

End Working: 1.5HP

Approximate Machine Dimensions: 60″ x 84″ x 73″

Approximate Machine Weight: 9,000 LBS

Equipped with:

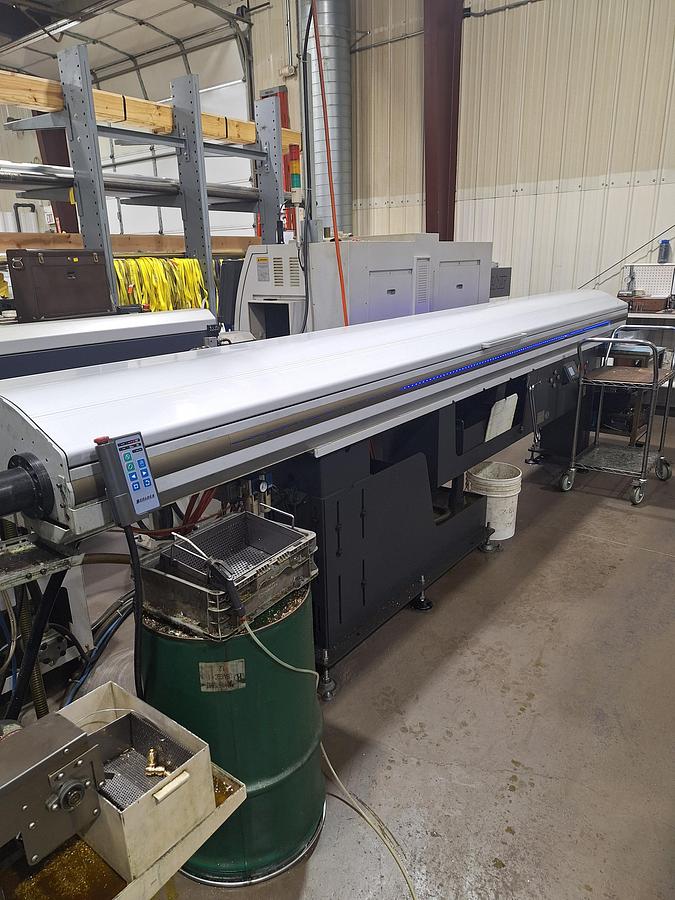

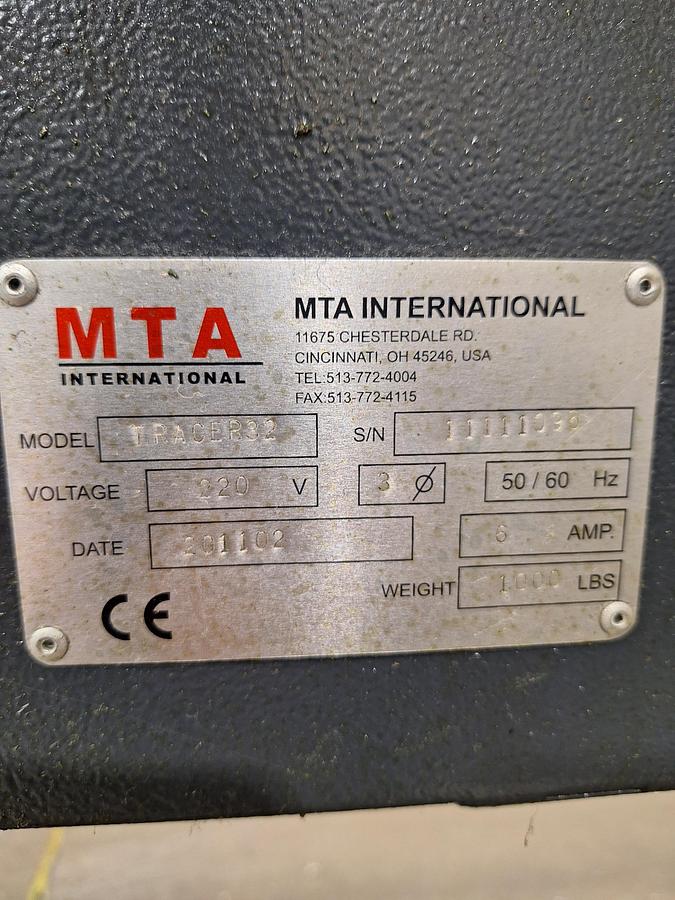

BarLoad Tracer 32 12′ Barfeeder

Fanuc Series 18i-TB Control

Mist Collector

Drill Holder, bar loader, collets & machine wrenches
