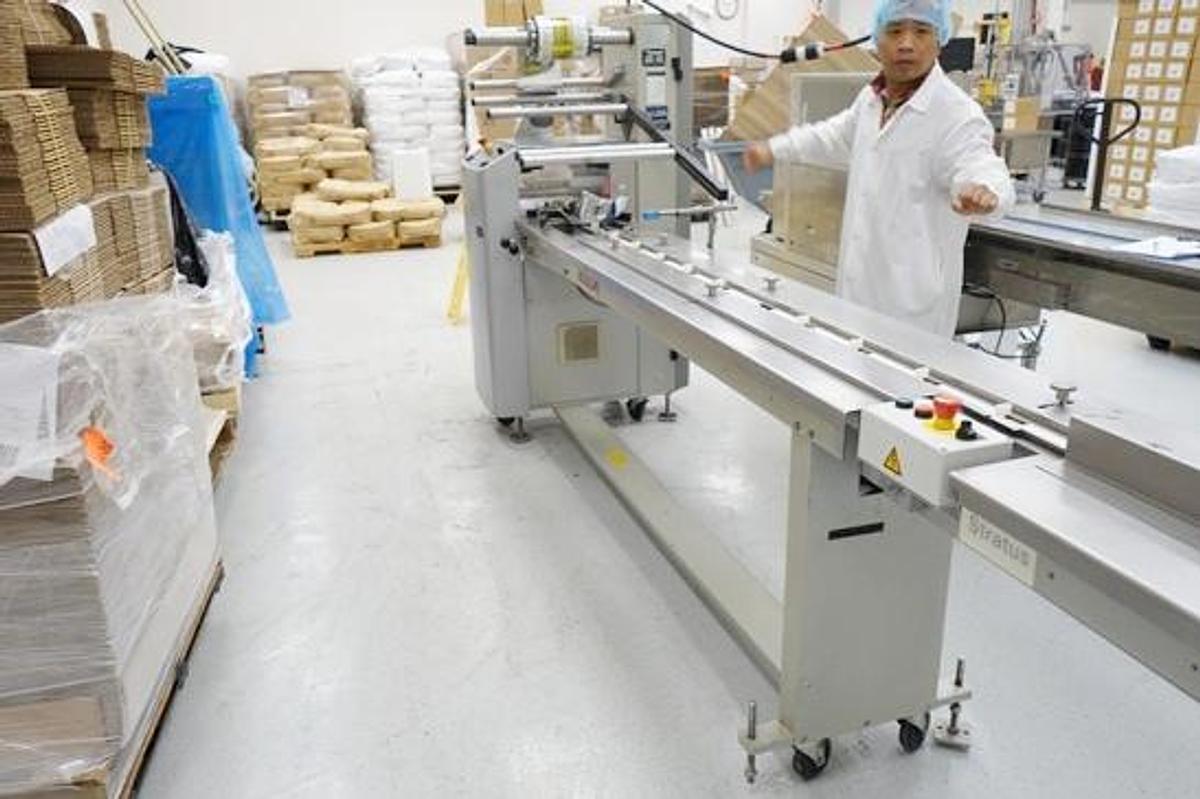

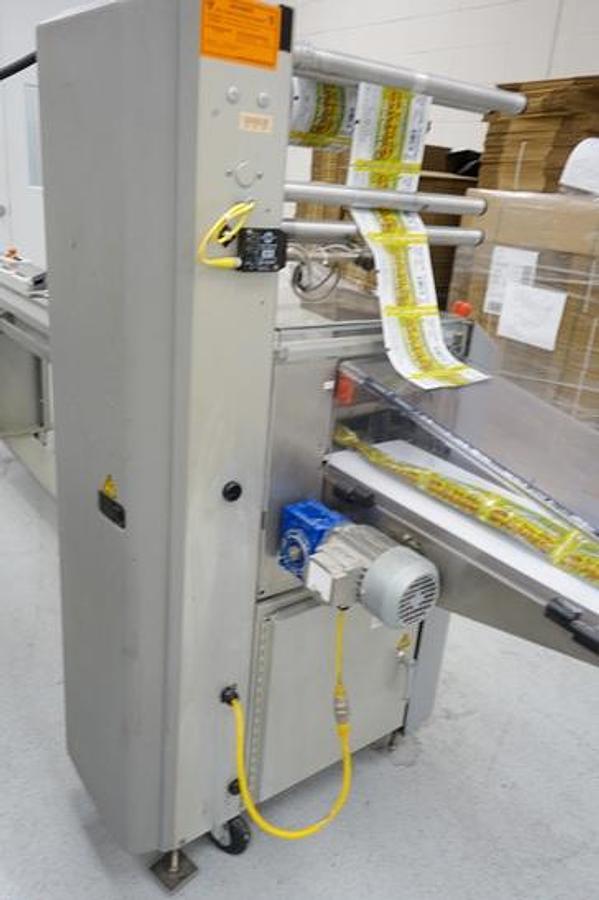

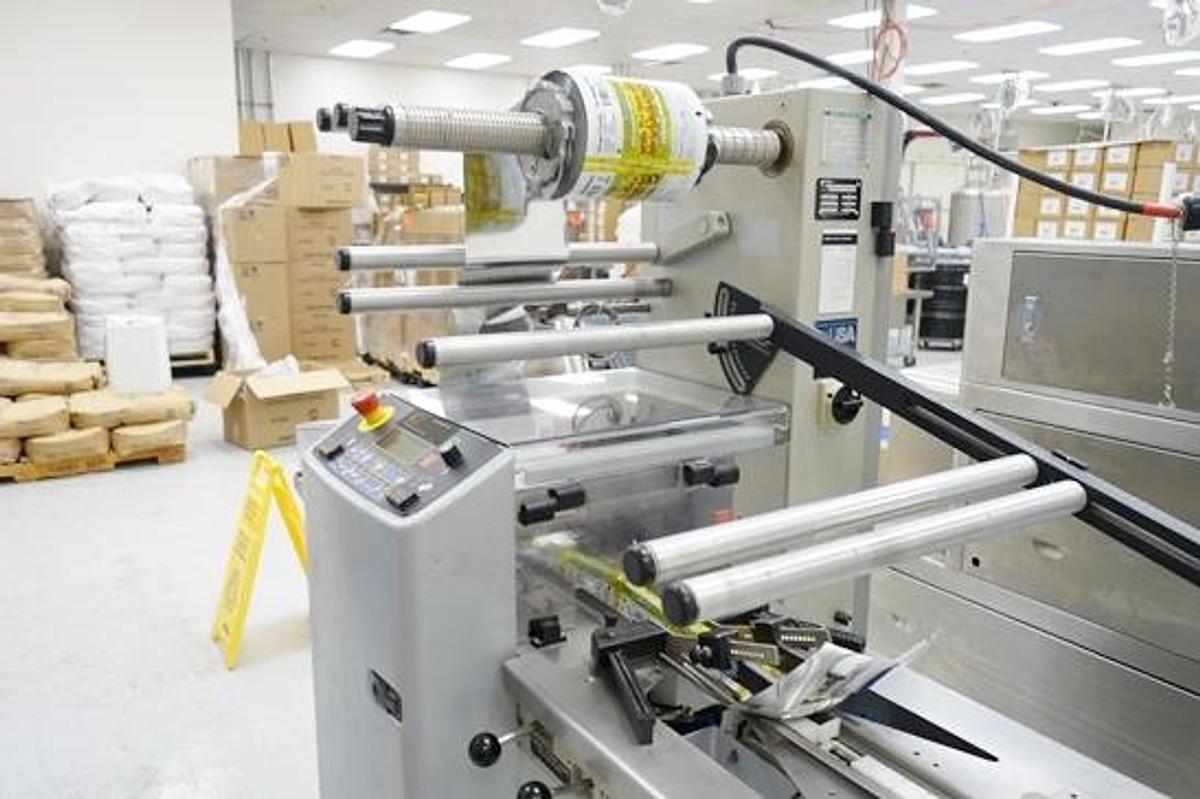

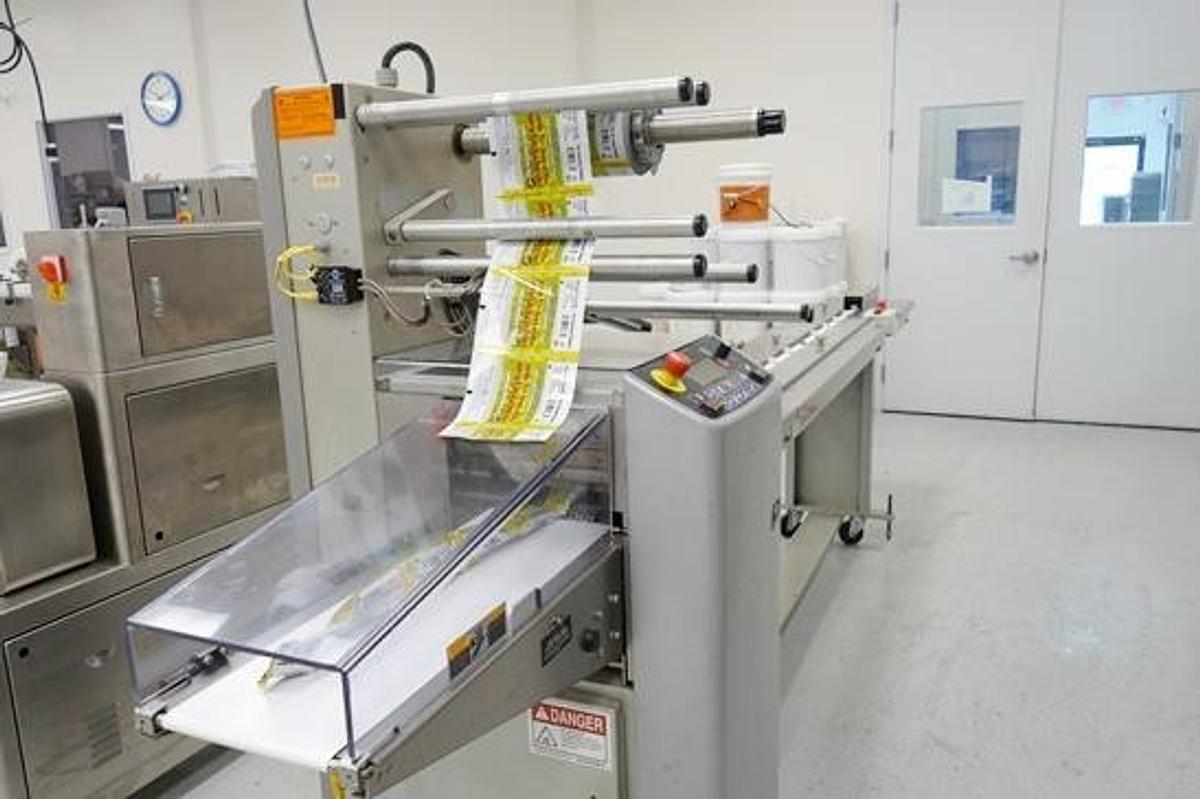

Doboy Stratus Flow Wrapper

Located in Minneapolis, Minnesota, this 2008 Doboy (Bosch) Stratus Horizontal Flow Wrapper offers a reliable solution for high-speed packaging applications. Designed for versatility, it can handle package sizes from 3″ to 7.25″ in length, 0.5″ to 8.25″ in width, and up to 2.25″ in height, depending on configuration, at speeds of up to 150 packages per minute (PPM).

The wrapper accommodates film widths up to 18.5″ and rolls with a maximum diameter of 16″. The lugged chain in-feed conveyor allows adjustable lug centers and heights for efficient product handling, while the heated fin wheel, straight cut, or crimp seal options provide consistent sealing. Additional features include a registration feature for printed films and a no-product-no-bag function to reduce waste. The system is pre-programmable for up to 10 different package sizes and operates on 220 VAC, 50/60 Hz, single-phase, NEMA 1 power.

Weighing approximately 900 lbs with dimensions of 36″ × 127″ × 68″, this Doboy Stratus wrapper is available for inspection under power in Minneapolis, MN. Offered by Source Machinery Sales, this unit is priced at $27,500.00 and provides immediate access to a high-performance horizontal flow wrapping solution for food, consumer products, or industrial packaging operations.

Doboy  (Bosch) Horizontal Flow Wrapper. This wrapper can be inspected under power in Minneapolis MN. To set up an inspection, please contact us.

Make: Doboy (Bosch)

Model: Stratus

Serial No: 08 23251

Year: 2008

General Specifications:

Weight: 900 lbs

Dimensions: Approx. 36″ x 127″ x 68″.

Production Speed: Up to 150 packages per minute (PPM).

Package Size Range: Typically 3″ – 7.25″ in length, 0.5″ – 8.25″ in width, and up to 2.25″ in height, depending on the configuration

Film Width: Up to 18.5″

Film Roll Diameter: Up to 16″

In-feed: Lugged chain in-feed conveyor, with adjustable lug centers and heights.

Seal Type: Heated fin wheels, straight cut, or crimp seal.

Power: 220 VAC, 50/60 Hz, 1 phase NEMA 1

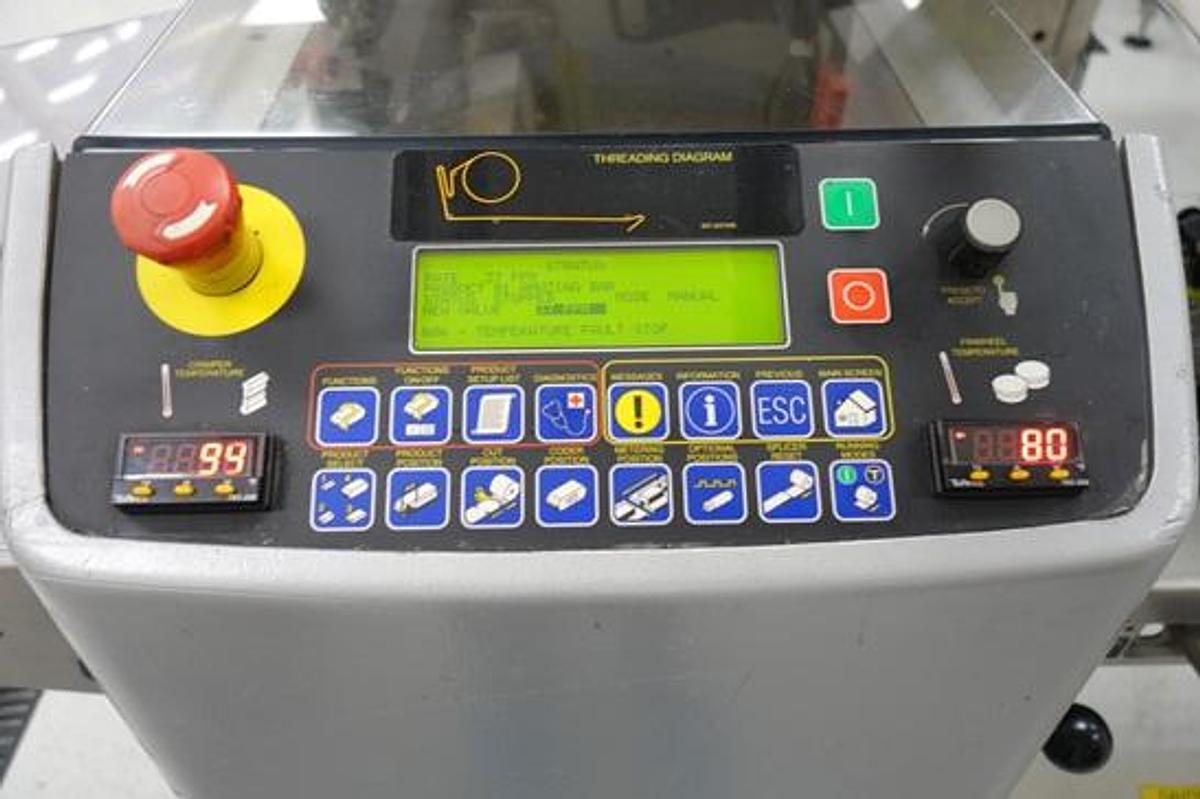

Pre-Programmable: Up to 10 different package sizes

Equipped with these features:  Registration feature (means it can bag printed films)

No product no bag feature (to avoid wasting film).

Price……..$27,500.00
