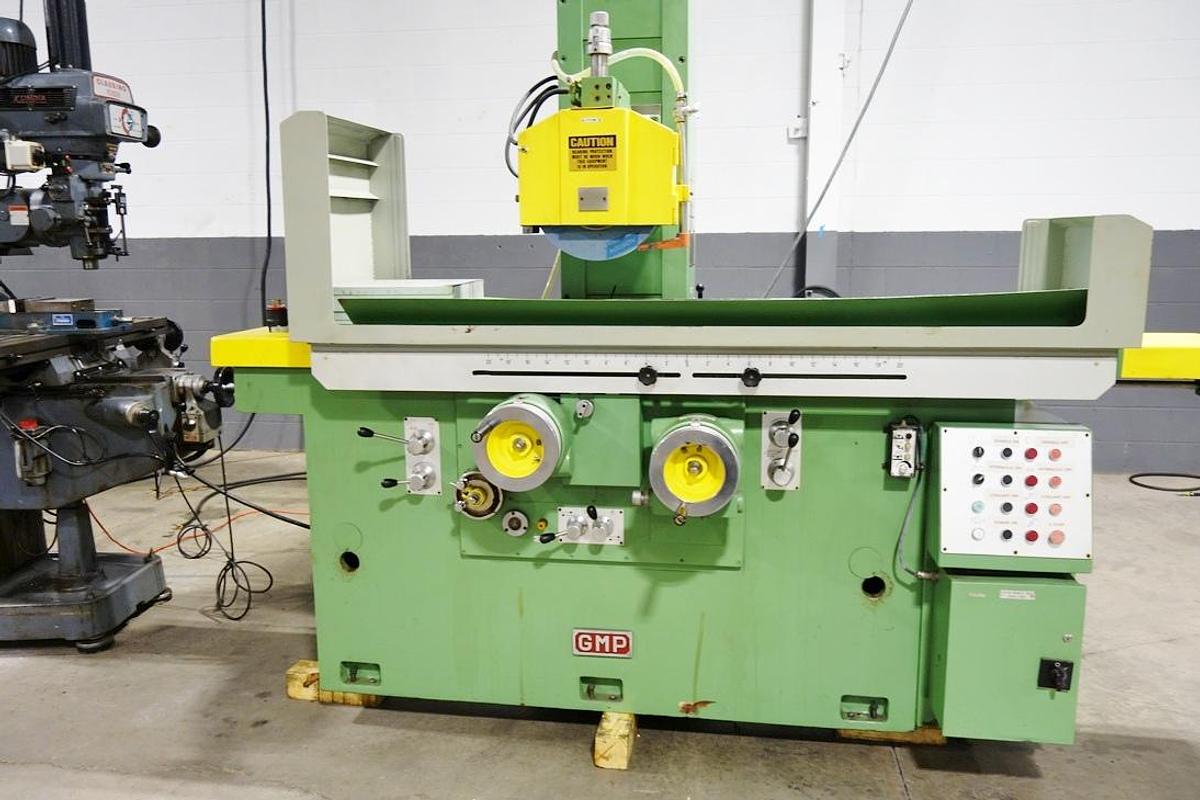

GMP Hydraulic 3 Axis Surface Grinder w/ Incremental Down Feed

 Located in Minneapolis, Minnesota, this GMP Hydraulic 3-Axis Surface Grinder provides precision grinding in a well-maintained, controlled environment. The machine can be inspected under power on-site, allowing buyers to verify performance and condition before purchase.

This grinder is manufactured in Italy and has been carefully maintained, making it ideal for shops seeking high-quality surface grinding with incremental down feed. The table measures 13.75” by 39”, with a 12” x 39” electro-magnetic chuck, and a grinding wheel size of 2” x 14”. Table travel reaches 40” with a feed range of 0–100 FPM, vertical travel is 16”, and cross travel is 16” with 0 to ¾ incremental adjustments, offering precise control for a variety of grinding tasks.

The machine is powered by a 7.5 HP hydraulic pump motor and a 5.5 HP spindle drive motor, supported by a 0.18 HP coolant pump motor. It includes a 40-gallon hydraulic tank and a 25-gallon coolant tank, along with complete hydraulic and electrical diagrams for maintenance and operation. With overall dimensions of 9’ x 6’ x 8’ and an approximate weight of 8,000 lbs, this GMP surface grinder is robust, stable, and ready for industrial use.

Price: $10,900, sold as-is, as inspected.

GMP Hydraulic 3 Axis Surface Grinder with Incremental down feed. This Grinder can be inspected in Minneapolis MN. To set up an inspection, please contact us.

Note: This grinder is made in Italy. It has been well maintained in a pristine atmosphere.

General Specifications: ( Subject to buyer’s verifications)

Make: GMP

Model: NSG 1000/400

Serial No: 198618

Table Area: 13.75” x 39”

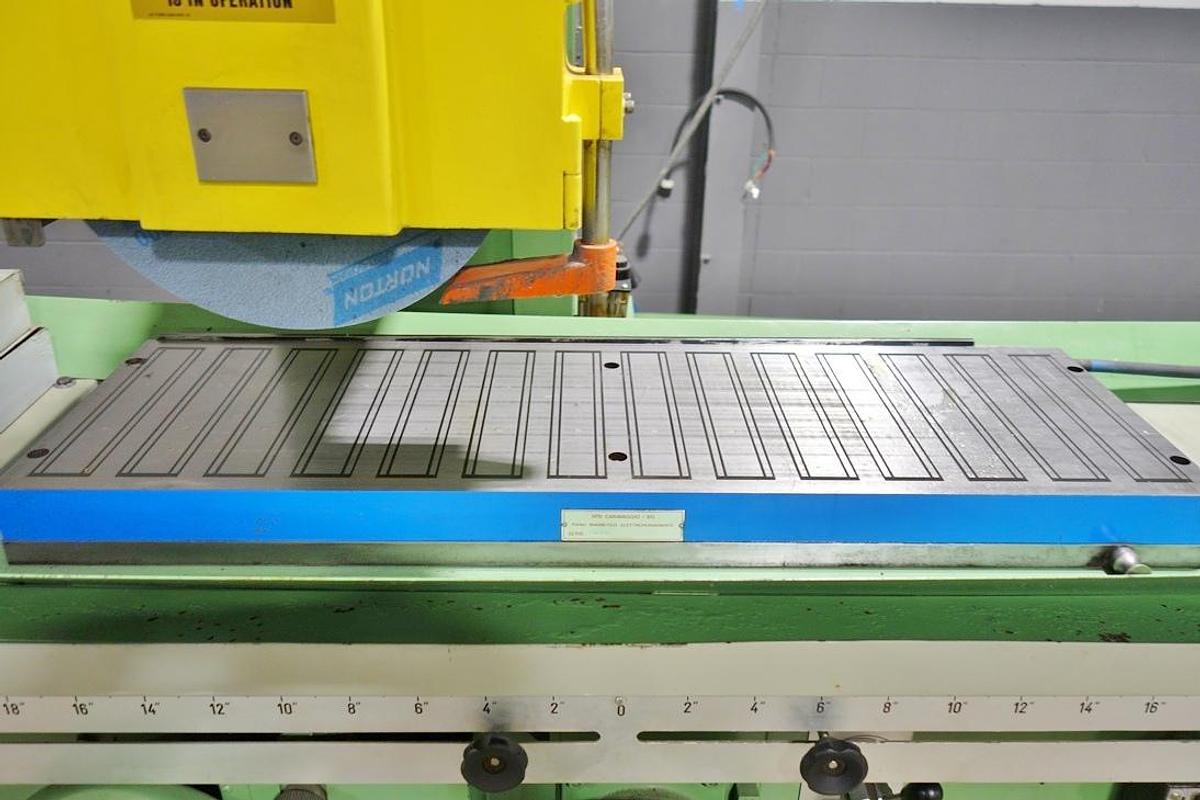

Chuck Size: 12” x 39” (Electoral Magnetic)

Grinding Wheel Size: 2” x 14”

Table Travel: 40” ( 0 to 100 FPM Feed Range

Vertical Max Travel: 16”

Cross Travel:16”  (0 to ¾ Increment)

Hydraulic Pump Motor: 7.5 HP

Spindle Drive Motor: 5.5  HP

Coolant Pump Motor: 0.18

Over all Dimensions: 9’x6’x8’

Weight approx.: 8000 lbs

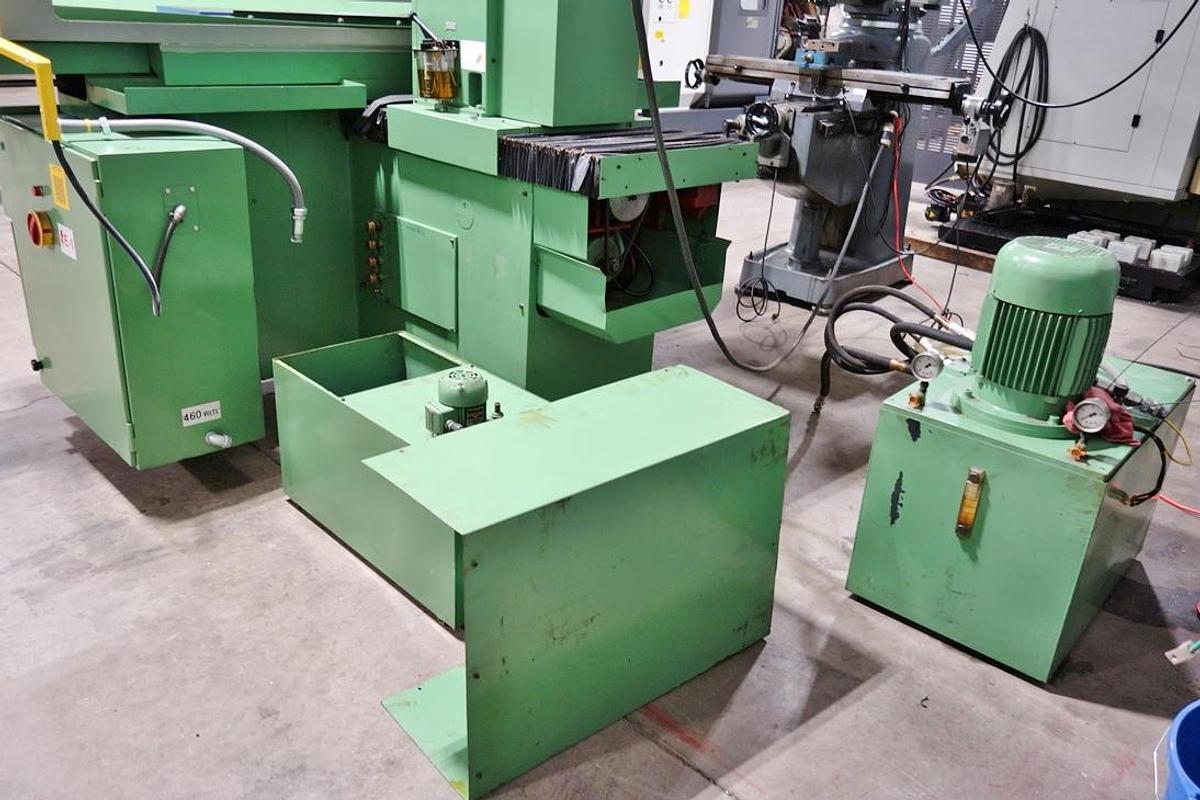

Equipped With: 40 Gallon Hydraulic Tank, 25 Gallon Coolant Tank, Hydraulic/ Electrical Diagrams.

Price………………………….$10,900.00
