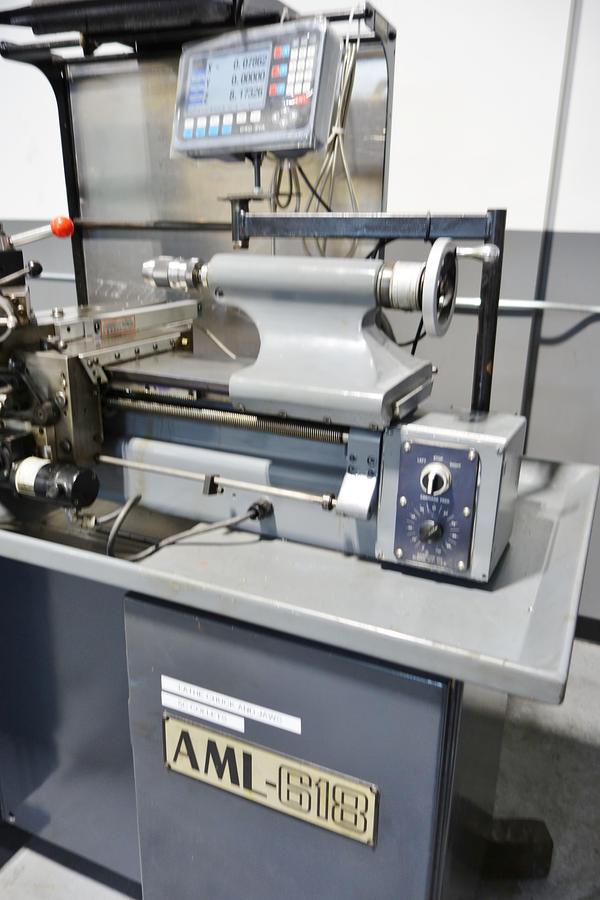

AML 618 Engine Lathe

Here is a very nice running AML 618 lathe. This lathe can be inspected under power in our facility in Minneapolis MN.  If you would like to set up an inspection, please contact us.

Note this Lathe is a copy of the Hardinge Tool Room Lathe

GENERAL  SPECIFICATIONS( Subject to Buyers Confirmation)

CAPACITY:

W/ROUND TYPE 5C COLLETS: 1-1/16"

W/STEP CHUCKS: 1-1/16" TO 6"

W/JAW CHUCKS: 5"

W/EXPANDING COLLETS: 3"

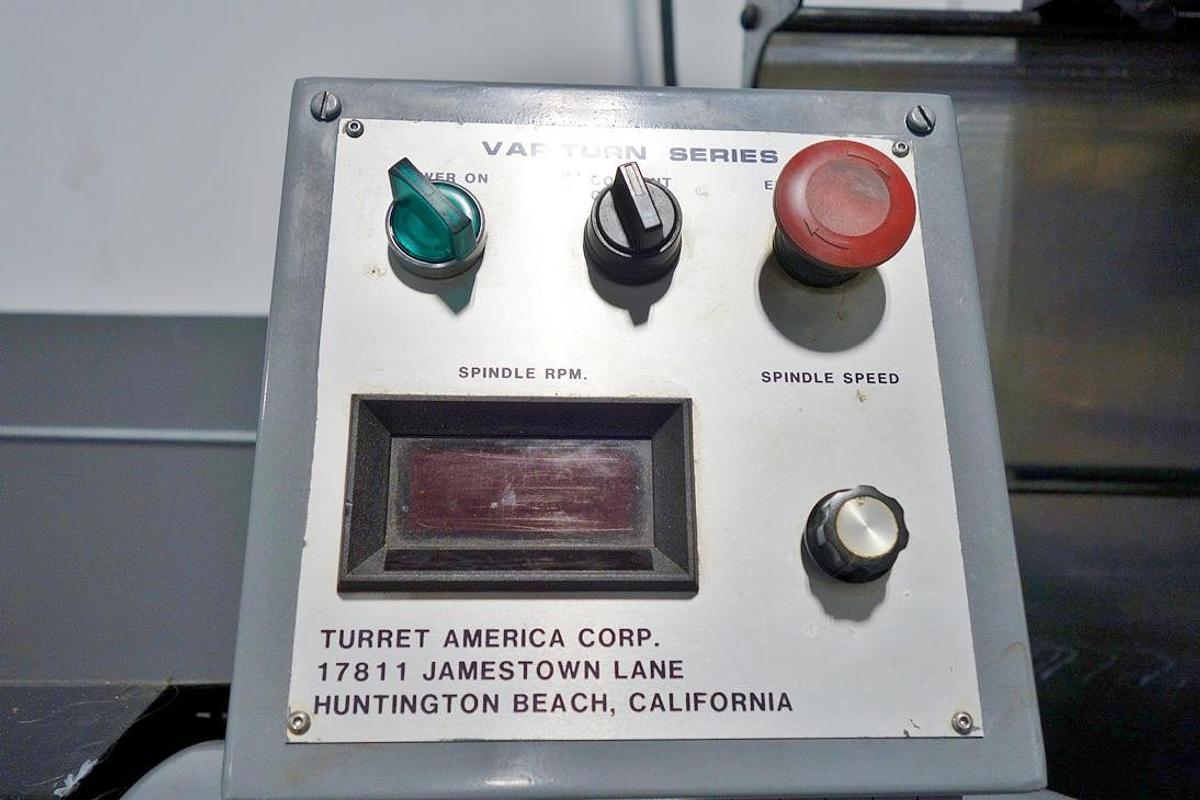

VARIABLE SPINDLE SPEEDS: 0 - 4,000 R.P.M.

HOLE THROUGH SPINDLE: 1-1/4"

SWING OVER BED: 11"

SWING OVER CARRIAGE: 9"

SWING OVER CROSS SLIDE: 6"

DISTANCE BETWEEN CENTERS: 18"

COMPOUND SLIDE TRAVEL: 3"

CARRIAGE POWER FEED RANGE: 5/16 - 7 IPM

CROSS SLIDE POWER FEED RANGE: 3/16 - 4 IPM

TAILSTOCK SPINDLE DIAMETER: 1-3/8"

TAILSTOCK SPINDLE TAPER: #2 MT

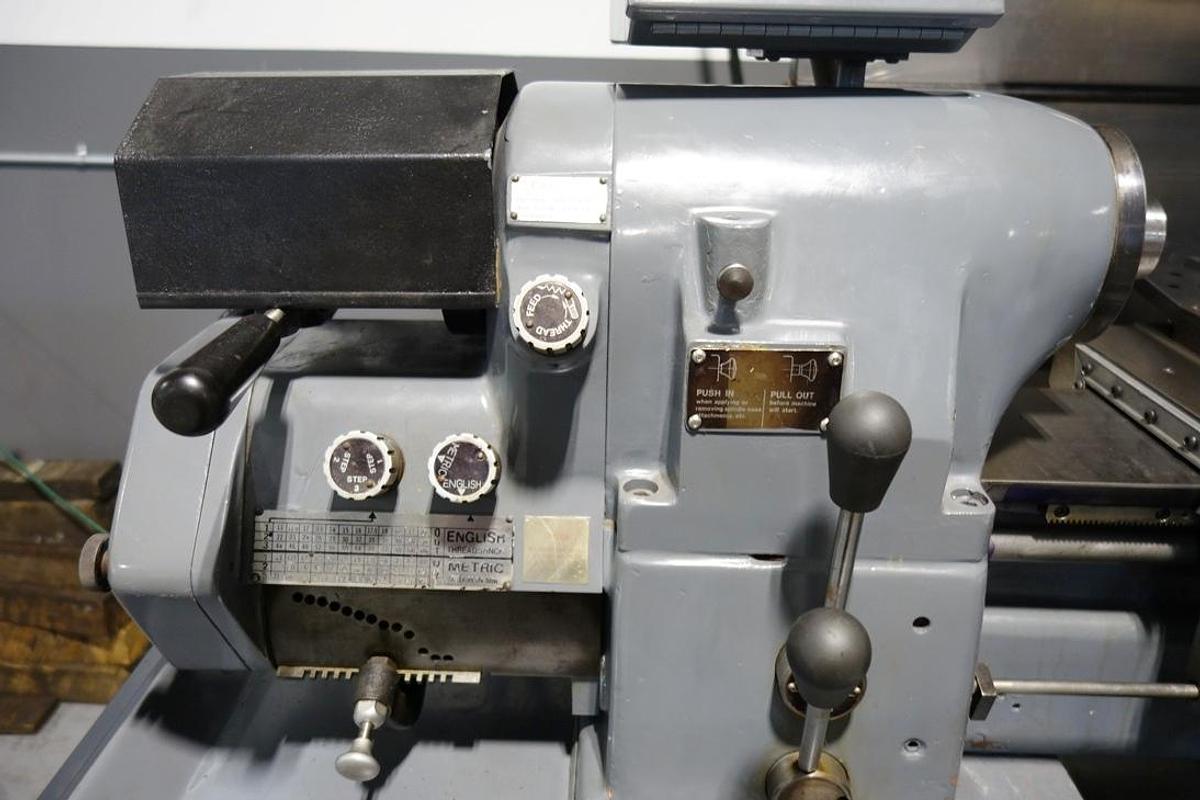

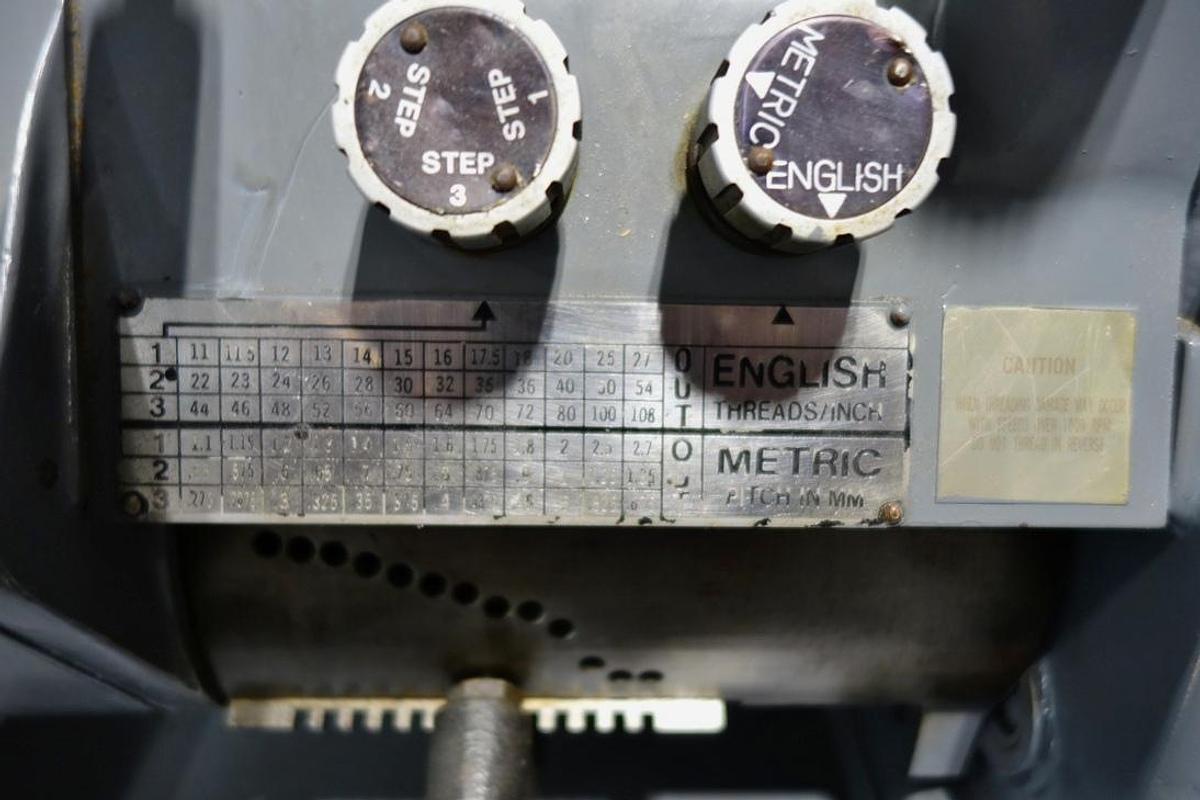

INCH THREADING RANGE IN GEARBOX: (36) 11 - 108 T.P.I.

METRIC THREADING RANGE IN GEARBOX: (36) 0.275 - 2.7 MM

Over all Dimensions: 75” x 33” x 82” H

APPROXIMATE WEIGHT: 2,000 LBS.

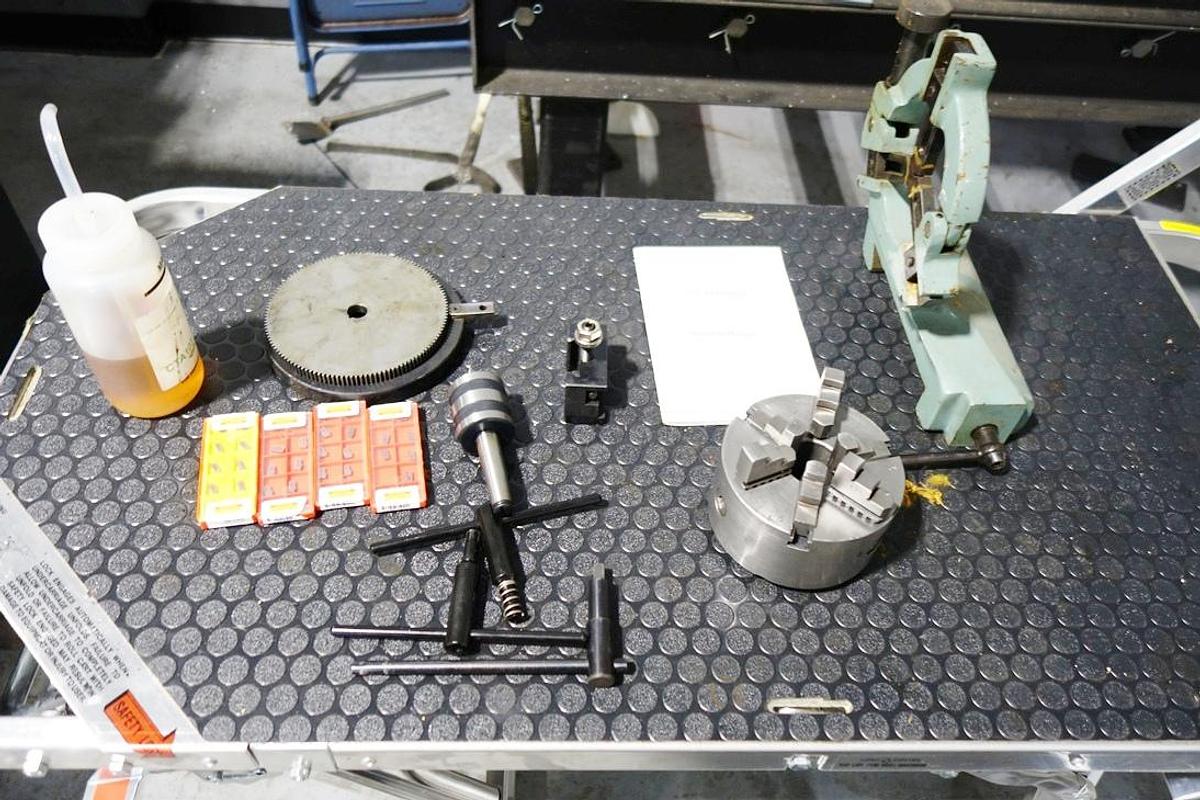

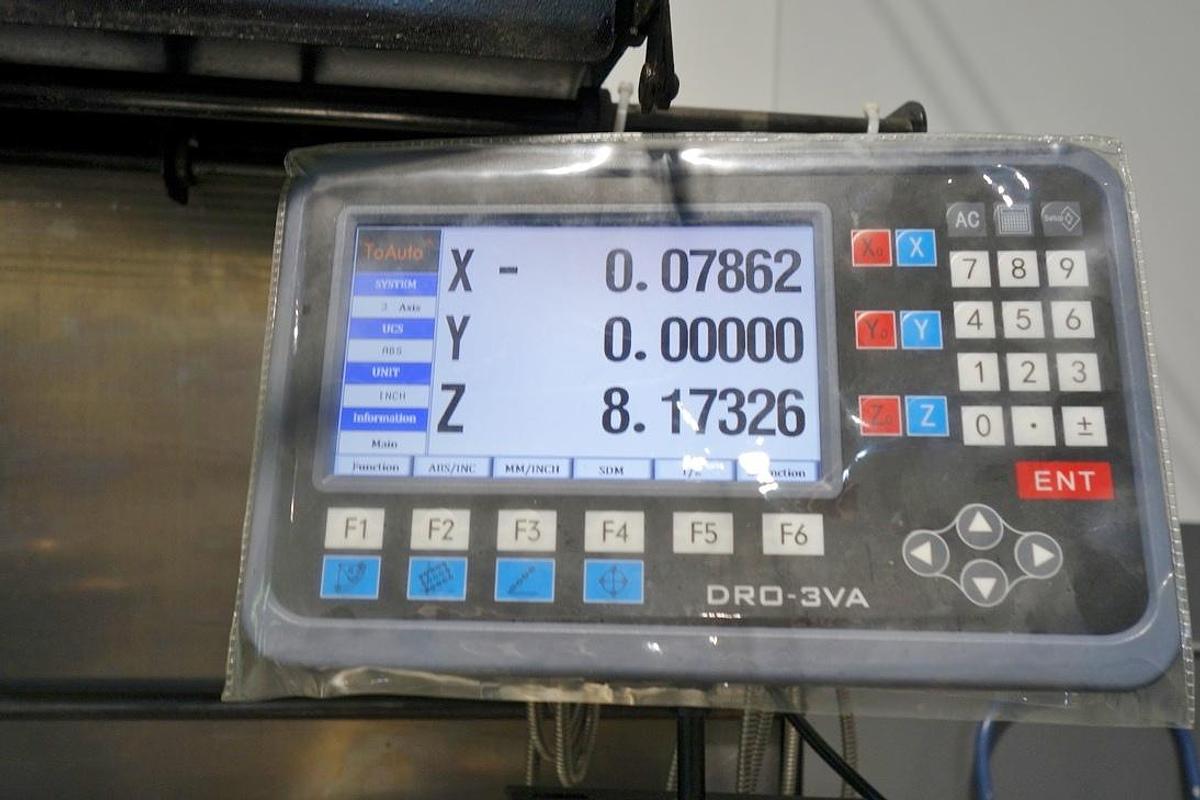

Equipped with: Large assortment of Hardinge 5c Collets, 2 Axis Digital Read Outs, Tool Post, Tool Post Holder,5” Drill Chuck for Tail Stock, Live Center,3 Jaw Chuck, Extra Chuck Jaws, Change Gear, Sandvik Tool Bits. 4” Steady Rest.

Price $12,900.00 LOADED ON YOUR CARRIER
