JPW Industrial Oven Model C98TULEP480V45KW, 2023 20'

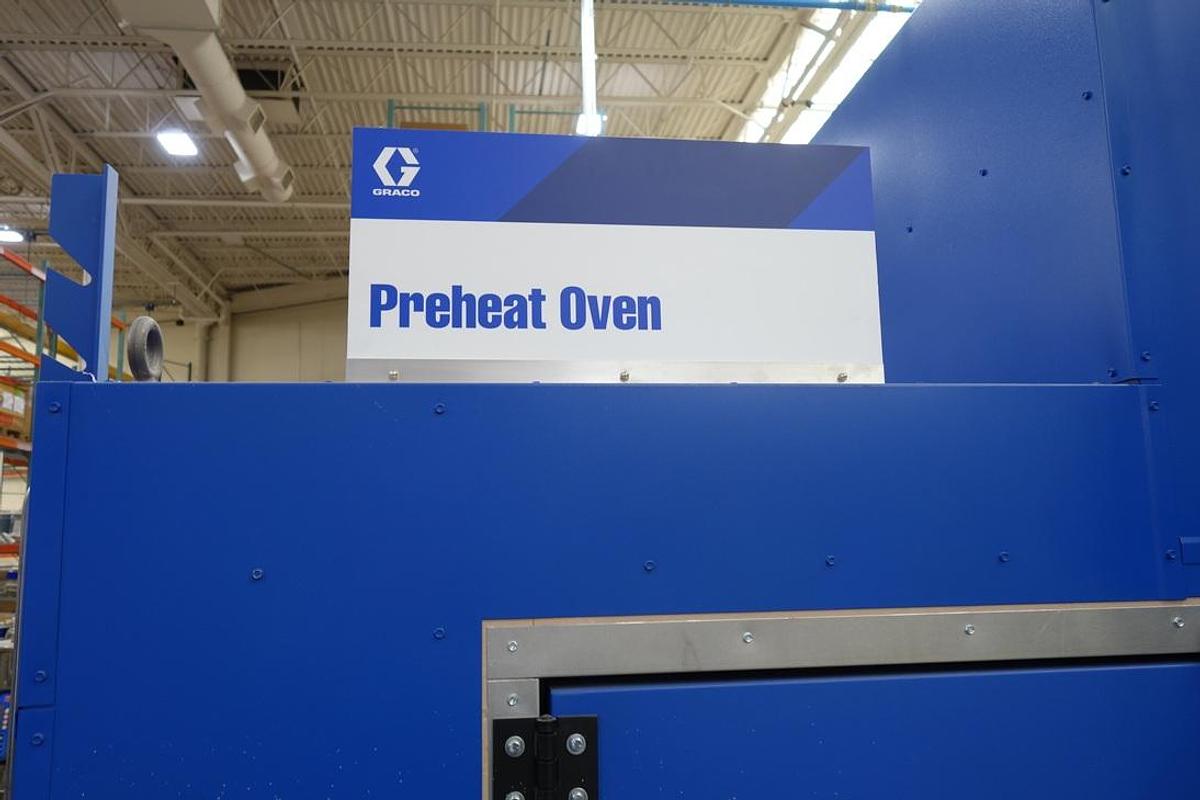

Here is a very nice 20’ late model 150 C Pass thru Conveyor Oven. This oven can be inspected in Minneapolis MN. To schedule an inspection, please contact us.

General Specifications: (subject to Buyers Verification)

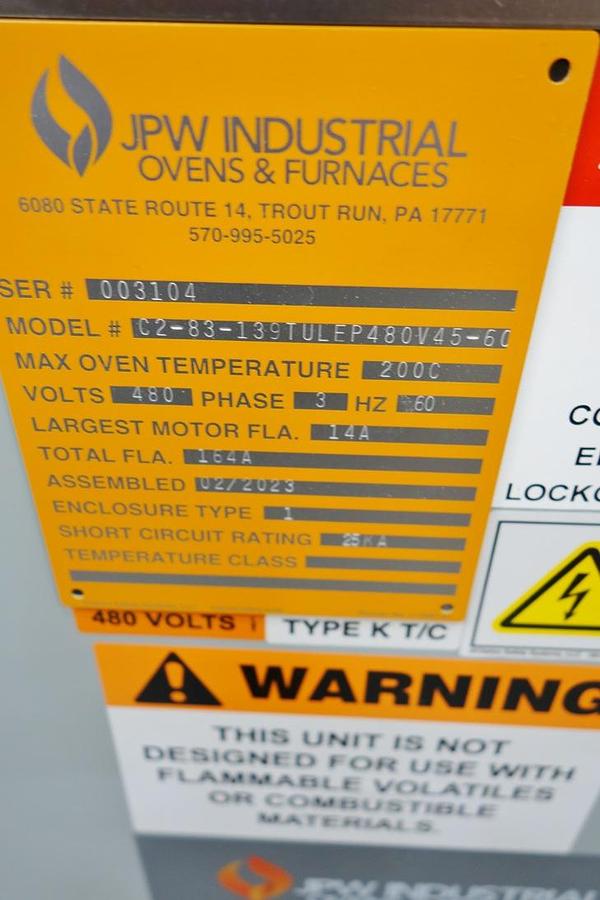

Make: JPW Industrial Ovens

Sn: OO3103

Year: 2003

Control: Allen Bradley

General Specifications:

SUBJECT: Oven Model #C98TULEP480V45KW

The Conveyor oven is designed to operate at 150°C maximum temperature and includes the following special features:

·       4.5” thick insulated walls, ceiling and floor

·       CRS exterior painted machine gray

·       Aluminized interior

·       Conveyor, 42”w x1x1 heavy duty flatwire with steel support bed 1,000 lb load

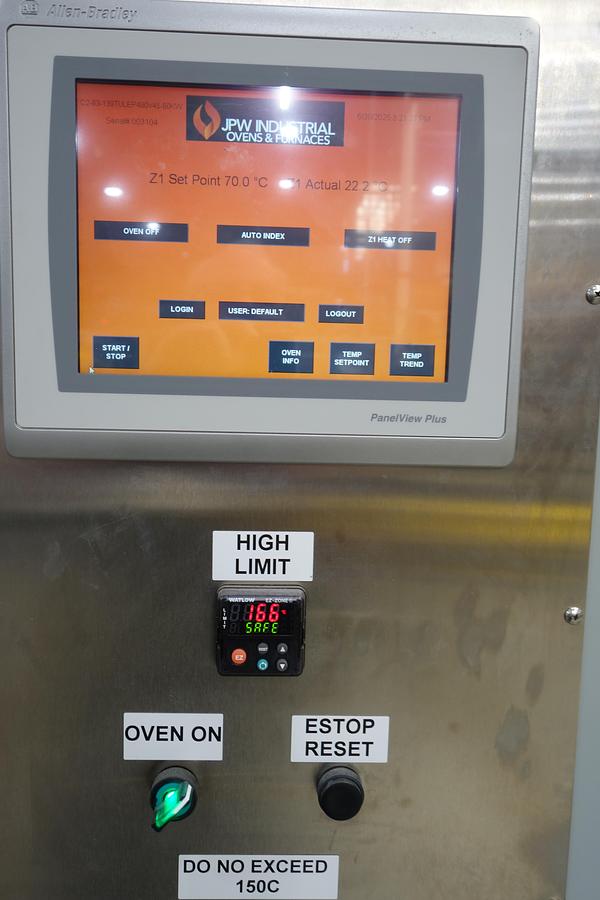

·       AB PLC with HMI monitoring all devices with communications

·       Watlow PM High limit

·       Conveyor speed range of 1.25”-4.0” per minute constant

·       Product sensor on outlet end to stop conveyor if sensor is made

·       Adjustable crank doors on inlet and outlet – Max height open of 21”

·       Skid frame bottom support to raise belt to 36” from floor

·       Heated Zone operating at 70C-100C +/-3C

·       Heated zone will have 45KW of heat

·       UL Control panel 480V/3/60 – Nema 12

·       load conveyor – 36” long

·       Unload conveyor – 36” long

·       Heated zone 168” lg x 42”’w x 24”h

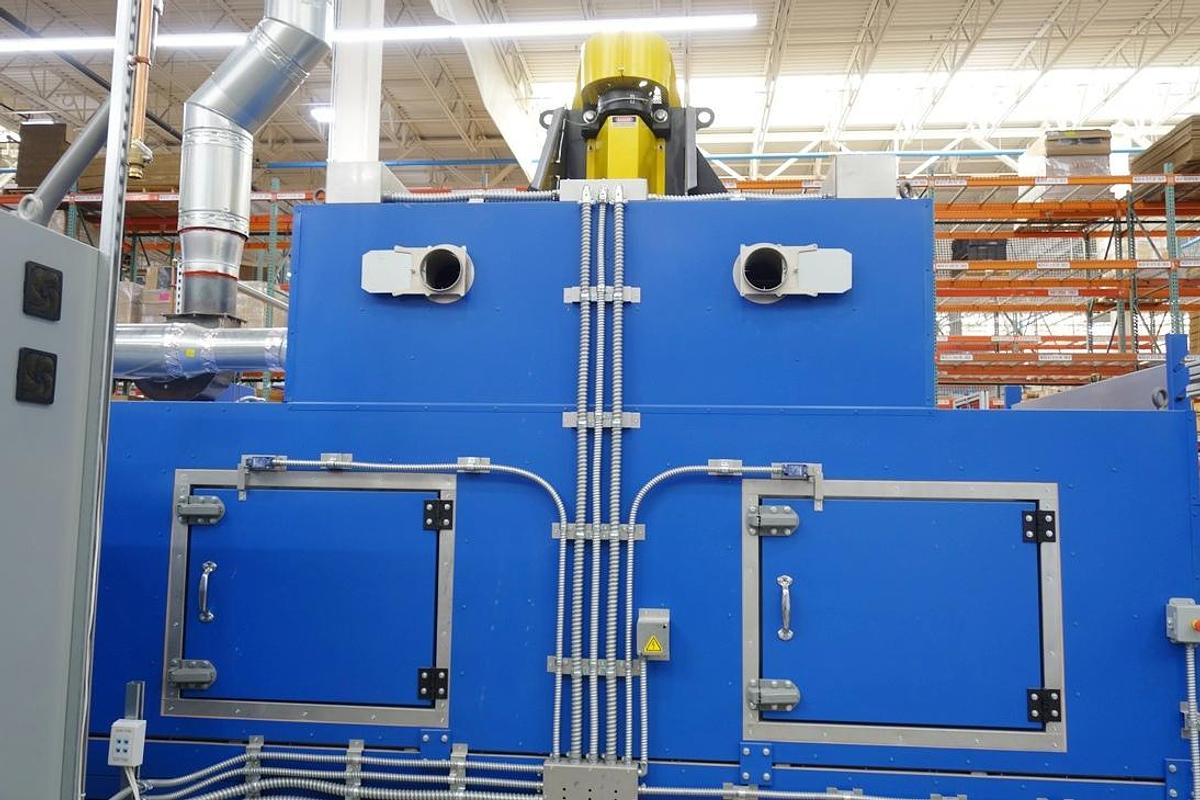

·       1-high volume recirculation (plug design) 23,000 cfm –with a VFD operating at 18,000 cfm

·       600 cfm forced exhaust on a VFD

·       Vertical down airflow

·       Fused rotary disconnect

·       E stops at each end of the conveyor

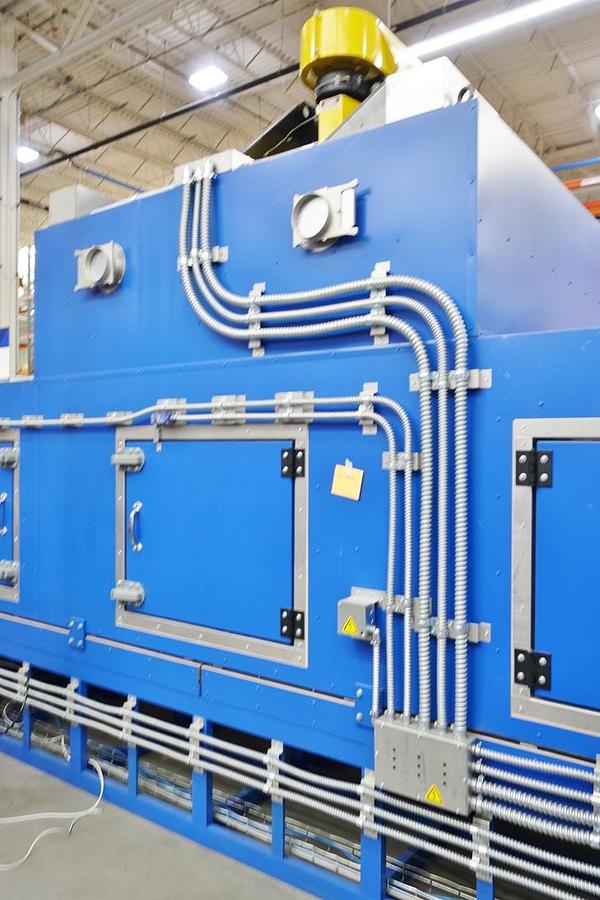

·       Access doors positioned on the right-hand side (doubles as explosion relief if required)

Batch Oven Specifications:

Effective Work Area..............

_3_’ __6_” W x _2’ _0__” H x _14__’ 0__” L- Zone 1

_

External Dimensions (Overall)................................

_8_’ __9_” W x _11__’ _0__” H x _20__’ __4_” L

KW total................................

___45________   KW

Recirculation Fans 1 @.........

__23,000___   CFM;  _10___ HP-

Price..$98,500.00 sold as is as inspected
