JPW Industrial Oven Model C2-83-139TULEP480V45-60KW, 2023

Located in Minneapolis, Minnesota, this JPW Industrial 40’ Conveyor Curing Oven offers high-capacity, precision-controlled thermal processing and can be inspected under power. To schedule an inspection, please contact us.

This 2023 oven, model C2-83-139TULEP480V45-60KW, is designed for continuous conveyor curing operations up to 200°C. It features 4.5” thick insulated walls, ceiling, and floor, with a CRS blue-painted exterior and an aluminized interior for durability and thermal efficiency. The conveyor is 42” wide, heavy-duty flatwire with steel support, and rated for 2,000 lb load. The system is fully controlled via AB PLC with HMI monitoring, including Watlow PM high-limit sensors for safety.

The oven has two independently controlled zones:

• Zone 1: 70–100°C ±3°C, 45 KW heat, 142” L x 42” W x 24” H heating section, 18,000 CFM recirculation fan.
• Zone 2: 100–150°C ±3°C, 60 KW heat, 237” L x 42” W x 24” H heating section, 23,000 CFM recirculation fan.

Additional features include:

• Adjustable inlet/outlet crank doors (max 21” open)
• Skid frame elevating conveyor to 36” from floor
• Conveyor speed: 1.25–3.5” per minute
• High-volume recirculation fans with VFD control for precise airflow
• 1,500 CFM forced exhaust (VFD-controlled)
• Vertical down airflow with 12–14” center dead zone between conveyors
• Safety features: fused rotary disconnect, E-stops at both ends, right-side access doors doubling as explosion relief

Effective Work Area:

• Zone 1: 3’ 6” W x 2’ 0” H x 11’ 10” L
• Zone 2: 3’ 6” W x 2’ 0” H x 19’ 9” L

External Dimensions: 8’ 9” W x 11’ 0” H x 39’ 2” L

Total Heat Capacity: 105 KW (45 KW Zone 1 / 60 KW Zone 2)

Electrical Requirements: 480V, 3-phase, 60 Hz, 163 amps (recommended 300-amp breaker)

This high-capacity curing oven is ideal for industrial production requiring precise temperature control and large throughput. Price: $189,000, sold as-is, as inspected.

Here is a very nice 40’ Curing Oven. This oven can be inspected under power in Minneapolis MN. To schedule an inspection, please contact us.

General Specifications: ( Subject to Buyers Verification)

Make: JPW Industrial Ovens

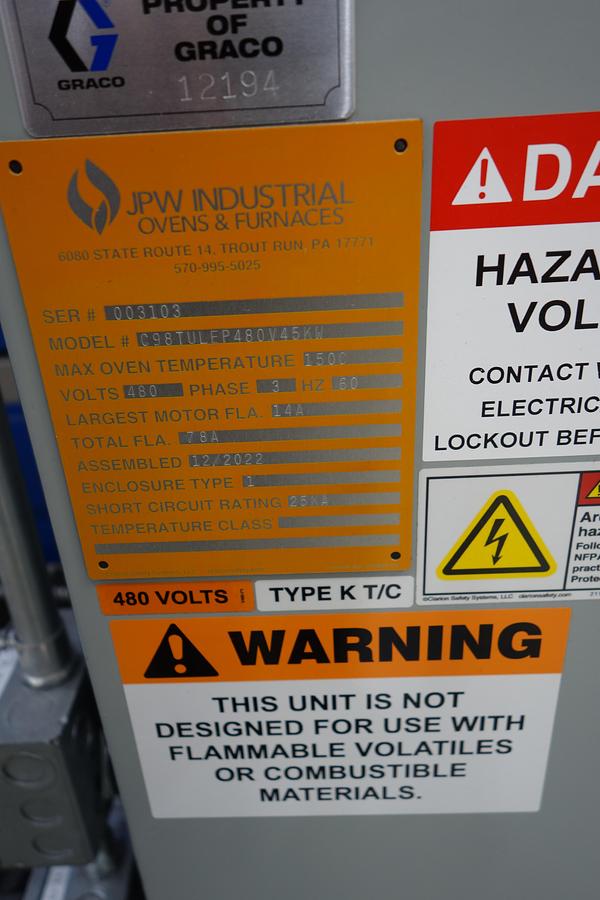

SUBJECT: Oven Model #C2-83-139TULEP480V45-60KW

Year: 2023

The Conveyor oven is designed to operate at 200°C maximum temperature and includes the following special features:

4.5” thick insulated walls, ceiling and floor

·       CRS exterior painted machine Blue

·       Aluminized interior

·       Conveyor, 42”w x1x1 heavy duty flatwire with steel support bed 2,000 lb load

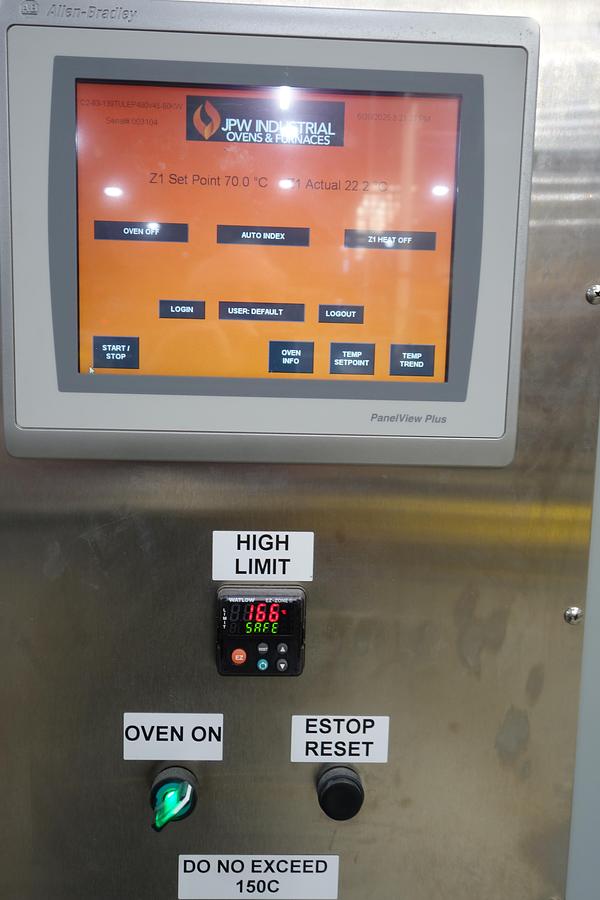

·       AB PLC with HMI monitoring all devices with communications

·       Watlow PM High limits (one each zone)

·       Conveyor speed range of 1.25”-3.5” per minute constant

·       Product sensor on outlet end to stop conveyor if sensor is made

·       Adjustable crank doors on inlet and outlet – Max height open of 21”

·       Skid frame bottom support to raise belt to 36” from floor

·       2 zones- Zone 1 operating at 70C-100C +/-3C, Zone 2 operating at 100C-150C +/-3C

·       Zone 1  45KW of heat

·       Zone 2  60KW of heat

·       Each zone will be controlled separately

·       UL Control panel 480V/3/60 – Nema 12

·       load conveyor – 36” long

·       Unload conveyor – 36” long

·       Zone 1 Heating section 142” lg x 42”’w x 24”h

·       Zone 2 Heating section 237” lg x 42”’w x 24”h

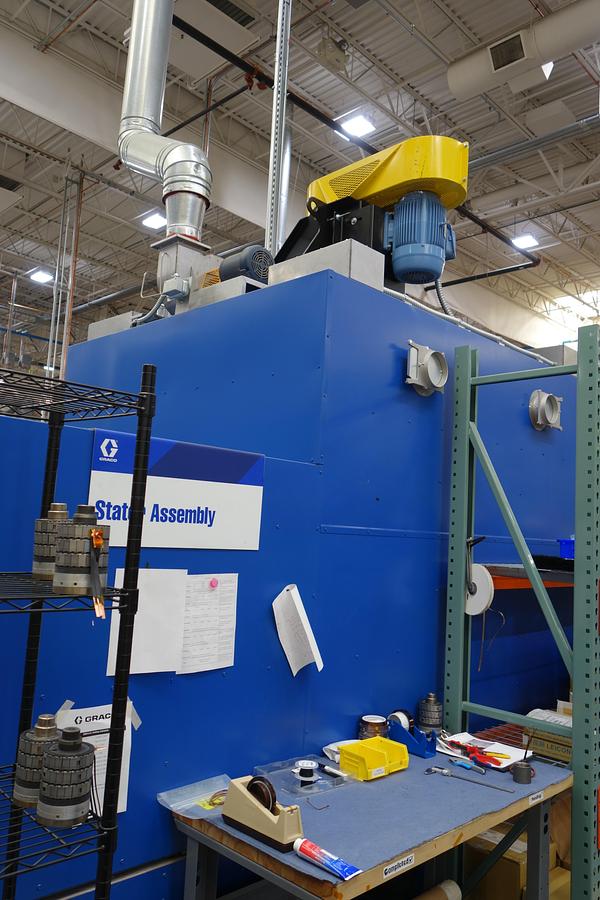

·       1-high volume recirculation (plug design) 23,000 cfm – each zone with VFD’s for 18,000 cfm zone 1 operating, 23,000 cfm zone 2 operating

·       1500 cfm forced exhaust on a VFD- common exhaust for both zones

·       12-14” center dead zone between conveyors

·       Vertical down airflow

·       Fused rotary disconnect

·       E stops at each end of the conveyor

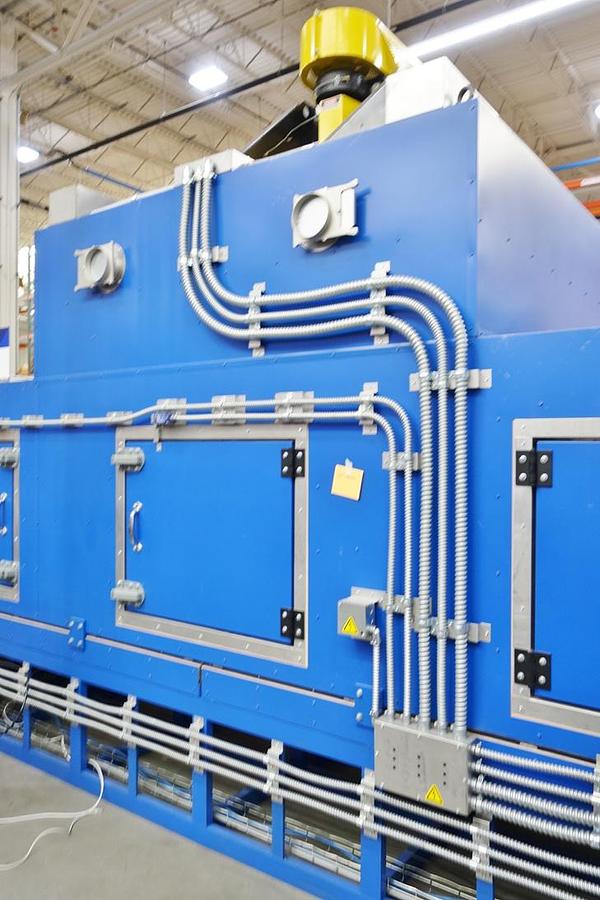

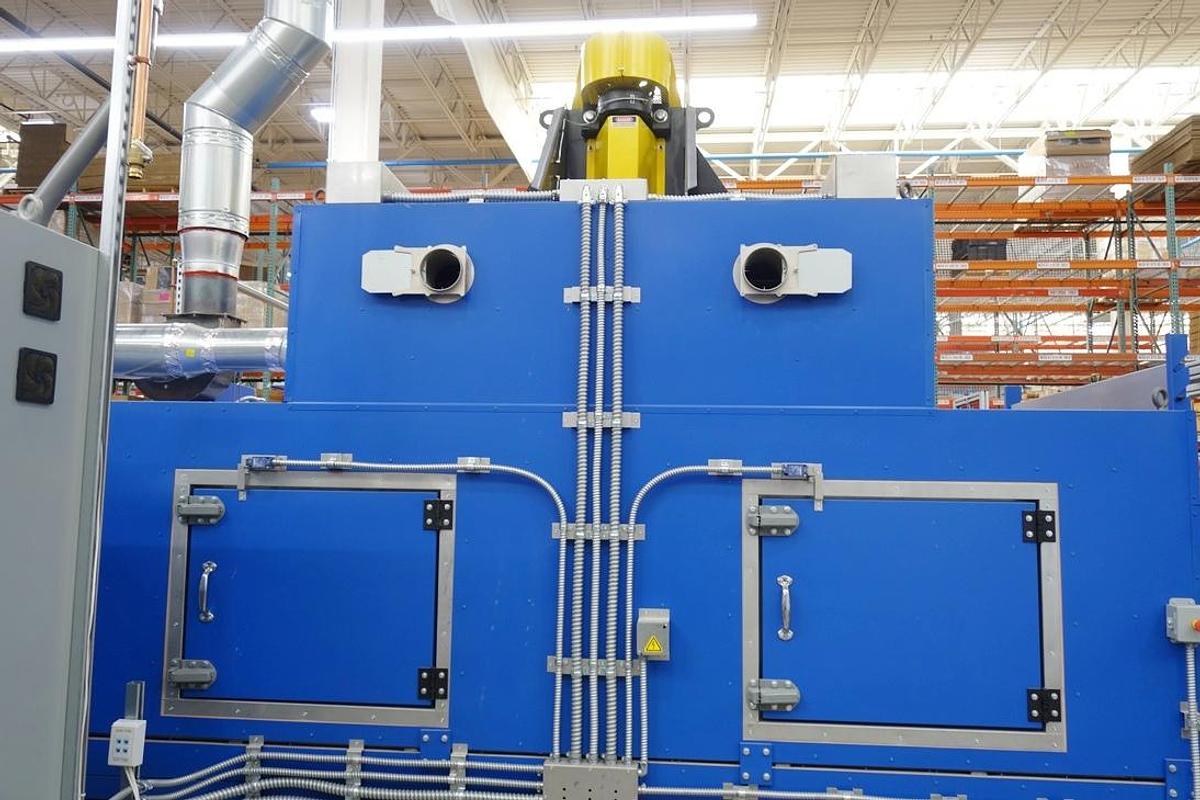

·       Access doors positioned on the right-hand side (doubles as explosion relief if required)

Batch Oven Specifications:

Effective Work Area..............................................

_3_’ __6_” W x _2’ _0__” H x _11__’ 10__” L- Zone 1

_3_’ __6_” W x _2’ _0__” H x _19__’ 9__” L – Zone 2

External Dimensions (Overall).................................

_8_’ __9_” W x _11__’ _0__” H x _39__’ __2_” L

KW total 45 zone 1/60 zone 2...................................

___105________   KW

Recirculation Fans 2 @..........................................

__23,000___   CFM;  _10___ HP- Ea – One each zone

Electric.....................................

Price: $189K

 Sold as is as inspected.

o 480/3/60, _163 amps, recommend a 300-amp breaker
