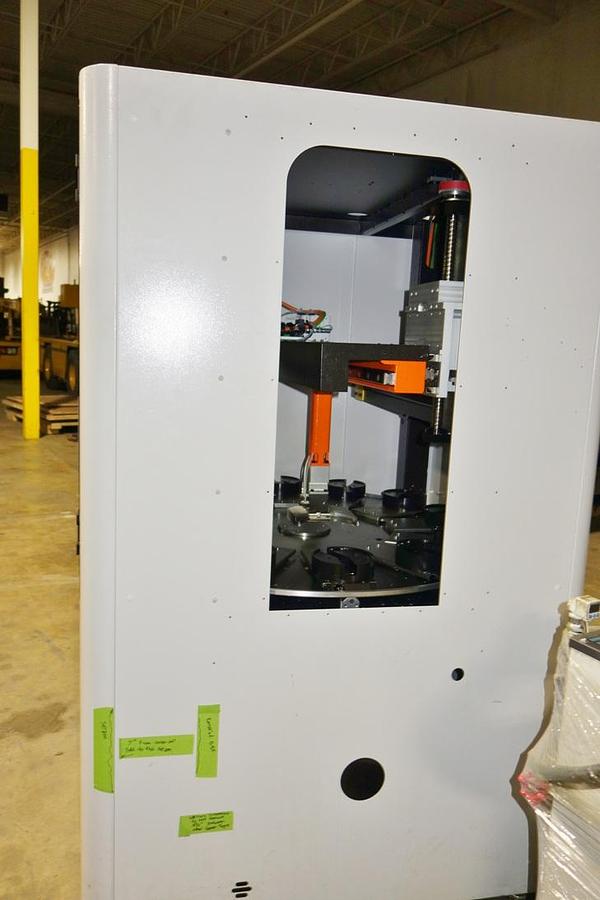

+GF+ System 3R Work Pal 1, 12 Station Pallet Pool, 2022

Located in Minneapolis, Minnesota, this +GF+ System 3R Work Pal 1 Pallet Pool is a versatile automation solution for manufacturing environments, supporting milling machines, wire EDM machines, laser machines, and grinding machines.

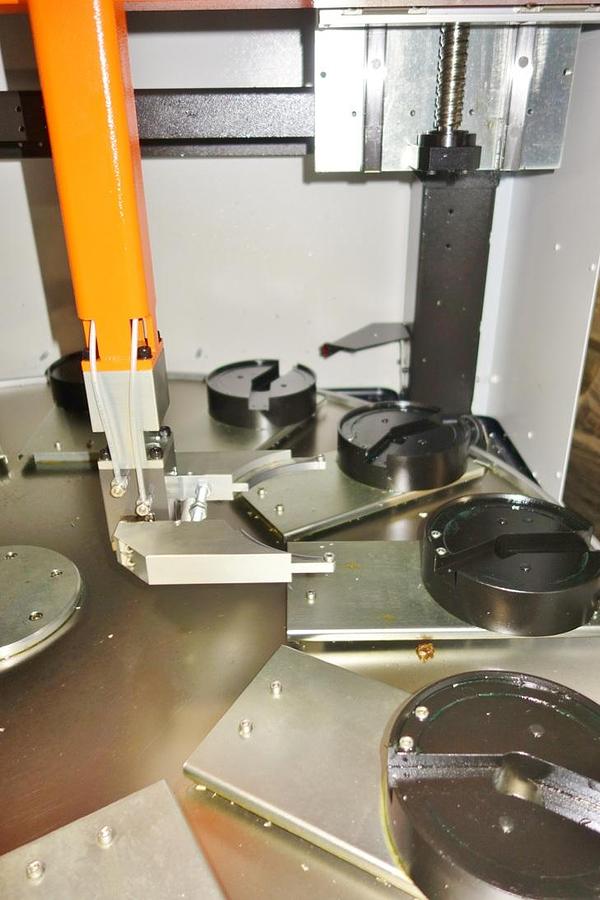

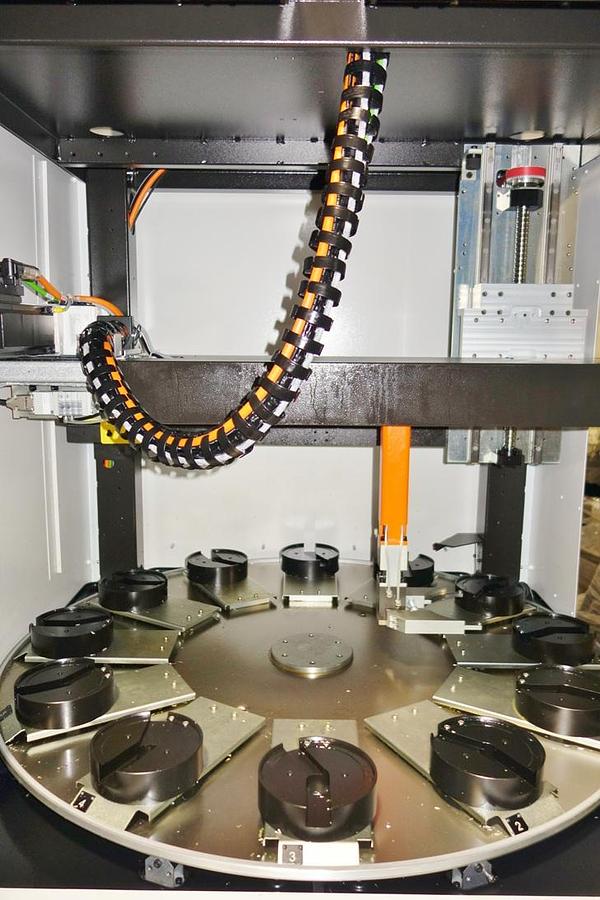

This 2022 model, serial number 2201—V00-110, features a 12-station pallet pool capable of handling a transfer weight of 111 lbs per pallet and a maximum total magazine weight of 667 lbs. It uses AC servo motors for the MR, X, and Z axes, providing precise motion control with a maximum horizontal stroke of 32.6" at 1200 mm/s and a vertical stroke of 15.7" at 650 mm/s. The MR axis allows 360° rotation at 90°/s for efficient workpiece positioning.

The system operates on 230V, 3-phase power with an air pressure requirement of 6–1 bar, and fits in a compact footprint of 48" x 48". It comes equipped with 11 work holding pallets for immediate operational use.

This pallet pool is available for inspection at our Minneapolis facility. Price: $49,500, sold as-is, as inspected, offering a high-quality automation solution for precision machining and production workflows.

+GF+ System 3 R Work Pal 1, 12 Station Pallet Pool. This pallet pool can be inspected in our facility in Minneapolis Mn. To set up an inspection, please contact us.

This 3R Pallet Pool can support Milling Machines, Wire EDM Machines, Laser Machines and Grinding Machines.

General Specifications:

Make: System 3R

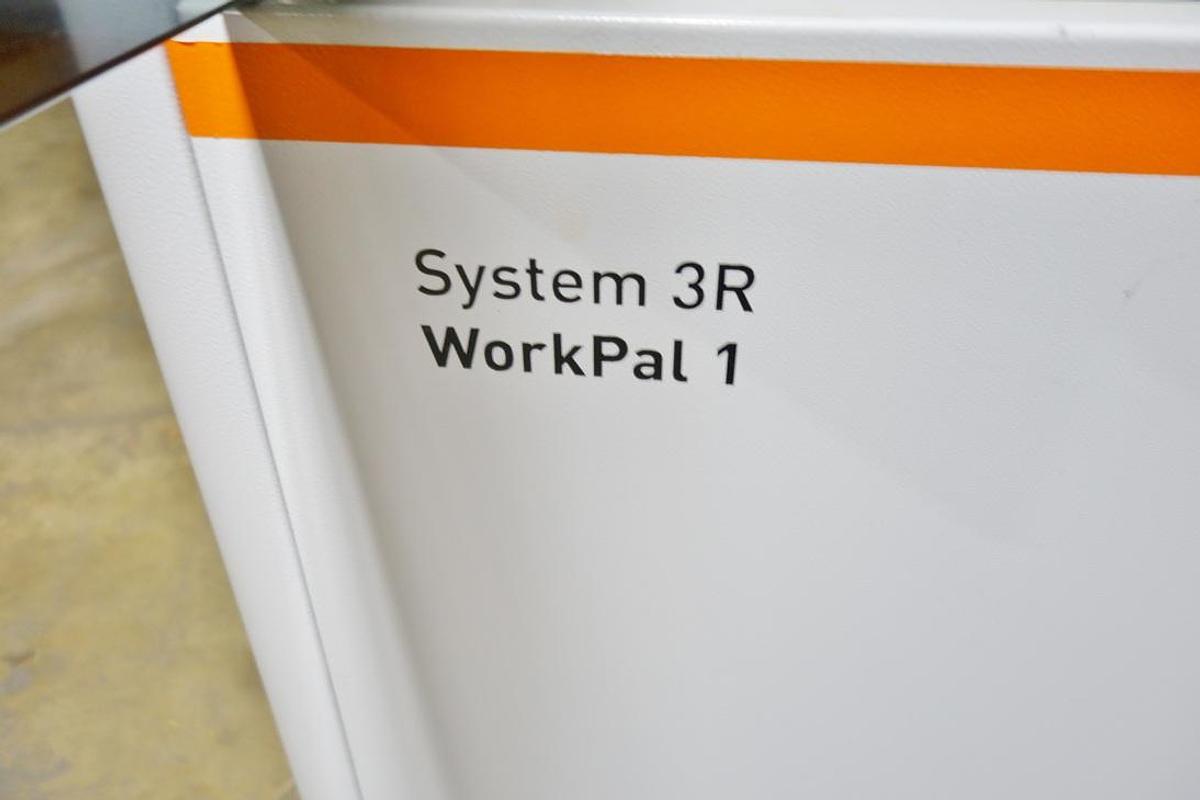

Model: Work Pal 1

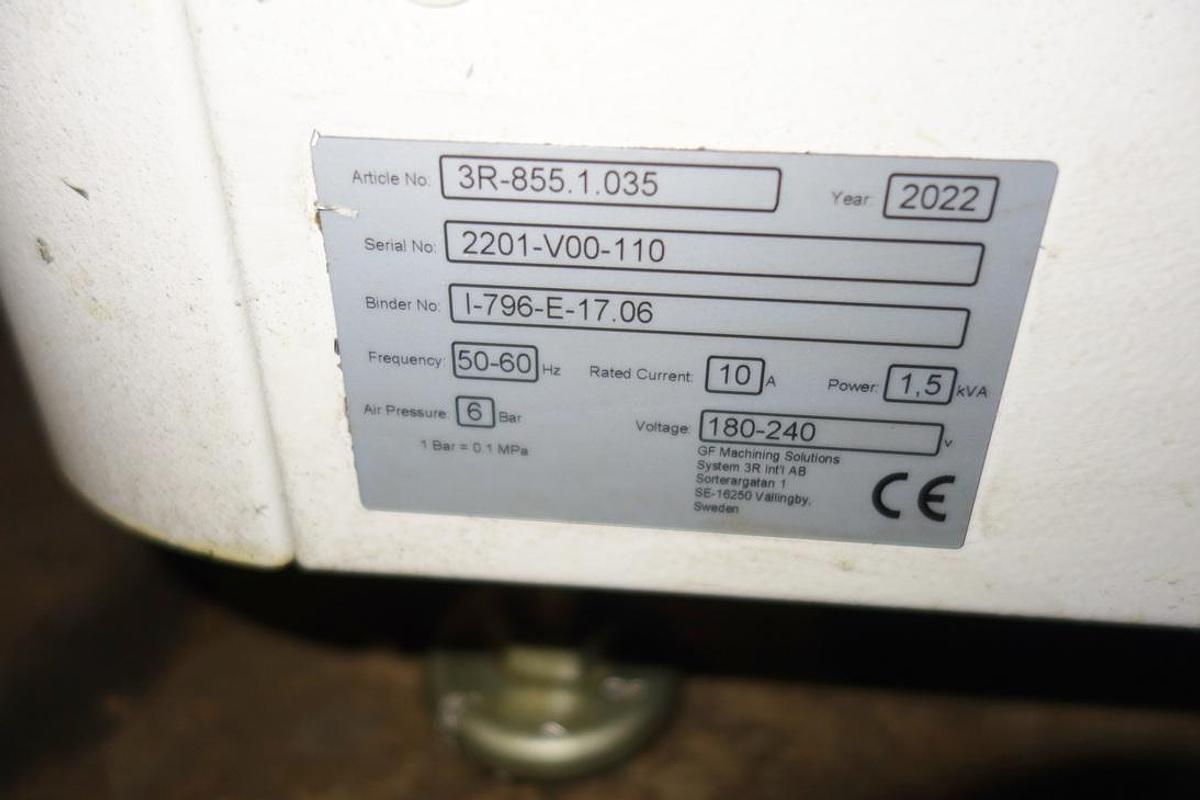

SN: 2201—V00-110

Year: 2022

NO Stations……………………..12

Transfer Weight…………….. 111 lbs. (Pallet with work Piece

Max Total Weight in Magazine………………667 Lbs.

MR, X and Z Axis…………………AC Servo Motor

Max Horizontal Stroke and Speed X Axis………………32.6”  -  1200 mm/s

Max Vertical Stroke and Speed Z Axis……………….15.7” – 650 MM/s

Maximum MR Axis Stroke and Speed……………….360 degree -  90 degree/s

Electrical required……………………………………….230/3/PH

Air Pressure Required………………………………6 = 1 Bar

Floor Space Required………………………………. 48” x 48”

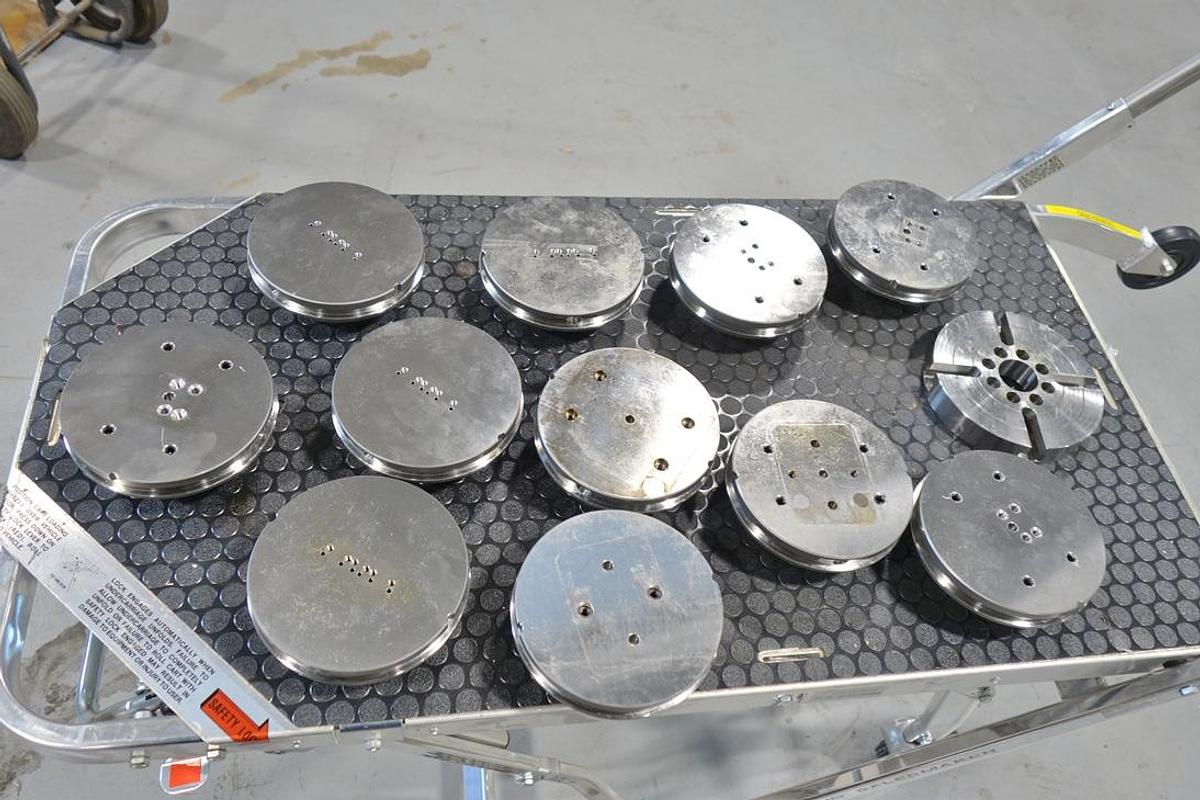

Equipped with: 11 Work Holding  Pallets

Price………………………..$49,500.00 sold as is as inspected
