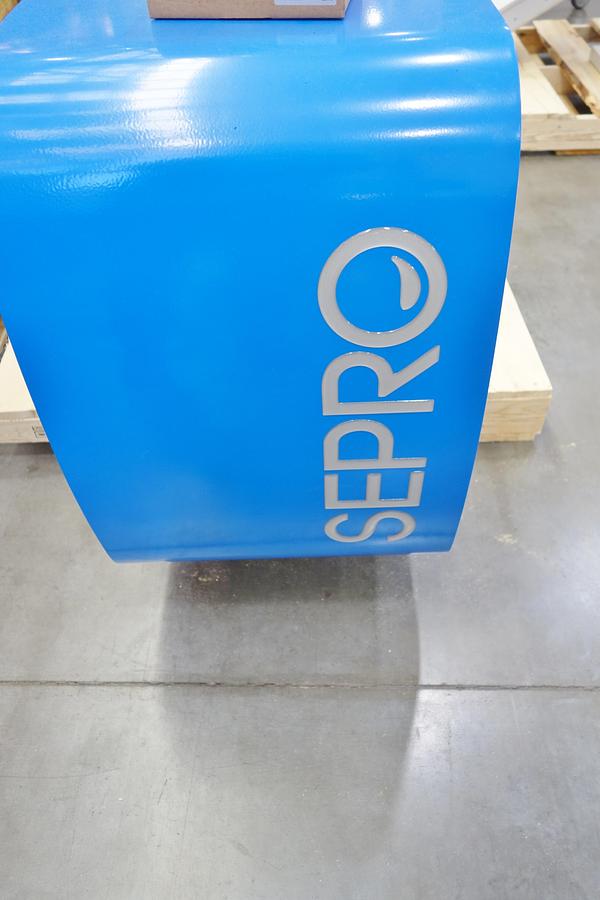

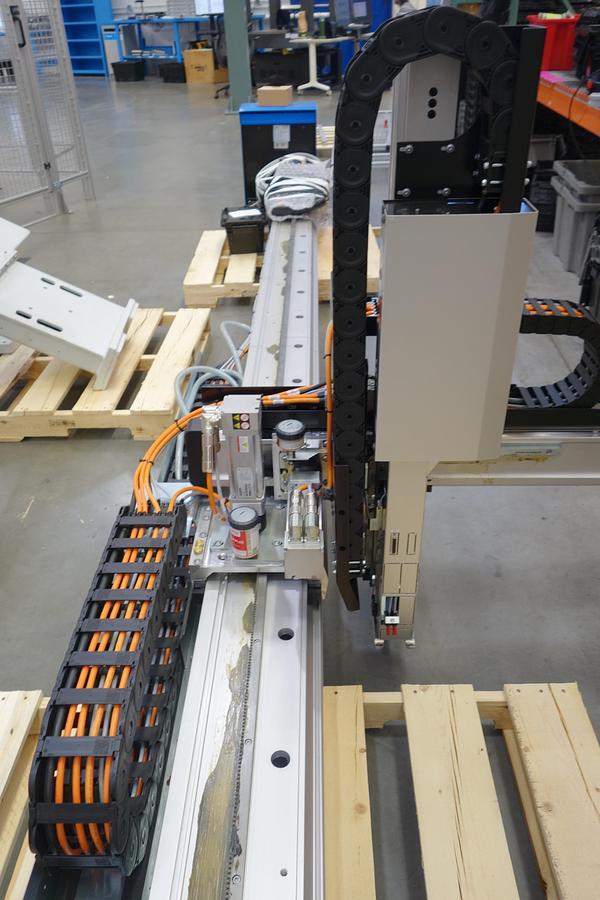

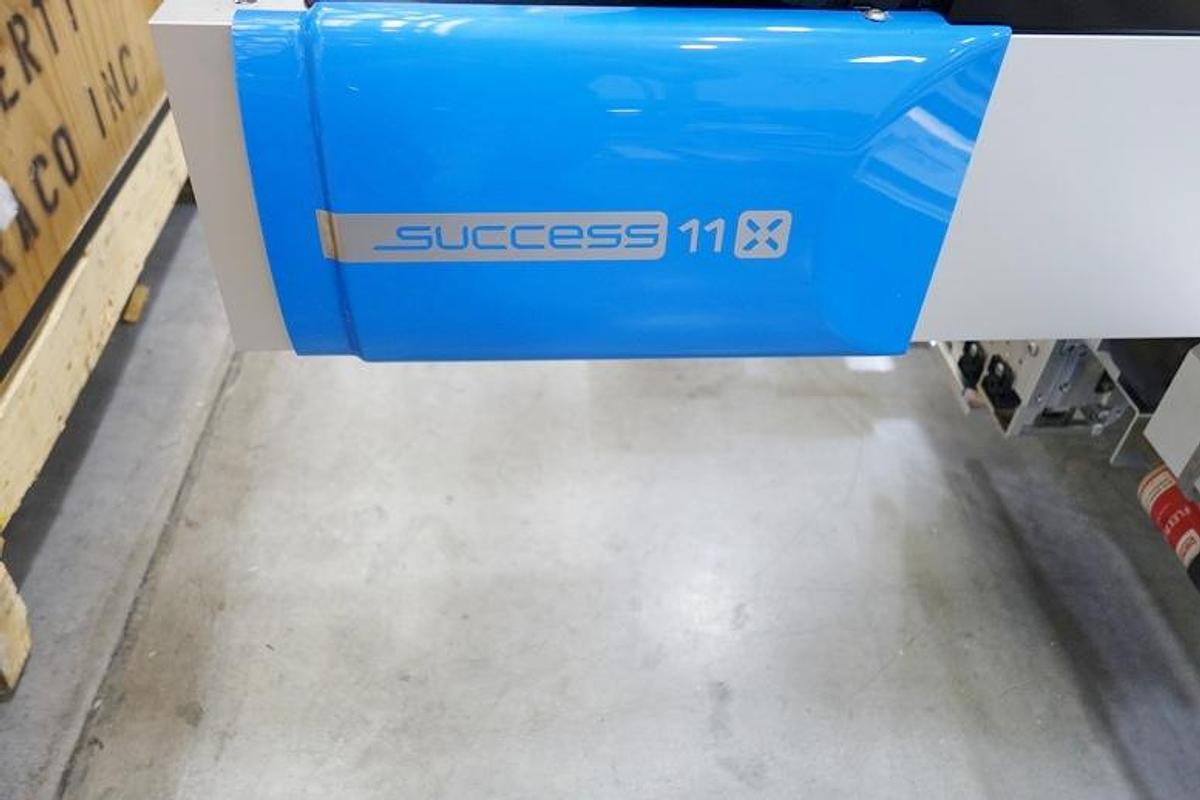

Sepro 5 Axis Robot, Success 11X, 2023

Located in Minneapolis, Minnesota, this Sepro Success 11 X 5-Axis Robot is a high-performance robotic system designed for use with plastic injection molding machines, offering precise part handling, insertion, and ejection capabilities.

This 2023 model, serial number R015978-01, features extensive motion ranges, including a horizontal traverse stroke of 59.055" minimum and a maximum beam traverse of 137", a vertical stroke ranging from 47.244" to 55.118", and an ejector (“kick”) stroke of 19.685". The robot operates at high speeds, with horizontal movement up to 508 cm/min, vertical motion up to 762 cm/min, and kick speed up to 78.7 in/min, supporting payloads of at least 13.2 lbs.

Designed for industrial reliability, it operates on 460V with a pneumatic pressure of 6 bar ±10% and is compatible with EM12 or EM67 interfaces. The unit comes with two controllers, enabling seamless integration with molding systems.

This Sepro robot is available for inspection in Minneapolis, MN. Price has been reduced from $62,500 to $49,500, sold as inspected, providing an excellent opportunity for manufacturers looking to add high-precision robotic automation to their injection molding operations.

Sepro 5 Axis Robot used on a Plastic Injection Molder. This Robot can be inspected in Minneapolis MN. To set up an inspection, please contact us.

General Specifications:

Make: Sepero

Model: Success 11 X

Year: 2023

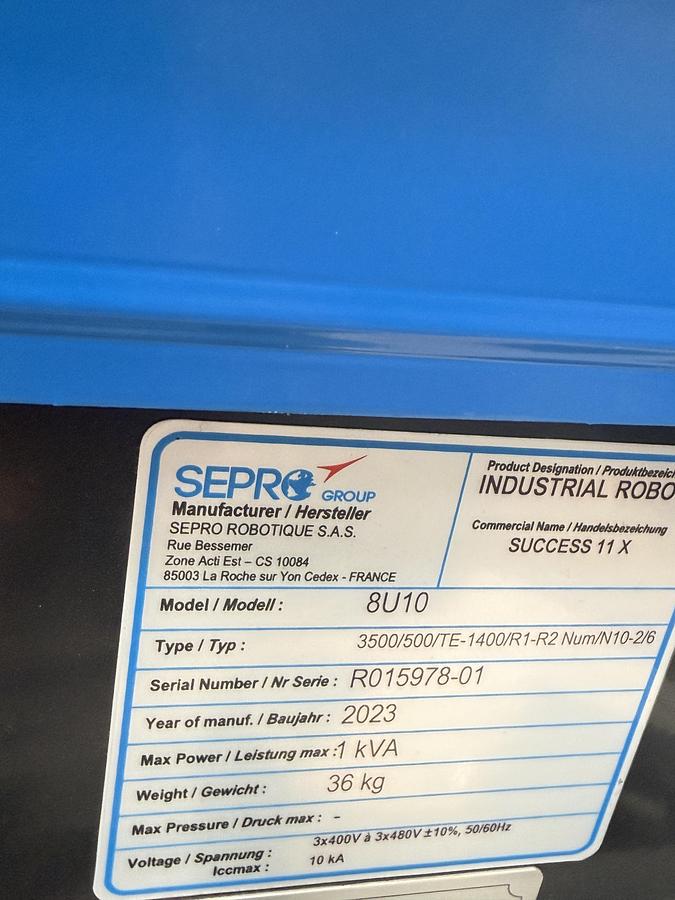

SN: R015978-01

Traverse (Horiz) Stroke Min  59.055"

        Max Speed (Traverse)    508 cm/min.

Kick (Ejector) Stroke Min       19.685"

        Max Speed (Kick)   78.7 in/min

Horizontal X Stroke on Beam: 137”

Vertical stroke minimum: 47.244"

Vertical Stroke Max: 55.118"

Max Speed (Vertical): 762 cm/min.

Payload Min   13.2 lb

Pneumatic Operating Pressure: 6 Bar + - 10%

Voltage   460 V·A

Interface  EM12 or EM67

Controller        2

Price…………..$62,500.00 sold as inspected

Price Reduced $49,500
