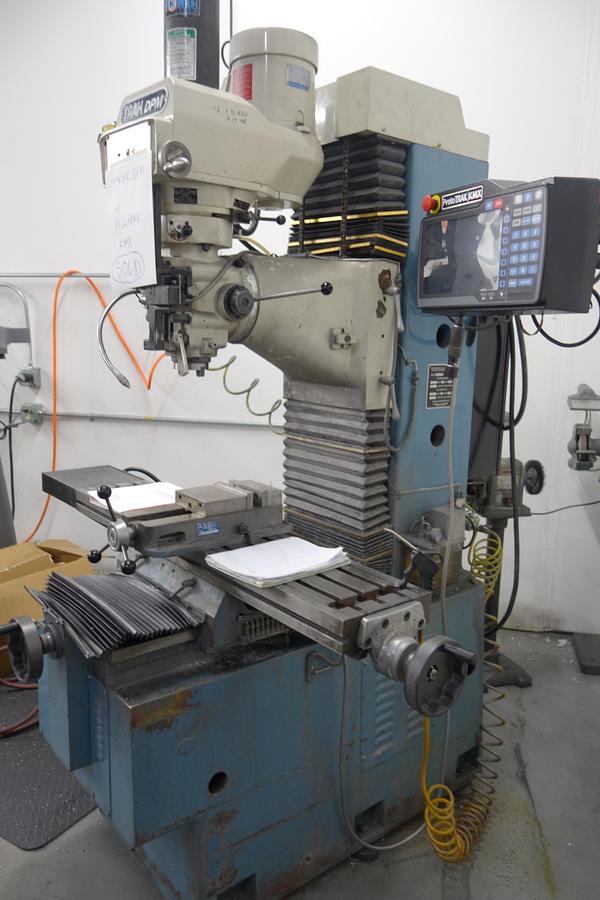

Southwestern Industries, Trak DPM, upgraded in 2022 with a new Trak KMX Control!

This vertical milling machine was upgraded in 2022 with a new Trak KMX control, providing modern CNC capability combined with the durability of a traditional knee mill platform. This upgrade significantly enhances usability, precision, and programming efficiency, making it an excellent solution for toolrooms, prototype work, maintenance departments, and light production environments. All specifications are subject to buyer verification.

The machine features a 50-inch by 10-inch table, offering ample workspace for a wide range of parts and fixtures. With XYZ travels of 31 inches in X, 17 inches in Y, and 25 inches in Z, this mill provides strong versatility for machining medium-sized components. The spindle nose to table distance ranges from 0 to 25 inches, allowing for substantial part height capacity, while the spindle to column face distance of 17.3 inches ensures solid reach across the work envelope.

Equipped with a #40 NST/NMTB spindle taper, this mill accepts widely available 40-taper tooling. The spindle operates within a speed range of 70 to 4,200 RPM, supporting both heavy low-speed cutting and higher-speed finishing operations. The 3 HP spindle motor provides reliable power for machining steel, aluminum, and other common materials. The quill offers 5 inches of travel with selectable feed rates of 0.002, 0.004, and 0.006 inches per revolution, enabling controlled drilling and boring operations. The quill diameter measures 100 mm, adding rigidity during cutting.

The head swivels right and left 45 and 90 degrees, allowing for angled machining and increased flexibility for specialized applications. The machine is powered by 220V, 3-phase electrical service and can support a maximum workpiece weight of approximately 1,320 pounds. With an overall machine weight of approximately 4,200 pounds, it provides the mass and stability needed for consistent performance.

Included with the machine are multiple NSK tool holders and a way lube container, adding immediate operational value. Offered at $14,500.00, sold as inspected and loaded, this upgraded Trak KMX-controlled mill represents an affordable and capable CNC milling solution ready to go to work.

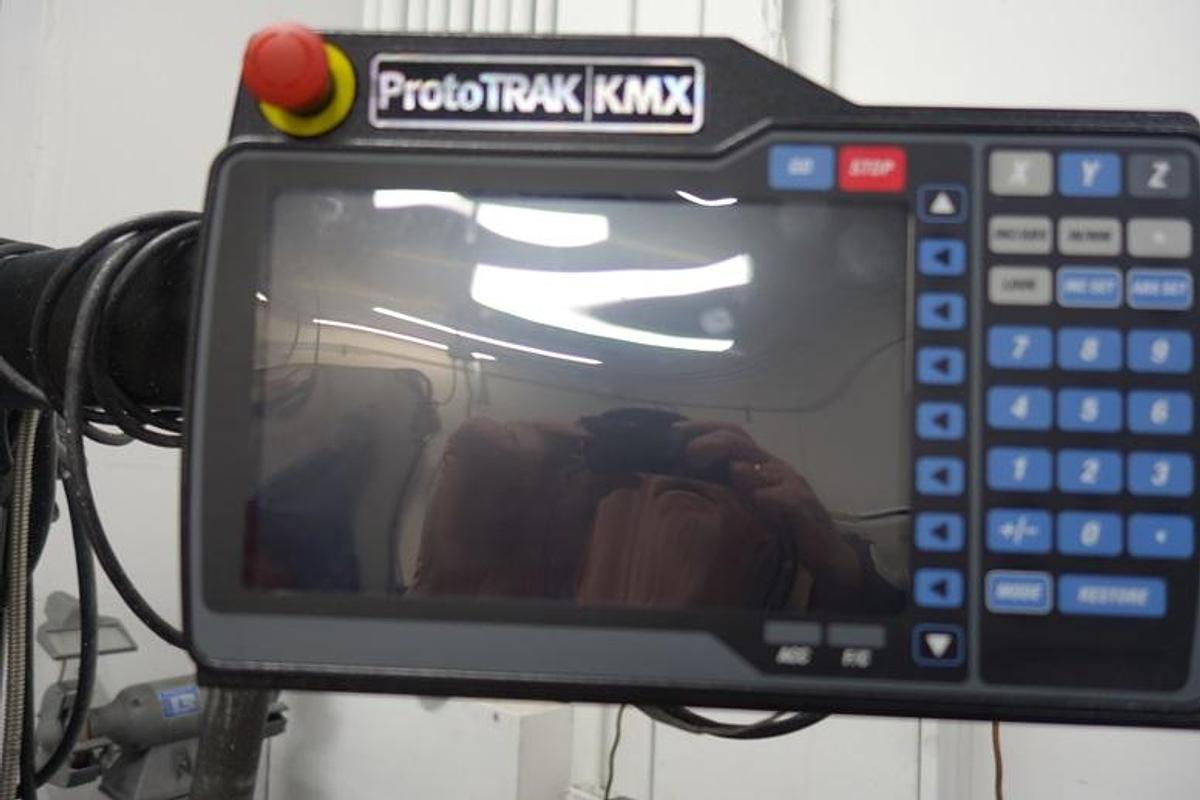

Note: This Mill was upgraded in 2022 with a new Trak KMX Control!

General Specifications: (Subject to Buyers Verification)

Table Size: 50” x 10”

Movement and Ranges;(XYZ)31”x 17” x 25”

Quill Travel Max: 5”

Quill Dia: 100 mm’

Spindle Taper: #40 NST, NMTB

Speed Range: 70 to 4200 RPM

Spindle Nose to Table:( max part height) 0-25”

Spindle to Column Face: 17.3”

Quill Feeds: 0.002, 0.004, 0.006 Rev per minute

Head Swivel: Right and Left: 45 and 90 Degrees

Spindle Motor: 3 HP

Power 220V 3ph

Maximum weight of Work Piece: 1320 Lbs.

Weight approx.: 4200 Lbs.

Equipped with: New upgraded KMX Control in 2022, Multiple NSK Tool Holders, Way Lube Container

Price………………$14,500.00 sold as inspected. Loaded.
