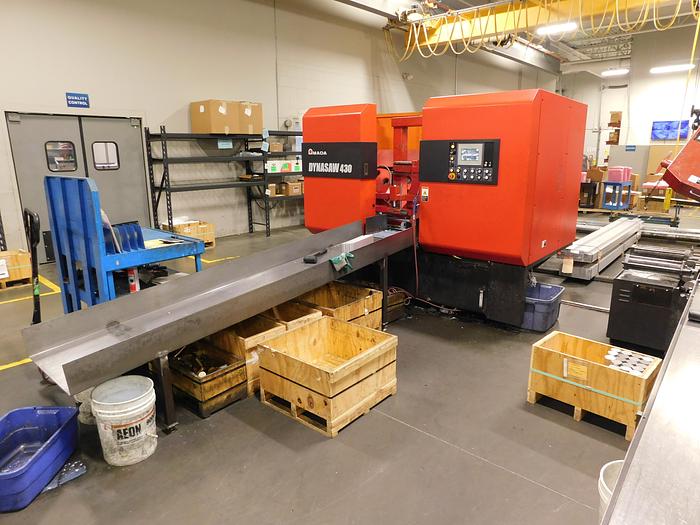

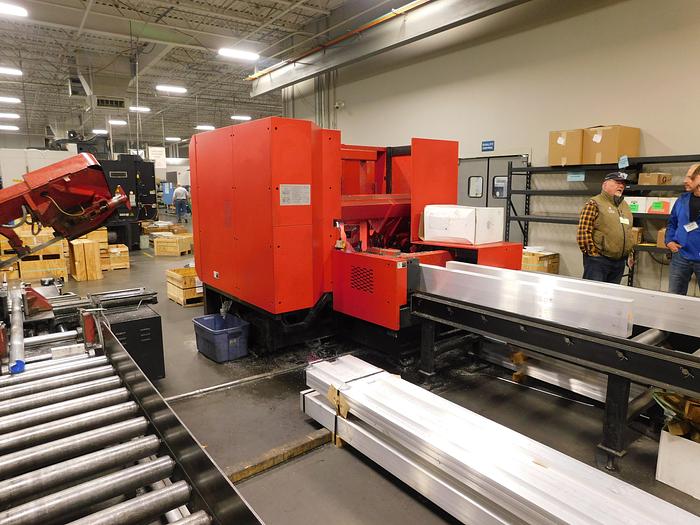

Amada Dynasaw 430 Dual Post CNC Horizontal Band Saw

Amada Dynasaw 430 Dual Post CNC Horizontal Band Saw

Contact us for price

Location:Minneapolis, MN

orCall 763-710-5160

Description

*INQUIRE FOR PRICE AND DELIVERY*


Make: Amada


Model: Dynasaw 430


Year: 2016


Round Capacity

1.18” - 16.93”


Rectangle Capacity (W x H)

1.18” x 1.18” - 16.93” x 16.93”


Work Load Capacity

6,613 lbs.


Material Index Stroke

27.559”


Material Index Length

0.394” - 99.999”


Min Remnant Length

1.38” Plus Length of Parts


Number of Input Block/Station

1-99 / 1-30


Material Index Mechanism

Shuttle Vise


Vice Opening

17.75"


Vice Height

9.0"


Bed To Blade

18.0"


Blade Size (L x T x W)

17’5” x .050” x 1 1/2”


Blade Speed

49~394 ft/min, By Inverter


Blade Motor

7.5 HP


Hydraulic Pump Motor

2 HP


Cutting Fluid Pump Motor

1/4 HP


Wire Brush Motor

1/8 HP


Chip Disposal

Screw-Type Chip Auger

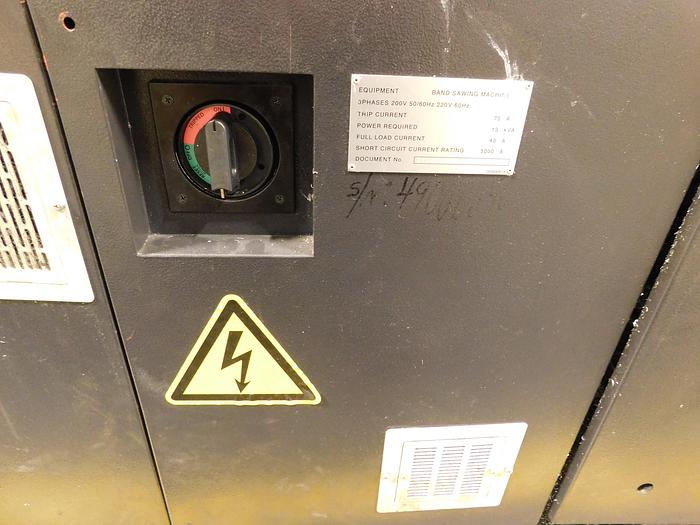

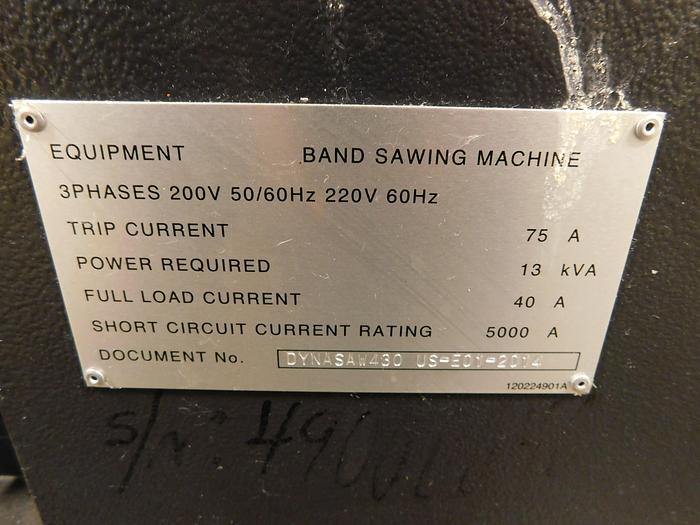

Power Requirement

13 kVA AC220V±10%, 3 PH, 60 Hz


Table Height

27.6”


Dimensions (W x L x H)

99.2″ x 85.8″ x 79.5″


Machine Weight

7,718 lbs


Equipped With:

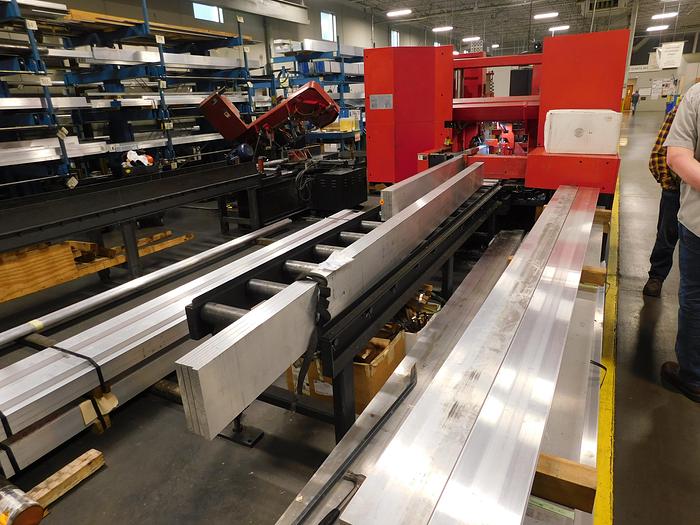

10' Infeed Roller

Extra Saw Blades

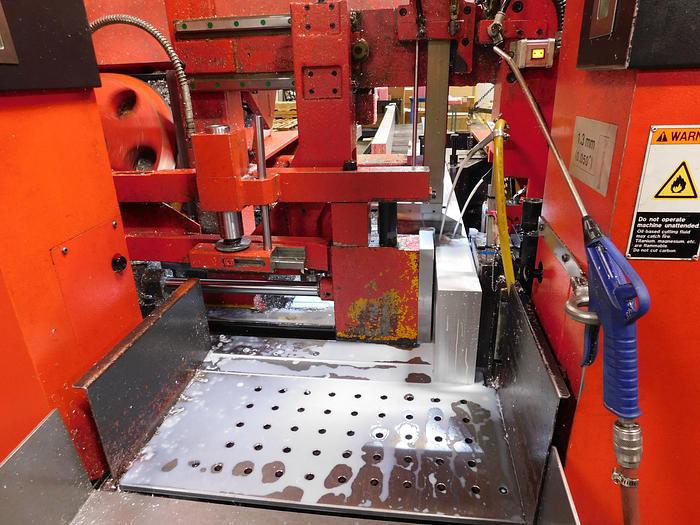

Vertical Clamp

Column Guided Cutting Head

Auto Table Cleaning

Auto Blade Guide Adjustment

Self Adjusting Wire Brush

Blade Deviation Monitor

Blade Speed Controlled by Inverter

Auto Trim Cut Function

Chip Conveyor

Motion Detector

Back Gauge Stopper

Specifications

ManufacturerAmada
ModelDynasaw 430
Year2016
ConditionUsed
Stock Number00026
