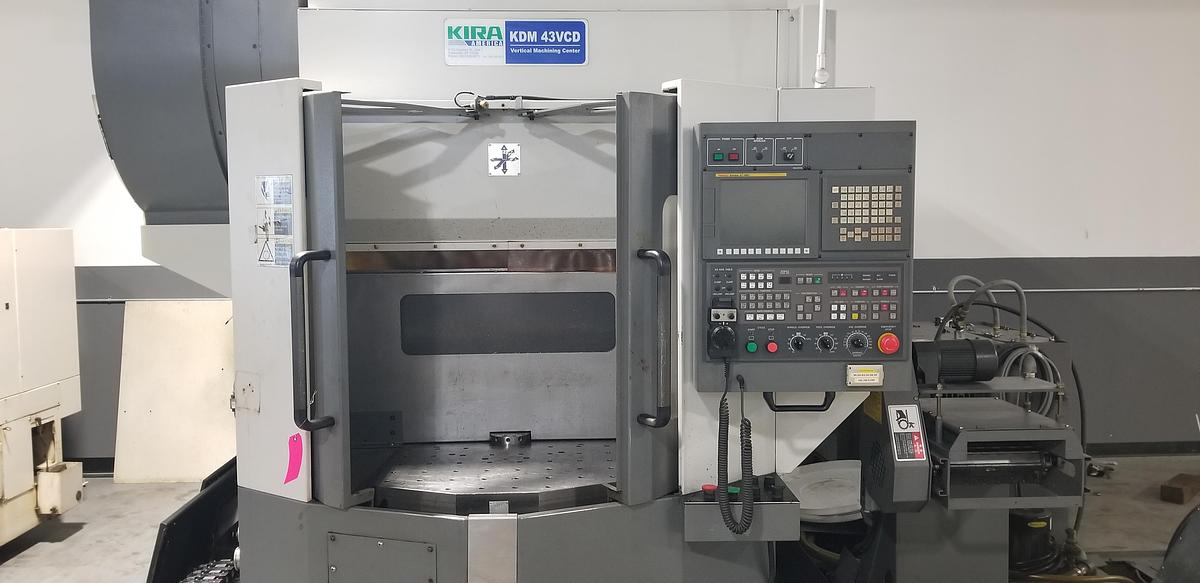

KIRA KDM43VCD Twin Pallet CNC Vertical Machining Center

Located in Minneapolis, Minnesota, this 2012 Kira KDM3VCD CNC Vertical Machining Center is a high-performance, versatile solution for precision milling and production work. Equipped with a Fanuc Oi MD control, it delivers reliable, user-friendly operation and supports advanced programming for complex machining tasks.

The KDM3VCD features X/Y/Z travels of 25″ × 14″ × 22″, with a spindle-to-table distance of 30″ and a spindle speed of 10,000 RPM on a 40-taper spindle, making it ideal for both high-speed and heavy-duty milling operations. The machine accommodates two 24″ × 18″ drilled and tapped aluminum pallets and a 23″ × 27 1/2″ table, providing flexible part setup and multiple workpiece handling. Rapid traverse rates reach 48,000 mm/min, ensuring fast, efficient movement between cuts.

The vertical machining center includes a 40-tool automatic tool changer (ATC) for high-volume production, along with a chip conveyor, chip blaster, spindle chiller, CAT-5/USB port, Custom Macro B programming, Fanuc Manual Guide, and Rigid Tap for enhanced functionality and process reliability. Please note: vises are not included. The machine weighs approximately 15,432 lbs (7,000 kg).

This Kira KDM3VCD CNC Vertical Machining Center is available for inspection in Minneapolis, MN. Offered by Source Machinery Sales, a trusted used machinery dealer serving manufacturers nationwide, this machine provides immediate access to a reliable, high-speed vertical milling solution. Price has been reduced for quick acquisition.

Make: Kira

Model: KDM3VCD

Serial No: M43D0028

Year: 2012

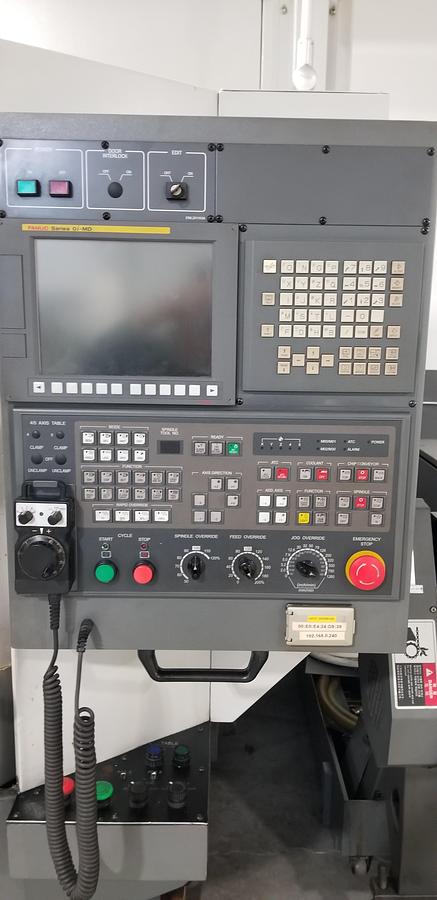

Control: Fanuc Oi MD

Pallet Size: 24"x18" Drilled/Tapped Aluminum plate (x2)

Table Size: 23"x27 1/2" Drilled and Tapped

Travels

X=25"

Y=14"

Z=22”

Rapid Traverse: 48,000mm/min

Spindle Taper: 40 Taper

Distance Between Spindle Nose and Table Top: 30”

Spindle Speed: 10,000 Rpm

Tool Capacity: 40ATC

Weight Approx: 15,432Lbs (7000Kg)

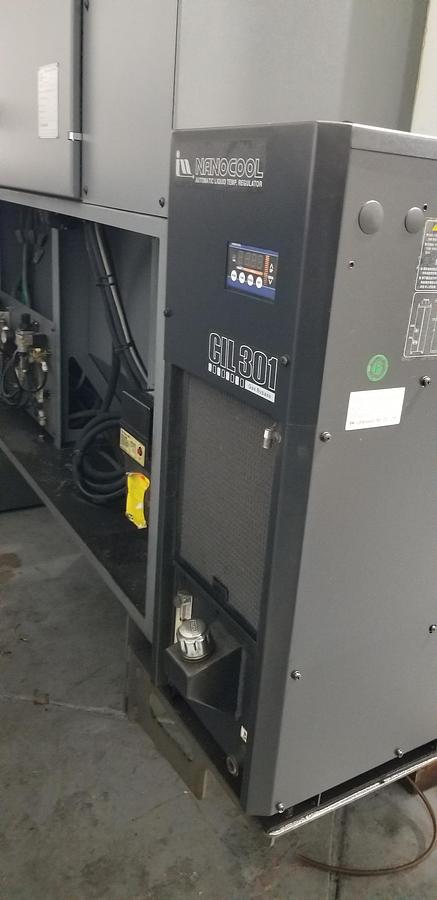

Includes: Chip Conveyor, Chip Blaster, Spindle Chiller, CAT-5/USB Port, Custom Macro B, Fanuc Manual Guide, Rigid Tap.

NOTE: Vises not Included

Price Reduced
