Hwacheon Hi-Tech 200A CNC Turning Center

Hwacheon Hi-Tech 200A CNC Turning Center

$32,500 (USD)

Location:Fridley, MN

orCall 763-710-5160

Description

Make: Hwacheon


Model: Hi-Tech 200A

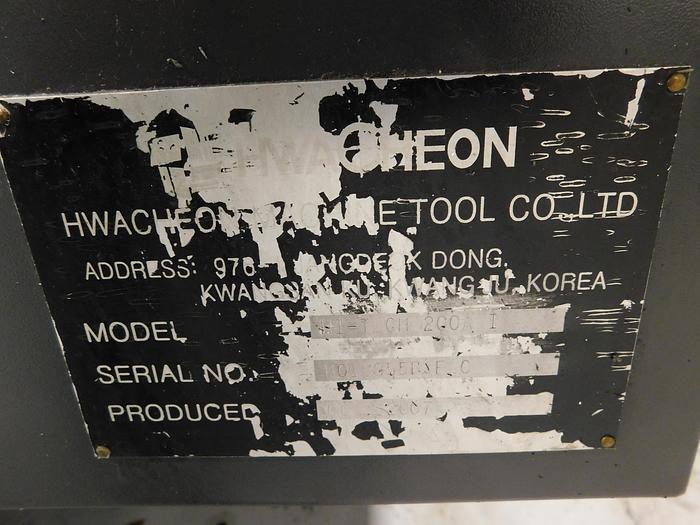

S/N: M013355F4c


Year: 2007

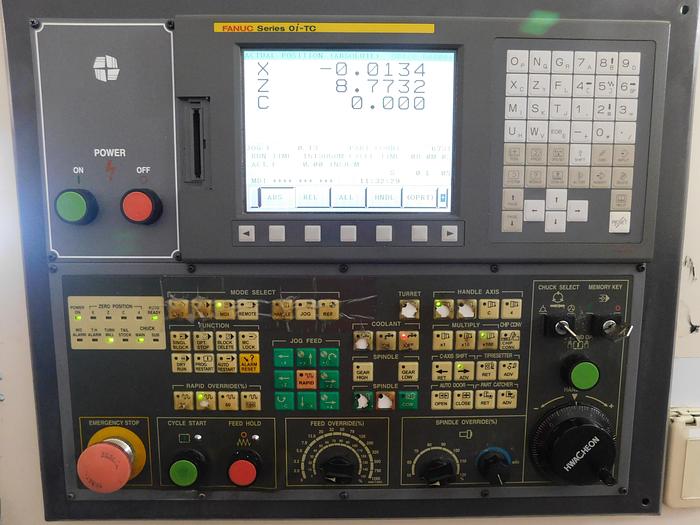

Fanuc Oi-TC CNC

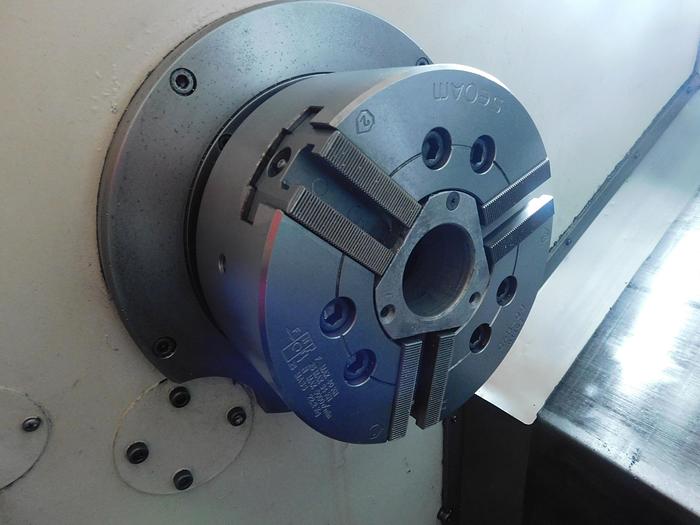

8″ 3 Jaw Hydraulic Chuck


12 Station Live Tools Turret


A2-6 Spindle

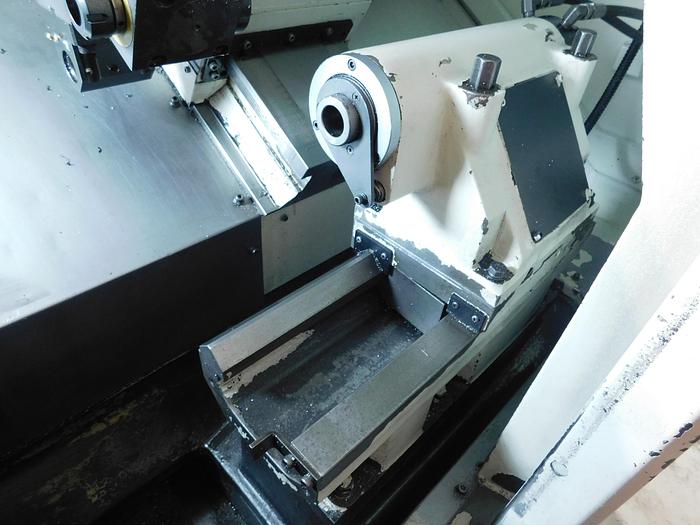

Hydraulic Tailstock with Programmable quill


Heavy Duty Box Way Machine


RS-232 ports


Foot Switch


Max Turning Diameter: 13.81″


Max Turning Length: 15.75″


Max Bar Capacity: 2.9″


Distance Between Centers: 20.5″


Swing Over Bed: 18.7″


X Axis Travel: 7.69″


Z Axis Travel: 16.90″


Rapid Traverse X Axis: 1181 IPM


Rapid Traverse Z Axis: 1181 IPM


Spindle Bore: 2.95″


Spindle Speed: 50 – 5,000 RPM


Spindle Motor: 15/20 HP


Turret Capacity: 12 Live Stations


Tailstock Taper: MT-3


Tailstock Quill Dia.: 2.362″


Tailstock Quill Travel: 4.72″


Tailstock Body Travel: 13.7″

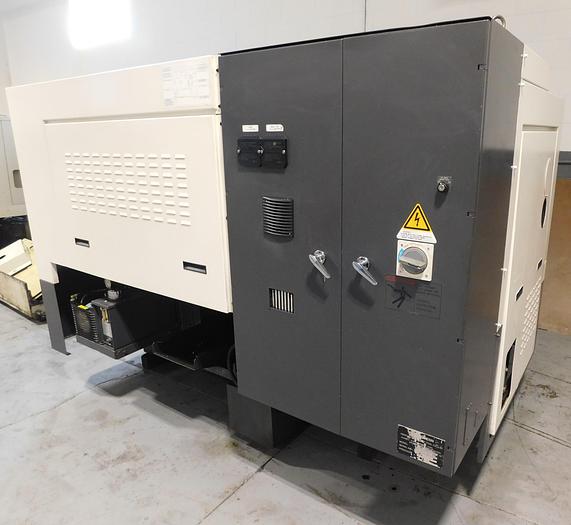

Electrical: 220v / 3-Phase


Overall Dimensions: 90″ x 70″ x 72″ High


Weight: 8,500 lbs

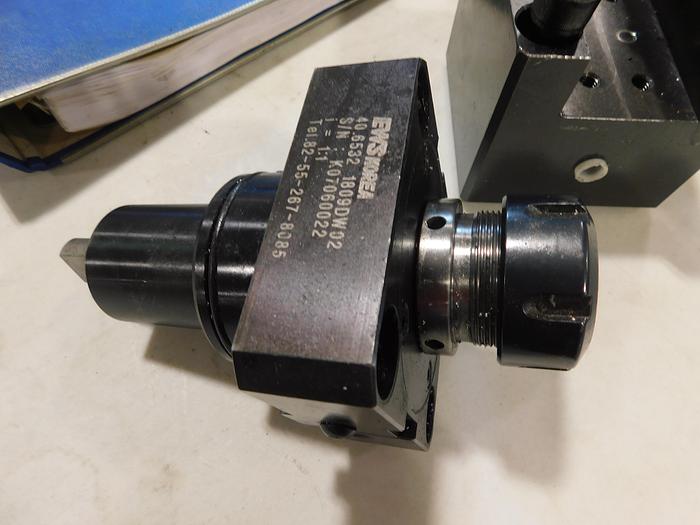

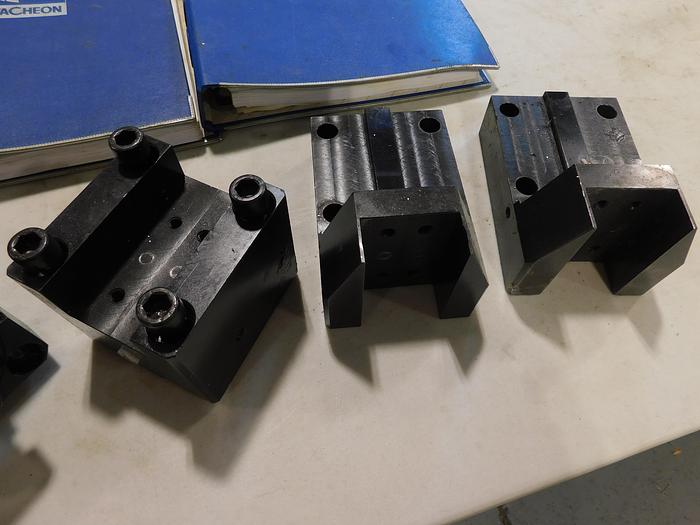

Includes: Assorted tooling some Live and Machine Manuals.

Specifications

ManufacturerHwacheon
ModelHi-Tech 200A CNC Turning Center
Year2007
ConditionUsed
