DOOSAN PUMA MX250LST CNC Multitasking Lathe 9-Axis Fanuc

DOOSAN PUMA MX250LST CNC Multitasking Lathe 9-Axis Fanuc

$29,500 (USD)

Fridley, MN

orCall 763-710-5160

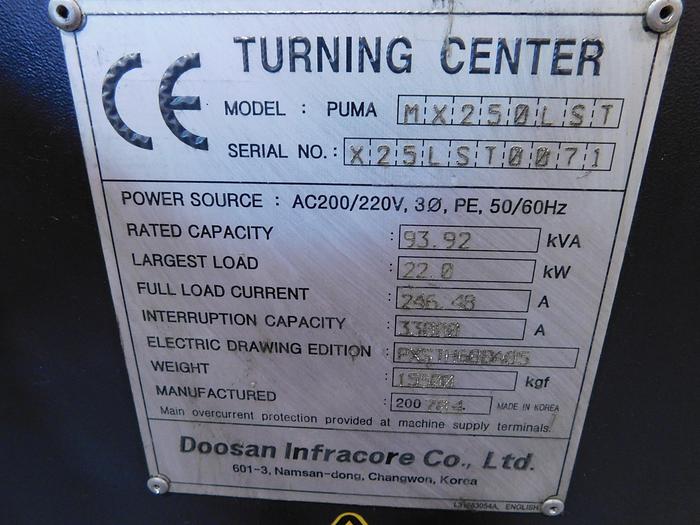

Make: Doosan Puma

Model: MX250LST

S/N: X25LST0071

Year: 2007

Control: FANUC 18i-TB

Distance between centers: 59”

Max turning length: 59”

Max swing over bed: 30”

Max swing over slide: 23”

Max turning diameter: 21”

Bar working diameter: 2.9”

X1-axis travel: 21”

X2-axis travel: 7”

Z1-axis travel: 62”

Z2-axis travel: 64”

Y-axis travel: 160 (+/- 80) mm 6”

A-axis travel: 61”

C1-C2 axis travel: 360º (0.001)

B-axis travel: 240º (+/- 120)

X1-X2 rapid traverse: 24 m/min

Z1-Z2 rapid traverse: 24 m/min

Y rapid traverse: 16 m/min

A rapid traverse: 24 m/min

C1-C2 rapid traverse: 200 Rpm

B rapid traverse: 27 Rpm

Left and right spindle speed: 3,500 rpm

Left and right spindle power: 26 Kw

Spindle nose: ASA A2 # 8

Bore of draw tube: 77 mm

Milling spindle taper: CAPTO C6

Max speed milling head: 10,000 rpm

Approx. machine weight: 33,100Lbs

Machine dimensions: 216”x100”x104”


Hydraulic left spindle chuck: Ø 250 mm 9”

Hydraulic right spindle chuck: Ø 300 mm 11”

Turret: Motorized 12 stations

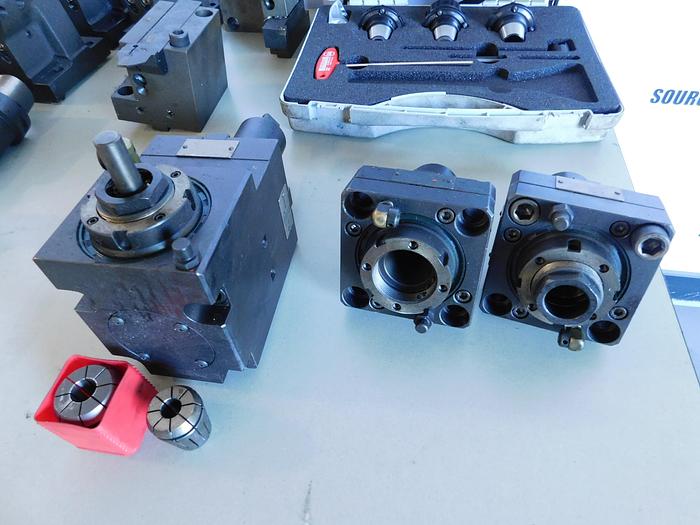

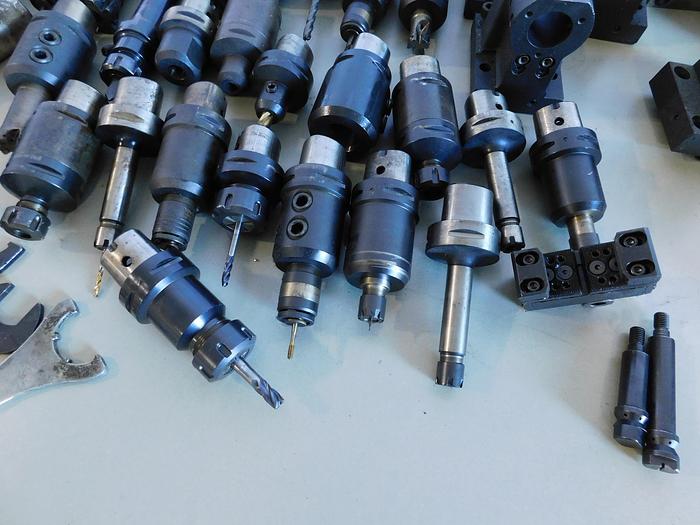

Includes Assorted Live Tools

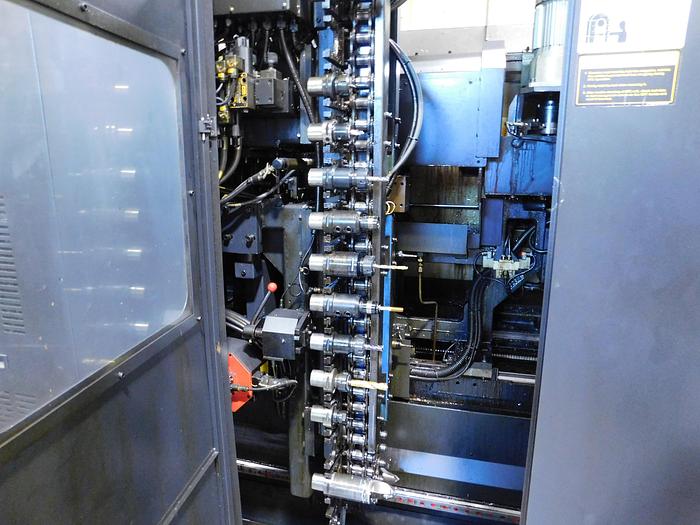

Tool magazine: ATC 40 units

High-pressure coolant pump

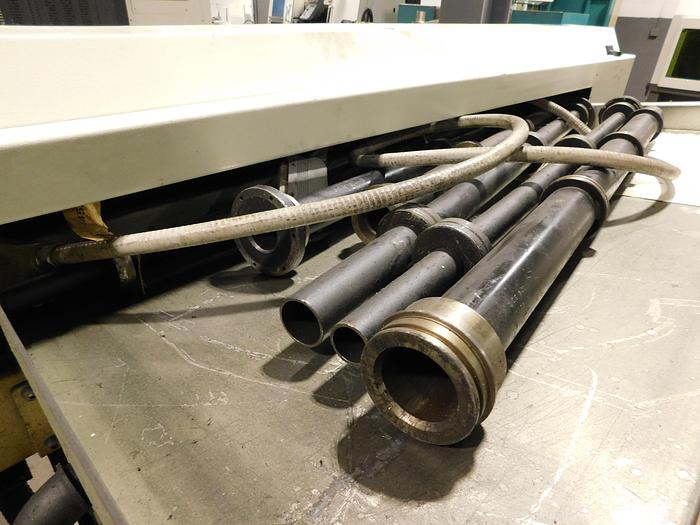

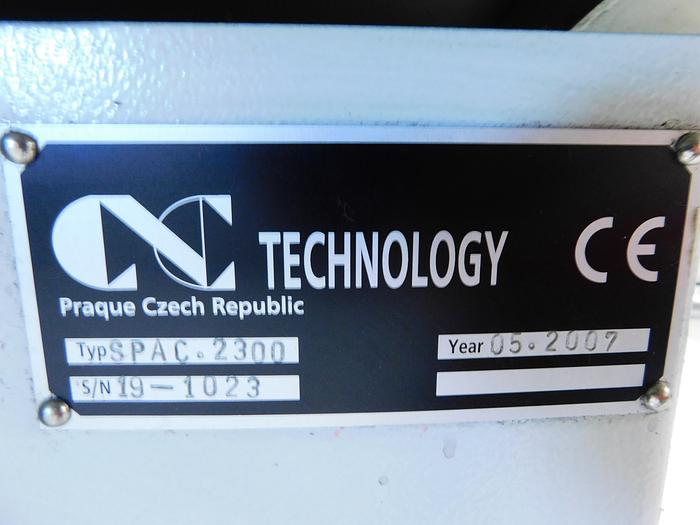

Chip conveyor, SMW Space Saver Bar Feeder


ManufacturerDoosan Puma
