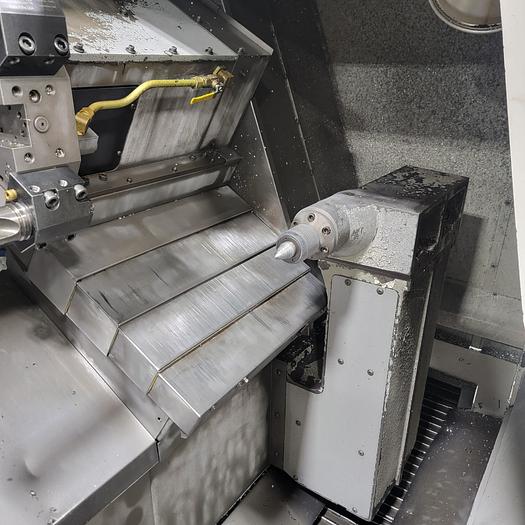

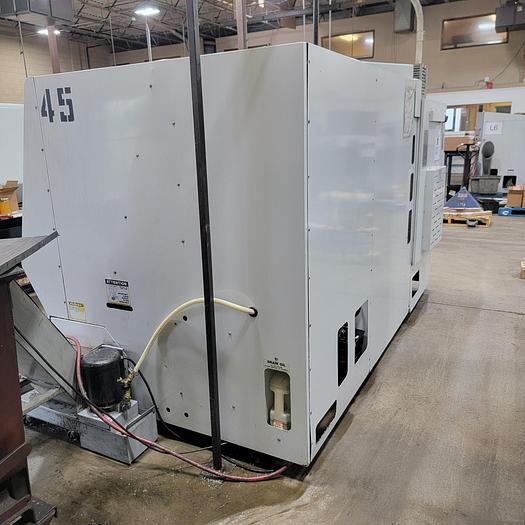

Haas SL30T CNC Lathe

Make: Haas

Model: SL30T

Year: 2002

Chuck: 10"

Thru hole: 3"

Chuck Size 10″ Hydraulic Chuck 3-Jaw

Maximum Swing Over Apron: 30"

Maximum Swing Over Cross Slide: 14.5"

Maximum Cutting Diameter: 17"

Maximum Turning Length: 34"

Distance Between Centers: 39"

X-Axis Travel: 11.3"

Z-Axis Travel: 34"

Spindle Speed: 3,400 RPM

Spindle Motor: 30HP

Turret Type: 12 Positions Bolt on Type

Tailstock Travel: 33.5"

Rapid Traverse Rates: 710-IPM

Electrical: 208/230V, 3ph

Machine Dimensions: 161" x 77" x 74"

Approximate machine Weight: 13,900Lbs
