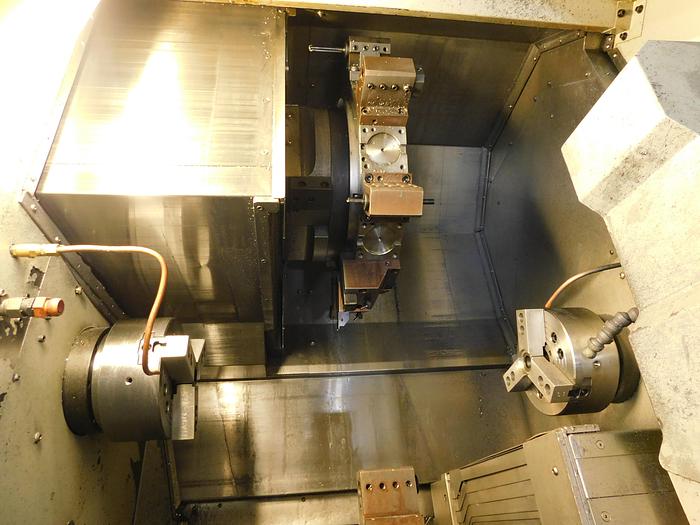

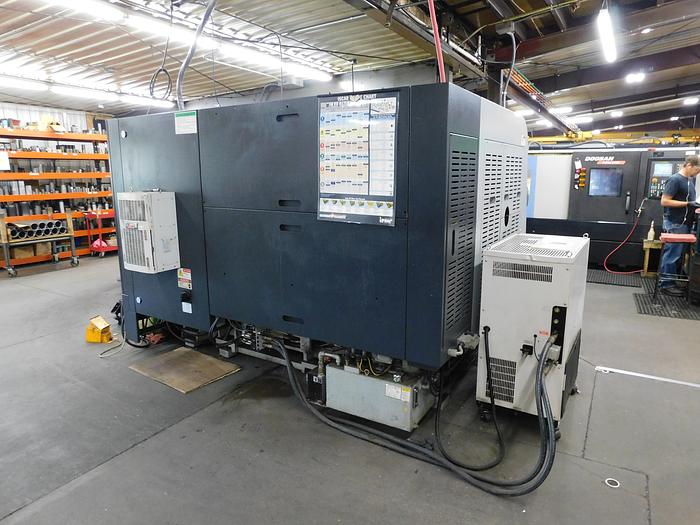

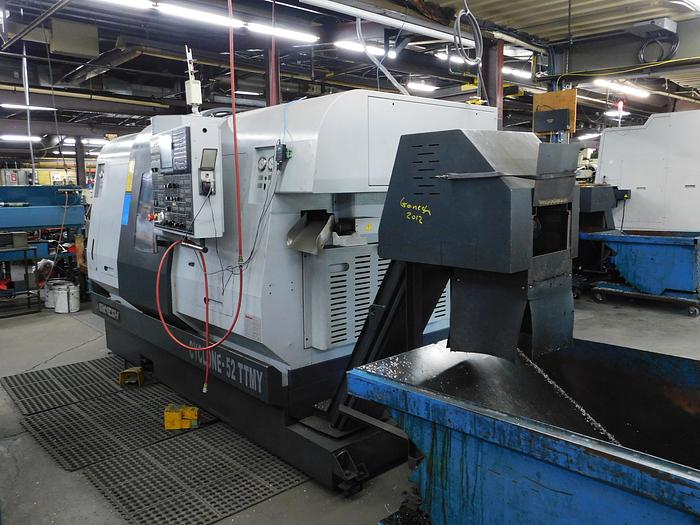

Ganesh Cyclone 52TTMY CNC Turning Center

Make: Ganesh

Model: 52TTMY

Year: 2012

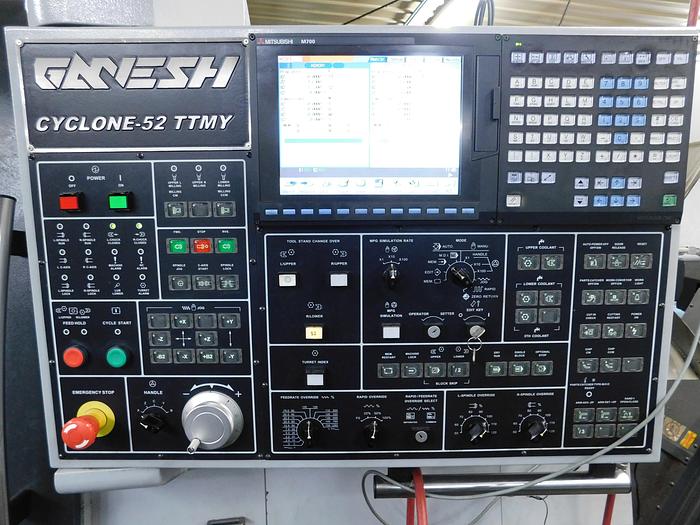

Controls: Mitsubishi M700 CNC Control

C-axis: Equipped With

Y-axis: Equipped With

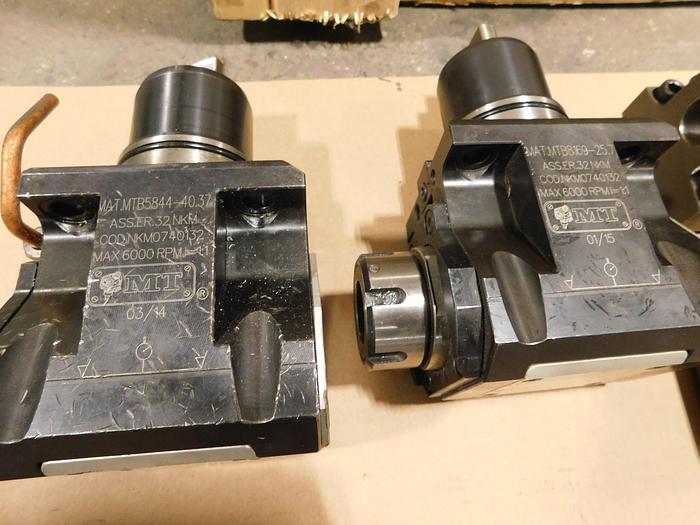

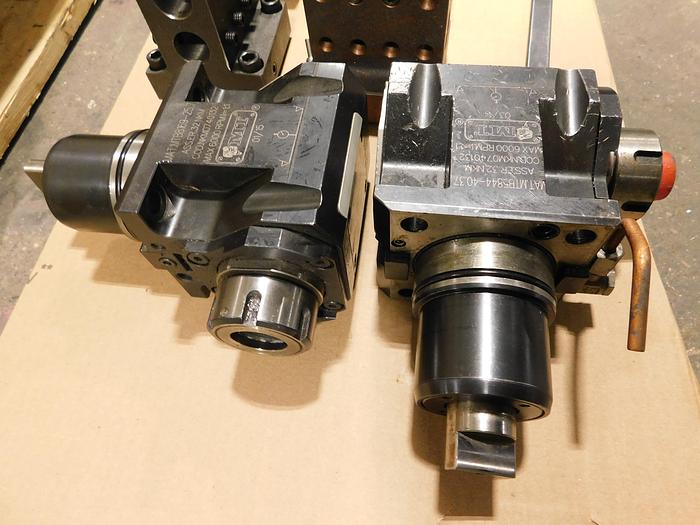

Live tooling / milling: Equipped With

B-axis: Equipped With

X-travel: 5.94"

Z-travel: 17.32"

Distance between centers: 36"

Max swing over bed: 14.96"

Max turning / cutting length: 31.10"

Max cutting / turning diameter: 7.48"

Rapid traverse: 630/1573 IPM

Bar capacity: 2.00"

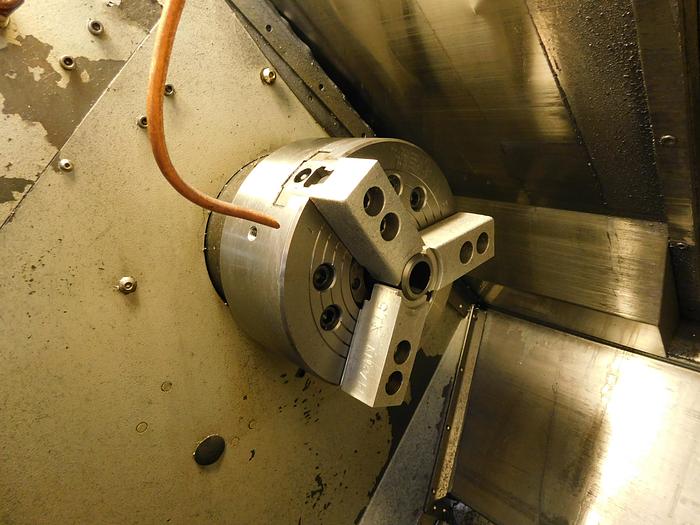

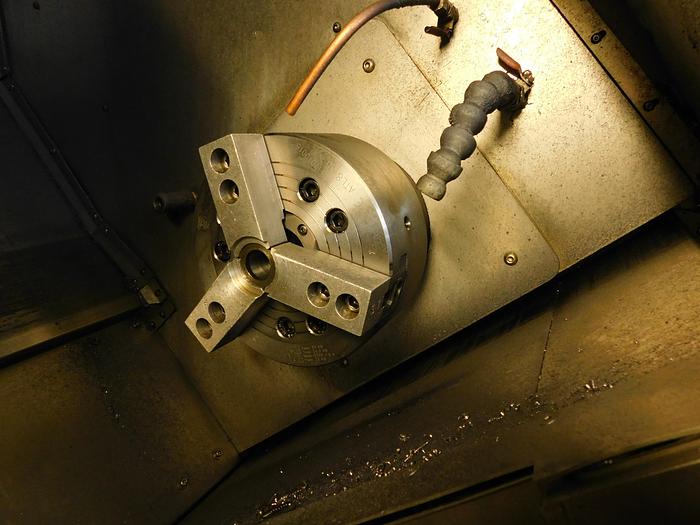

Chuck size: 8.0" 3-Jaw Powered

Spindle bore: 2.40"

Spindle speed: 6,000 RPM

Spindle motor: 20 HP

Total spindles: 2

Equipped With

Second bar capacity: 2.00"

Second chuck size: 8.0" 3-Jaw Powered

Second spindle bore: 2.40"

Second spindle speed: 6,000 RPM

Second spindle motor: 20 HP

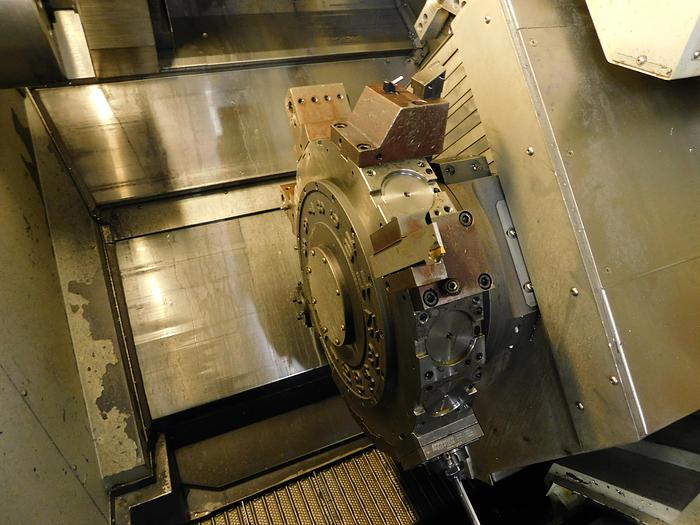

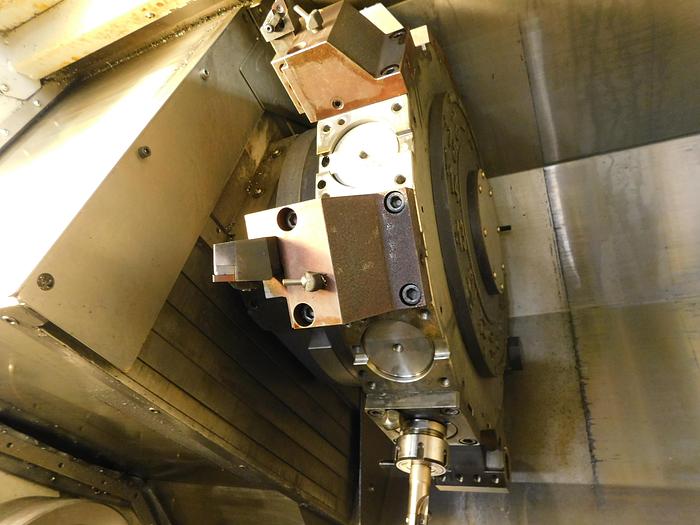

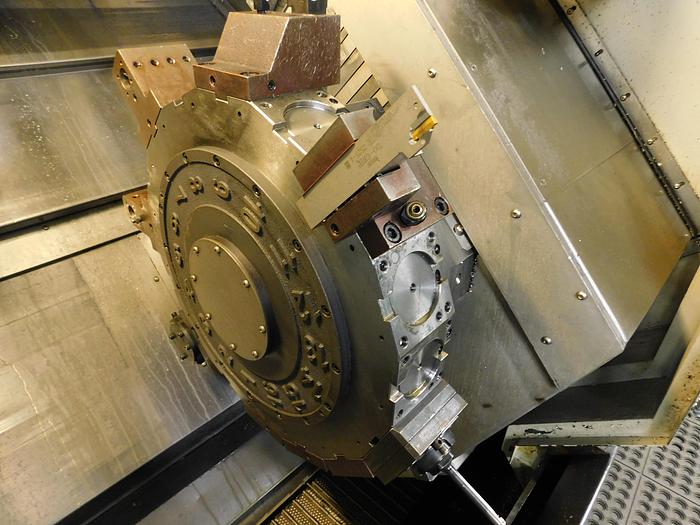

Tool positions: 16

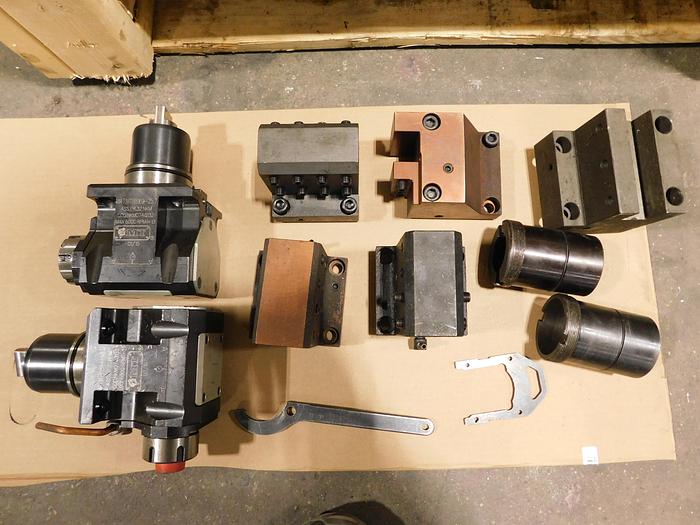

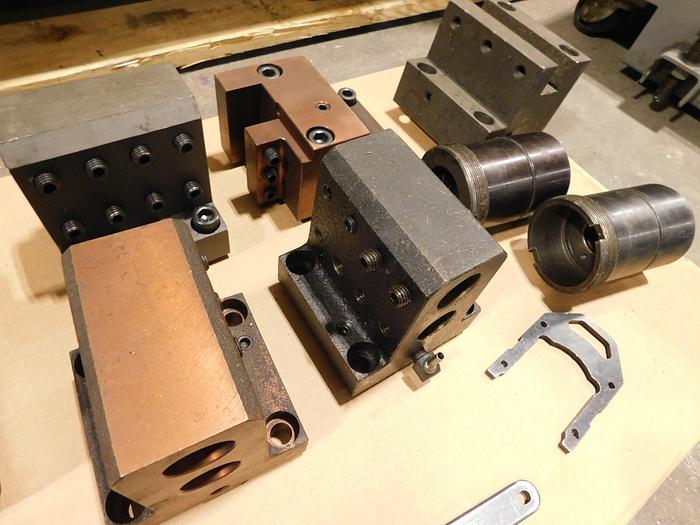

Tool Holder Type: BMT 65

Second turret positions: 16

Live milling max: 6,000 RPM

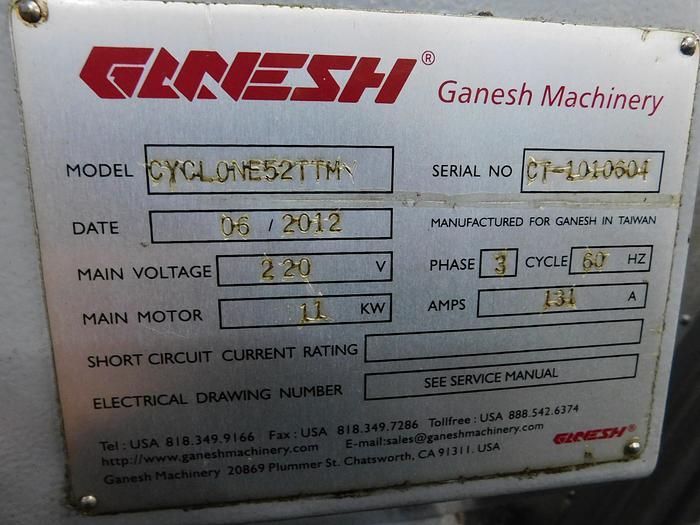

Electrical: 220V, 3Phase, 131Amp

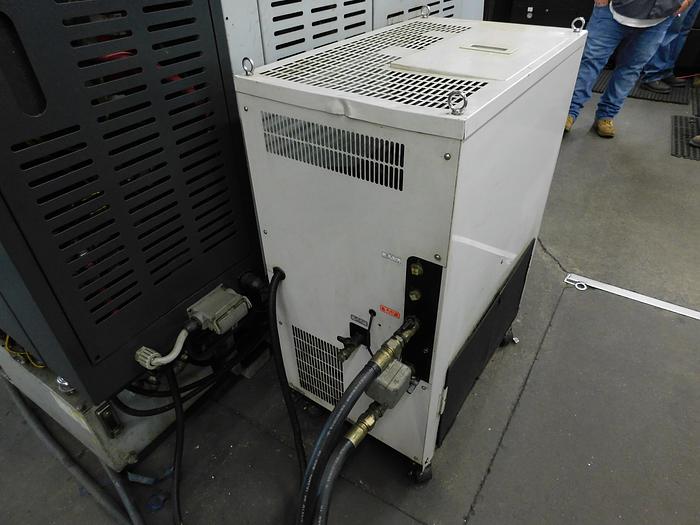

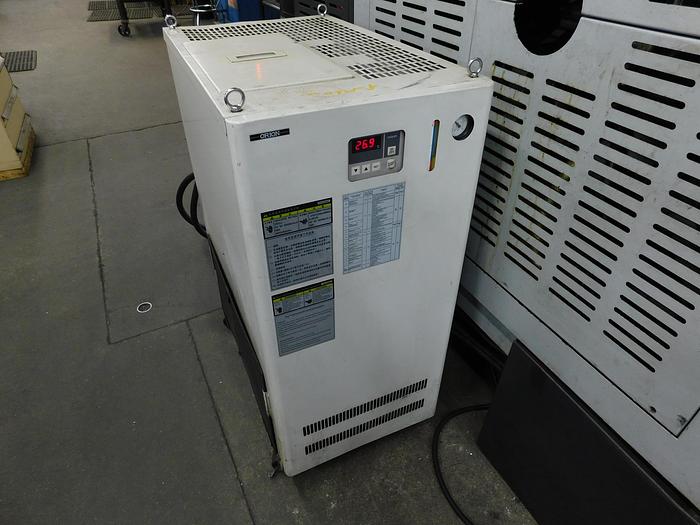

Hydraulic Chiller/Tank: 10.5 gallons

Coolant Tank: 70 gallons

MACHINE WEIGHT: 26,500lbs

MACHINE DIMENSIONS: 150"x105"x90"
