ENSHU JE50S CNC Horizontal Machining Center Fanuc

ENSHU JE50S CNC Horizontal Machining Center Fanuc

$15,500 (USD)

Jackson, MN

orCall 763-710-5160

Description

Make: Enshu


Model: JE50S


Year: 2004

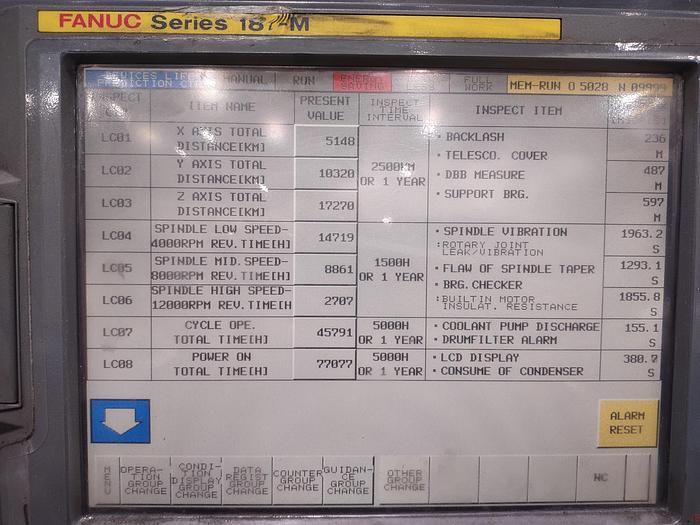

Control: Fanuc 18iM


Pallet Size: 400mm (x2 Pallet)


X-Axis Travel: 19.68


Y-Axis Travel: 19.68


Z-Axis Travel: 19.68


Position Accuracy (Full Stroke All Axes):

0.00012 (0.003mm)


Repeatability: 0.000060 (+/- 0.001mm)


Rapid Traverse: 2,362 IPM


Capacity: 880 LB


ATC: 40

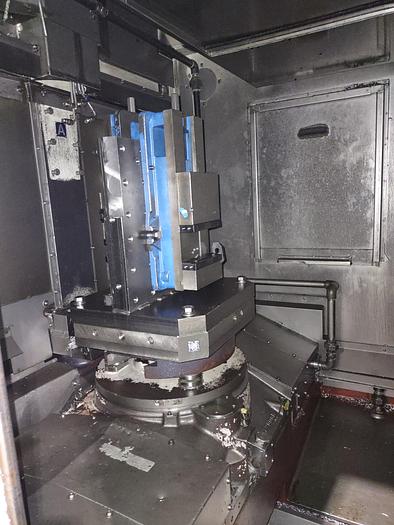

APC: Dual Rotary


Spindle Motor: 20 HP


Spindle Speed: 12,000 RPM


Spindle: 40 Taper CAT


Approx. Machine Dimensions: 244"x78"x110" (l x w x h)


Approx. Machine Weight: 14,520Lbs


Features: Chip Conveyor, Coolant Through Spindle, Electric Transformer and Manuals.


*PLEASE NOTE: Tombstones, Kurt Vises, Tooling and Tool boxes are not included*

Specifications

ManufacturerEnshu
ModelJE50S
Year2004
ConditionUsed
