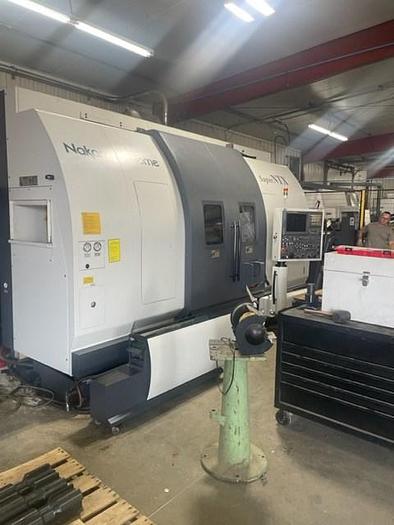

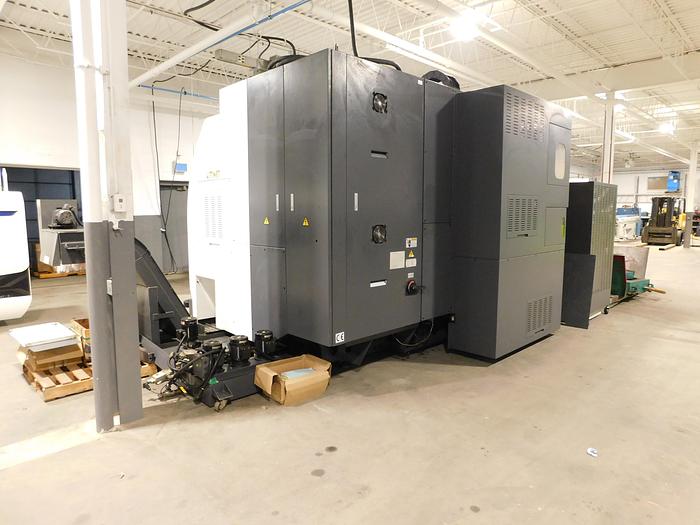

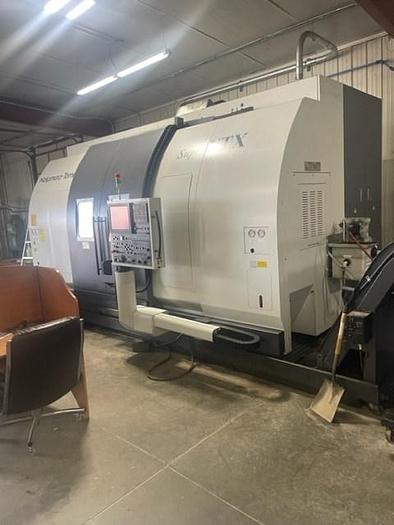

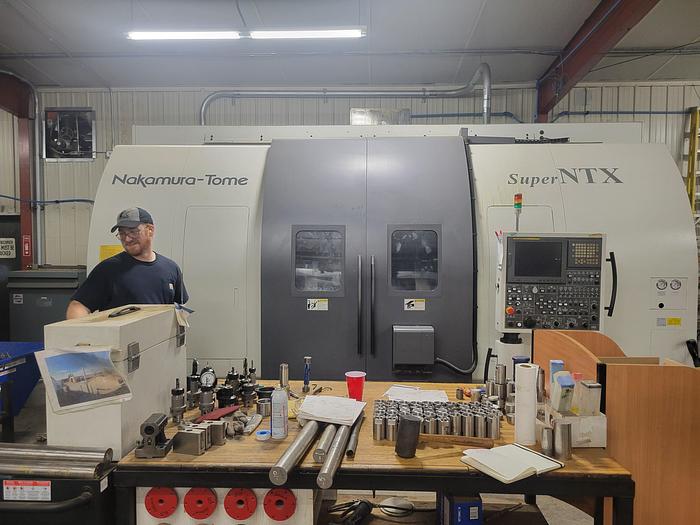

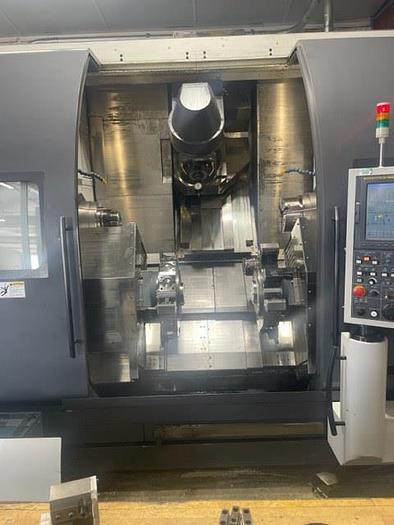

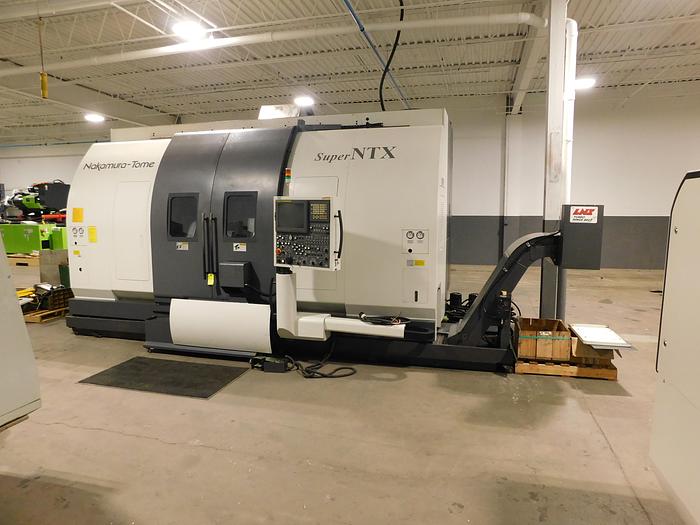

2008 NAKAMURA TOME SUPER NTX CNC MULTI TASK TWIN SPINDLE W/ B AXIS AND LOWER TURRETS

2008 NAKAMURA TOME SUPER NTX CNC MULTI TASK TWIN SPINDLE W/ B AXIS AND LOWER TURRETS

$79,500 (USD)

Location:Fridley, MN

orCall 763-710-5160

Description

Make: Nakamura Tome


Model: Super NTX CNC Multi Task Twin Spindle with B-Axis and Lower Turrets


Year: 2008


Swing Over Bed: 17"


Turning Diameter: 15.3" Over Lower TRT


Turning Length: 43.3"


Distance Between Spindles: 55.1"


Chuck Size (1)10"/(2)10"


Spindle Nose (1)A2 - 6/(2)A2 - 6


Spindle Bore Diameter (1)3.14"/(2)3.14"


Bar Capacity (1)2.55"/(2)2.55"


Spindle Speeds (1)4500Rpm/(1)4500 Rpm


Spindle Horsepower (1)30Hp/(1)30Hp


B - Axis Head Indexing: 230 DEGREES


B - Axis Milling Spindle Speed: 12,000Rpm


B - Axis Milling Spindle Taper: Capto C6


B - Axis Milling Spindle Horse Power: 25 Hp


ATC For Milling Spindle: 80 ATC


Tool Diameter: 3.5", 4.7"


Tool Length: 11.8"


Tool Weight: 17.6 LBS


X - Axis Travel: X1, X2, X3

24.8", 10.0", 10.0"


Z - Axis Travel: Z1, Z2, Z3

45.2", 14.7", 14.7"


Y - Axis Travel: Y1, Y2, Y3

6.2"


C - Axis Indexing: 1, 2

.001, .001 DEGREE


W - Axis Travel Sub Spindle: 45.2"


Rapid Traverse Rates X1, X2, X3:

630, 630, 630 IPM


Rapid Traverse Rates Z1, Z2, Z3:

1063, 1063, 1063 IPM


Rapid Traverse Rates Y1, Y2, Y3:

630 IPM


Turret Tool Positions 1, 2, 3:

24, 24 POSITION


Machine Weight:

46,200 LBS


Foot print Dimension: 15.5'L x 12'W x 9'H


Equipped with:

(2) 10" 3-JAW HYDRAULIC CHUCKS

1280 + 1280 PART PROGRAM STORAGE UPPER + LOWE

3-D RIGID TAP

AUTO ACCELERATION / DECELERATION

AUTO PARTS CATCHER

BALANCE CUTTING

CHIP CONVEYOR

CUSTOM MACRO B

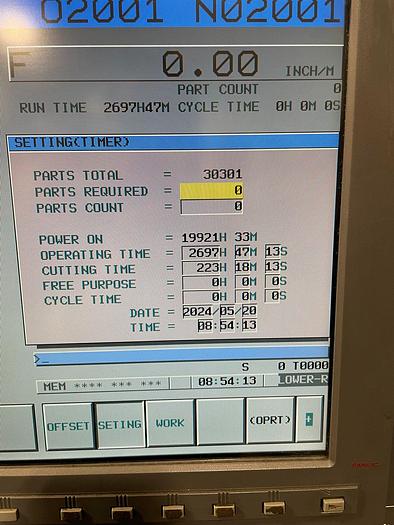

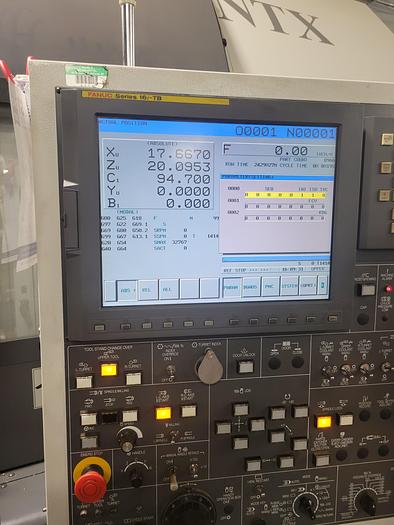

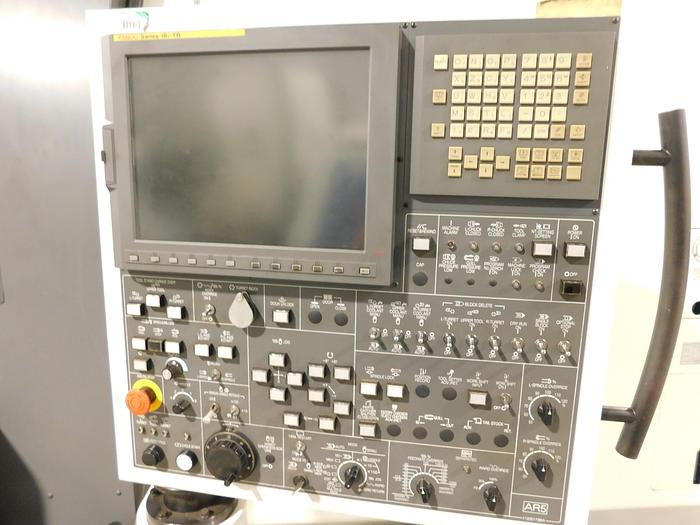

FANUC 16IT CNC CONTROL

HIGH PRESSURE COOLANT SYSTEM

NT NURSE

NT WORK NAVIGATOR

PARTS CONVEYOR

POLYGON TURNING FUNCTION

THREAD CUTTING

THREAD CUTTING RETRACT

Specifications

ManufacturerNakamura Tome
ModelSuper NTX CNC Multi Task Twin Spindle
Year2008
ConditionUsed
