2010 Doosan Puma TT1800SY CNC Turning Center Fanuc Control

Make: Doosan

Model: Puma TT1800SY

S/N: PT18SY0403

Year: 2010

Size: 8" Chuck Capacity (NO chucks or spindle noses included)

Swing: 9"

Machining length: 31"

# axis: 4

Chuck size Capacity: 8" (Chucks and Collet Noses are NOT included)

Bar capacity: 2.625"

Power: 30Hp

Max rpm: 5,000

Turning dia: 9.1"

Tailstock: No

Live Tooling Capable: Yes (Live Tools NOT included)

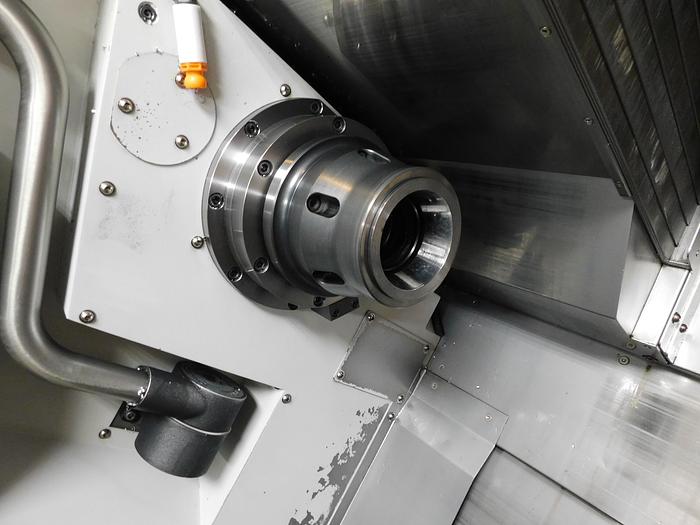

Sub Spindle: Yes

Controls: Fanuc 31i Model A

Dimensions: 154" x 82" x 82"

Weight: 17,196 LBS

Spindle Speed: 5,000 RPM

Spindle Motor: 30Hp

X-Axis Travel: 6.5"

X2-Axis Travels: 7.5"

Z-Axis Travel: 31.5"

Z2-Axis Travels: 28.3"

Y-Axis Travel: 3.9"

A-Axis travel: 30.3"

Rapid rate Z Axis: 944 IPM

Rapid rate X-Axis: 787 IPM

Max Turning Diameter: 9.1"

Max Turning Length: 9.1"

Max Swing: 9.1"

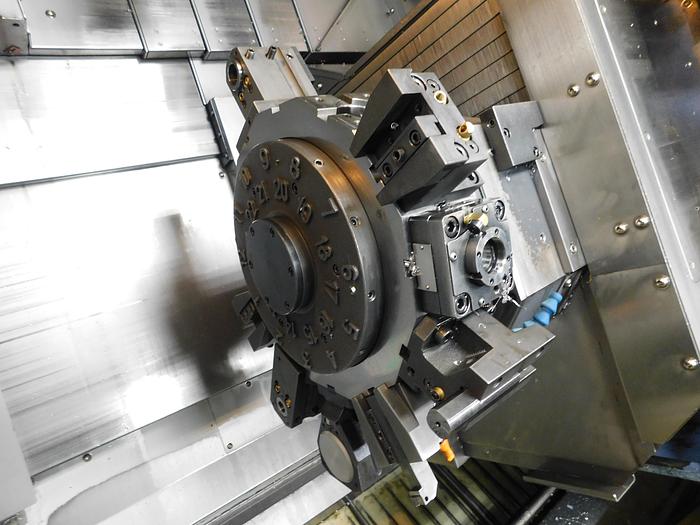

Turret Configuration (upper + lower)

24 + 24 (48 Total Stations)

O.d Tool Size: 0.8" x 0.8"

Maximum i.d. Tool Size: 1.3"

Turret Indexing Time: 0.15 Seconds

Maximum Rotary Tool Speed: 5,000 RPM

Spindle Motor (30 min / cont)

29.5 HP / 20.1 HP

Maximum Spindle Torque: 153.5 Ft-Lbs

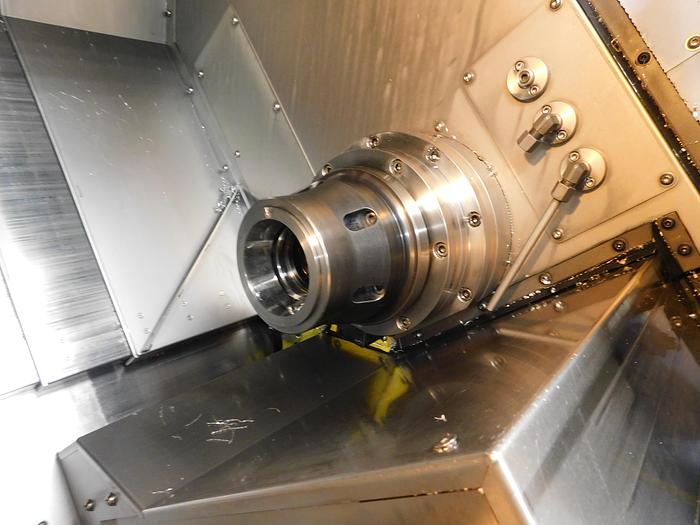

Spindle nose: A2 #6 (Not Included)

Spindle bearing diameter: 4.3"

Spindle inner diameter: 3.0"

C-axis indexing: 360° in .001° increments

Includes:

Twin Turret, Sub Spindle, Chip Conveyor, Part Catcher, Part Conveyor and Coolant Tank. (PLEASE NOTE BAR FEEDER, SPINDLE NOSES AND LIVE TOOLS ARE NOT INCLUDED)
