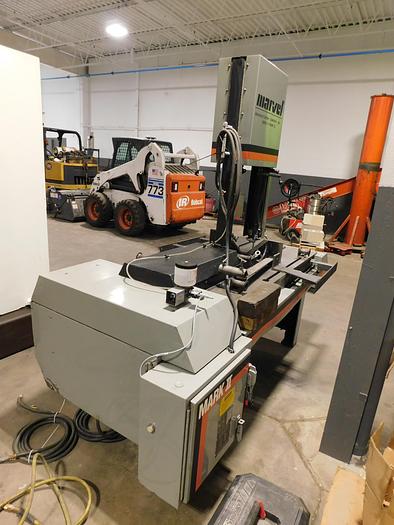

Marvel Series 8 Mark II Vertical Band Saw

Marvel Series 8 Mark II Vertical Band Saw

$10,500 (USD)

New Hope, MN

orCall 763-710-5160

Description

Year: 1995


Blade Thickness: 0.035"


Blade Wheels: 18"Dia.


Cutting Angle: 45 Deg.


Cutting Capacity Rectangle: 18" x 22"


Cutting Capacity Round: 18"


Cutting Capacity Square: 18"


Power: 5hp


Max. Blade Length: 174"


Max. Blade Width: 1"


Max. Thickness of Cut: 22"


Min. Blade Length: 174"


Min. Blade Width: 1"


Miter Capacity: 45 Deg. Left and Right


Overall Dimensions: 101"x 53" x101"


RPM: 1,800 rpm


Speeds: 50 to 450 fpm


Table Size: 33" x 58"


Voltage: 230/460V 3Ph

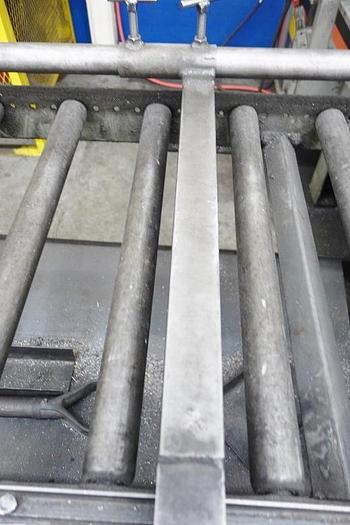

Includes: (2) 20Ft In feed and Out Feed Roller Support Tables

Specifications

ManufacturerMarvel
ModelSeries 8 Mark II
Year1995
ConditionUsed
