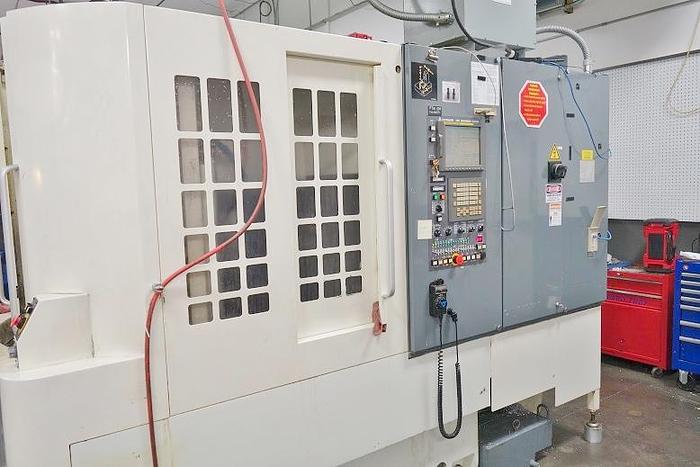

Kitamura 250ix CNC Horizontal Machining Center Fanuc

Make: Kitamura

Model: 250ix Horizontal Machining Center

Control: Fanuc 18i

Year: 2007

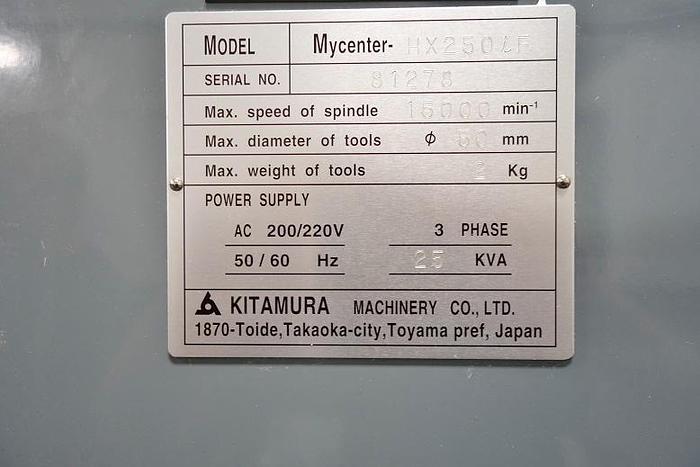

SN: 81278

Travels

X-AXIS: 12"

Y-AXIS: 12"

Z-AXIS: 13"

SPINDLE POWER: 15 HP

SPINDLE SPEED: 15,000 RPM

TOOL POSITIONS: 30ATC

SPINDLE TAPER: BT-30

PALLET DIMENSIONS: 10" X 10"

NUMBER OF PROGRAMMABLE AXIS: 3

MAXIMUM WORKPIECE DIAMETER: 13.8"

MAXIMUM WORKPIECE HEIGHT: 15.8"

RAPID FEED RATES X,Y,Z: 2,362 IPM

CUTTING FEED RATE X,Y,Z: 2,362 IPM

RAPID FEED (B-AXIS): 33.3 RPM

NUMBER OF PALLETS: 2

APPROXIMATE WEIGHT: 12,000 LBS

Equipped With: Chip Conveyor, Coolant Tank, Chip Blaster, Approximately 20 Tool Holders, 2 Jergens Quick lok Vice Towers with Bases, Coolant Filter Vessel and Manuals.
