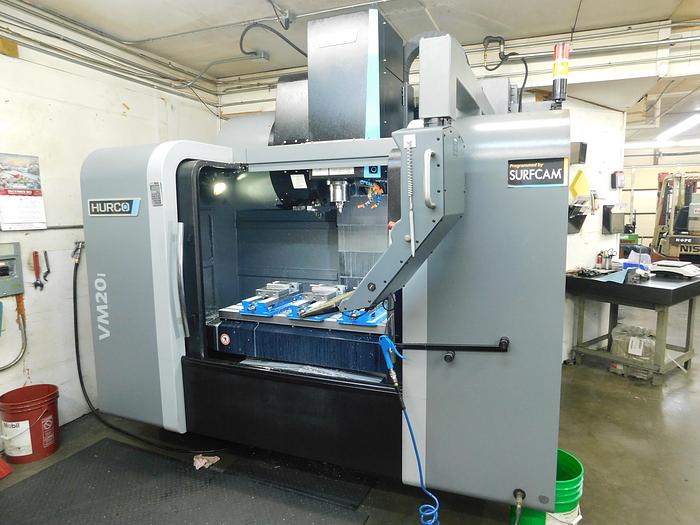

Hurco VM20i CNC VMC
Sold
Hurco VM20i CNC VMC
$52,500 (USD)
Location:Minnesota
Description
Make: Hurco
Model: VM20i
Year: 2014

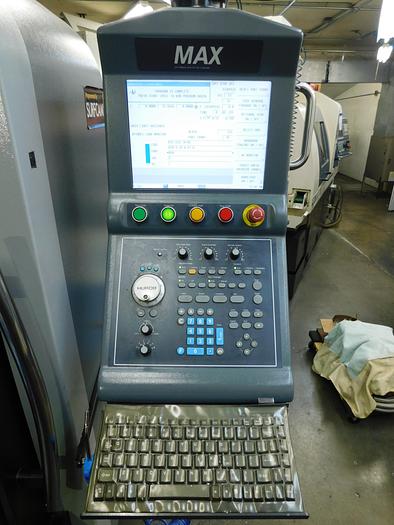

Control: Hurco Winmax CNC Control
General Specifications: (subject to buyers verification)
X-Axis Travel: 40"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Table Size: 46" x 20"
Table Weight Capacity: 3960 Lb.
Spindle Nose to Table, Min. - Max.: 4.02" - 24.02"
T-Slot Size: 0.20" x 0.71"
Max. Spindle Speed: 10000 RPM
Spindle Power (Peak - 1 min.): 20 HP
Spindle Taper: 40
Max. Tool Diameter: 3.5"
Max. Tool Length: 9.8"
Max. Tool Weight: 15 Lb.
X, Y, Z-Axis Rapid Feed Rate: 1101 IPM
Equipped With:
20-Station Automatic Tool Changer

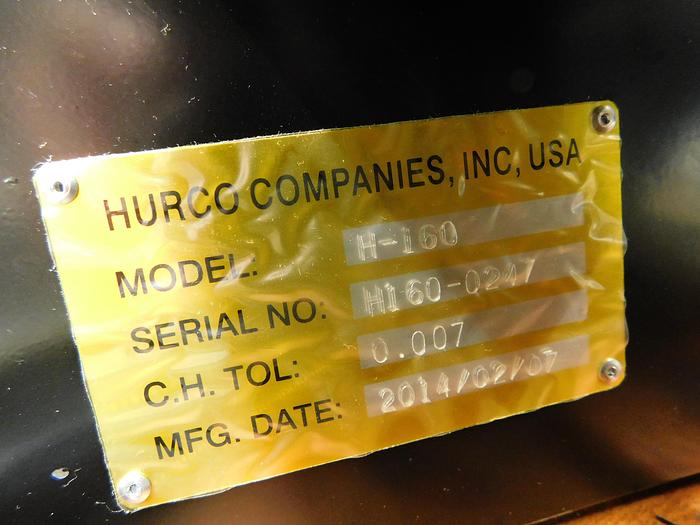

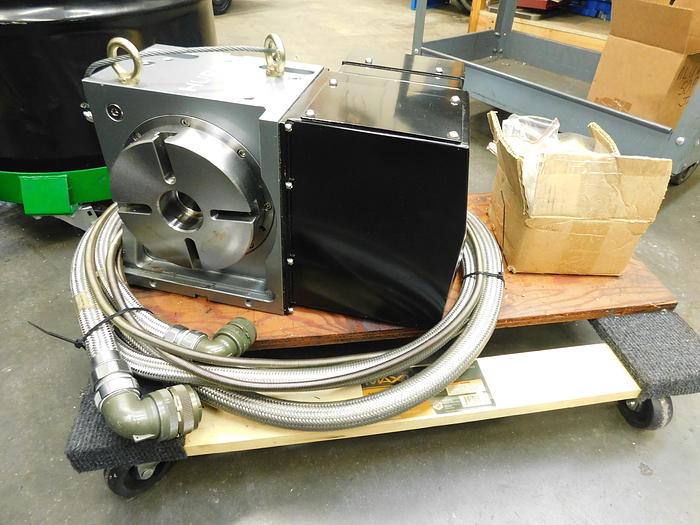

6” 4th Axis Programmable Rotary Table (Never Used)

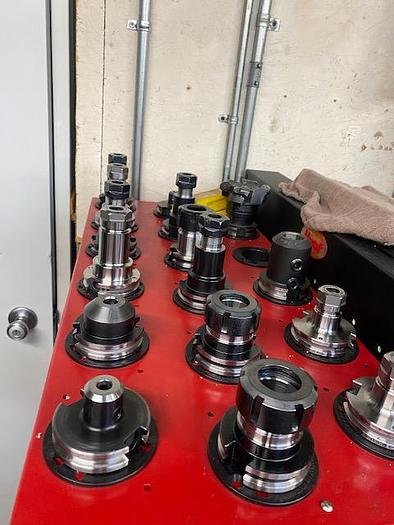

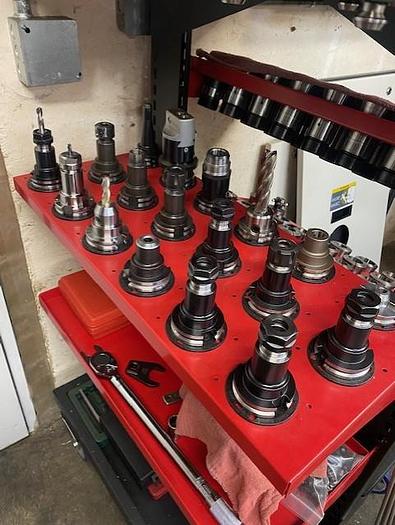

Assorted CAT-40 Tool Holders

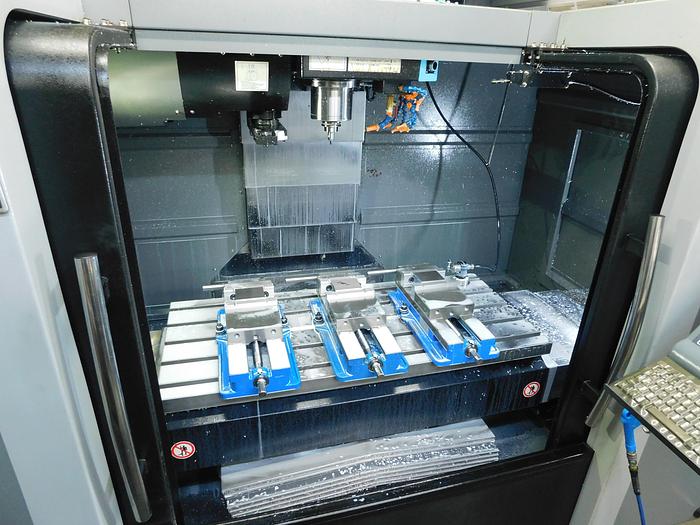

Kurt 6" Precision Machine Vises
Specifications
| Manufacturer | Hurco |
| Model | VM20i |
| Year | 2014 |
| Condition | Used |
| Make | Hurco |
| Year | 2014 |
| Model | VM20i |
| Control | Hurco Winmax CNC Control |
| X-Axis Travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Table Size | 46" x 20" |
| Table Weight Capacity | 3960 Lb. |
| T-Slot Size | 0.20" x 0.71" |
| Max. Spindle Speed | 10000 RPM |
| Spindle Taper | 40 |
| Max. Tool Diameter | 3.5" |
| Max. Tool Length | 9.8" |
| Max. Tool Weight | 15 Lb. |
