HARDINGE RS51MY 4Axis CNC Turning Center

(Specifications are Subject to Buyers Verification)

Manufacturer: Hardinge

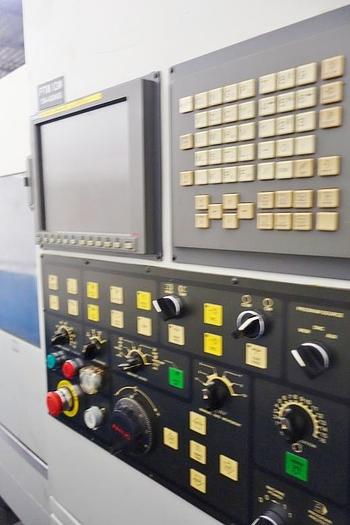

Controller: Fanuc 18I-MB

Model: RS51MY

Axis: 4

Year: 2003

C axis & Milling, Tool setter, Coolant, Y-axis

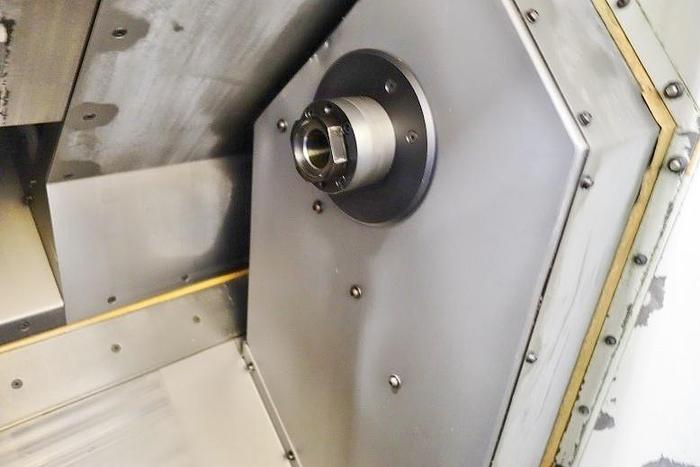

Sub Spindle, C axis on Sub Spindle

Swing: 20”

Bar Capacity 2”

Maximum Cutting diameter: 12”

Maximum Cutting Length: 23” With Collet (19” with chuck)

Milling RPM 8000rpm

Turret Positions 12 STATION

Rapid Feedrates XYZ: 28 X 9.5 X 38m/minute

Spindle Motor Power: 20 HP

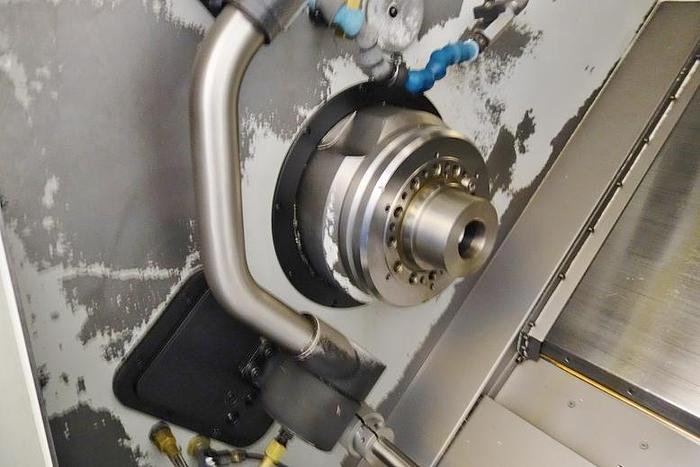

Spindle Nose A2-6 / 20C

Spindle Speed 6000rpm

Sub Spindle Bar Capacity: 1.653

Sub Spindle C axis 0.001 DEGREE

Sub Spindle Max Speed 6000rpm

Sub Spindle Motor: 10 HP

Sub Spindle Nose A2-5 / 16C

C axis 0.001 degree

X axis Travel: 7.4”

Y axis Travel: +50.8 TO -1.37”

Z axis Travel: 25”

Machine Dimensions 164” X 90” X 77”

Machine Weight: 15,000 Lbs

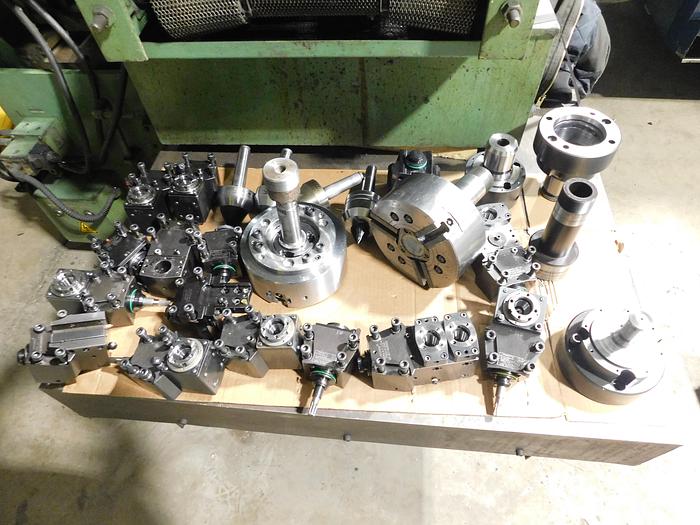

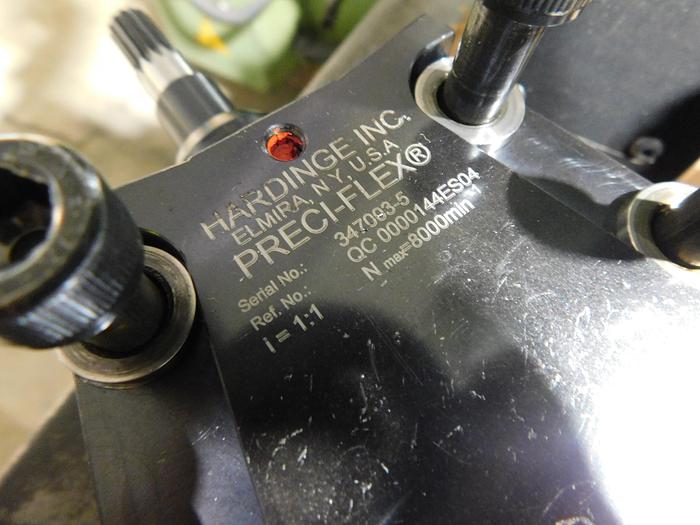

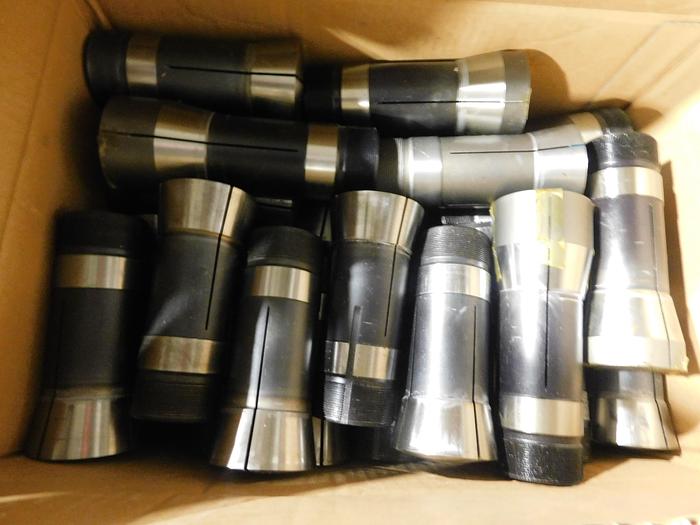

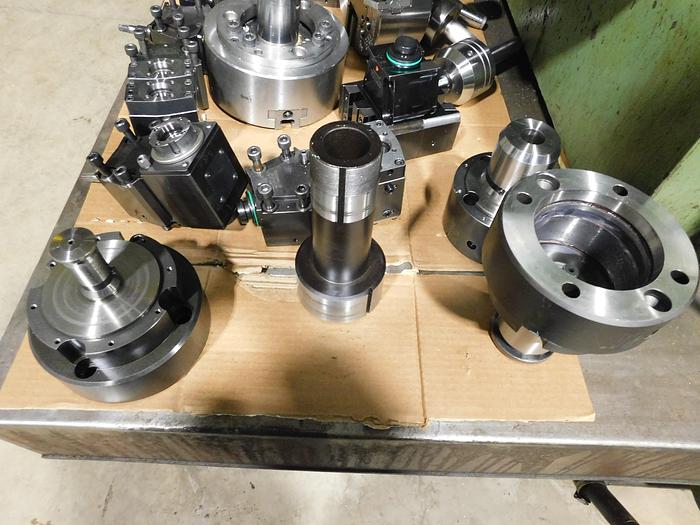

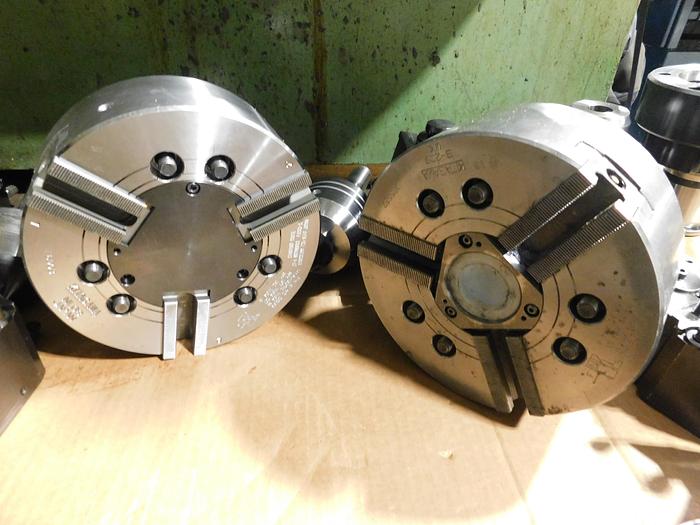

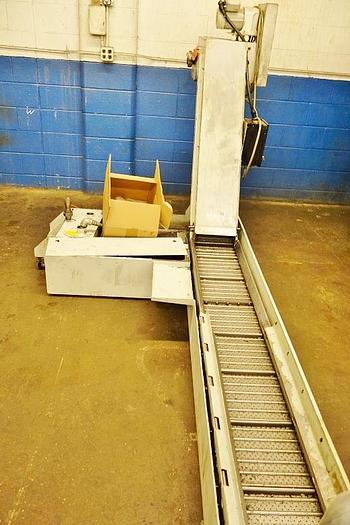

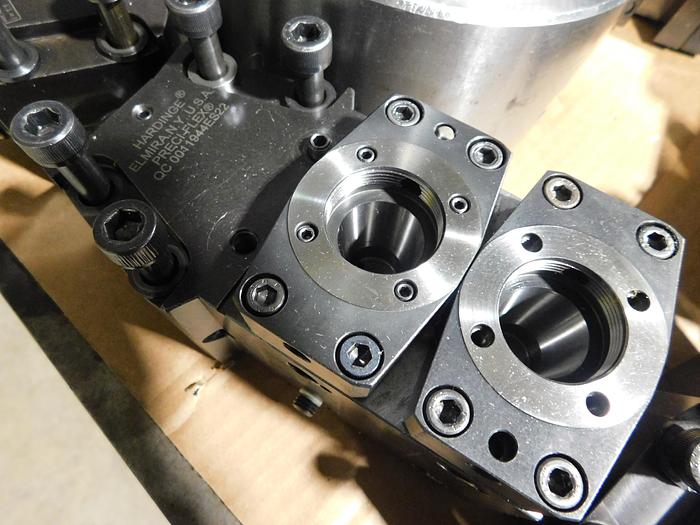

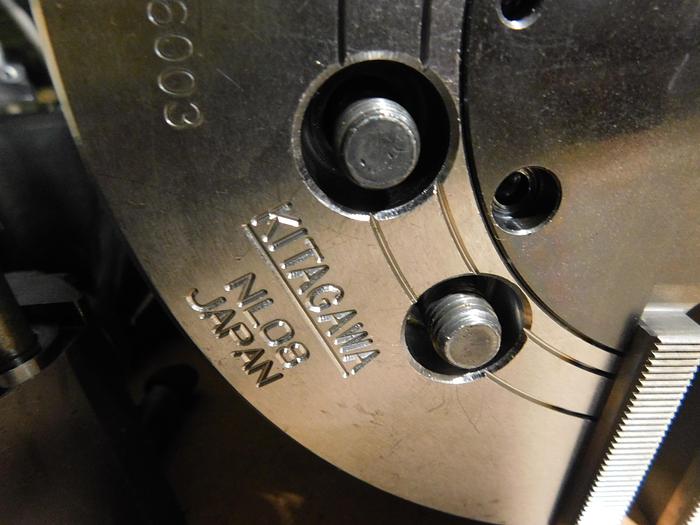

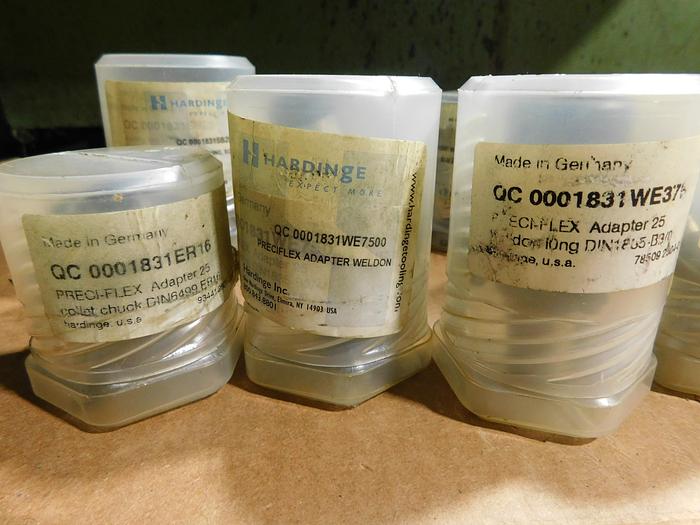

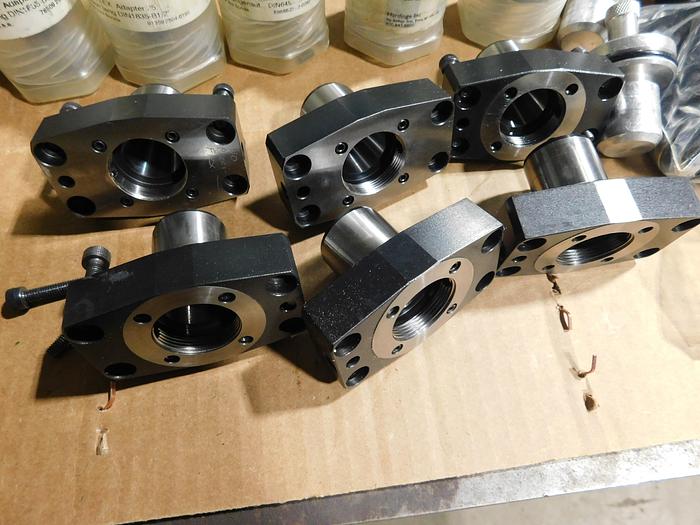

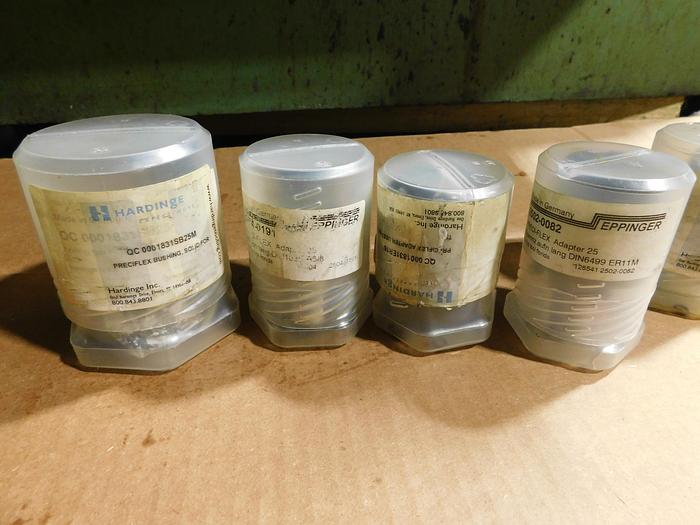

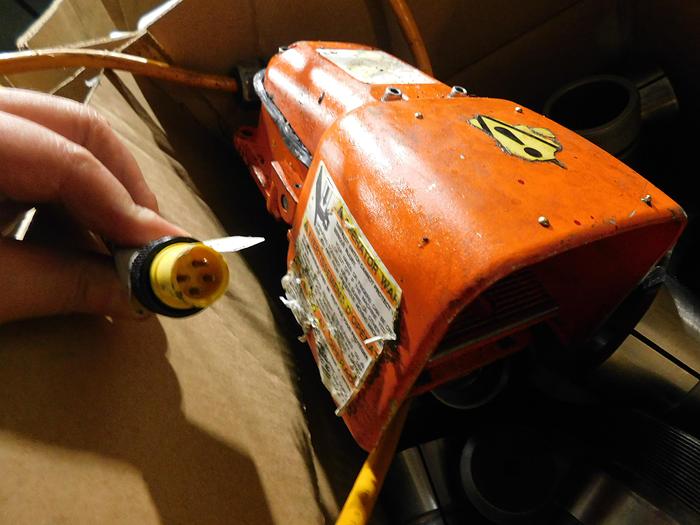

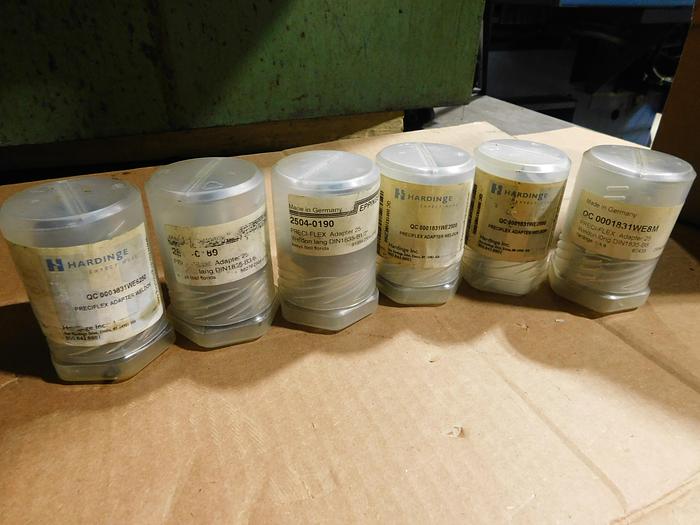

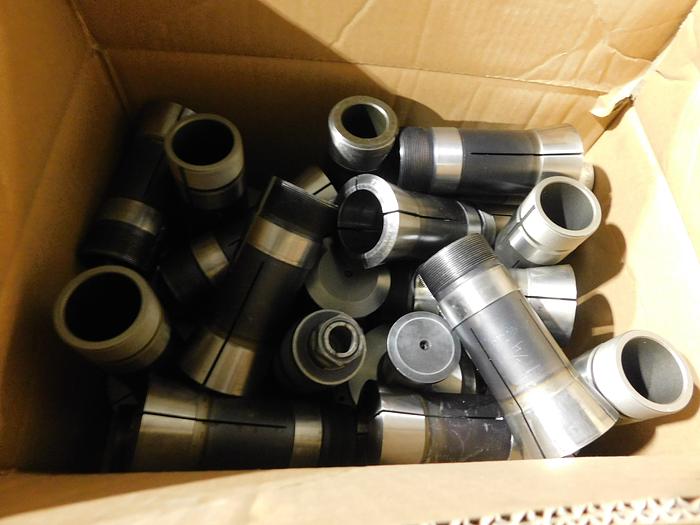

Equipped with: Chip Blaster, Coolant Tank, Chip Conveyor, Multiple Live Tools, Multiple Collets. LOTS of Tooling and Tool Holders, Kitagawa Chucks and All Available Manuals.

This machine will be sold AS-IS and AS-INSPECTED.

We can assist you in getting Rigging and Trucking Quotes for this machine.
