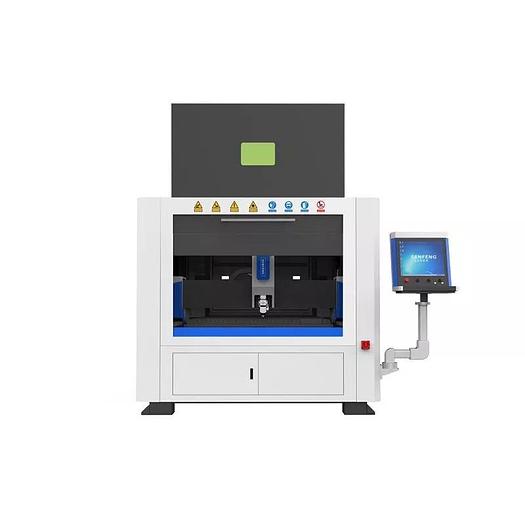

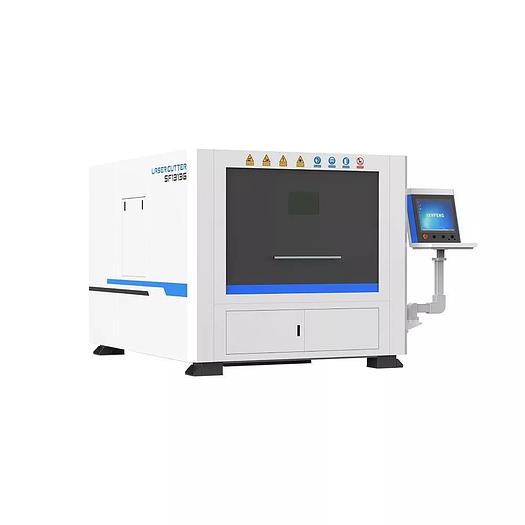

SF1313G-Fiber Laser Metal Sheet Cutter – 4’ x 4′
SF1313G-Fiber Laser Metal Sheet Cutter – 4’ x 4′
Contact us for price
New Hope, MN
Description
SF1313G
-1,500w
-3,000w
SF1313G-Fiber Laser Cutter-4’x4′ Introduction SF1313G Fiber Laser Cutter has a 4’x4′ cutting table. Built with a full enclosure to reduce dust and laser emissions. This Fiber laser cutter has the smallest foot print in our line machines. These are available in 1.5KW to 3KW Laser power options. This machine requires 208v @ 200a 3ph / 480v @ 100a 3ph electrical input. Technical parameter Cutting material and thickness Application Materials Carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized steel, silicon steel plate, electrolytic plate, titanium alloy, manganese alloy.
Specifications
Model | SF1313G small fiber laser cutting machine |
Condition | New |
Working area l x w | 51.18″ x 51.18″ |
Laser power | 1.5KW / 3KW |
Maximum movement speed | 262′ /min |
X/y axis positioning accuracy | ±0.05mm/m |
X/y axis repeated positioning accuracy | ± 0.02mm |
