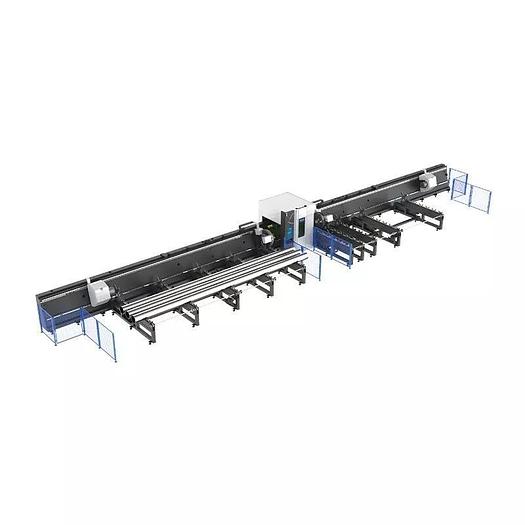

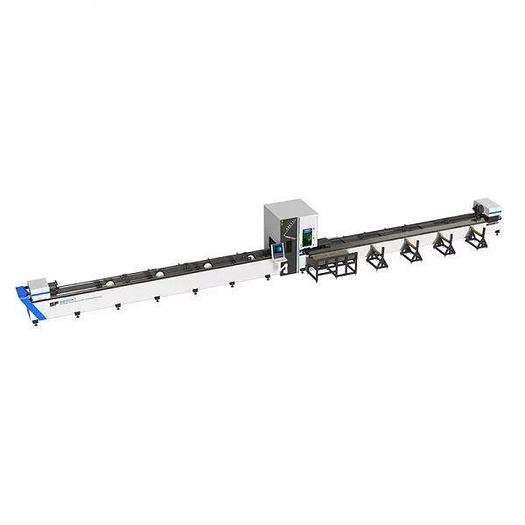

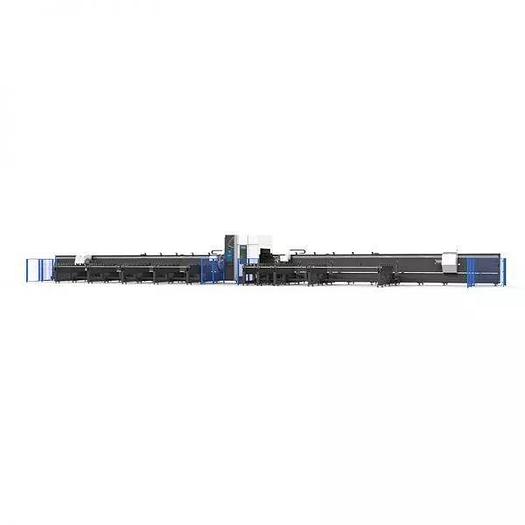

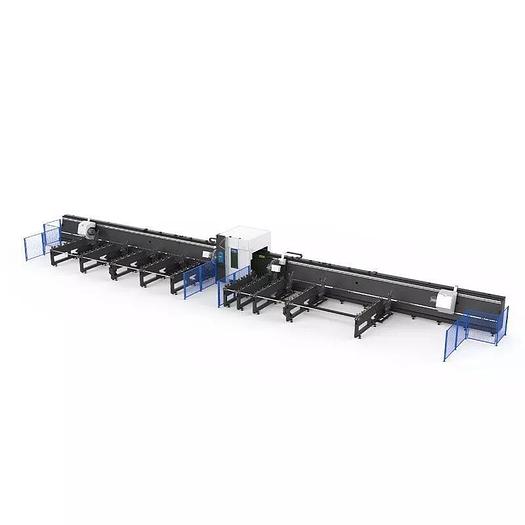

SF12038HT-Tube Laser Cutter Four-Chuck 7″-14.96″Dia.
SF12038HT-Tube Laser Cutter Four-Chuck 7″-14.96″Dia.
Location:New Hope, MN
Description
SF12038HT
-6,000w
OR
-12,000w
OPTIONAL
-Loader & Unloader
SF12038HT-Tube Laser Cutter-Four-Chuck 7″-14.96″ INTRODUCTION 12038HT Tube Laser Cutter is designed for ultra heavy tubes and profiles with laser power ranging from 6kW to 12kW. With its side-attached machine bed, it can achieve better stability, larger loading capacities and greatly improve shock resistance ensuring cutting accuracy. This machine requires 208v @ 200a 3ph / 480v @ 100a 3ph electrical input. SF12038HT TUBE LASER CUTTING MACHINE TECHNICAL PARAMETERS SF12038HT TUBE LASER CUTTER ADVANTAGES WIDE RANGE OF PROCESSING CAPABILITY Diameter of Round Tube:7.08″-14.96″Max. Diameter of Square Tube:7.08″ x 10.23″Max. FAST AND ACCURATE TUBE CUTTING Senfengs’ SF12038HT Tube Laser provides a great combination of stable performance and accurate cutting speed. Machines come with; Raycus laser power source, our engineered laser cutting head, Advanced CNC Bus system, 4-chuck rigid stability and compatible with “Tubest” 3D nesting software. Achieving most efficiency and minimal waste. SF12038HT TUBE LASER CUTTING MACHINE MAIN CONFIGURATION Four-Chuck Clamping Features: Four pneumatic chucks provide the tube cutter with big clamping force, securing heavy tubes with stability and ease. Four chucks can allow cutting in reverse. Providing whole pipe processing of long tubes, achieving zero tailings for larger materials. The chuck adopts a pneumatic self-centering structure, with greater clamping force and fast clamping speed. “Tubepro” Tube Cutting Software + “Tubest” Nesting Software FSCUT5000A is a bus control system that is specially developed for tube processing, especially suitable for four-chuck tube cutter. It supports the cutting of round tube, square tube, rectangular tube, L-shaped steel, U-shaped steel and H-shaped steel with high-precision and high-efficiency. “TubePro” is designed for professional tube cutting, supporting the production of tubes and profiles of various shapes. It works with “Tubest” nesting software seamlessly to produce; technique settings, advanced toolpath generations, nesting for standard and special production needs. CUTTING SAMPLES Cutting material: Carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized steel, silicon steel, electrolytic steel, titanium alloy, manganese alloy, etc
Specifications
Model | SF12038HT |
Condition | New |
Length | 10′-40′ |
Loading capacity | max: 2,200 lbs |
Pipe processing range | 10’L to 40’L x 7.08″-14.96″Max Dia. (Square tube: 7.08″ x 7.08″-10.23″ x 10.23″) |
Laser power(kw) | 6KW / 12KW |
Maximum speed | 164’/min |
Positioning accuracy | ±0.05mm |
Repeated positioning accuracy | ±0.02mm |
Maximum rotational speed | 40 rpm |
Maximum acceleration | 0.4G |
Table maximum load | 2,200 lbs |
