SF9035NT Tube Laser Cutting Machine 3KW-6KW Zero Tailing
SF9035NT Tube Laser Cutting Machine 3KW-6KW Zero Tailing
Contact us for price
New Hope, MN
Description
SF9035NT
-3,000w
OR
-6,000w

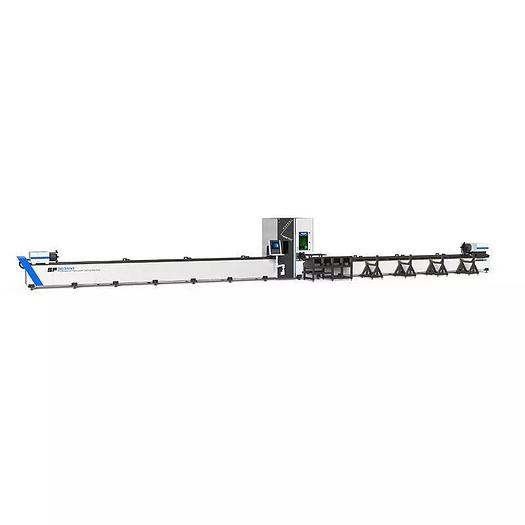

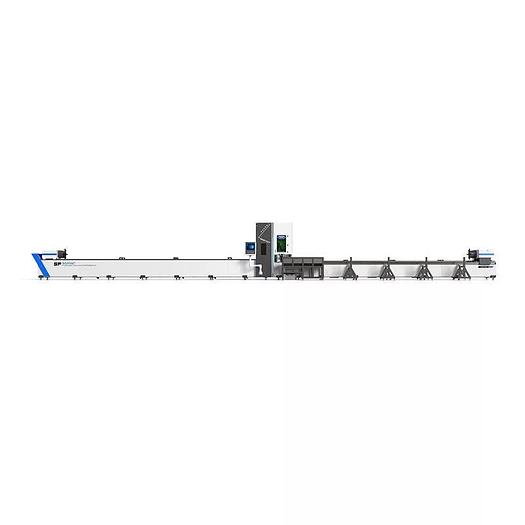

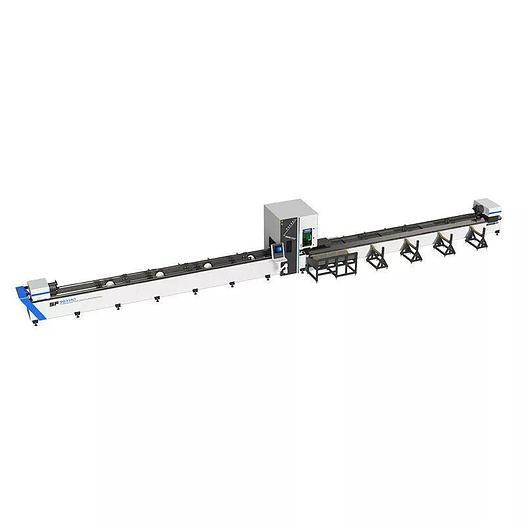

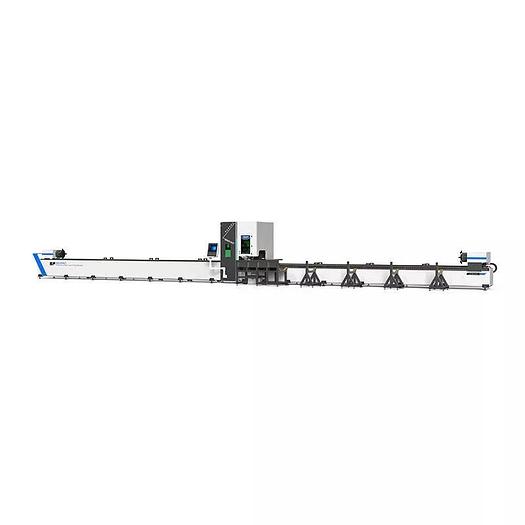

SF9035NT Tube Laser Cutting Machine 3Kw-6Kw Zero Tailing INTRODUCTION 9035NT is a tube laser cutting machine with larger processing capacity: tube length increased to 30′ Length and up to 13.77″ Diameter, cutting different profiles, such as round tube, square tube, rectangular tube, L-shape, U-shape and H-shape profiles. With a moving chuck in the middle, our three-chuck design can ensure actual “0” tailing with better accuracy and stable performance. Advanced bus CNC system and cutting software achieve high-speed cutting. This machine requires 208v @ 200a 3ph / 480v @ 100a 3ph electrical input. TECHNICAL PARAMETERS SF9035NT TUBE LASER CUTTER ADVANTAGES 30′ whole tube loading and cutting. No need to; prepare long tubes before cutting, saving time, increasing efficiency and production capacity. Three-chuck clamping features: movable two-sided chuck to provide zero-tailing. With strong clamping force, theirs no loosening or slipping of long and heavy tube or pipe, resulting in more precise cutting.
Specifications
Condition | New |
Pipe processing range | 30′ Max Length x 0.8″-13.77″ Max Diameter |
(square tube | 0.8″ x 0.8″-13.77″ x 13.77″) |
Laser power(kw) | 3KW / 6KW |
Maximum speed | 196.8′ /min |
Positioning accuracy(mm) | ±0.05 |
Repeated positioning accuracy(mm) | ±0.02 |
Maximum rotational speed | 60rpm |
Maximum acceleration(g) | 0.4 |
Table maximum load | 1,540 lbs |
